Main Image
ST122DVIA
2 Port DVI Splitter with Audio
Split a DVI source with audio to two displays
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port DVI Splitter with Audio Product Number ST122DVIA UPC 065030839563 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Video Switches & Splitters Category Level 1 Video Display Connectivity Category Level 2 Video Splitters Category Level 3 DVI Splitters Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 2 Port DVI Video Splitter with Audio Product Title (Medium) x Product Title (Standard) 2 Port DVI Video Splitter with Audio, TAA Product Title (Long) 2 Port DVI Video Splitter with Audio - TAA Product Title (AMZ) 2 Port DVI Video Splitter with Audio - DVI Splitter with Audio - 2 Port DVI Splitter - DVI Video Splitter , TAA (ST122DVIA) Title Ingram (Part 1) 2 Port DVI Video Splitter with A Title Ingram (Part 2) udio Website Product Headline Split a DVI source with audio to two displays Bullet 1 Accurate and reliable reproduction of digital video signal, with no signal attenuation or distortion Bullet 2 Easy setup for a quick connection in minutes Bullet 3 DVI, and HDCP compliant for easier HD video distribution Bullet 4 Supports resolutions of up to 1920 x 1200 pixels @ 60 Hz Bullet 5 Split both video and 3.5mm analog stereo audio Bullets (Consolidated) Video/audio splitter - 2 x DVI + 2 x audio - desktop Marketing Copy Applications - Connect DVI projectors, monitors, large displays, and wall display systems for digital signage applications and ensuring content is delivered to target audience.
- Great for use in tradeshows, POS retail, healthcare, transportation terminals, education, house of worship.
Website Search Keyword - Digital Video Interface Splitter
- DVI Video Distribution
- Digital Video Distribution
- DVI Split
- DVI Video and Audio Distribution
- DVI Distribution Amplifier
- DVI Splitter
- DVI to HDMI Splitter
- DVI to HDMI Distribution Amplifier
- B116-002A
- B116-002A-INT
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - DVIMM6
- DVIDSMM10
- DVIDSMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- SVA12M2NEUA
- SVA12M5NA
Related Products ST124DVIA Input Current 0.6A Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 181.400 Product Width (mm) 85.200 Product Height (mm) 20.000 Product Weight (g) 401.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Max Distance 10m [33ft] Maximum Digital Resolutions 1920x1200 @ 60Hz Wide Screen Supported Yes AV Input DVI AV Output DVI Cabling DVI Industry Standards DVI 1.0, and HDCP 1.1 LED Indicators - 1 - Green - Power/Link
- 2 - Green - Link

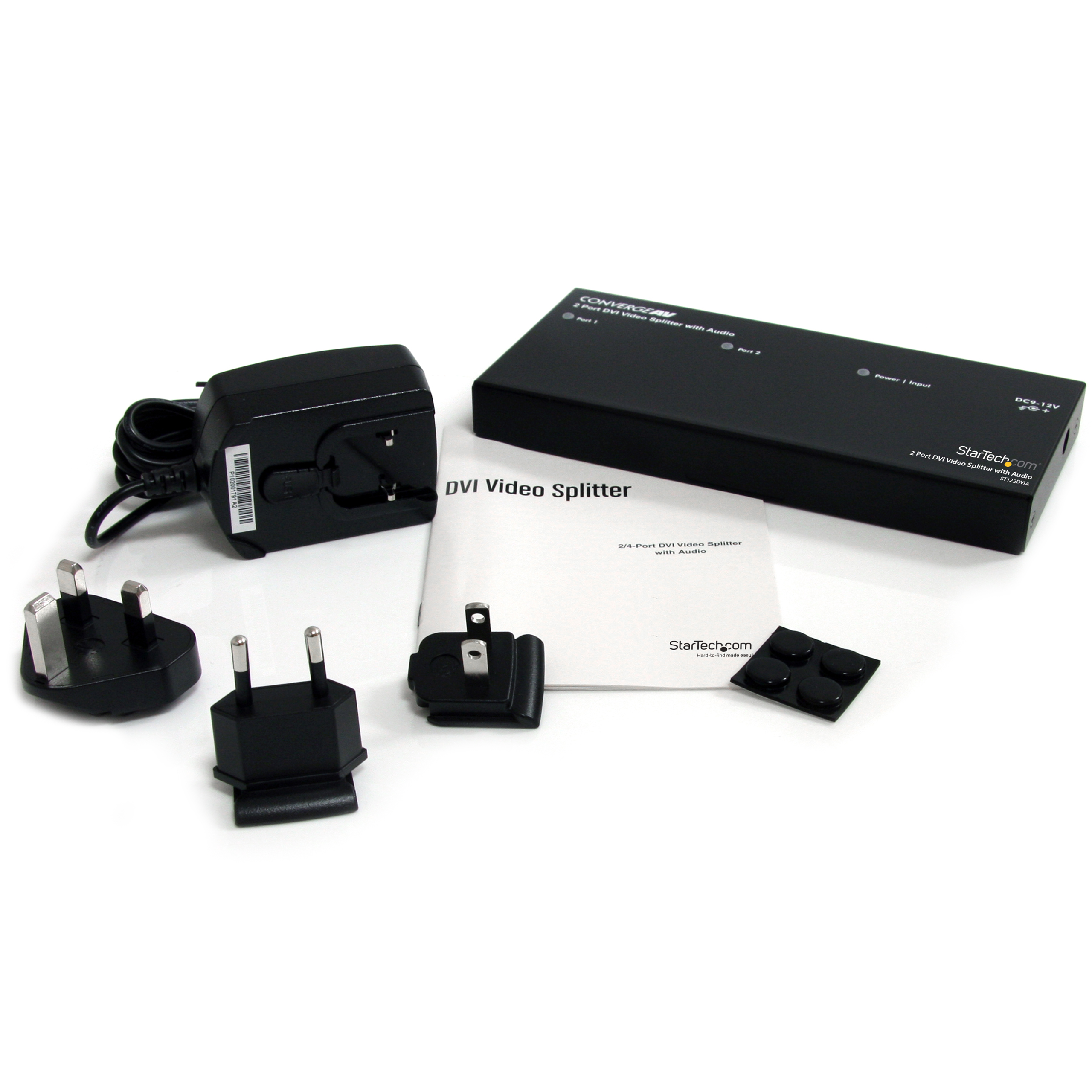

Carton Depth (mm) 324 Carton Height (mm) 260 Carton Quantity 12 Carton Weight Gross (g) 9478 Included in Package - 1 - DVI splitter
- 1 - instruction manual
- 1 - universal power adapter (NA, EU, UK, ANZ)
- 4 - rubber feet
Package Depth (mm) 100 Package Height (mm) 100 Package Width (mm) 221 Package Quantity 1 Package Weight (g) 716 Packaging Description 2 Port DVI Video Splitter with Audio Packaging Description India 2 Port DVI Video Splitter with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 1 Connector 3 DVI-I Dual-Link (29-Pin) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
