ST122DVIDL

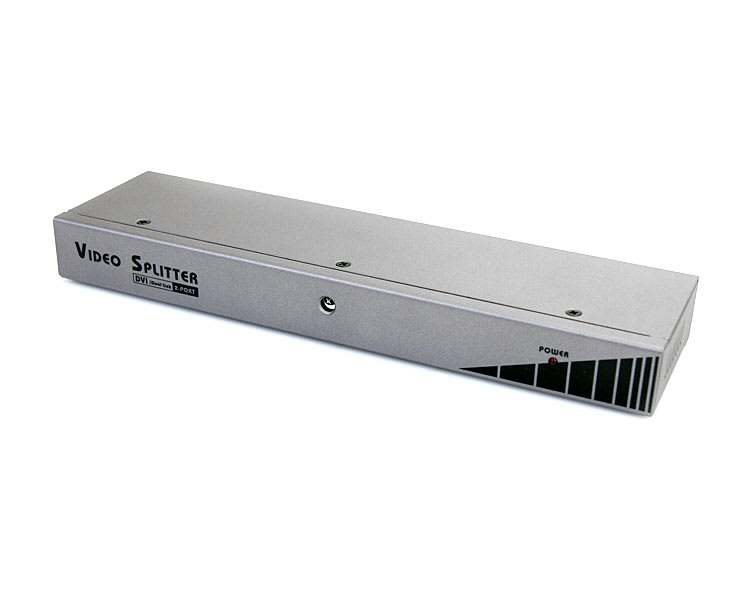

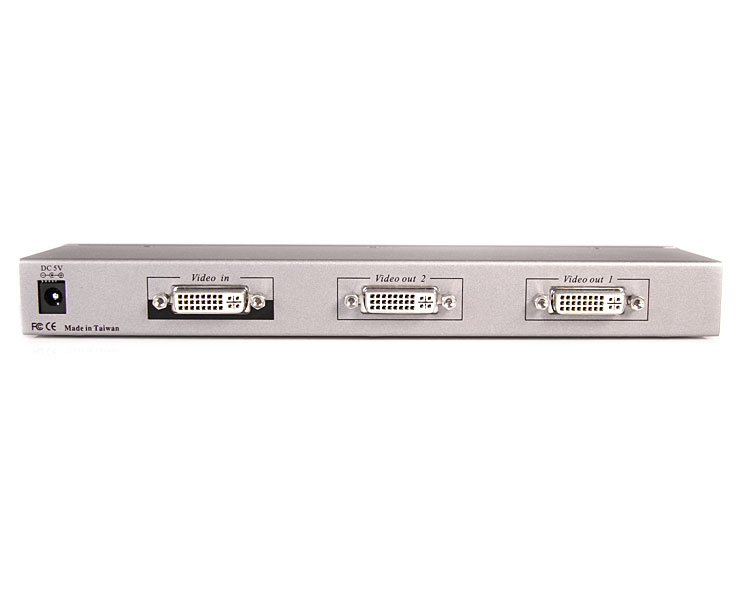

2 Port Dual Link DVI Video Splitter
Split a Dual Link DVI video signal to two displays with support for HD resolutions and beyond
Main Image
Product Images
Product Name 2 Port Dual Link DVI Video Splitter Product Number ST122DVIDL UPC 065030840583 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) 1 Product Title (Short) 2 Port Dual Link DVI Video Splitter Product Title (Standard) 2 Port Dual Link DVI Video Splitter Product Title (Long) 2 Port Dual Link DVI Video Splitter Title Ingram (Part 1) 2 Port Dual Link DVI Video Split Title Ingram (Part 2) ter Website Product Headline Split a Dual Link DVI video signal to two displays with support for HD resolutions and beyond Bullet 1 Accurate and reliable reproduction of digital video signals without signal attenuation or distortion Bullet 2 DVI and HDCP compliant for easier HD video distribution Bullet 3 Easy setup for a quick connection in minutes Bullet 4 Supports dual link DVI resolutions up to 2560x1600 pixels @ 60 Hz Bullet 5 Includes an IR remote for toggling power per port on/off Marketing Copy Applications - Connect DVI projectors, monitors, large displays, and wall display systems for digital signage applications and ensuring content is delivered to target audience.
- Great for use in tradeshows, POS retail, healthcare, transportation terminals, education, house of worship.
Website Search Keyword - Digital Video Distribution
- Digital Video Interface Splitter
- DVI Distribution Amplifier
- DVI Split
- DVI Splitter
- DVI to HDMI Distribution Amplifier
- DVI to HDMI Splitter
- DVI Video and Audio Distribution
- DVI Video Distribution
- DVI High Bandwidth
- DVI Dual Link
- DVI-D DL
- Dual-Link Splitter
- High Resolution DVI
Special Notes Supports DVI-D (Digital Only) signaling; DVI-I cable can be used but signal must be digital Accessory Products - DVIDSMF10
- DVIDSMF15
- DVIDSMF6
- DVIDSMM10
- DVIDSMM15
- DVIDSMM20
- DVIMM6
- HDMIDVIMM10
- HDMIDVIMM6
Related Products ST122DVIA Output Current 2A Output Voltage (V) 5 DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 238 Product Width (mm) 65.59 Product Height (mm) 26 Product Weight (g) 500 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Max Distance 10m [33ft] Maximum Digital Resolutions 2560x1600 Wide Screen Supported Yes AV Input DVI AV Output DVI Cabling DVI Industry Standards DVI 1.0, and HDCP 1.1 LED Indicators 1 - Red - Power Included in Package - 1 - DVI Splitter
- 1 - Instruction Manual
- 1 - Power Adapter
- 1 - IR Remote
Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 1 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 2 en-US Content Approved Yes
