Main Image

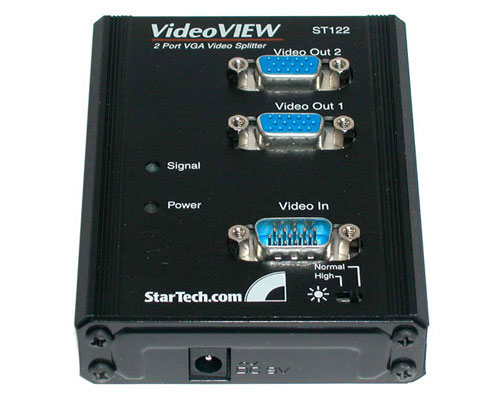

ST122GB
Main Image
Product Name 2 Port VGA Video Splitter Product Number ST122GB UPC 065030797276 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Product Title (Long) 2 Port VGA Video Splitter Bullet 1 Compatible with VGA, SVGA and Multisync monitors Bullet 2 250 MHz bandwidth provides brilliant 1600 x 1200 resolution Bullet 3 Daisy chainable for almost unlimited expansion Bullet 4 Includes AC 120V power adapter Bullet 5 Uses standard monitor extension cables (StarTech.com coaxial VGA cables recommended for best picture quality) Marketing Copy Applications - In-store product merchandising
- Information booths/kiosks
- Trade-shows
- Lecture halls and classrooms
- Airports, bus terminals and train stations
Accessory Products - MXT101HQ
- MXT105HQ
- MXT101HQ_25
- MXT101HQ_50
- MXT101HQ_100
- MXT101HQ_150
- MXT101HQ_200
- SVPOWER
- ST121UTPGB
- ST124UTPGB
Related Products ST124PROGB Replacement Product ST122PROGB Input Current 1.5 Input Voltage 7.5 Power Source AC Adapter Included Color Black Product Length (mm) 104 Product Width (mm) 98 Product Height (mm) 24 TAA Compliant No General Specifications - Signal Type: VGA, SVGA, Multisync Monitor
- Cable Length: 210 feet (65 meters)
- Input Connector: 1 x High Density DB15 Male
- Output Connectors: 2 x High Density DB15 Female
- LEDs: Power, Signal
- Enclosure: Metal
- Power: DC 9V 300mA (max) Adapter included
- Dimensions: 104 x 98 x 24 mm
- Weight: 190g
- VGA Bandwidth (-3dB): 250 MHz
- VGA Resolution (max.): 1600 x 1200 @ 70Hz
Maximum Analog Resolutions 1600x1200 Connector 1 VGA Connector 1 (Quantity) 3 Connector 2 VGA Connector 2 (Quantity) 1 en-US Content Approved Yes
