Main Image
ST122HD20
2 port HDMI 2.0 splitter
Connect your HDMI audio/video source to two displays simultaneously, using this HDMI splitter box that supports 4K at 60Hz resolution
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 port HDMI 2.0 splitter Product Number ST122HD20 UPC 065030866019 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Splitters Category Level 3 HDMI Splitters - 4K HDR Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX035X Product Title (Ultra-Short) 1x2 HDMI 4K Splitter Product Title (Short) Splitter 4K HDMI 2 Port 4K 60Hz Product Title (Medium) 4K HDMI Splitter - HDMI Splitter 1 In 2 Out - 2-Port - 4K 60Hz Product Title (Standard) 4K HDMI Splitter - 2-Port HDMI Splitter 1 In 2 Out - HDMI Splitter Box - 2-Port - 4K 60Hz Product Title (Long) 4K HDMI Splitter - HDMI Splitter 1 In 2 Out - 2-Port - 4K 60Hz Product Title (AMZ) HDMI Splitter – 2–Port – 4K 60Hz – HDMI Splitter 1 In 2 Out – 2 Way HDMI Splitter – HDMI Port Splitter (ST122HD20) Title Ingram (Part 1) 1x2-Port HDMI Splitter - 4K Title Ingram (Part 2) HDMI Splitter Box - 4K 60Hz Website Product Headline Connect your HDMI audio/video source to two displays simultaneously, using this HDMI splitter box that supports 4K at 60Hz resolution Bullet 1 Astonishing picture quality with support for 4K 60Hz and HDR Bullet 2 Support for 7.1 surround sound audio Bullet 3 Tidy, professional installation with mounting hardware included Bullet 4 Supports 4:4:4 chroma subsampling even at 4K 60Hz with bandwidth up to 18Gbps Bullets (Compact) Connect your HDMI audio/video source to two displays simultaneously using this HDMI splitter box that supports 4K at 60Hz resolution - 4K HDMI splitter box - 1x2-Port HDMI splitter 1 in 2 out - 2-port HDMI splitter - HDMI 2.0 splitter Bullets (Consolidated) Connect your HDMI audio/video source to two displays simultaneously using this HDMI splitter box that supports 4K at 60Hz resolution - Astonishing picture with 4K 60Hz and HDR - Professional installation with mounting brakets - Works with 4K60 HDMI 2.0 sources like MacBook Pro HP ProBook 450 and 4K media players like 4K UHD Blu-ray players - 4K HDMI splitter box/1x2-Port HDMI splitter 1 in 2 out/4-port HDMI splitter/HDMI 2.0 splitter - Works with Samsung RM48D/S22C200B Philips BDL4260EL Marketing Copy Applications - Output and split your 4K 60Hz HDMI signal to two different HDMI displays
- Display corporate information or advertising on multiple displays at a shopping center
- Display the same information on multiple displays in the waiting rooms of healthcare facilities
- Distribute 4K60 video to computer monitors that require the highest quality of image detail, such as in control centers or video production studios
Website Search Keyword - education
- 4k
- retail
- HDMI splitter
- digital signage
- boardroom
- mounting bracket
- hdmi splitter 1 in 2 out
- Samsung RM48D
- Samsung S22C200B
- HDMI 2.0 splitter
- 4k hdmi splitter
- hdmi splitter box
- 2 Port HDMI splitter
- split hdmi signal
- HDMI 4K splitter
- Philips BDL4260EL
- split hdmi to 2 monitors
- split hdmi output
- two port hdmi splitter
- split hdmi signal to 2 tvs
- 4k hdmi splitter 1x2
- HDMI 2.0 splitter 4k
- HDMI 4K 60 splitter
- HP F0W81A8ABA
- 4k60 hdmi
- ACER UMIV6AAA02
- 2 port HDMI 2.0 splitter
- 2 Port HDMI Distribution Amplifier
- Viewsonic VA2446MLED
- split hdmi signal to 2 displays
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes This video splitter is not compatible with the AMD Radeon RX460 graphics card Accessory Products - HDMM1MP
- HDMM2MP
- HDMM3MP
Related Products - ST124HD20
- ST122HD4K
- ST124HD4K

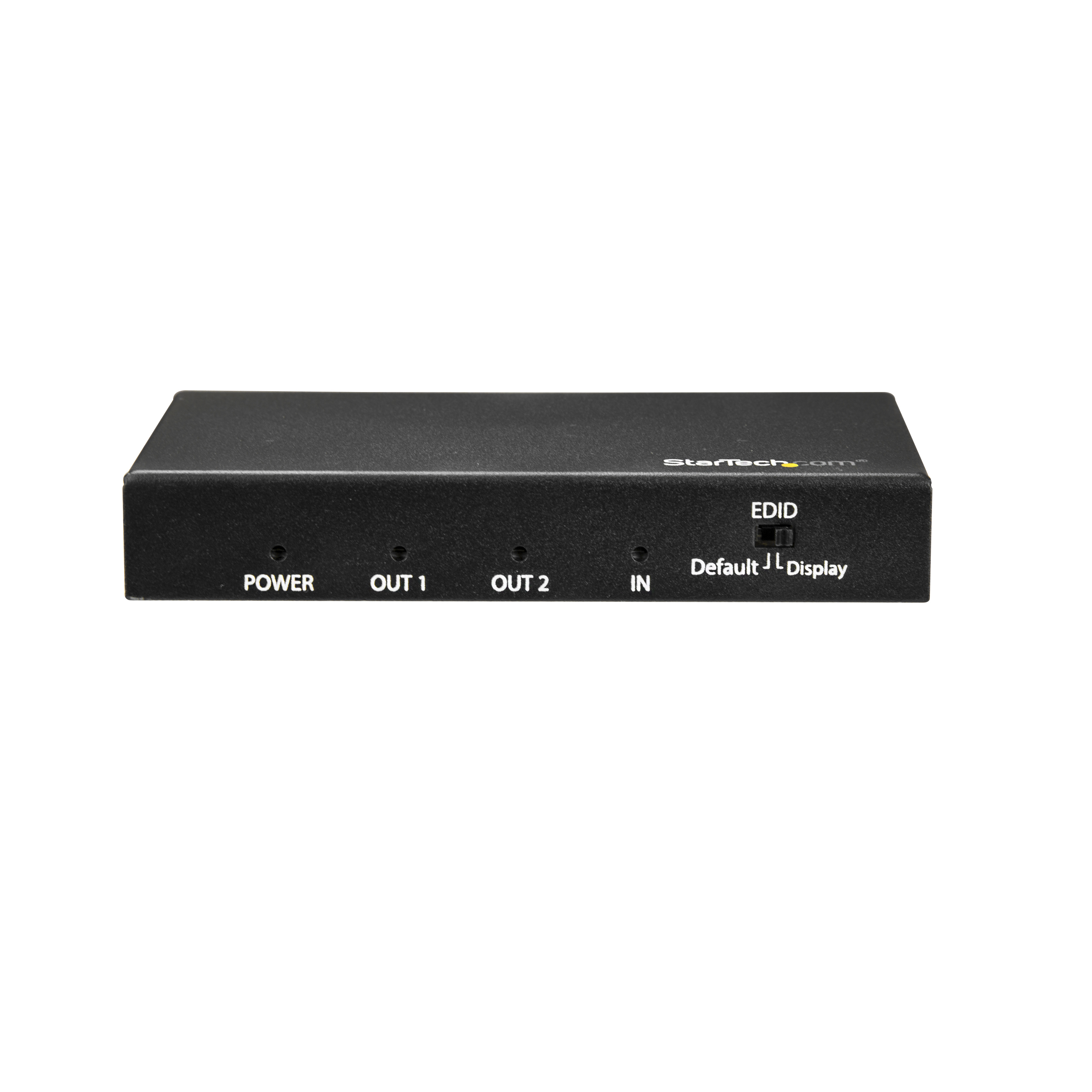

Replacement Product ST122HD202 Input Current 0.2 Input Voltage 100 - 240 AC Output Current 1 A Output Voltage (V) 5 DC Power Consumption (In Watts) 5 Color Black Humidity 20~90 % RH (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 100 Product Width (mm) 56 Product Height (mm) 17 Product Weight (g) 159 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Maximum Digital Resolutions Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Industry Standards HDMI 2.0 LED Indicators - 1 - power LED
- 1 - input LED
- 2 - output LEDs

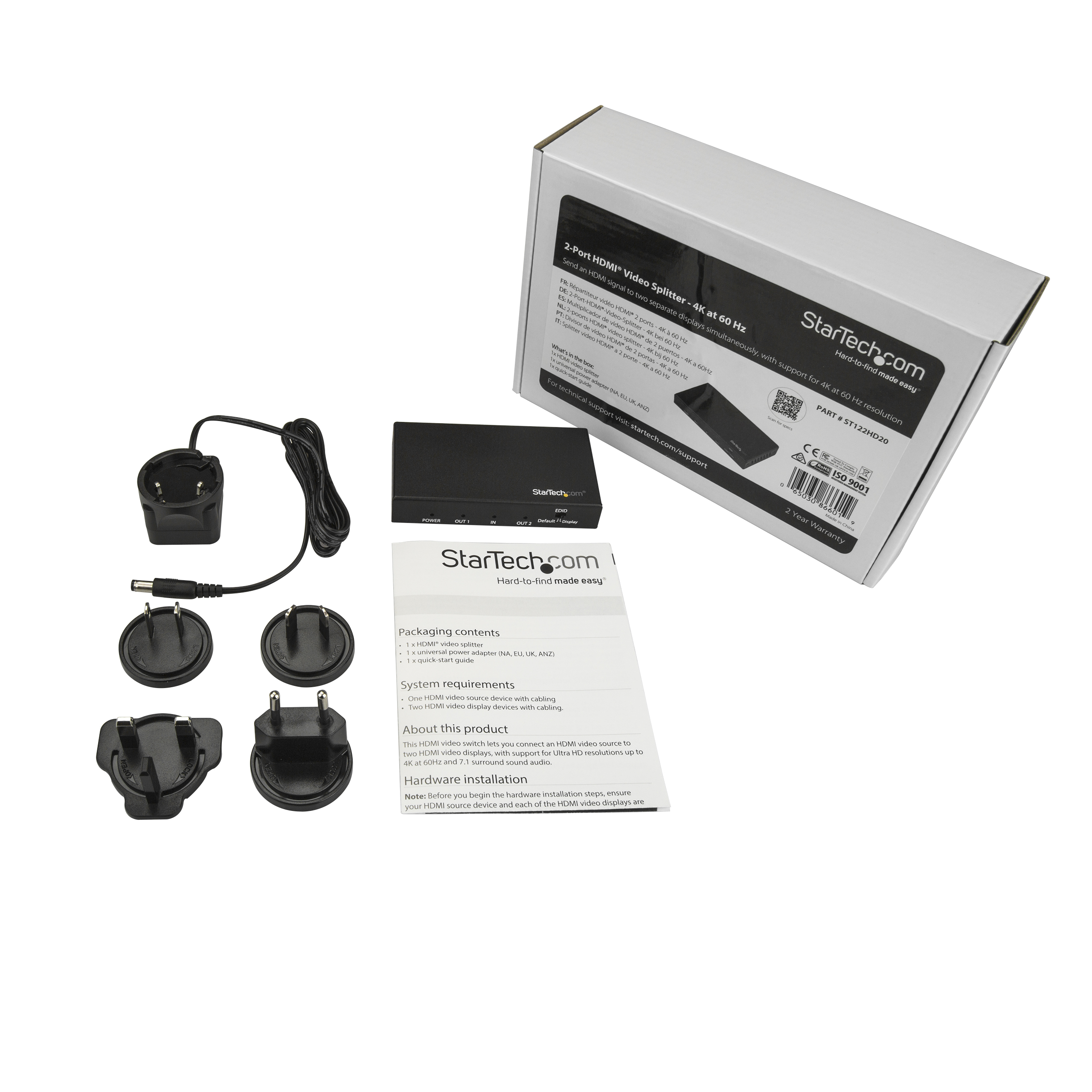

Matrix Video Switch (Filter) No Carton Depth (mm) 454 Carton Height (mm) 297 Carton Quantity 30 Carton Weight Gross (g) 12830 Included in Package - 1 - HDMI video splitter
- 1 - universal power adapter (NA, EU, UK, ANZ)
- 1 - quick-start guide
Package Depth (mm) 151 Package Height (mm) 57 Package Width (mm) 216 Package Quantity 1 Package Weight (g) 402 Packaging Description 2-Port HDMI® Video Splitter - 4K at 60 Hz Packaging Description India 2-Port HDMI® Video Splitter - 4K at 60 Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2016-10-07 Digital Content Due Date 2017-04-04 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Natalie Goodale Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-10-06 Target Production Release 2016-11-25 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy
