Product Name 2 Port HDMI Distribution Amplifier with HDCP Product Number ST122HDMI UPC 065030822220 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Short) 2 Port HDMI Video Splitter & Amplifier Product Title (Standard) StarTech.com 2 Port HDMI Video Splitter and Signal Amplifier Product Title (Long) 2 Port HDMI Video Splitter and Signal Amplifier Title Ingram (Part 1) 2 Port HDMI Video Splitter and S Title Ingram (Part 2) ignal Amplifier Bullet 1 Built-in EDID simulator and HDCP keyset allows each output to work independently when connecting to a HDMI display. Bullet 2 Splits an HDMI® source up to 2 outputs without signal loss. Bullet 3 Supports a wide range of PC and HDTV resolutions-from VGA to UXGA and 480p to 1080p. Bullet 4 Can be cascaded up to 3 layers Bullet 5 HDCP 1.1 Compliant Marketing Copy Applications - Connect HDMI® enabled projectors, monitors, plasma screens, commercial billboards, and wall display systems
- Ideal for classroom, corporate, healthcare, professional A/V, control centres, conference halls, and retail environments.
Website Search Keyword - 2 Port
- HDMI
- Distribution Amplifier
- HDCP
- ST122HDMI
Accessory Products - HDMIDVIMF
- HDMIDVIMM10
- HDMIMM10
- ZENDVIHDMI1
Related Products - ST124HDMI
- ST128HDMI
- HDMISPL1HH

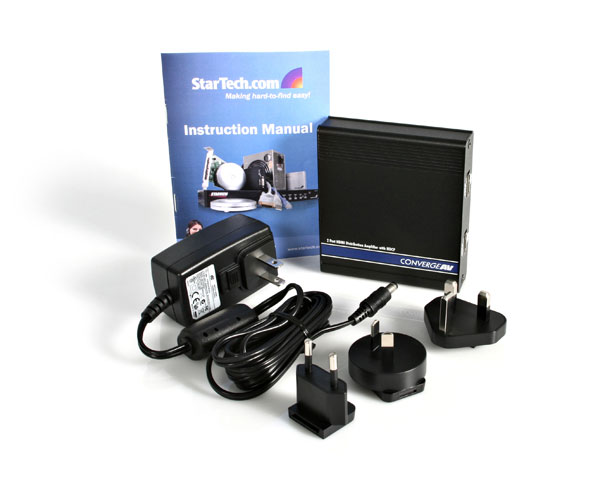

Input Voltage Universal 115 ~ 230 AC Output Current 2A Output Voltage (V) 5 DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Humidity 30~80% RH Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant No Bandwidth 1.65Gbps Maximum Digital Resolutions 1080p Supported Resolutions Wide Screen Supported Yes AV Input HDMI AV Output HDMI Cascadable Yes Industry Standards HDCP 1.1 Carton Depth (mm) 442 Carton Height (mm) 334 Carton Quantity 30 Carton Weight Gross (g) 16800 Included in Package - 1 - HDMI Distribution Amplifier
- 1 - Instruction Manual
- 1 - Power Adapter
Package Depth (mm) 60 Package Height (mm) 115 Package Width (mm) 210 Package Weight (g) 520 Packaging Description 2 Port HDMI Splitter Packaging Description India 2 Port HDMI Splitter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Eric Roth
