ST122L
2 - port 250MHz VGA Video Splitter
A compact solution for extending a high-resolution VGA signal from a computer between 2 monitors/displays or projectors
Main Image
Product Images
Product Images
BOM Image
Product Name 2 - port 250MHz VGA Video Splitter Product Number ST122L UPC 065030817455 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Short) 2 Port VGA Video Splitter - 250 MHz Product Title (Standard) StarTech.com 2-Port VGA Video Splitter/Distribution Amplifier Product Title (Long) 2 Port VGA Video Splitter - 250 MHz Product Title (AMZ) 2 Port VGA Video Splitter - 250 MHz (ST122L) Title Ingram (Part 1) 2 Port VGA Video Splitter - 250 Title Ingram (Part 2) MHz Website Product Headline A compact solution for extending a high-resolution VGA signal from a computer between 2 monitors/displays or projectors Bullet 1 Supports resolutions up to 1920x1440 Bullet 2 Maximum cable distance 210 feet (65m) Bullet 3 Supports Cascading up to 3 levels Bullet 4 250 MHz video bandwidth Bullet 5 Compatible with VGA, SVGA and Multisync monitors Bullets (Consolidated) A compact solution for extending a high-resolution VGA signal from a computer between 2 monitors/displays or projectors - Dual Port VGA Video Splitter - VGA monitor Splitter - 2 port VGA Splitter - computer Video Splitter - VGA distribution system - Supports resolutions up to 1920x1440 Marketing Copy Applications - Use for in-store product merchandising in retail environments to give your advertisements greater visibility
- Display travel schedules and alerts in airports, bus terminals and train stations
- Create engaging multimedia presentations for demonstration in lecture halls and classrooms
- Get your message across multiple displays for trade-shows or information booths/kiosks
- Quick and easy solution to split a video signal in an auditorium or house of worship
Website Search Keyword - 2 Port VGA Splitter
- 2 Port Video Splitter
- VGA Splitter
- Video Splitter
- Distribution Amplifier
Accessory Products - MXT101MMHQ10
- MXT101MMHQ25
- MXT101MMHQ50
- MXT101HQ
- SVA9M2NEUA
Related Products - ST124L
- ST128L
- ST122LE
- ST122W

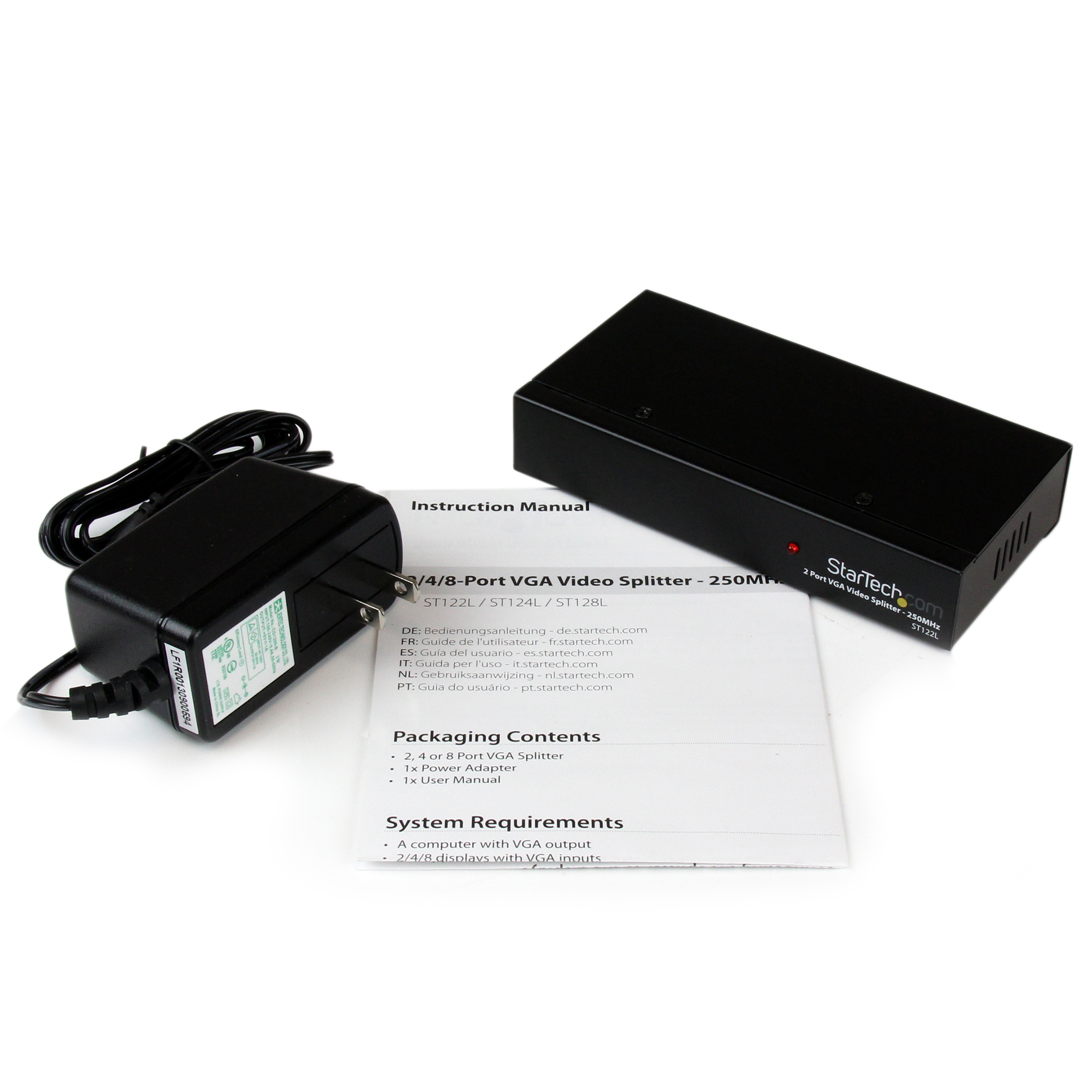

Replacement Product ST122PRO Equivalent Part Number in the EU ST122LEU Equivalent Part Number in the UK ST122LGB Input Current 0.3 Input Voltage 100 - 240 AC Output Current 0.8 Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~90% RH, non-condensing Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 65.024 Product Width (mm) 131.064 Product Height (mm) 25.908 Product Weight (g) 221 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Bandwidth 250 MHz General Specifications Male to Female VGA extension cable required (MXT101HQ) Maximum Analog Resolutions 1920x1440 Maximum Cable Length (mm) 65000 Audio No AV Input VGA AV Output VGA Cascadable Yes Carton Depth (mm) 428 Carton Height (mm) 301 Carton Quantity 10 Carton Weight Gross (g) 9600 Included in Package - 1 - Power Adapter
- 1 - 2 Port VGA Splitter
- 1 - User Manual
Package Depth (mm) 81 Package Height (mm) 190 Package Width (mm) 274 Package Quantity 1 Package Weight (g) 840 Packaging Description 2 Port VGA Video Splitter Packaging Description India 2 Port VGA Video Splitter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
