ST122LEA

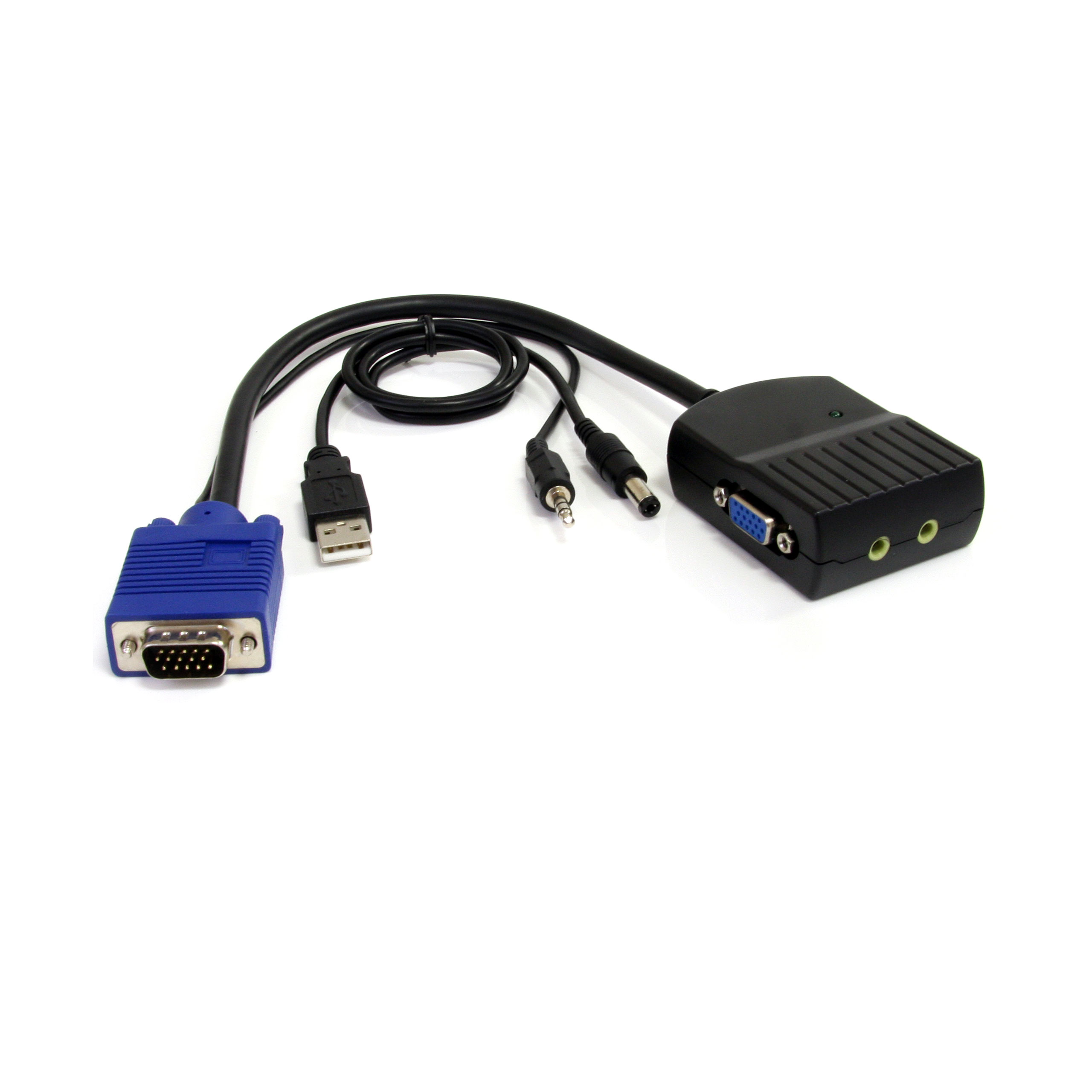

2 Port VGA Video Splitter w/ Audio
Split a VGA signal to 2 VGA monitors or projectors
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port VGA Video Splitter w/ Audio Product Number ST122LEA UPC 065030839778 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) 2 Port VGA Splitter w/ Audio USB Powered Product Title (Medium) x Product Title (Standard) 2 Port VGA Video Splitter with Audio - USB Powered Product Title (Long) 2 Port VGA Video Splitter with Audio - USB Powered Product Title (AMZ) 2 Port VGA Video Splitter with Audio - USB Powered - compact VGA Splitter - Dual Port VGA Splitter USB powered (ST122LEA) Title Ingram (Part 1) 2 Port VGA Video Splitter with A Title Ingram (Part 2) udio - USB Powered Website Product Headline Split a VGA signal to 2 VGA monitors or projectors Bullet 1 300 MHz bandwidth for high bandwidth fast moving video Bullet 2 Supports stereo audio using 3.5mm audio jacks Bullet 3 Maximum distances up to 65 meters (210 feet) Bullet 4 Compact, space-saving design Bullet 5 Includes USB power cord Bullets (Consolidated) USB Powered - Video/audio splitter - 2 x VGA + 2 x audio - desktop Marketing Copy Applications - Ideal for small digital signage installations with minimal space or power outlets - simply plug into a USB port
- Use for in-store product merchandising in retail environments to give your advertisements greater visibility
- Display travel schedules and alerts in airports, bus terminals and train stations
- Create engaging multimedia presentations for demonstration in lecture halls and classrooms
- Get your message across multiple displays for trade-shows or information booths/kiosks
- Quick and easy solution to split a video signal in an auditorium or house of worship
Website Search Keyword - 2 port
- hub
- VGA splitter
- video splitter
- Video distribution
- A/V splitter
- VGA Hub
- VGA and Audio Distribution
- VGA and Audio Splitter
- Bus Powered VGA Splitter
- Passive VGA Splitter
- Passive VGA Distribution
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - USB2TYPEM
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
Related Products - ST122L
- ST122LE
- ST122W
- ST122PRO
Output Current 0.5A Output Voltage (V) 5 DC Power Source USB-Powered Color Black Humidity 0~95% RH Material Plastic Operating Temperature 0°C to 70°C (32°C to 158°C) Product Length (mm) 68.000 Product Width (mm) 53.000 Product Height (mm) 23.000 Product Weight (g) 111.000 Storage Temperature -20°C to 85°C (-4°C to 185°C) TAA Compliant Yes Maximum Analog Resolutions 2048x1536 Maximum Cable Length (mm) 65000 Wide Screen Supported Yes Audio Yes AV Input VGA AV Output VGA Cabling Cat 5 UTP or better Industry Standards DDC, DDC2, DDC2B, on Video Out Port 1 LED Indicators 1 - Green - Power Carton Depth (mm) 314 Carton Height (mm) 227 Carton Quantity 20 Carton Weight Gross (g) 5672 Included in Package - 1 - USB to DC power cable
- 1 - User Manual
- 1 - Video Splitter
Package Depth (mm) 210 Package Height (mm) 47 Package Width (mm) 145 Package Quantity 1 Package Weight (g) 246 Packaging Description 2 Port VGA Splitter with Audio - USB Powered Packaging Description India 2 Port VGA Splitter with Audio - USB Powered Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,JP,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
