ST122PROA

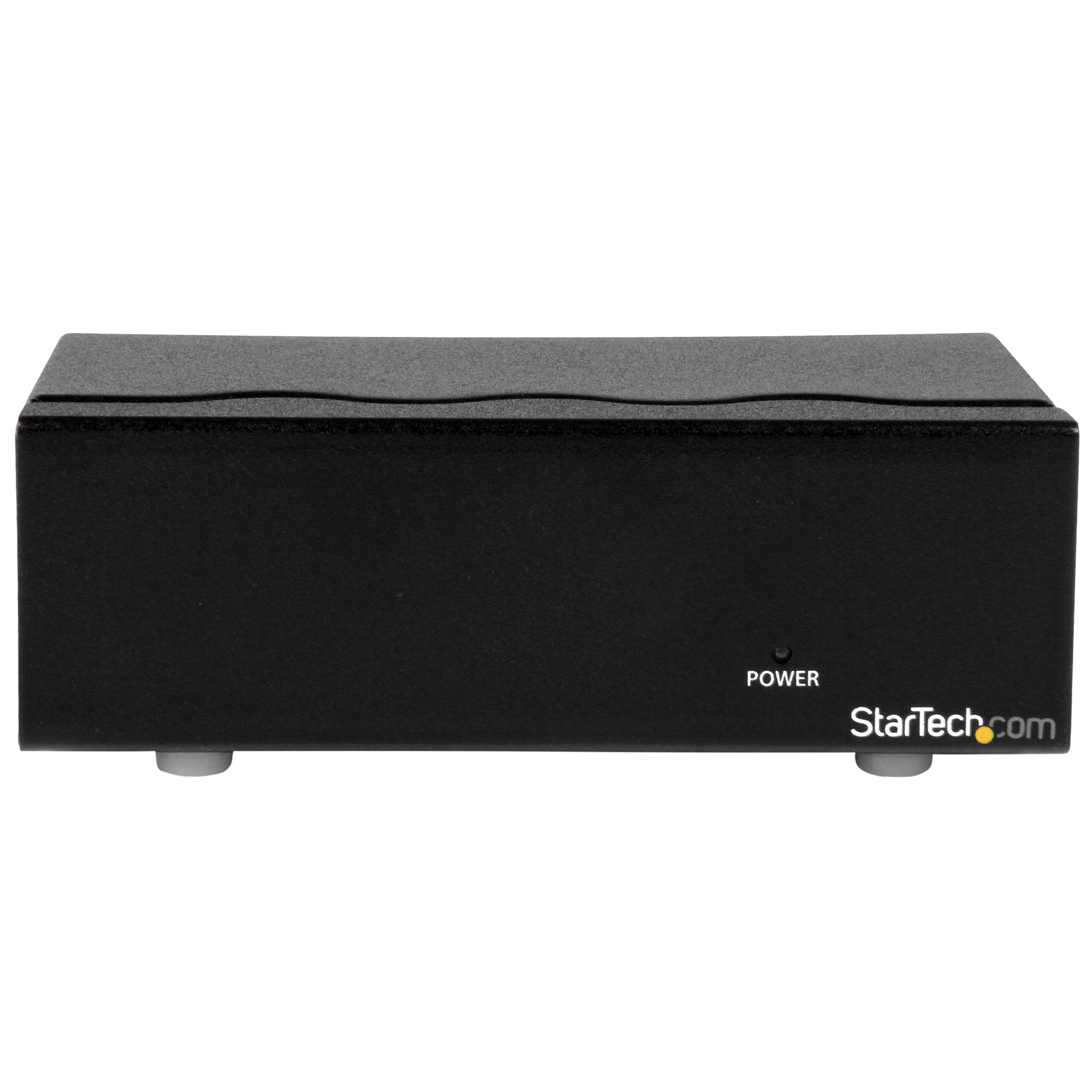

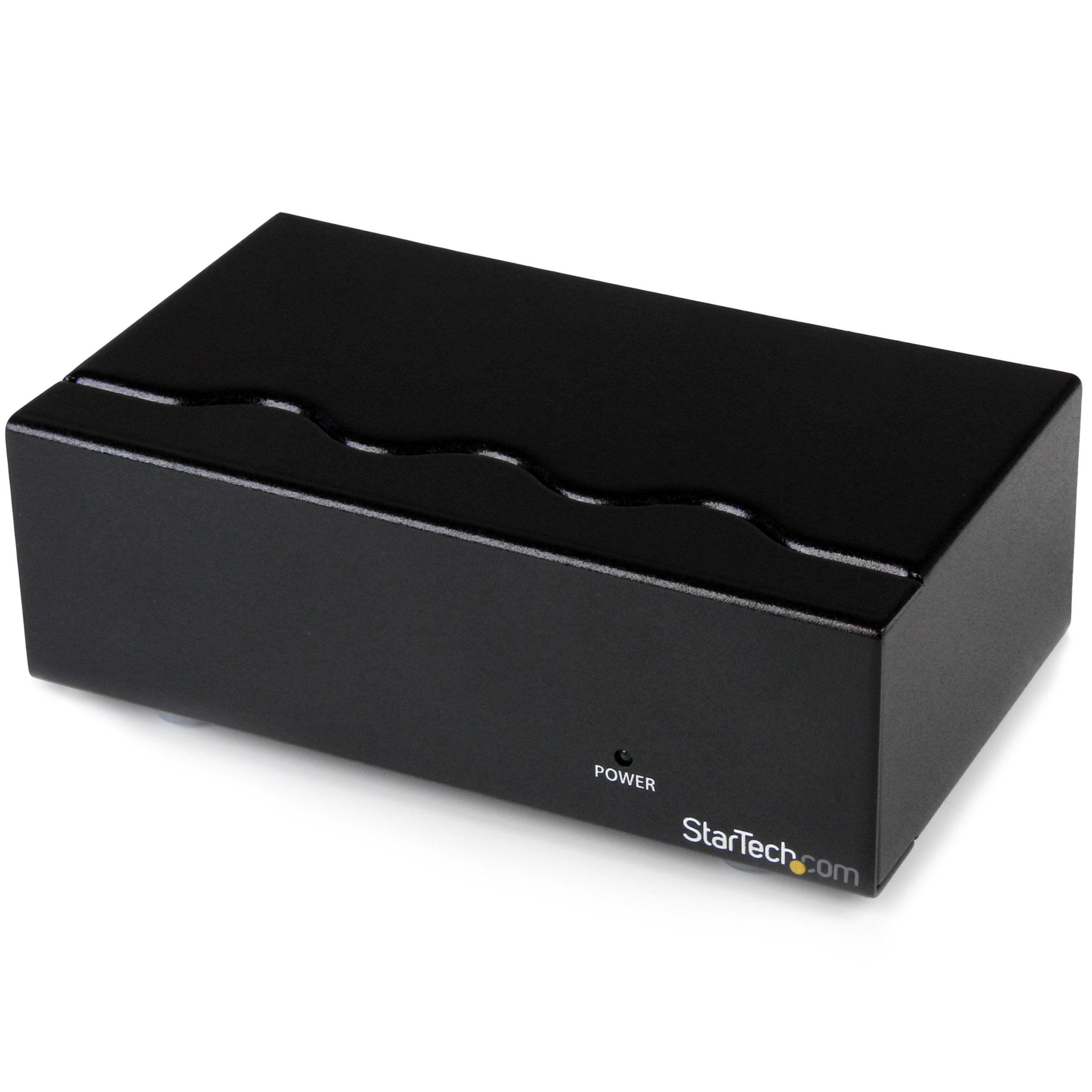

2/ port VGA Video Splitter with Audio
Split a single, high-resolution VGA video signal with audio to 2 monitors or projectors
Main Image
Product Images
Product Images
BOM Image
Product Name 2/ port VGA Video Splitter with Audio Product Number ST122PROA UPC 065030805209 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) 2 Port VGA Video Splitter with Audio Product Title (Standard) StarTech.com 2 Port High Resolution 400 MHz VGA Video and Audio Splitter - Video/audio splitter - 2 ports Product Title (Long) 2 Port High Resolution VGA Video Splitter with Audio - 400 MHz Product Title (AMZ) 2 Port High Resolution VGA Video Splitter with Audio - 400 MHz (ST122PROA) Title Ingram (Part 1) 2 Port High Resolution VGA Video Title Ingram (Part 2) Splitter with Audio 400 MHz Website Product Headline Split a single, high-resolution VGA video signal with audio to 2 monitors or projectors Bullet 1 Compatible with VGA, SVGA and Multisync monitors Bullet 2 400 MHz bandwidth provides brilliant 2048 x 1536 resolution Bullet 3 DDC, DDC2 & DDC2B compatible (on Video Out port 1) Bullet 4 Includes DC 7.5V power adapter Bullet 5 Daisy chainable for almost unlimited expansion Bullets (Consolidated) 400 MHz - Video/audio splitter - desktop - for P/N: ST121RGB - ST121EXTGB - ST121R - ST121EXT Marketing Copy Applications - In-store product merchandising
- Information booths/kiosks
- Trade-shows
- Lecture halls and classrooms
- Airports, bus terminals and train stations
Website Search Keyword DA Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Units made before August 2008 shipped with AC 7.5V 800mA power adapter Accessory Products - USB2TYPEM
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- ST121UTP
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST124PROA
- ST128PROA

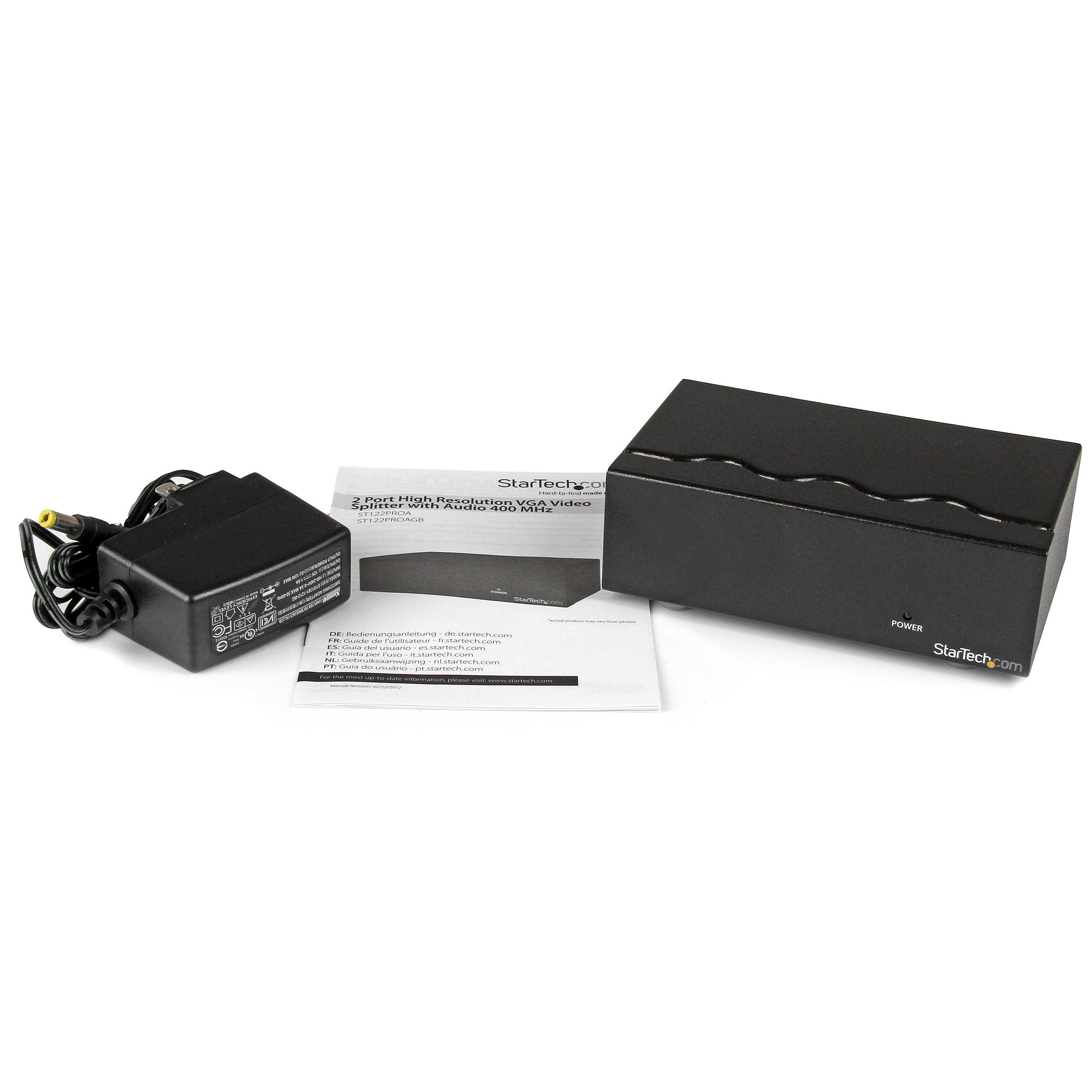

Equivalent Part Number in the UK ST122PROAGB Input Voltage 100 - 240 AC Output Current 0.6A Output Voltage (V) 12V DC Power Consumption (In Watts) 7.2 Power Source AC Adapter Included Color Gray Product Length (mm) 130.000 Product Width (mm) 75.000 Product Height (mm) 72.000 Product Weight (g) 447.000 TAA Compliant Yes Bandwidth 400MHz Maximum Analog Resolutions 2048x1536 @ 60Hz Audio Yes AV Input VGA AV Output VGA Carton Depth (mm) 367 Carton Height (mm) 342 Carton Quantity 20 Carton Weight Gross (g) 15520 Included in Package - 1 - 2 Port VGA Splitter
- 1 - Power Adapter
- 1 - Instruction Manual

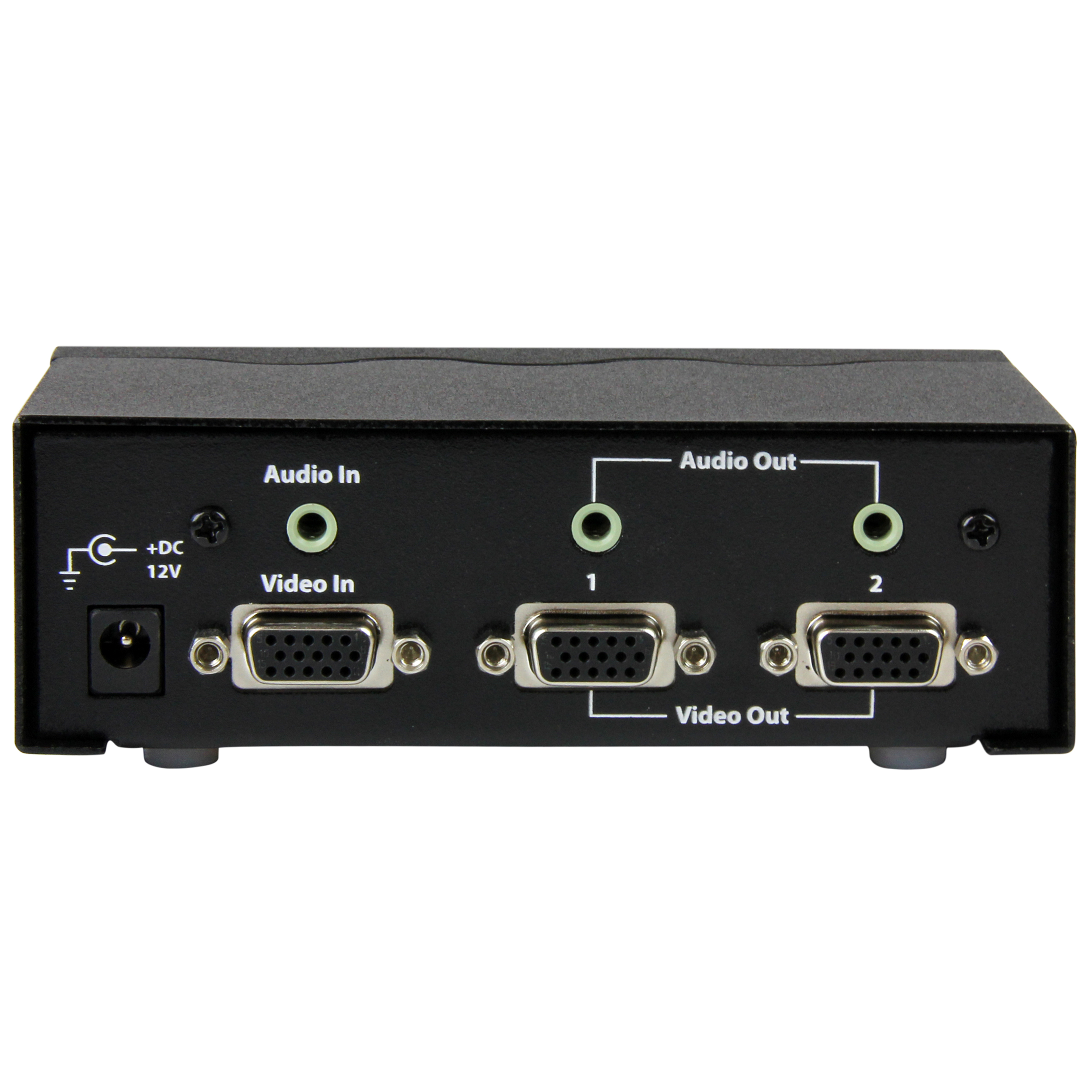

Package Depth (mm) 244 Package Height (mm) 67 Package Width (mm) 157 Package Quantity 1 Package Weight (g) 715 Packaging Description 2 Port VGA Splitter with Audio - 2048x1536 Packaging Description India 2 Port VGA Splitter with Audio - 2048x1536 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
