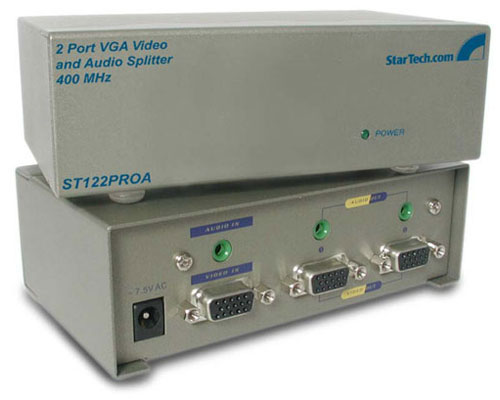

2 Port High Resolution 400 MHz VGA Video and Audio Splitter

Main Image

Product Name	2 Port High Resolution 400 MHz VGA Video and Audio Splitter
Product Number	ST122PROAEU
UPC	065030811668
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	China
Country of Origin Revision (1)	1

Manual https://images.salsify.com/image/upload/s--1g8yghC9--/0d196a1c90b8aedba2e04367f0debd012aa5170e.pdf

Product Title (Long)	2 Port High Resolution 400 MHz VGA Video and Audio Splitter
Bullet 1	400 MHz bandwidth provides brilliant 2048 x 1536 resolution
Bullet 2	Compatible with VGA, SVGA and Multisync monitors
Bullet 3	Daisy chainable for almost unlimited expansion
Bullet 4	DDC, DDC2 & DDC2B compatible (on Video Out port 1)
Bullet 5	Includes DC 7.5V power adapter
Marketing Copy
Applications	Airports, bus terminals and train stations In-store product merchandising Information booths/kiosks Lecture halls and classrooms Trade-shows

General Specifications

Cable Length: 210 feet (65 meters)
Dimensions: 5.1 x 2.9 x 1.6 Inches (130 x 75 x 72 mm)
Input Connectors: Video: 1 x High Density DB15 (Female), Audio: 1 x 3.5mm Audio Jack (Female)
Output Connectors: Video: 2 x High Density DB15 (Female), Audio: 2 x 3.5mm Audio Jack (Female)
Power: AC 7.5V 800mA (max)
Signal Type: XGA, VGA, SVGA, QXGA, UXGA and Multisync displays
VGA Bandwidth: 400 MHz
VGA Resolution: 2046 x 1536 @ 60 Hz

Maximum Analog Resolutions

2048x1536

Included in Package
1 - 2 Port VGA Splitter
1 - Power Adapter
1 - Instruction Manual
Connector 1 VGA
Connector 1 (Quantity) 3
Connector 2 3.5mm (3 Conductors, TRS)
Connector 2 (Quantity) 3
en-US Content Approved Yes

Accessory Products	MXT101HQ MXT101HQ_100 MXT101HQ_150 MXT101HQ_200 MXT101HQ_25 MXT101HQ_50 MXT101MMHQ MXT101MMHQ25 MXT101MMHQ50 MXT105HQ MXT105MMHQ
Related Products	ST124PROA ST128PROA

Input Current	0.8
Input Voltage	7.5
