ST122SW
Main Image

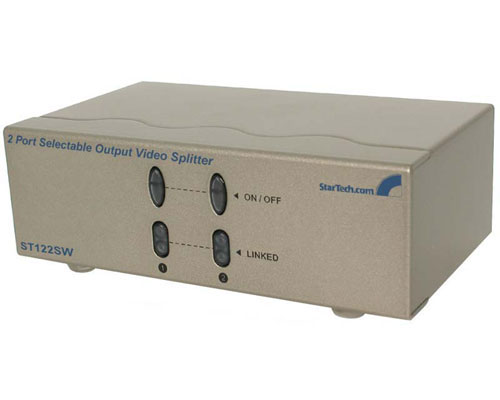

Product Name 2 Port Selectable Output Video Splitter Product Number ST122SW UPC 065030805278 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Long) 2 Port Selectable Output High-Resolution 400 MHz VGA Video Splitter / Distribution Amplifier Bullet 1 Allows one computer to provide simultaneous display on two different monitors Bullet 2 Works with VGA, SVGA and Multisync monitors Bullet 3 Daisy chainable for almost unlimited expansion Bullet 4 Built-in video amplifier boosts the signal to allow a cable length of up to 246 ft. or 75 meters Bullet 5 Port selection switch lets you switch from one monitor to two monitors Marketing Copy Applications - Public information display services
- Public broadcast systems
- Demos and presentations
- In-store product merchandising
- Information kiosks
Website Search Keyword DA Accessory Products - MXT101HQ
- MXT105HQ
- MXT101HQ_25
- MXT101HQ_50
- MXT101HQ_100
- ST121UTP
Related Products ST124SW Replacement Product ST222MX Input Current 0.3 Input Voltage 9 Color Gray Product Weight (g) 431 TAA Compliant No General Specifications - Connectors:
- Input Connectors: 1 x High Density DB15 Male
- Output Connectors: 2 x High Density DB15 Female
- Compatibility: VGA, SVGA, XGA & Multisync displays
- Max Resolution: 2048 x 1536 pixels
- Video Bandwidth: 400 MHz
- Frequency:
- Horizontal: 30 - 100 KHz
- Vertical: 43 - 120 MHz
- Cable distance:
- Computer to Switch: 25 Feet (7.5 meters)
- Switch to display: 246 Feet (75 meters)
- LED Indicators: 1 x Power
- Port Selection: Local Monitor & Local/Remote Monitor
- Enclosure: Metal case
- Power: 9V DC (300Ma)
- Dimensions: 5.7 x 3.9 x 1.6 inches (145 x 100 x 40 mm)
Maximum Analog Resolutions 2048x1536 Carton Depth (mm) 340 Carton Height (mm) 420 Carton Quantity 20 Carton Weight Gross (g) 15866.6482 Package Depth (mm) 56 Package Height (mm) 194 Package Width (mm) 256 Package Weight (g) 930 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
