ST122UTPAL

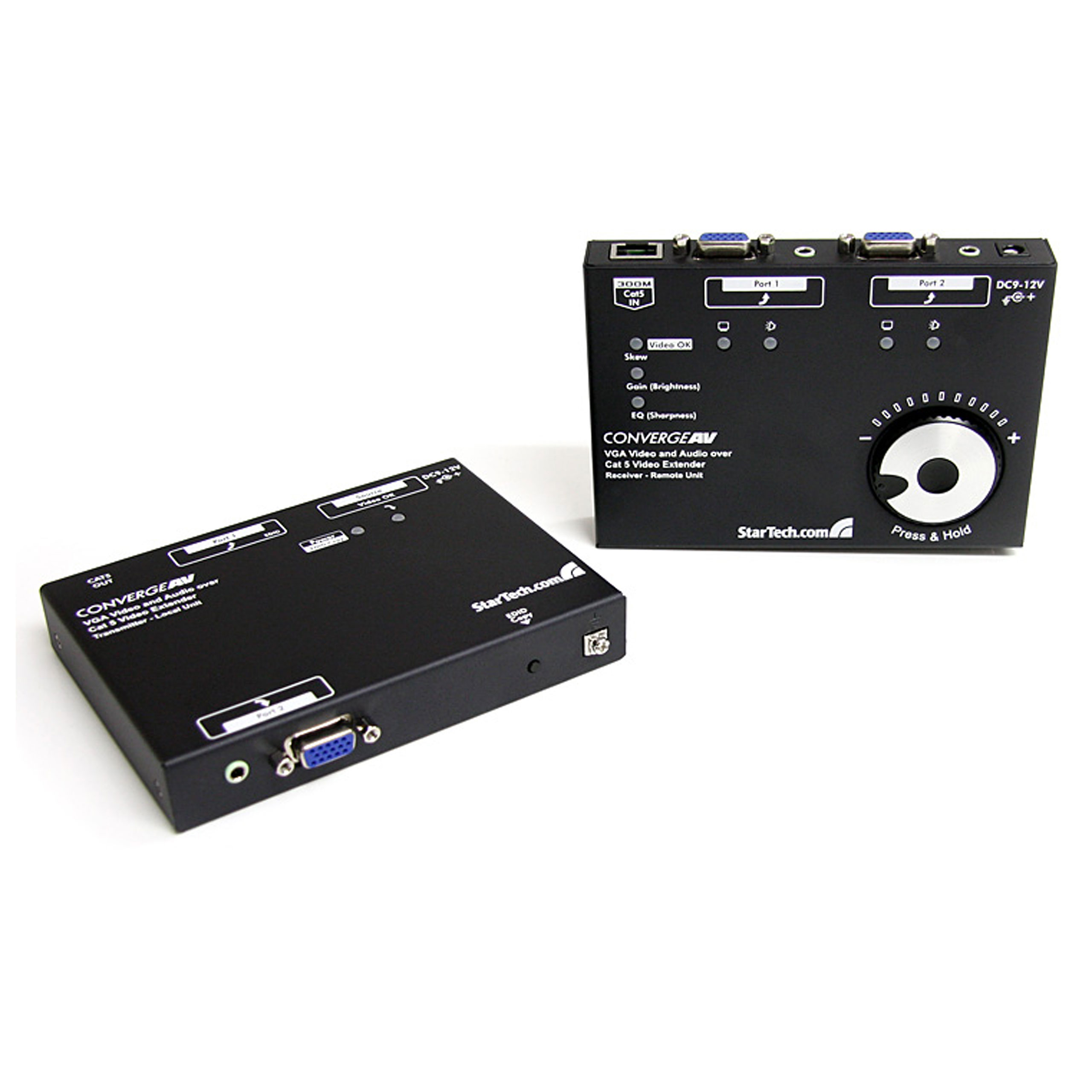

VGA to Cat 5 Extender - Transmitter & Receiver
Extend a VGA signal with Audio over Cat 5 or better cabling with RGB Skew calibration for near perfect picture quality
Main Image
Product Images
Product Images
BOM Image
Product Name VGA to Cat 5 Extender - Transmitter & Receiver Product Number ST122UTPAL UPC 065030839242 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA Extenders Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) VGA over Cat5 Extender 300m / 950 ft Product Title (Medium) x Product Title (Standard) Long Range VGA over Cat5 Video Extender 300m / 950 ft – 1920x1080 Product Title (Long) Long Range VGA over Cat5 Video Extender 300m / 950 ft – 1920x1080 Product Title (AMZ) Long Range VGA over Cat5 Video Extender 300m / 950 ft - 1920x1080 - Ethernet VGA Extender (ST122UTPAL) Title Ingram (Part 1) VGA to Cat 5 Extender - Transmit Title Ingram (Part 2) ter & Receiver Website Product Headline Extend a VGA signal with Audio over Cat 5 or better cabling with RGB Skew calibration for near perfect picture quality Bullet 1 Includes transmitter (local) and receiver (remote) unit Bullet 2 EDID copy feature for increased display compatibility Bullet 3 Long range and high resolution VGA over Cat5 extender Bullet 4 SKEW Calibration control wheel for advanced options and fine tuning Bullet 5 Extend video at distances up to 300m (950ft) Bullets (Consolidated) Video/audio extender - up to 984 ft Marketing Copy Applications - The ST122UTPAL provides a VGA to Ethernet conversion that is ideal for point-to-point installations / applications, providing a convenient, cost-effective way to reach your target audience where you want and when you want
- Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment.
- ST122UTPAL can be used in financial, educational, and business sectors
Website Search Keyword - Cat5 VGA extender
- Converge A/V extenders
- Digital Signage
- UTP video extender
- VGA extender
- video extender
- Category 5 VGA Video Extender
- Category 5e VGA Video Extender
- Category 6 VGA Video Extender
- Cat5 VGA Video Extender
- Cat5e VGA Video Extender
- Cat6 VGA Video Extender
- Control Dial
- Jog Wheel
- RGB SKEW calibration
- vga to cat5 adapter
- vga video extender via cat5
- vga ethernet
- ethernet vga extender
- db15 to rj45
- video extender over cat5
- video over ethernet
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- MXT101HQ
- MXT101HQ10
- MXT105HQ
- MU6MMS
- MU10MMS
- MU15MMS
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST1214T
- ST1218T
- ST121EXT
- ST121R
- ST121UTP
Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 140 Product Width (mm) 23 Product Height (mm) 23 Product Weight (g) 970 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Max Distance 300m [984ft] Supported Resolutions 1920x1080 @ 300m(950ft) Wide Screen Supported Yes Cabling Cat 5 UTP or better Cascadable No LED Indicators - 1 - Video Status - Transmitter
- 1 - Audio Status - Transmitter
- 2 - Video Status - Receiver
- 2 - Audio Status - Receiver
- 1 - Skew - Receiver
- 1 - Gain - Receiver
- 1 - EQ - Receiver

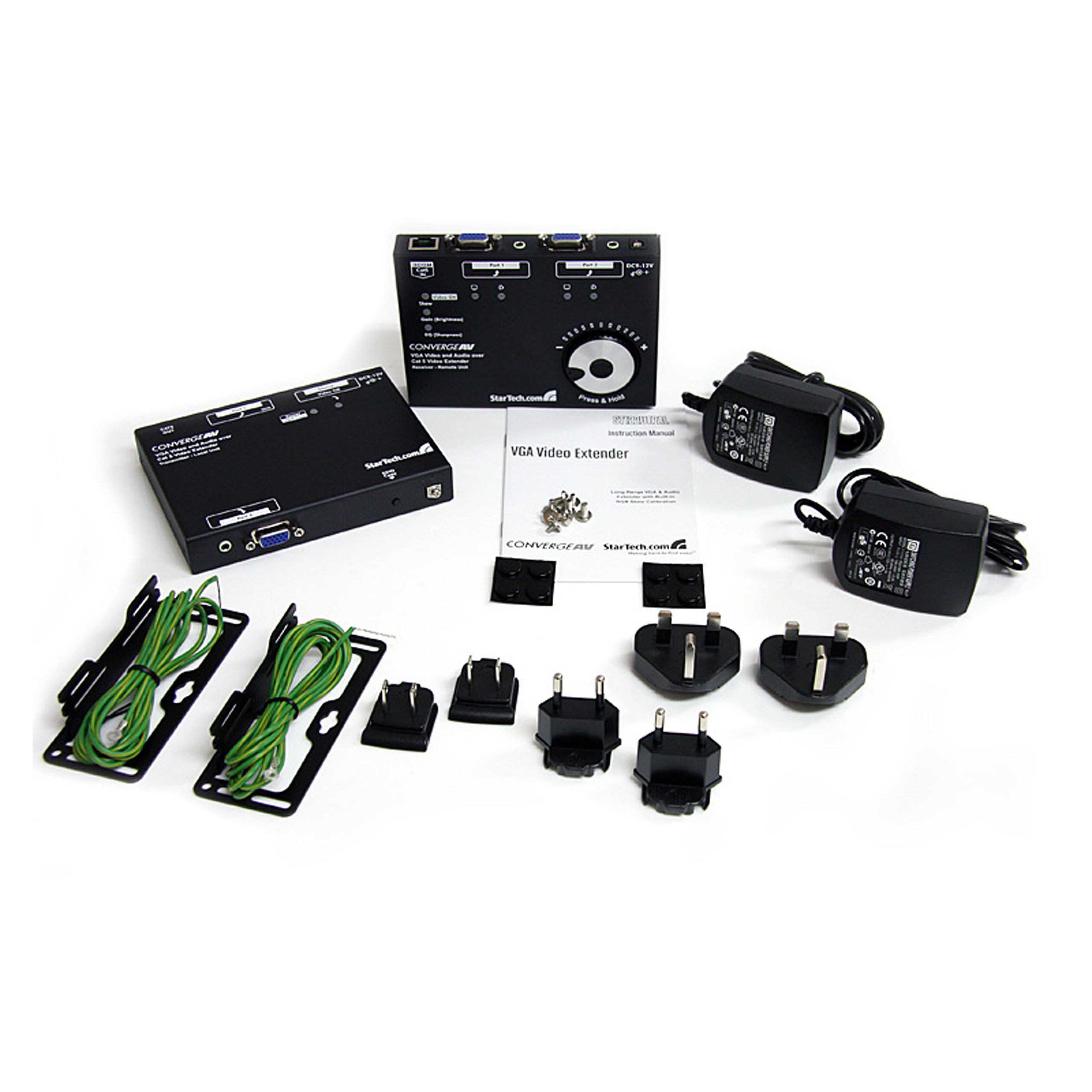

Carton Depth (mm) 500 Carton Height (mm) 300 Carton Quantity 6 Carton Weight Gross (g) 12000 Included in Package - 2 - Power Adapters
- 1 - Instruction Manual
- 1 - Transmitter and Receiver Kit
- 2 - Sets Mounting Brackets
- 2 - Grounding Wires

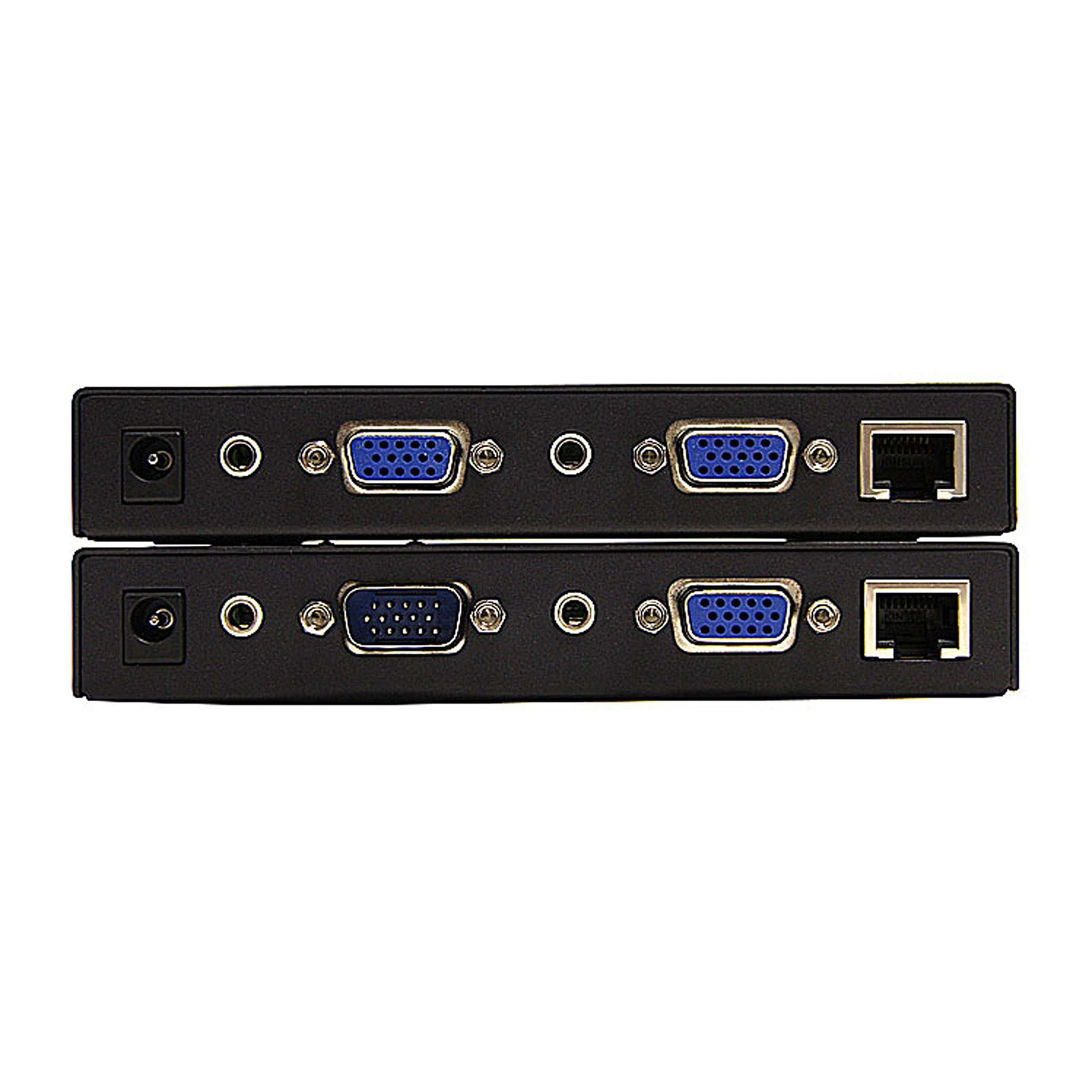

Package Depth (mm) 88 Package Height (mm) 250 Package Width (mm) 300 Package Quantity 1 Package Weight (g) 1800 Packaging Description VGA Video Extender over Cat 5 with Audio Packaging Description India VGA Video Extender over Cat 5 with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 3.5mm (3 Conductors, TRS) Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 2 Connector 3 RJ-45 Connector 3 (Quantity) 1 Host Connector 1 3.5mm (3 Conductors, TRS) Host Connector 1 (Quantity) 2 Host Connector 2 VGA Host Connector 2 (Quantity) 2 Host Connector 3 VGA Host Connector 3 (Quantity) 1 Host Connector 4 RJ-45 Host Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,JP,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
