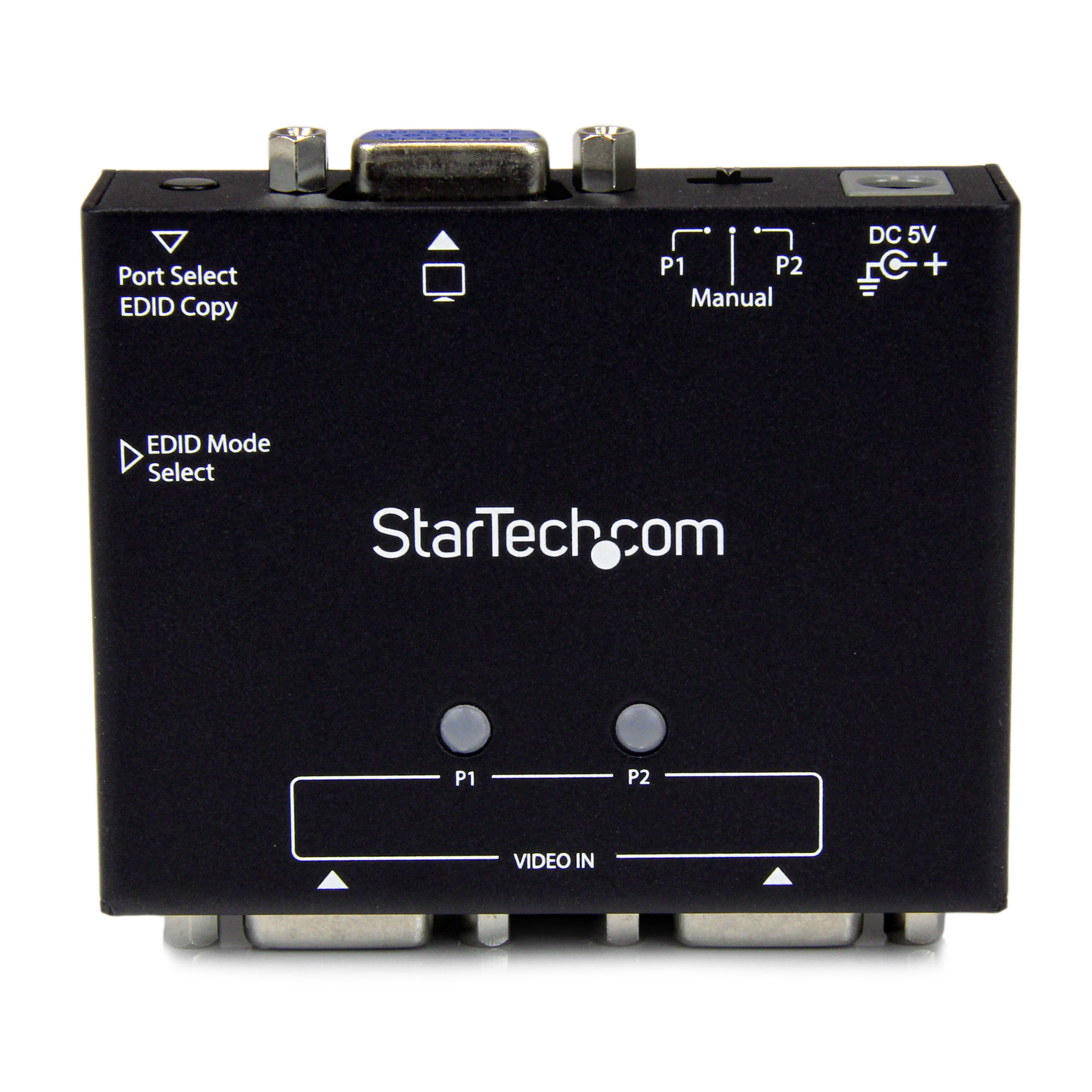

Main Image
ST122VGA
2 Port VGA Monitor Auto Switch Box 1920x1200
Share a VGA monitor/projector between 2 VGA sources, with automatic/priority switching and EDID Emulation
Main Image

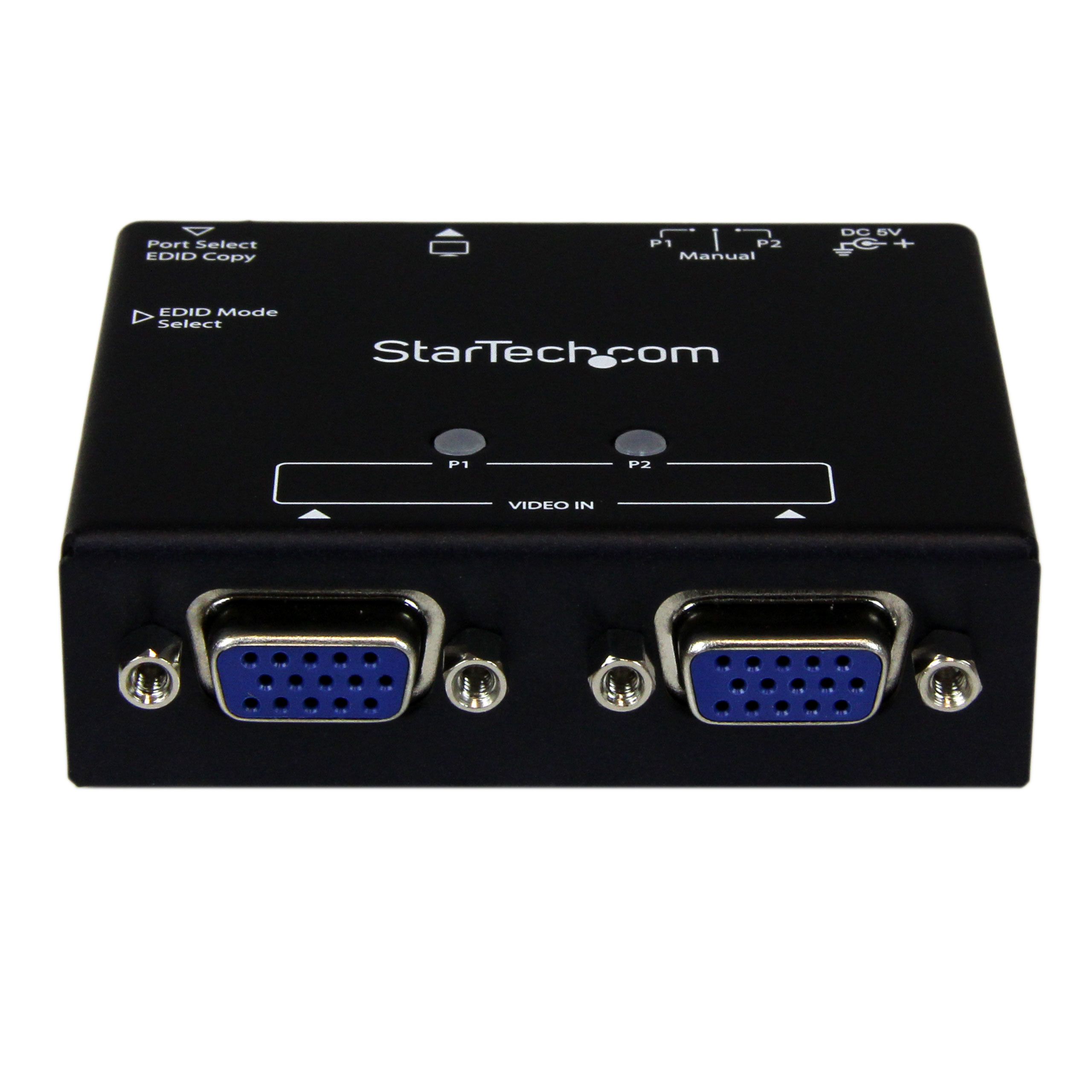

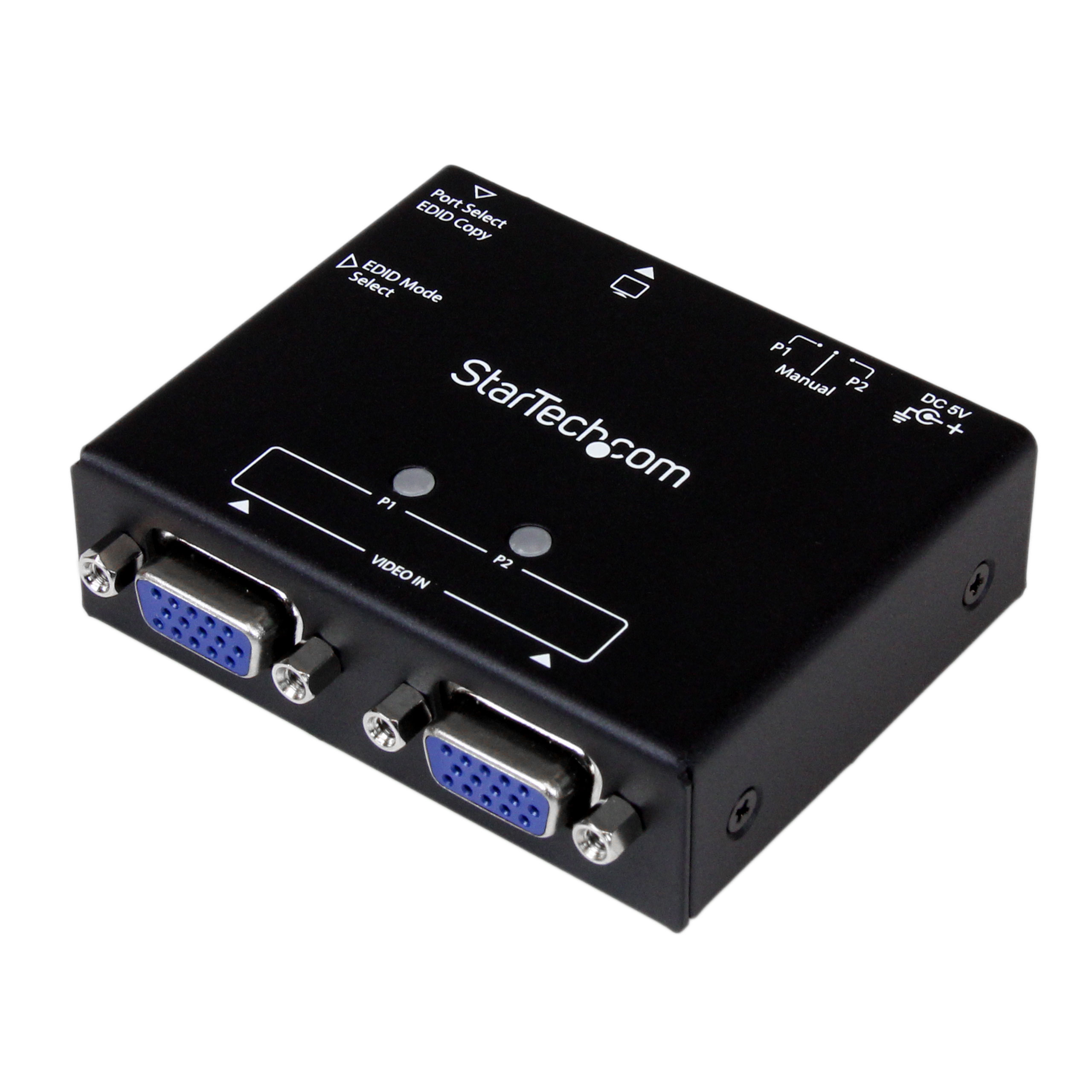

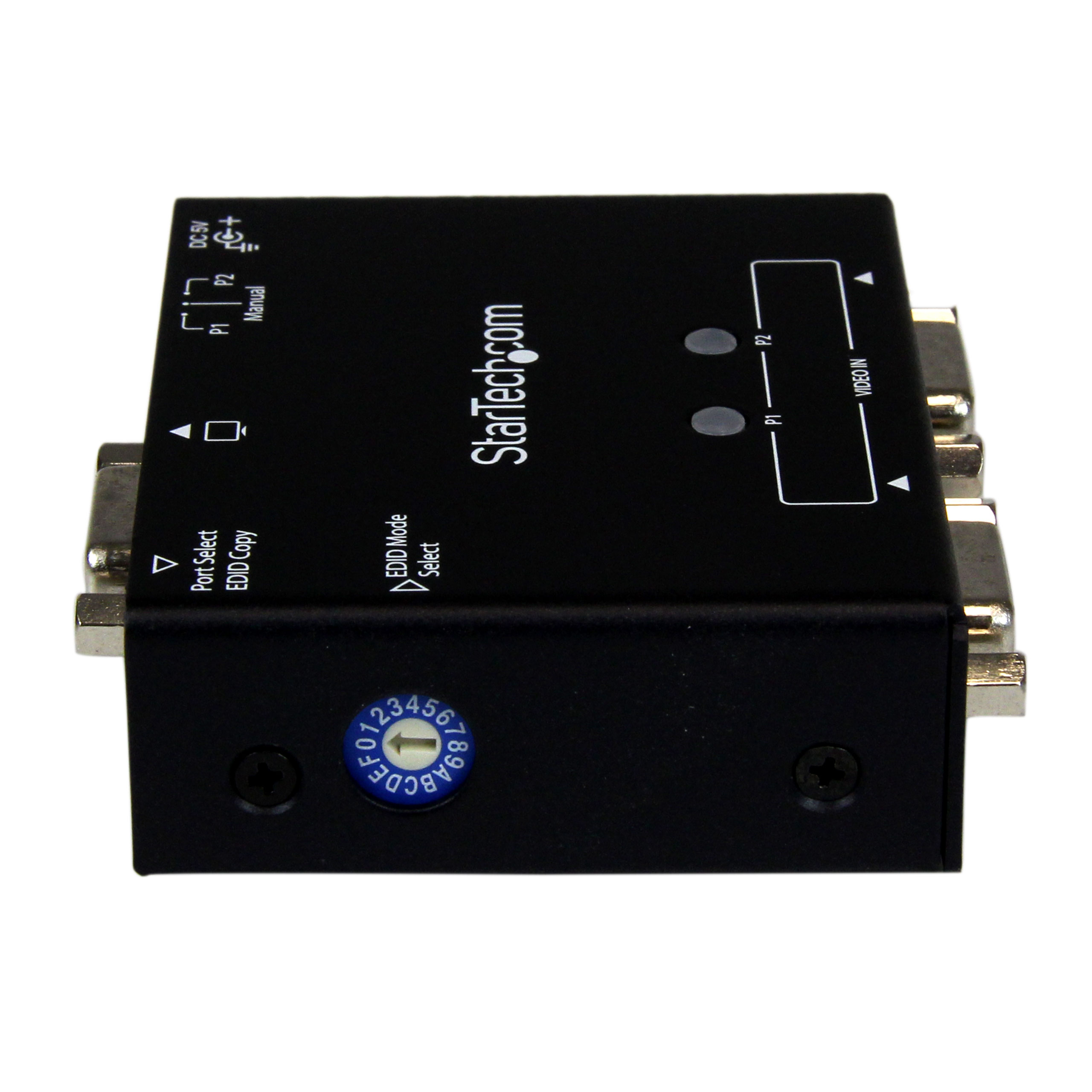

Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port VGA Monitor Auto Switch Box 1920x1200 Product Number ST122VGA UPC 065030852821 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Switchers Category Level 3 VGA Switchers Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 2Port VGA Switch Box Product Title (Short) 2-Port VGA Auto Switch Box w/ Switching Product Title (Standard) 2-Port VGA Auto Switch Box with Priority Switching and EDID Copy Product Title (Long) 2-Port VGA Auto Switch Box with Priority Switching and EDID Copy - TAA Product Title (AMZ) 2-Port VGA Auto Switch Box with Priority Switching and EDID Copy - 2x1 Dual Port Monitor VGA Switch 1920x1200 (ST122VGA) Title Ingram (Part 1) 2Port VGA Monitor Switch Box Title Ingram (Part 2) 1920x1200 2x1 VGA Auto Switch Website Product Headline Share a VGA monitor/projector between 2 VGA sources, with automatic/priority switching and EDID Emulation Bullet 1 Priority Switching Bullet 2 Automatic or Manual Port Selection Bullet 3 Mounting Hardware Included Bullet 4 EDID Emulation Bullet 5 Support for Resolutions up to 1920x1200/1080p Bullets (Consolidated) Share a VGA monitor/projector between 2 VGA sources with automatic/priority switching and EDID Emulation - 2 Port VGA Switch Box - AV VGA Monitor Switch - VGA Switch Box - Dual Port VGA Auto Switch - 2x1 VGA Automatic Switch - EDID Copy - 1920x1200 Marketing Copy Applications - Share a laptop computer with a projector in boardrooms or trade shows, with automatic switching that ensures there's an active signal displayed on the screen even if the laptop is disconnected
- Connect and switch between multiple sources in test bench facilities, data centers, help desks and video broadcasting facilities
- Connect two media players or PCs to your digital signage display, for more versatile messaging options
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- SVA5N3NEUA
Related Products - ST122L
- ST122LEA
- ST122PROA
- ST124W
- ST128PRO
- ST1216PRO
- ST128W
- ST122LE
- ST122W
- ST122PRO
- ST124PRO
- ST124L
- ST128L
Constrained SKU Alternatives (Limited Stock) ST222MX Input Current 0.4A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Center Tip Polarity Positive Color Black Humidity 0% - 80 % Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 74.000 Product Width (mm) 59.000 Product Height (mm) 21.000 Product Weight (g) 170.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Maximum Analog Resolutions WUXGA (1920 x 1200) QWXGA (2048 x 1152) Supported Resolutions 1024 x 768, 1280 x 720, 1280 x 1024, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 1920 x 1440, 2048 x 1152 Wide Screen Supported Yes Audio No AV Input VGA AV Output VGA Industry Standards EDID LED Indicators - 1 - P1 (Port 1 selected)
- 1 - P2 (Port 2 selected)

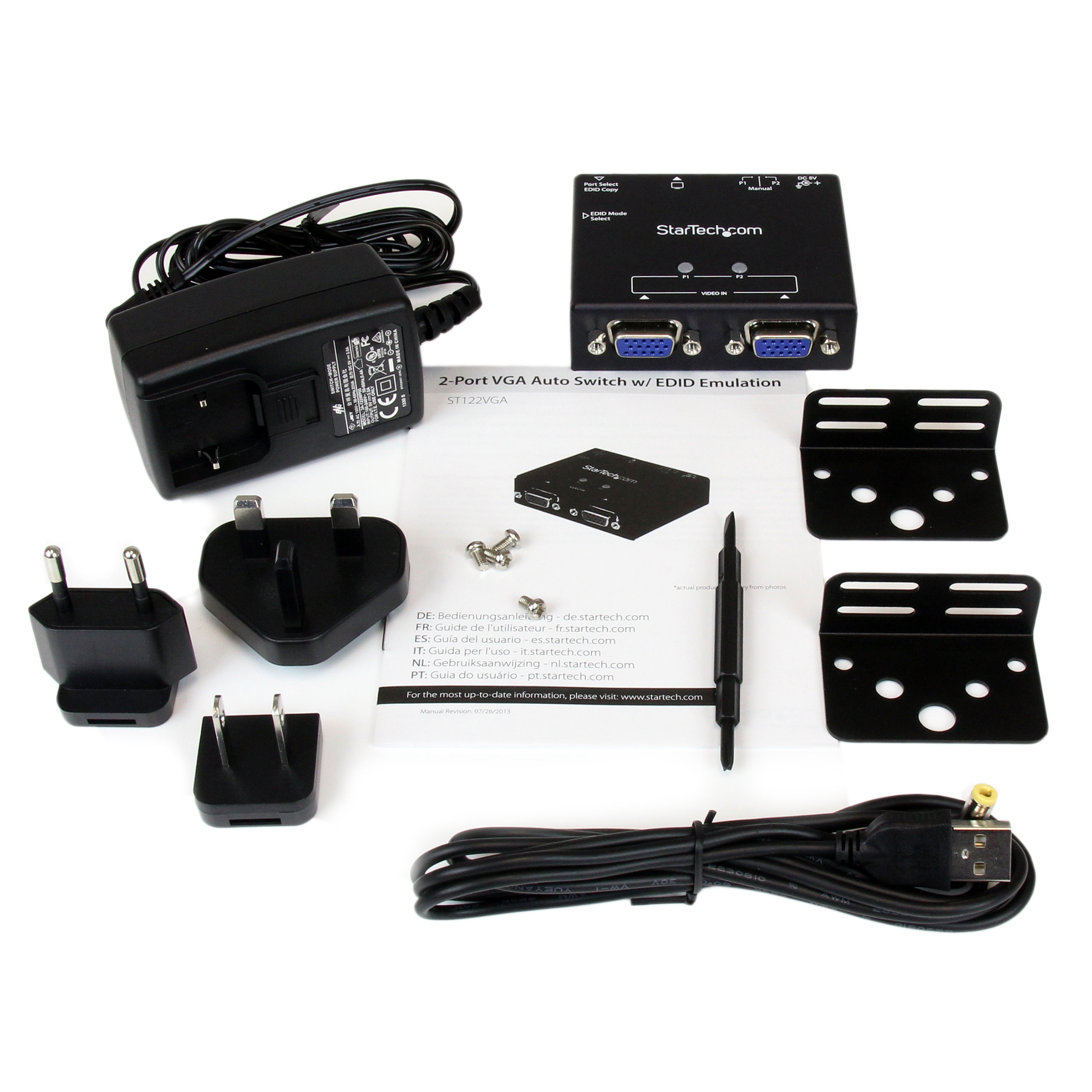

Matrix Video Switch (Filter) No Carton Depth (mm) 317 Carton Height (mm) 202 Carton Quantity 12 Carton Weight Gross (g) 6550 Included in Package - 1 - 2-port VGA switch
- 1 - universal power adapter (NA, EU, UK, ANZ)
- 1 - USB power cable
- 1 - instruction manual
Package Depth (mm) 170 Package Height (mm) 66 Package Width (mm) 145 Package Quantity 1 Package Weight (g) 469 Packaging Description 2-Port VGA Auto Switch w/ EDID Emulation Packaging Description India 2-Port VGA Auto Switch w/ EDID Emulation Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-08-01 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,NL,NZ,PE,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
