ST122VGAU
2 Port VGA Auto Switching Video Switch
Switch between 2 VGA signals on a single display; features automatic, prioritized switching
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port VGA Auto Switching Video Switch Product Number ST122VGAU UPC 065030837378 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Video Switches & Splitters Category Level 1 Video Display Connectivity Category Level 2 Video Switchers Category Level 3 VGA Switchers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) 2 Port VGA Auto Switch Product Title (Standard) 2 Port VGA Auto Switch Product Title (Long) 2 Port VGA Auto Switch - TAA Product Title (AMZ) 2 Port VGA Auto Switch - VGA auto Switcher - VGA auto Switch - 2 Port VGA Switch (ST122VGAU) Title Ingram (Part 1) 2 Port VGA Auto Switch Title Ingram (Part 2) . Website Product Headline Switch between 2 VGA signals on a single display; features automatic, prioritized switching Bullet 1 Automatically selects the priority of incoming video signals for display Bullet 2 Supports resolutions up to 1920x1440 Bullet 3 Easy to use front panel selection buttons Bullet 4 Easy installation - set up in minutes Bullet 5 Video Bandwidth 250 MHz Bullets (Consolidated) Switch between 2 VGA signals on a single display; features automatic - prioritized switching - VGA Auto Switch - VGA Auto Switcher - 2 Port VGA Switch - Supports resolutions up to 1920x1440 Marketing Copy Applications - Ideal for use with a laptop computer and a boardroom projector in meetings and presentations, backup safety control systems, and home A/V switching applications
- Perfect for digital signage applications in retail environments requiring more than one media player or PC to be connected
- Great for connecting/switching multiple sources in Test Bench Facilities, Data Centers, Help Desks and Video Broadcasting Facilities
Website Search Keyword - VGA Video Switch
- VGA Switch
- VGA Switcher
- Auto Sensing Switch
- Automatic Switch
- Auto Switch
- Priority
- 2 Port VGA Switch
- 2 Port VGA Switcher
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes Port 1 is set to have higher priority than port 2 when both signals are on Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- SVA12M2NEUA
- SVA12M5NA
Related Products - VS410RVGAA
- VS415RVGA
- VS815RVGA

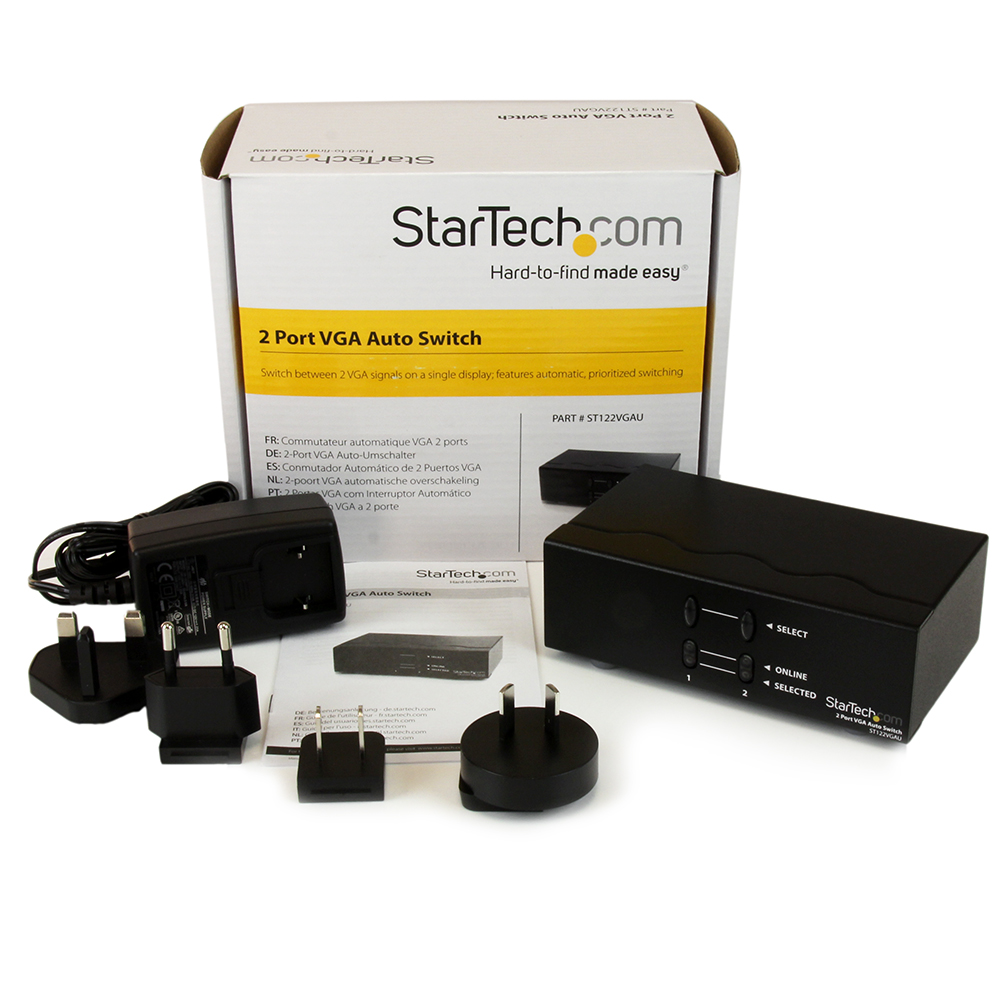

Replacement Product VS221VGA2HD Output Current 0.3A Output Voltage (V) 9V DC Power Consumption (In Watts) 2.7 Power Source AC Adapter Included Center Tip Polarity Positive Color Black Material Steel Product Length (mm) 130.000 Product Width (mm) 56.000 Product Height (mm) 195.000 Product Weight (g) 419.000 TAA Compliant Yes Bandwidth 250 MHz MTBF (hours) 80,000 hours Wide Screen Supported Yes Audio No AV Input VGA AV Output VGA Industry Standards DDC1, DDC2, DDC2B, DDC2B+, DDC2AB ( DDC Support on Port 1 only) Matrix Video Switch (Filter) No Carton Depth (mm) 389 Carton Height (mm) 353 Carton Quantity 20 Carton Weight Gross (g) 15780 Included in Package - 1 - 2 Port VGA Auto Switch
- 1 - Instruction Manual
- 1 - Universal Power Adapter (US/UK/EU/AUS)
Package Depth (mm) 182 Package Height (mm) 87 Package Width (mm) 156 Package Quantity 1 Package Weight (g) 732 Packaging Description 2 Port VGA Auto Switch Packaging Description India 2 Port VGA Auto Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,NZ,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
