ST122WEU

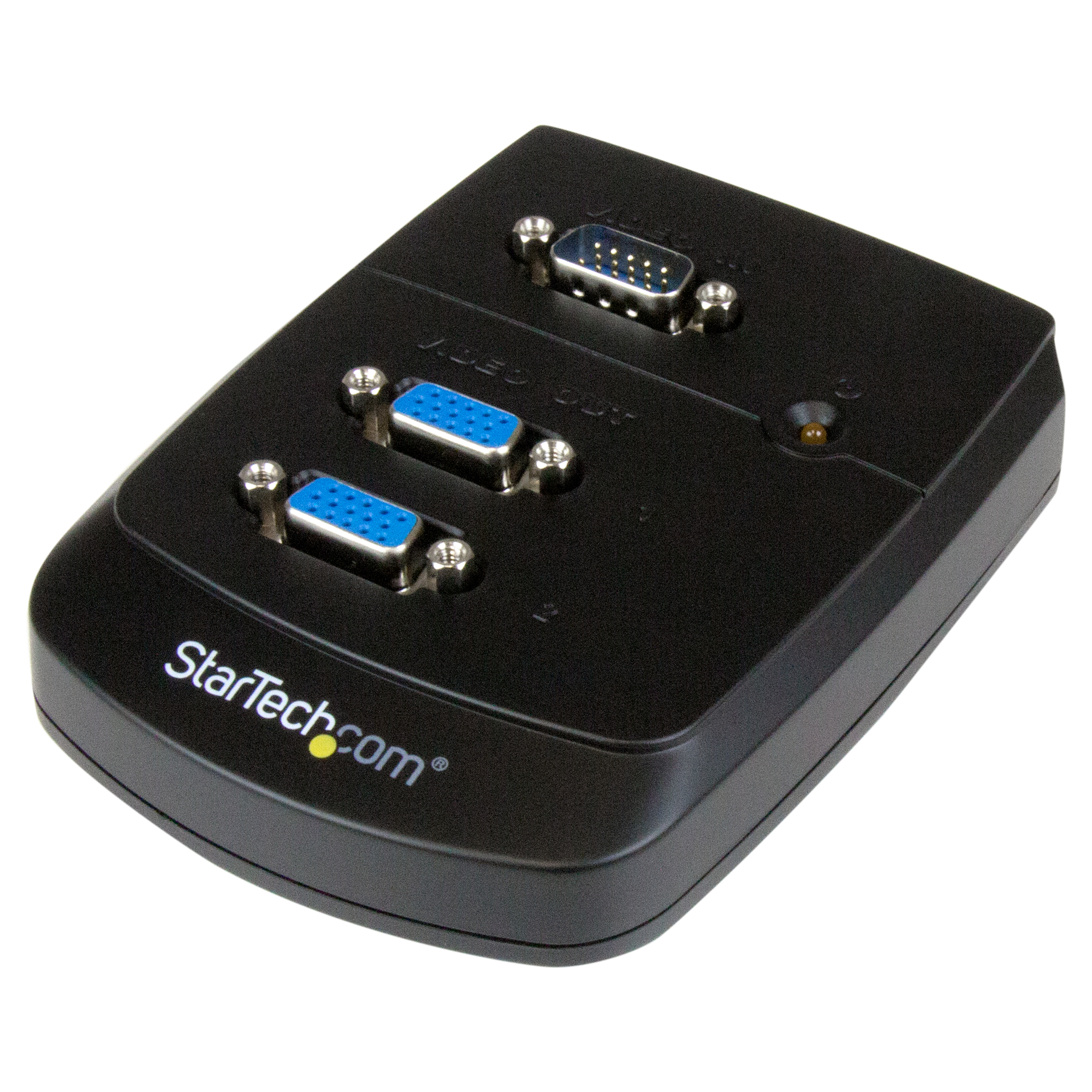

2 Port Wall-Mount VGA Video Splitter - EU Adapter
Split a VGA signal to 2 VGA monitors or projectors
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port Wall-Mount VGA Video Splitter - EU Adapter Product Number ST122WEU UPC 065030840521 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 2 Port Wall Mount VGA Video Splitter Product Title (Standard) 2 Port Wall Mount VGA Video Splitter Product Title (Long) 2 Port Wall Mount VGA Video Splitter Product Title (AMZ) 2 Port Wall Mount VGA Video Splitter (ST122WEU) Title Ingram (Part 1) 2 Port Wall Mount VGA Video Spli Title Ingram (Part 2) tter Website Product Headline Split a VGA signal to 2 VGA monitors or projectors Bullet 1 Supports Cascading up to 3 levels Bullet 2 Compact design with convenient topside connection Bullet 3 Supports cable distances up to 210ft Bullet 4 Supports resolutions up to 1600x1200 Bullet 5 Lays flat or mounts on the wall Marketing Copy Applications - Use for in-store product merchandising in retail environments to give your advertisements greater visibility
- Display travel schedules and alerts in airports, bus terminals and train stations
- Create engaging multimedia presentations for demonstration in lecture halls and classrooms
- Get your message across multiple displays for trade-shows or information booths/kiosks
- Quick and easy solution to split a video signal in an auditorium or house of worship
Website Search Keyword - VGA Splitter
- VGA Video Splitter
- Video
- Wall-mount
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Accessory Products - MXT101HQ
- MXT101HQ_100
- MXT101HQ_25
- MXT101HQ_50
- MXT105HQ
- ST121UTPEU
Related Products - ST122LEU
- ST122LE
- ST124LEU
- ST124WEU
- ST128LEU
- ST128WEU

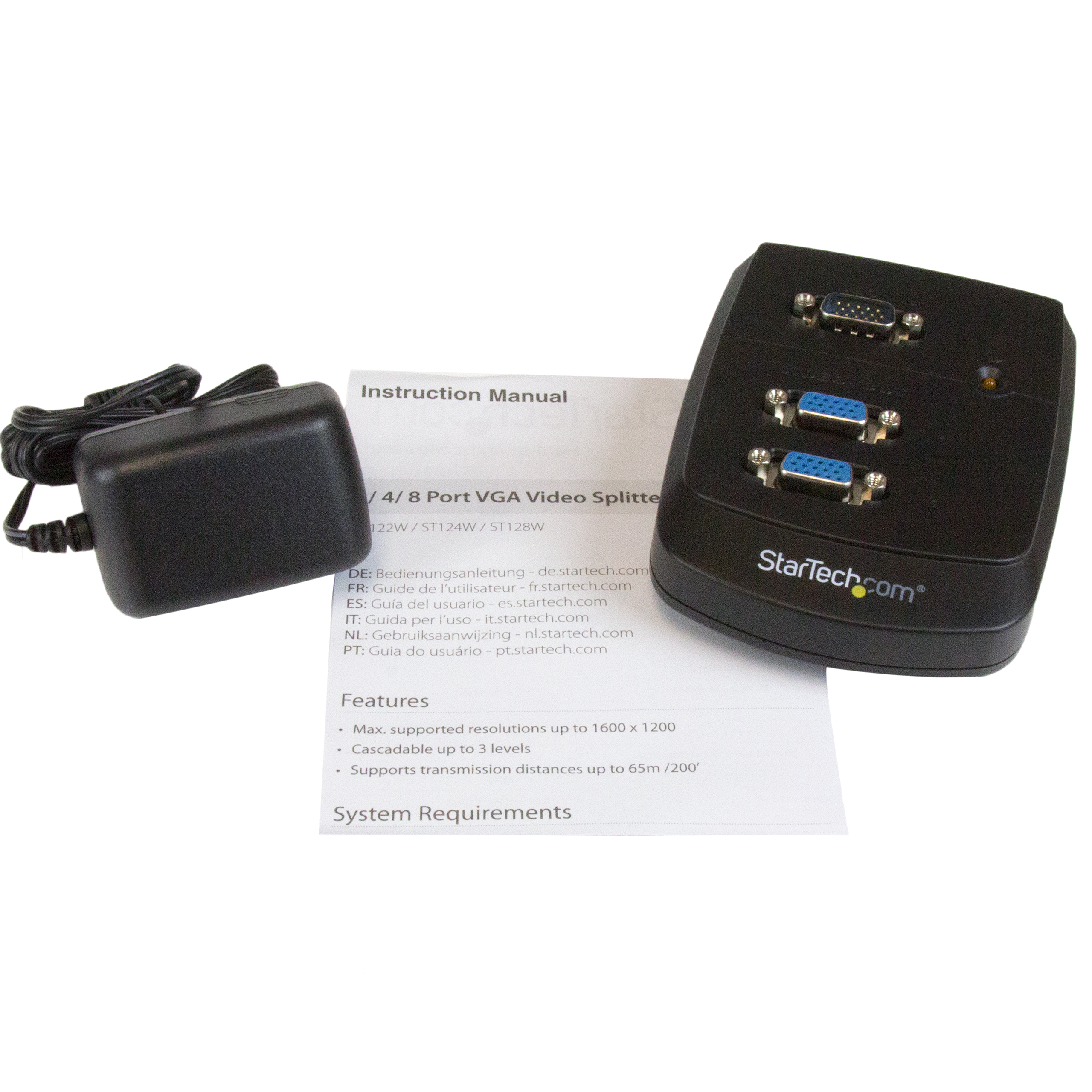

Replacement Product ST122PROEU Input Voltage 230 AC Output Current 0.3A Output Voltage (V) 9V DC Power Consumption (In Watts) 2.7 Power Source AC Adapter Included Center Tip Polarity Positive Color Silver Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 114.5 Product Width (mm) 87.5 Product Height (mm) 33.3 Product Weight (g) 140 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Bandwidth 250 MHz General Specifications Male to Female VGA extension cable required (MXT101HQ) Max Distance 70m [230ft] Maximum Analog Resolutions 1600x1200 Maximum Cable Length (mm) 65000 AV Input VGA AV Output VGA Carton Depth (mm) 490 Carton Height (mm) 343 Carton Quantity 1 Carton Weight Gross (g) 9200 Included in Package - 1 - 2 Port VGA Splitter
- 1 - Instruction Manual
- 1 - Power Adapter
Package Depth (mm) 59 Package Height (mm) 162 Package Width (mm) 240 Package Quantity 1 Package Weight (g) 400 Packaging Description 2 Port VGA Video Splitter - Wall Mountable Packaging Description India 2 Port VGA Video Splitter - Wall Mountable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy
