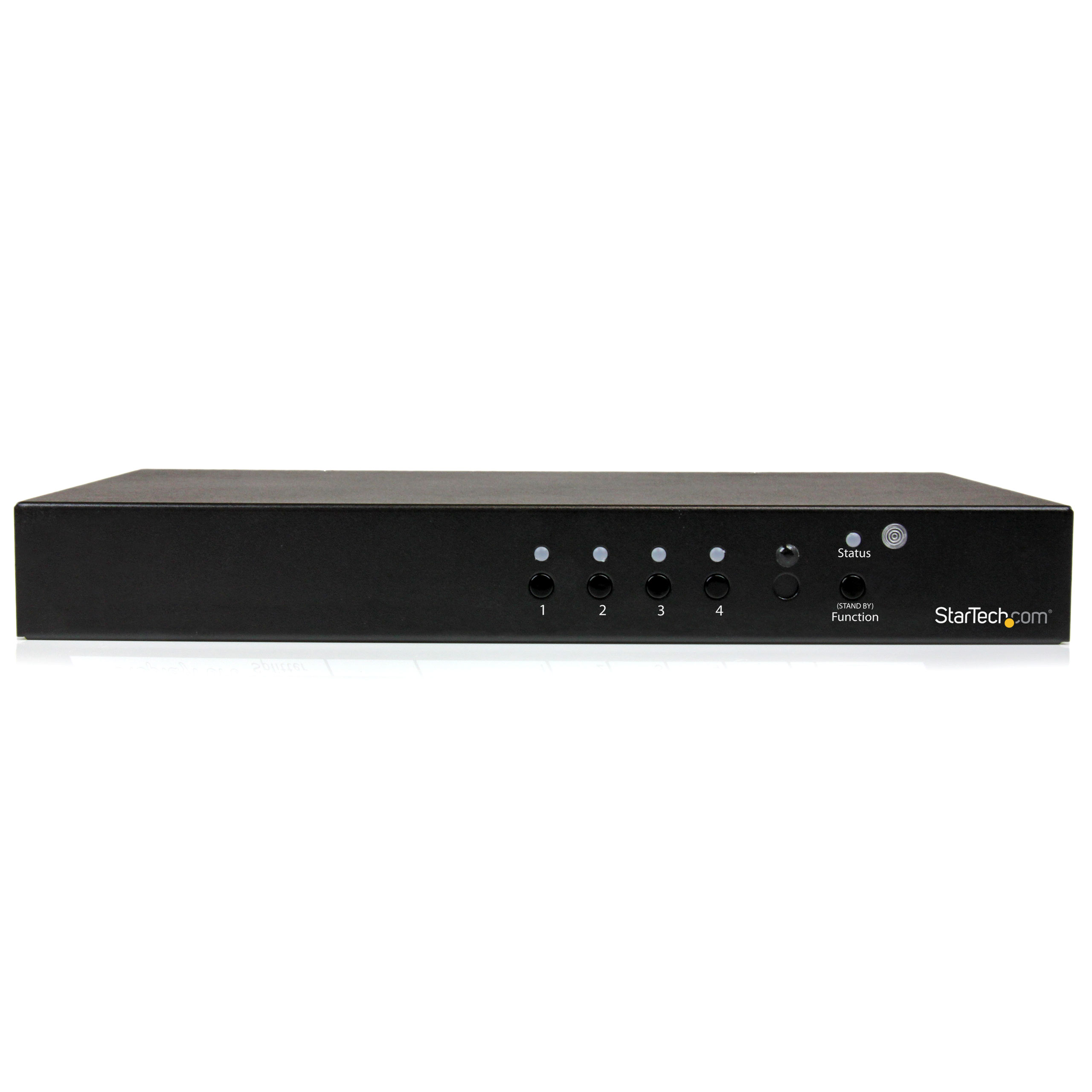

Main Image
ST124DP
4-Port DisplayPort Splitter with IR Remote Control – 2560x1600
Connect up to 4 DisplayPort Monitors or Projectors to a single DisplayPort Video Source
Main Image

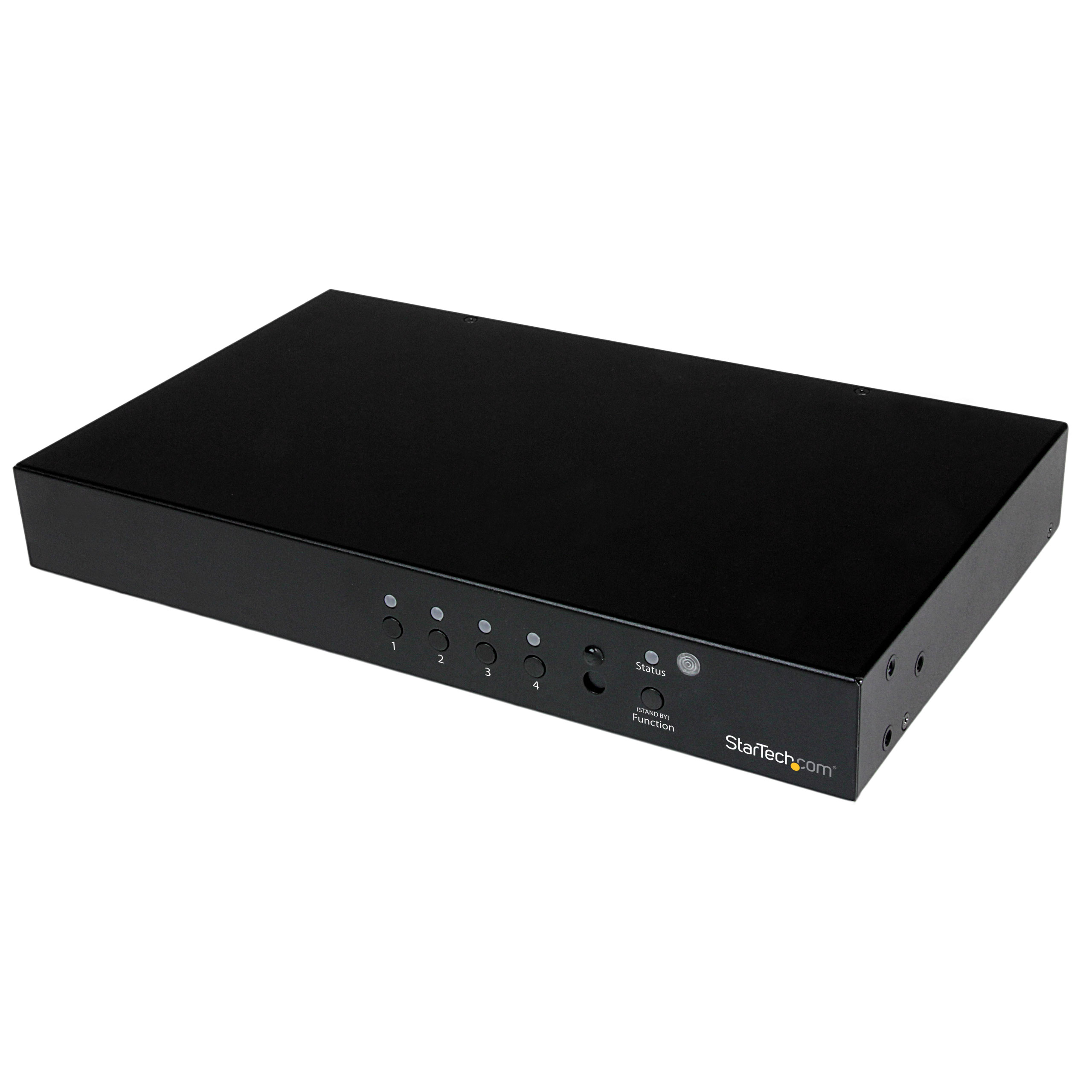

Product Images

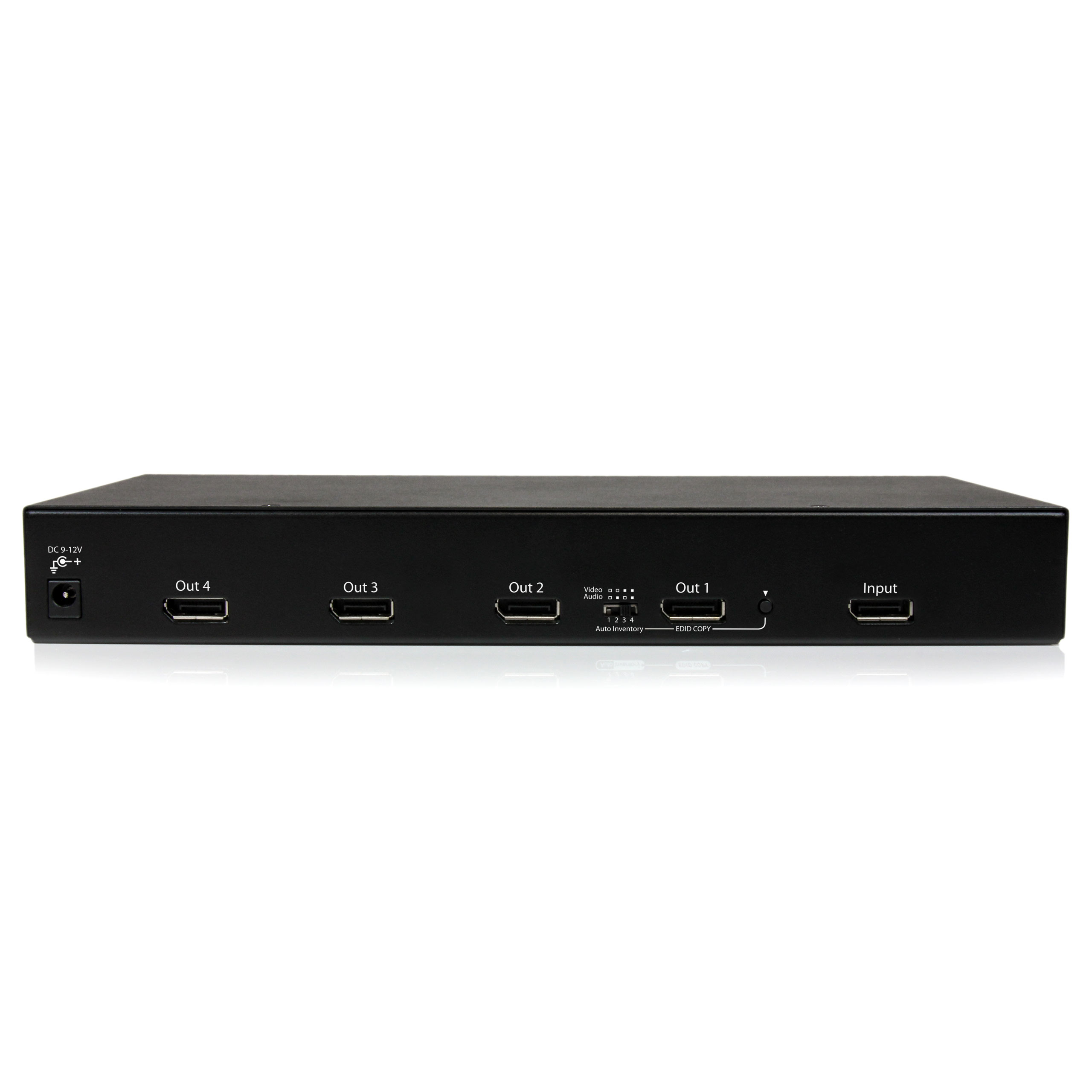

Product Images
Product Name 4-Port DisplayPort Splitter with IR Remote Control – 2560x1600 Product Number ST124DP UPC 065030851671 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Product Title (Ultra-Short) 4-Port DP Splitter Product Title (Short) 4-Port DP Splitter w/ IR Remote Control Product Title (Standard) 4-Port DisplayPort Splitter with IR Remote Control - 2560x1600 Product Title (Long) 4-Port DisplayPort Splitter with IR Remote Control – 2560x1600 Product Title (AMZ) 4-Port DisplayPort Splitter with IR Remote Control - 2560x1600 - Display Port DP Splitter Four Port Title Ingram (Part 1) 4Port DP Video Splitter Title Ingram (Part 2) 2560x1600 Display Port Splitter Website Product Headline Connect up to 4 DisplayPort Monitors or Projectors to a single DisplayPort Video Source Bullet 1 Built-in EDID Emulation Bullet 2 Support for Resolutions up to 2560x1600 Bullet 3 Mounting Hardware Included Bullet 4 IR Remote Control Included Marketing Copy Applications - Ideal for connecting DisplayPort displays to a computer in business conference rooms and trade show displays
- Great for outputting a single DisplayPort source to multiple DisplayPort screens in classrooms, resturants, or shopping centers
- Financial applications including stock tickers or promotion of new products/services
- Display information in four different waiting rooms for patients in healthcare facilities from a DisplayPort source
Website Search Keyword - 4 Port
- DisplayPort
- Distribution Amplifier
- DP
- DisplayPort Splitter
- EDID splitter
Accessory Products - DISPLPORT6L
- DISPLPORT10L
- DISPLPORT3L
- DISPLPORT15L
Related Products - SP123DP
- SP122DP2HD
- SP122DP2DVI
Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Aluminum Operating Temperature 0°C to 70°C (32°F to 104°F) Product Length (mm) 287 Product Width (mm) 170 Product Height (mm) 38 Product Weight (g) 1280 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant No Maximum Digital Resolutions 2560x1600 Supported Resolutions 1024 x 768, 1280 x 720, 1280 x 1024, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 1920 x 1440, 2048 x 1152, 2560x1400, 2560x1600 Wide Screen Supported Yes Audio Yes AV Input DisplayPort AV Output DisplayPort LED Indicators - 1 - Status (Power)
- 1 - Video Output 2
- 1 - Video Output 1
- 1 - Video Output 3
- 1 - Video Output 4
Included in Package - 1 - 4-Port DisplayPort Video Splitter - 2560x1600
- 1 - Instruction Manual
- 1 - Universal Power Adapter (NA/UK/EU/AUS)
- 1 - Mounting Brackets
Packaging Description 4-Port DisplayPort Video Splitter - 2560x1600 Packaging Description India 4-Port DisplayPort Video Splitter - 2560x1600 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 4 Amazon Merchandising Manager Umer Khalid en-US Content Approved No Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,ES,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Greg Product Photographer Alejandra Valencia
