Main Image
ST124DVIA
4 Port DVI Splitter with Audio
Split a DVI source with audio to up to four displays
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Port DVI Splitter with Audio Product Number ST124DVIA UPC 065030839570 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Splitters Category Level 3 DVI Splitters Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 4 Port DVI Video Splitter with Audio Product Title (Medium) x Product Title (Standard) 4 Port DVI Video Splitter with Audio Product Title (Long) 4 Port DVI Video Splitter with Audio - TAA Product Title (AMZ) 4 Port DVI Video Splitter with Audio - Video/audio splitter - 4 x DVI + 4 x audio - desktop (ST124DVIA) Title Ingram (Part 1) 4 Port DVI Video Splitter with A Title Ingram (Part 2) udio Website Product Headline Split a DVI source with audio to up to four displays Bullet 1 Accurate and reliable reproduction of digital video signal, with no signal attenuation or distortion Bullet 2 DVI, and HDCP compliant for easier HD video distribution Bullet 3 Easy setup for a quick connection in minutes Bullet 4 Split both video and 3.5mm analog stereo audio Bullet 5 Supports resolutions of up to 1920 x 1200 pixels @ 60 Hz Bullets (Consolidated) Video/audio splitter - 4 x DVI + 4 x audio - desktop Marketing Copy Applications - Connect DVI projectors, monitors, large displays, and wall display systems for digital signage applications and ensuring content is delivered to target audience.
- Great for use in tradeshows, POS retail, healthcare, transportation terminals, education, house of worship.
Website Search Keyword - Digital Video Distribution
- Digital Video Interface Splitter
- DVI Distribution Amplifier
- DVI Split
- DVI Splitter
- DVI to HDMI Distribution Amplifier
- DVI to HDMI Splitter
- DVI Video and Audio Distribution
- DVI Video Distribution
- B116-004A
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
Accessory Products - DVIMM6
- DVIDSMM10
- DVIDSMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST122DVIA
- ST122HDMI
- ST124HDMI
Input Voltage 100 - 240 AC Output Current 0.6A Output Voltage (V) 9V DC Power Consumption (In Watts) 5.4 Power Source AC Adapter Included Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 220 Product Width (mm) 135 Product Height (mm) 44 Product Weight (g) 1100 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Max Distance 10m [33ft] Maximum Digital Resolutions 1920x1200 @ 60Hz Wide Screen Supported Yes AV Input DVI AV Output DVI Cabling DVI LED Indicators - 1 - Green - Power/Link
- 4 - Green - Link

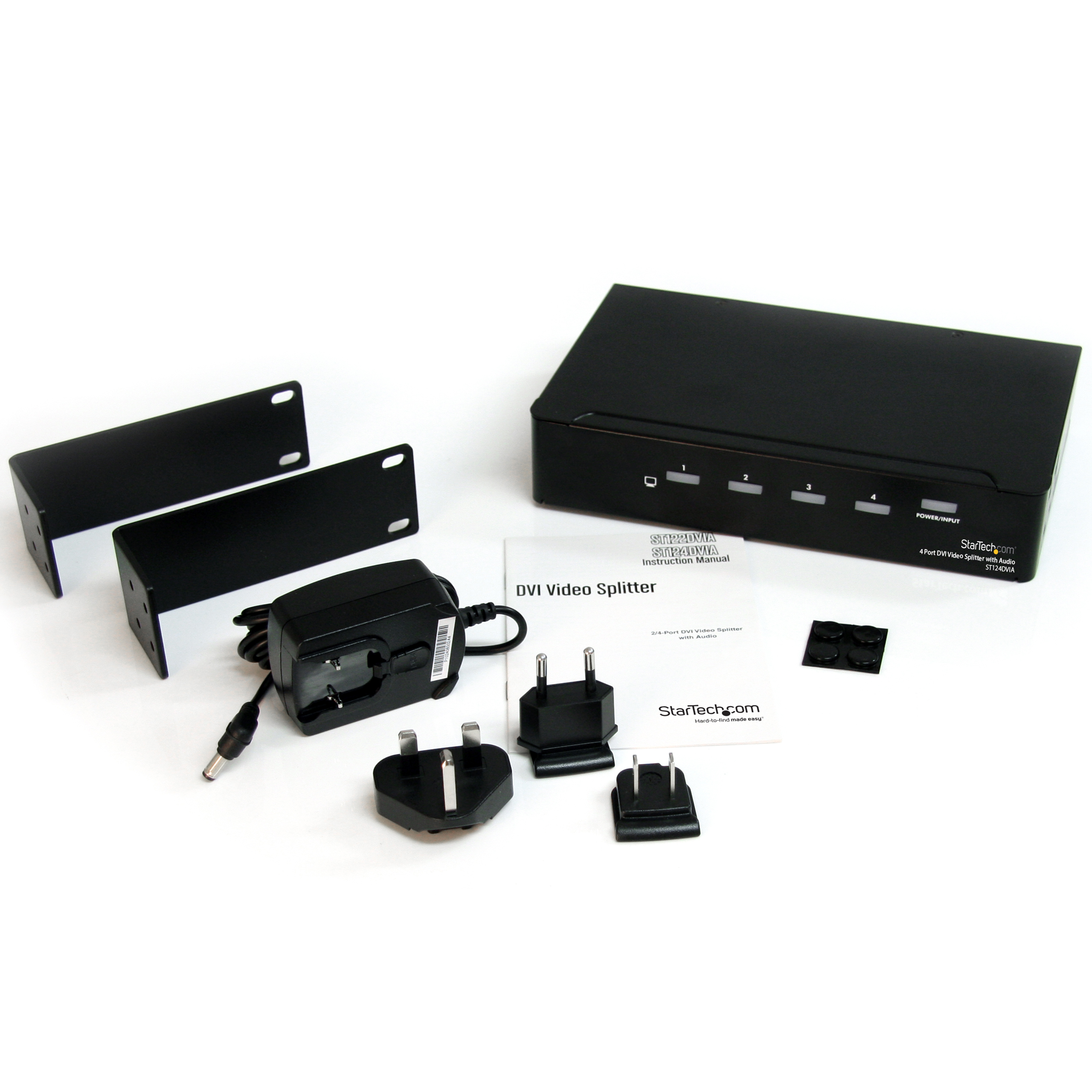

Carton Depth (mm) 440 Carton Height (mm) 258 Carton Quantity 6 Carton Weight Gross (g) 13196 Included in Package - 1 - 4-port DVI splitter
- 1 - instruction manual
- 2 - rack mounts
- 1 - universal power adapter (US, UK, EU, ANZ)
- 1 - screw kit
- 4 - rubber feet
Package Depth (mm) 88 Package Height (mm) 210 Package Width (mm) 410 Package Quantity 1 Package Weight (g) 1972 Packaging Description 4 Port DVI Video Splitter with Audio Packaging Description India 4 Port DVI Video Splitter with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 1 Connector 3 DVI-I Dual-Link (29-Pin) Connector 3 (Quantity) 4 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
