ST124HD202
4 port HDMI 2 0 Splitter
1 In 4 Out Video Splitter | HDMI 2.0 | HDR | 2-Year Warranty

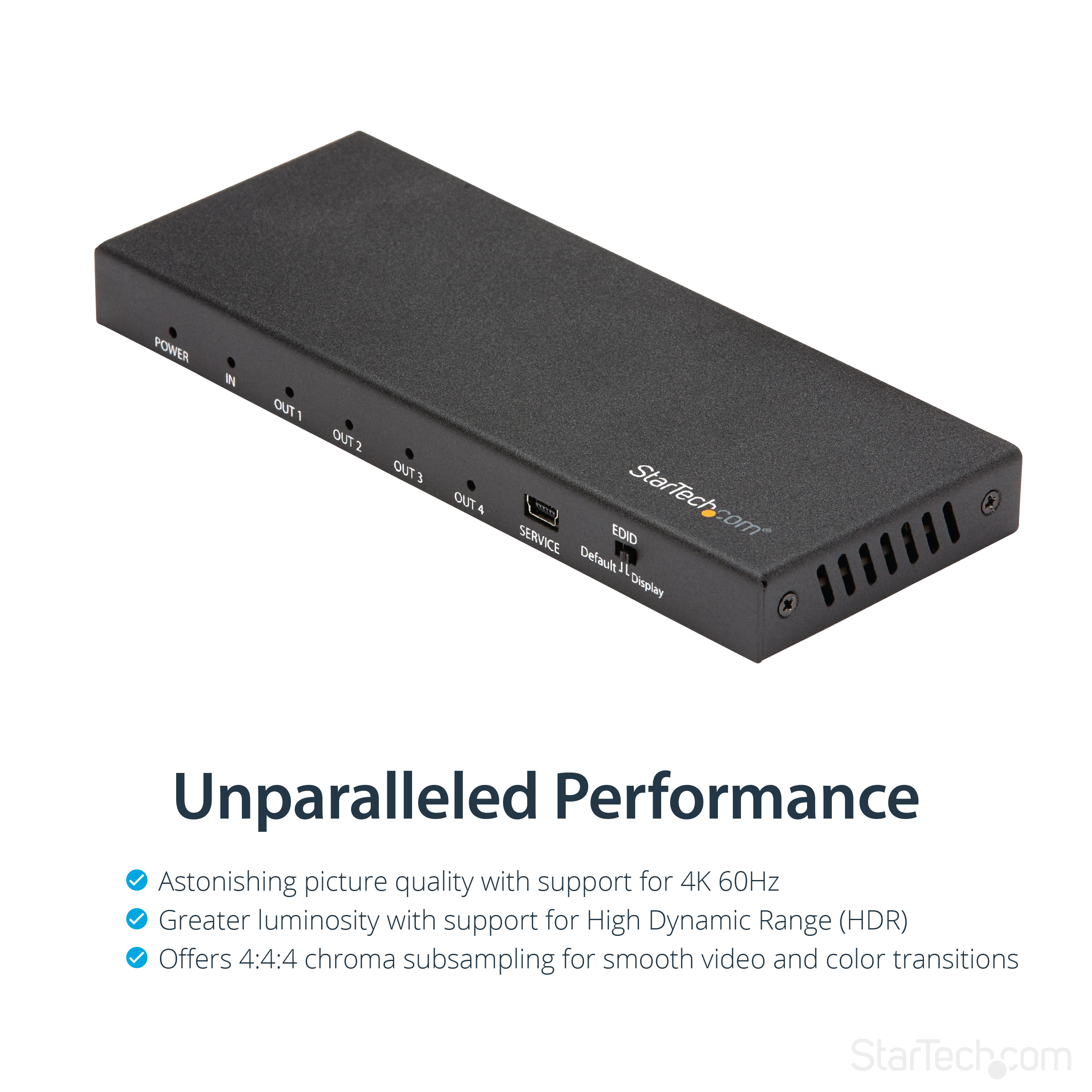

Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images

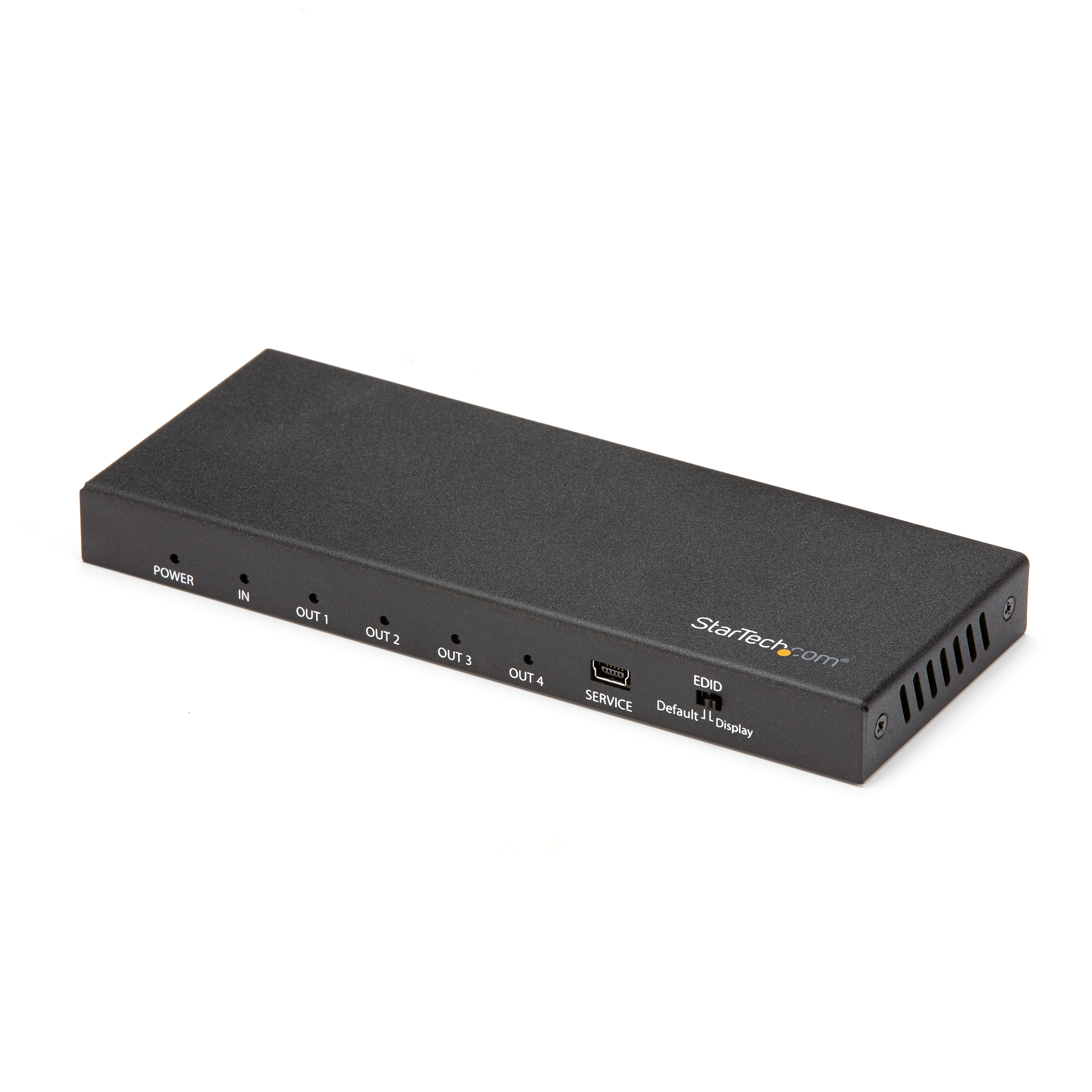

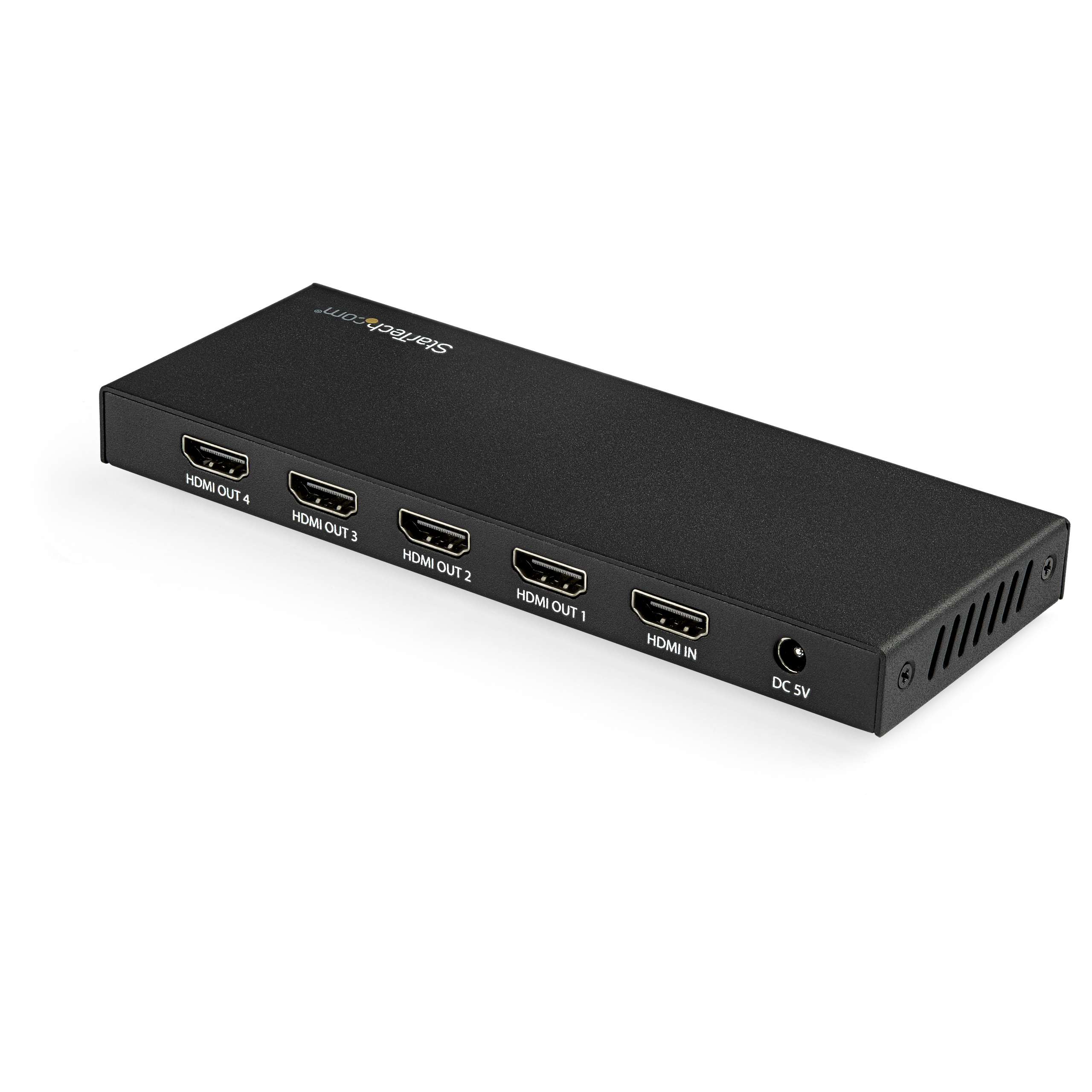

Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name 4 port HDMI 2 0 Splitter Product Number ST124HD202 UPC 065030880398 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Video Switches & Splitters Category Level 1 Video Display Connectivity Category Level 2 Video Splitters Category Level 3 HDMI Splitters - 4K HDR Family HDMI Splitter - 4K60 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX035X Product Title (Ultra-Short) 1x4 4K HDMI Splitter Product Title (Short) HDMI Splitter - 4 Port - 4K 60Hz Product Title (Medium) 4 Port HDMI Splitter - 4K 60Hz - 1x4 Way HDMI 2.0 Splitter Product Title (Standard) 4 Port HDMI Splitter - 4K 60Hz - 1x4 Way HDMI 2.0 Splitter - HDR - ST124HD202 Product Title (Long) 4-Port HDMI Splitter - 4K 60Hz Product Title (AMZ) 4-Port HDMI Splitter, 4K 60Hz HDMI 2.0 Video Splitter, 1 Input 4 Output Title Ingram (Part 1) 4 Port 4K HDMI Splitter Title Ingram (Part 2) 1x4 Way HDMI 2.0 Splitter Website Product Headline 1 In 4 Out Video Splitter | HDMI 2.0 | HDR | 2-Year Warranty Bullet 1 4-PORT HDMI SPLITTER: Displays the same image with sound on 4 screens; Splits an HDMI video signal up to Ultra HD 4K 60Hz & 7.1 CH audio; 4:4:4 chroma subsampling support w/ bandwidth up to 18Gbps (HDMI 2.0b); HDR; HDCP 2.2 to HDCP 1.4 conversion Bullet 2 EDID EMULATION: 1x4 HDMI splitter 4K automatically passes EDID between your video source and the display attached to port 1 ensuring native settings (such as resolution and refresh rate) are configured Bullet 3 AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Support for 7.1 surround sound audio including Dolby® True HD and DTS HD Master Audio Bullet 4 LONG REACH: Reach up to 16.4ft (5m) with a passive HDMI cable; For longer distances, active HDMI cables or HDMI extenders are available (sold separately) to use with this HDMI splitter for 4x TVs/projectors/monitors/displays Bullet 5 EASY SETUP: No drivers required for this 1-input 4-output UHD HDMI 2.0 splitter box; Simply connect cables and power with the EDID switch set to Auto to get started; Wide screen monitor formats supported; HDMI/DVI compatible Bullets (Compact) Displays the same image with sound on 4 screens - Splits an HDMI video signal up 4K 60Hz - 4:4:4 chroma; up to 18Gbps (HDMI 2.0b) - HDR; HDCP 2.2 to HDCP 1.4 conversion; 7.1 surround sound audio - Passes EDID between video source and display (port 1) Bullets (Consolidated) - Displays the same image with sound on 4 screens; Splits an HDMI video signal up 4K 60Hz - 4:4:4 chroma subsampling support bandwidth up to 18Gbps (HDMI 2.0b); HDR; HDCP 2.2 to HDCP 1.4 conversion - 1x4 HDMI splitter 4K passes EDID between video source and the display attached to port 1 ensuring native settings - Support for 7.1 surround sound audio including Dolby True HD and DTS HD Master Audio - Up to 16.4ft (5m) w/ a passive HDMI cable; Active HDMI cables are available for longer distances Marketing Copy Marketing Copy (No HTML) Applications - Distribute HDMI video to multiple displays in a conference room for presentations and meetings
- Display the same digital signage on multiple displays in different areas of shopping centers, arenas, or healthcare facilities
- Split the same image to multiple displays in storefronts
Website Search Keyword - 1x4 hdmi splitter
- 4 Port HDMI splitter
- 4 way hdmi splitter
- 4k hdmi splitter
- 4k hdmi splitter 1x4
- HDMI 2.0 splitter
- HDMI 2.0 splitter 4k
- hdmi 4 port splitter
- hdmi 4 way splitter
- HDMI 4K splitter
- hdmi distribution
- hdmi port splitter
- hdmi signal splitter
- HDMI splitter
- hdmi splitter 1 in 4 out
- hdmi splitter 1x4
- hdmi splitter box
- B127-004-H
- B118004HDR
Required Regulatory Compliance Marks - Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Accessory Products - HD2MM15MA
- HD2MM10MA
- HDMM50CMP
- HDMM7MP
- HDMM5MP
- HDMM2MLP
- HDMM2MP
- HDMM3MP
Related Products - ST124HDMI2
- ST122HDMILE
- ST122HDMI2
- ST124HD4K
- ST122HD4K
- ST122HD4KU
- ST128HD20
- ST122HD202
- ST122HD20S
- ST124HDVW

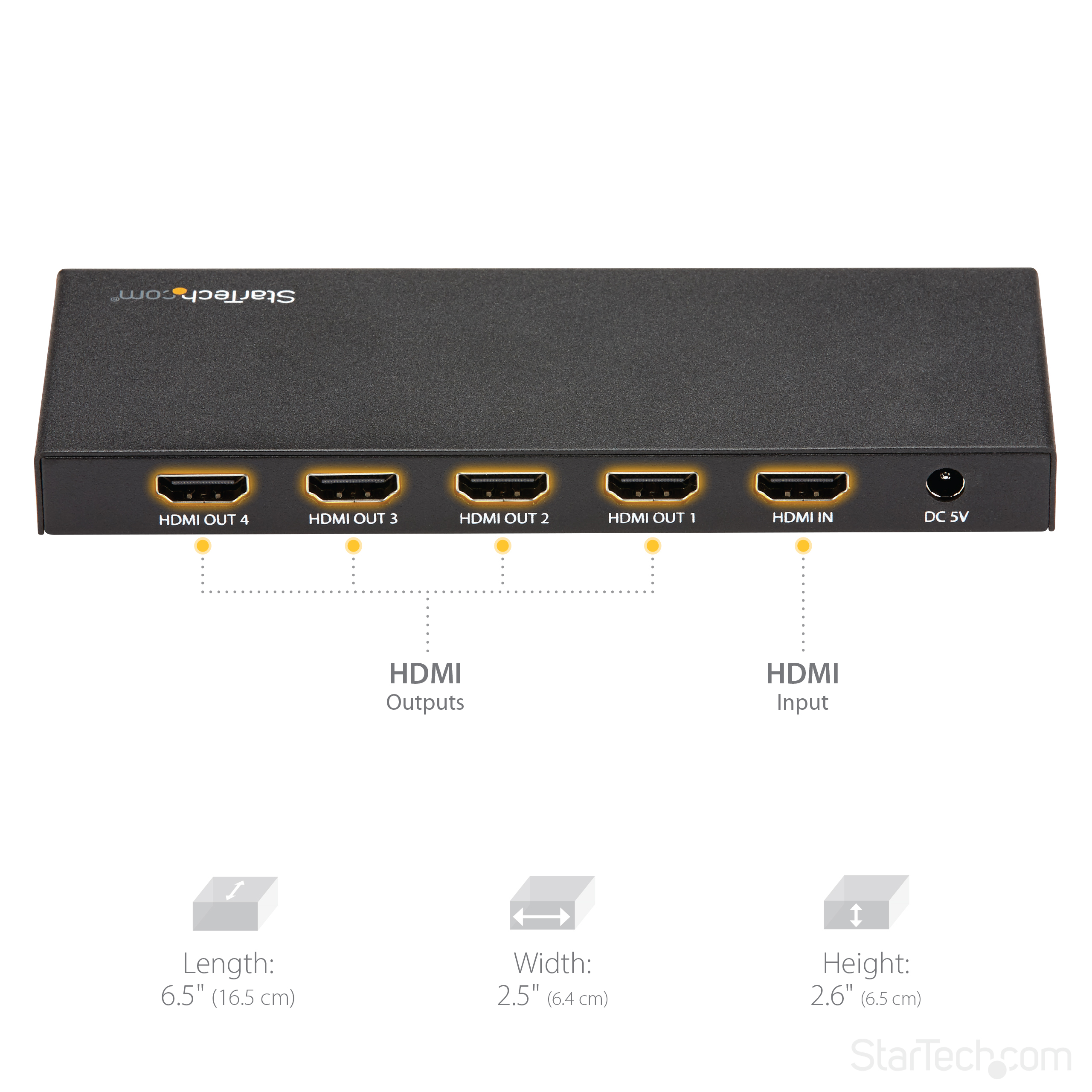

Constrained SKU Alternatives (Limited Stock) ST122HD202 Input Current 0.35 Input Voltage 100 - 240 AC Output Current 1 A Output Voltage (V) 5 DC Power Consumption (In Watts) 5 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20~90 % RH (non-condensing) Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 163.000 Product Width (mm) 64.000 Product Height (mm) 15.700 Product Weight (g) 261.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Maximum Cable Length (mm) 5000 Maximum Data Transfer Rate 18Gbps Maximum Digital Resolutions Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Industry Standards HDMI 2.0 LED Indicators - 1 - Power LED

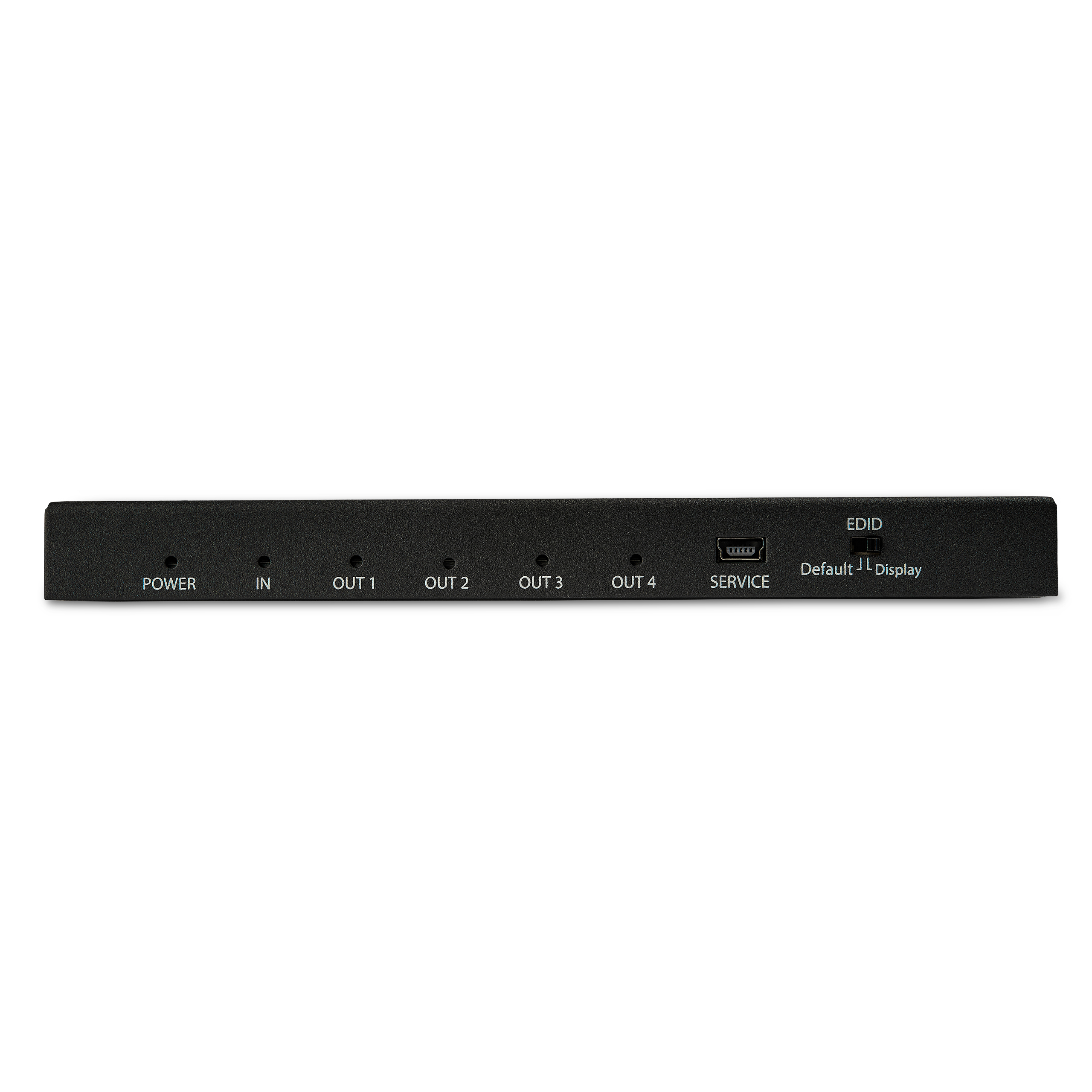

- 1 - Input LED
- 4 - Output LEDs

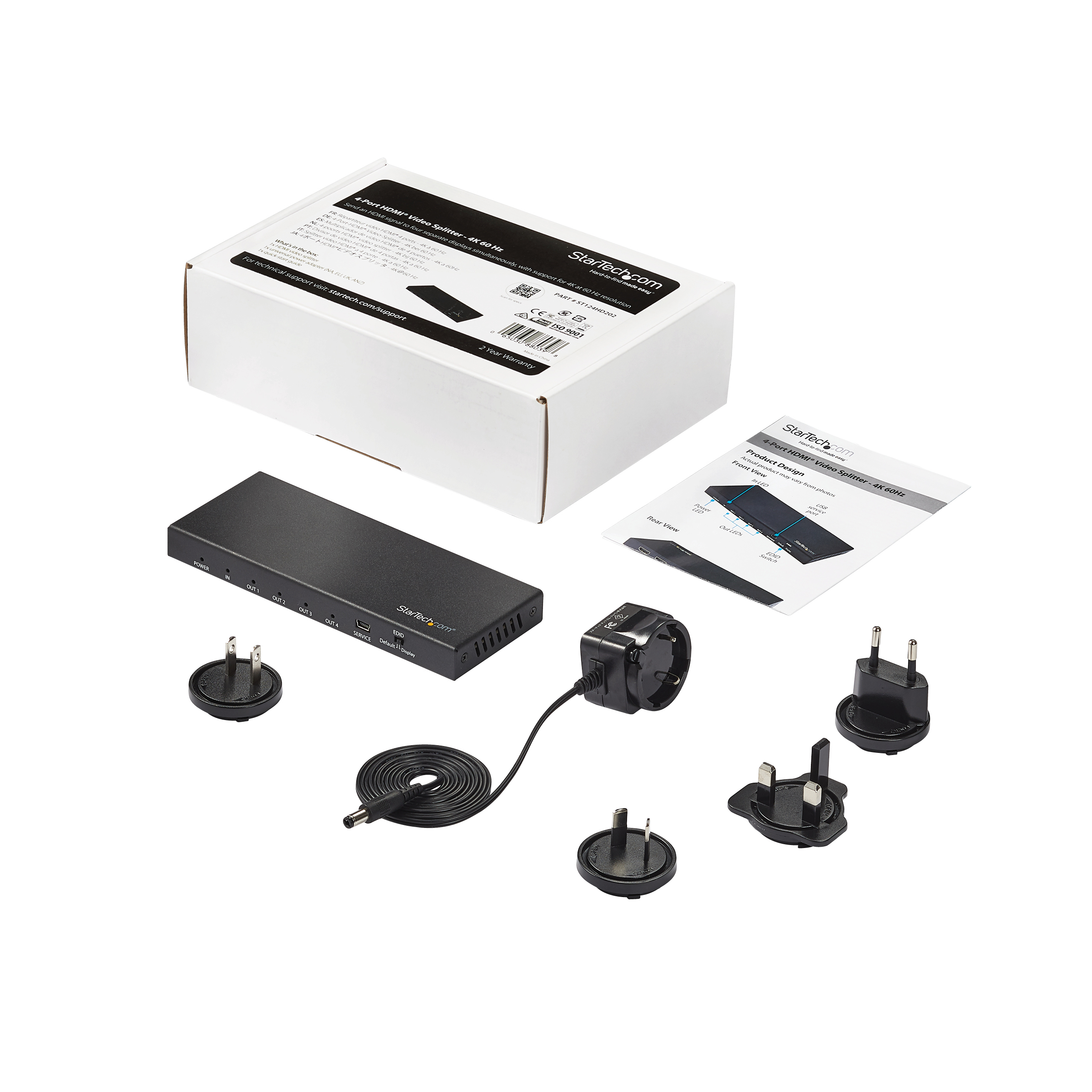

Matrix Video Switch (Filter) No Carton Depth (mm) 453 Carton Height (mm) 329 Carton Quantity 20 Carton Weight Gross (g) 11390 Included in Package - 1 - HDMI splitter
- 1 - universal power adapter (NA, EU, UK, ANZ)
- 1 - quick-start guide
Package Depth (mm) 151 Package Height (mm) 68 Package Width (mm) 216 Package Quantity 1 Package Weight (g) 528 Packaging Description 4-Port HDMI® Video Splitter - 4K 60Hz Packaging Description India 4-Port HDMI Video Splitter - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2018-06-05 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2018-08-03 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-05-04 Target Production Release 2018-06-08 Tech Lead Justin Weaver Technical Writer Evan Hanbidge Technology Lifecycle None
