ST124HDBT

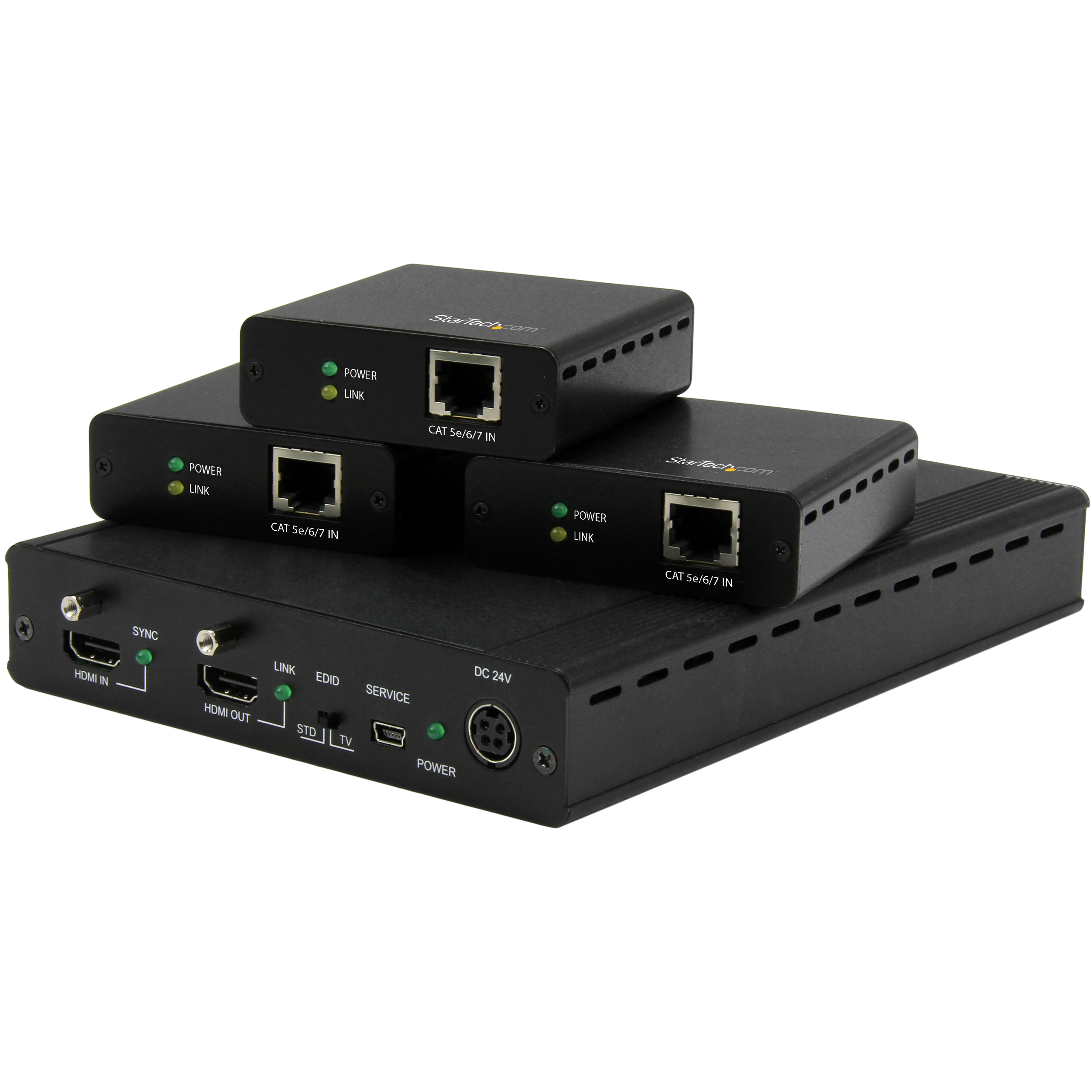

1x3 HDMI over CAT5 Splitter - 4K HDBaseT Extender
Distribute your HDMI source to three remote displays over standard CAT5e, CAT6 or CAT7 cable
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 1x3 HDMI over CAT5 Splitter - 4K HDBaseT Extender Product Number ST124HDBT UPC 065030864558 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDBaseT Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Ultra-Short) 1x3 HDMI Extender Product Title (Short) Extender Kit - 3 Port HDBaseT Up to 4K Product Title (Medium) 3 Port HDBaseT Extender Kit with 3 Receivers - HDMI over CAT5e Splitter - 4K Product Title (Standard) 3 Port HDBaseT Extender Kit with 3 Receivers, 1x3 HDMI over CAT5e/CAT6 Splitter, 1-to-3 4K HDBaseT Distribution System, TAA Product Title (Long) 3-Port HDBaseT Extender Kit with 3 Receivers - 1x3 HDMI over CAT5e Splitter - Up to 4K - TAA Product Title (AMZ) 3 Way HDMI Splitter - HDBaseT Extender Kit w/ 3 Receivers - 1x3 HDMI over CAT5e / CAT6 Splitter - 3 Port HDBaseT HDMI Extender - Up to 4K , TAA (ST124HDBT) Title Ingram (Part 1) 1x3 HDMI over CAT5e Splitter - Title Ingram (Part 2) HDBaseT Extender over CAT5e - 4K Website Product Headline Distribute your HDMI source to three remote displays over standard CAT5e, CAT6 or CAT7 cable Bullet 1 Extends your HDMI video signal to three remote HDMI displays, each in different locations Bullet 2 Maintains UHD 4K up to 115 feet away, and HD 1080p up to 230 ft. away, over non-proprietary CAT5e or CAT6 cabling Bullet 3 A complete extender kit that includes the transmitter and three remote receivers Bullet 4 Dolby® TrueHD, DTS-HD MA Audio Bullet 5 Mountable, to install securely and out of the way Bullets (Compact) Distribute your HDMI source to three remote displays over standard CAT5e CAT6 or CAT7 cable - Works w/ HDMI devices like computers Blu-ray players & TV set tops - Works with HDMI televisions monitors or projectors - 4K at 115 ft. or 1080p at 230 ft. Bullets (Consolidated) Distribute your HDMI source to three remote displays over standard CAT5e CAT6 or CAT7 cable - Works with HDMI video source devices like computers Blu-ray players and TV set top boxes - Works with HDMI televisions monitors or projectors - HDMI splitter/4K digital signage distribution/HDMI extender/HDBaseT extender/1x3 HDMI extender/Mountable HDMI over CAT6 extender/HDBaseT splitter - Maintain UHD 4K at 115 feet away and HD 1080p at 230 ft. away - Kit includes transmitter and 3 receivers Marketing Copy Marketing Copy (No HTML) This 3 way HDMI splitter lets you extend an HDMI source to three remote locations, using HDBaseT technology. The kit includes 3 remote receiver units, and the transmitter features a local HDMI output, which gives you the ability to keep a fourth HDMI display at your local video source. This all-in-one extender kit saves you the complications and compatibility issues that can happen if you're not using the correct receivers. It’s perfect for use in corporate environments such as small or large offices, or in retail, hospitality, and educational establishments. With the A/V industry adopting 4K as its new high-resolution standard, long-range video distribution can be difficult, especially considering the 4K distance limitations on standard HDMI cables. You’ll be amazed at how this 1x3 HDMI splitter kit can deliver your video signal to three different locations while maintaining 4K Ultra HD picture quality. You get four times the resolution of high-definition 1080p, even at 115 feet (35 m) away from your video source. The HDBaseT HDMI extender is also backward compatible with 1080p at 230 feet (70 m), so you can comfortably use it to make any video source look great. HDBaseT technology offers a single-cable installation, so you can integrate this solution seamlessly using your existing CAT5e or CAT6 infrastructure. Plus, each device included with the HDBaseT extender kit is mountable, so you can keep the equipment out of sight in an equipment rack, or on a wall. This helps to reduce clutter and ensure a professional installation that doesn't draw your viewers' attention away from the content on your display. It’s perfect for customer-facing displays in bars or restaurants. This HDMI video over Ethernet (CAT5 / CAT6) extender is backed by a 2-year StarTech.com warranty and free lifetime technical support. Applications - Route digital signage throughout large environments, such as schools, hospitals, arenas or shopping centers
- Extend a single entertainment source to multiple locations in hospitality settings such as bars, hotels or restaurants
Website Search Keyword - 1x3 HDBaseT Extender
- 1x3 hdbaset hdmi extender
- 1x3 hdbaset hdmi splitter
- 1x3 HDMI Distribution Amplifier
- 1x3 HDMI Extender
- 1x3 hdmi splitter
- 3 Port HDMI Extender
- 4k
- 70m range
- digital signage
- hdbaset extender
- hdbaset splitter
- hdmi extender
- hdmi over cat6 extender
- hdmi over cat6 splitter
- HDMI over CAT6/7
- hdmi splitter
- mountable
- B126004
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes CAT6 STP Cables provide protection against electromagnetic interference and cross-talk, and are highly recommended for use with this product. Accessory Products - HDMM6
- HDMM2MP
- HDMM15
- USB2HABM3
- USB2HABM6
- USB2HABM10
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- HDMM610PK
Related Products - ST121SHD50
- ST121SHD30
- ST121UTPHD2
- ST121HDBTU
- ST121HDBTDK
- ST121HDBTD
- ST121HDBT5
- ST121HDT4P
Input Current 1.5A Input Voltage 100 - 240 AC Output Current 2.7A Output Voltage (V) 24 DC Power Consumption (In Watts) 64.8 Power Source AC Adapter Included Plug Type 4-pin DIN Center Tip Polarity Positive Color Black Humidity 0% - 80 % RH (non-condensing) Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 200.000 Product Width (mm) 145.000 Product Height (mm) 30.000 Product Weight (g) 1000.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes General Specifications - Maximum 1080p Distance: 70 m (230 ft.)
- Maximum 4K Distance: 35 m (115 ft.)

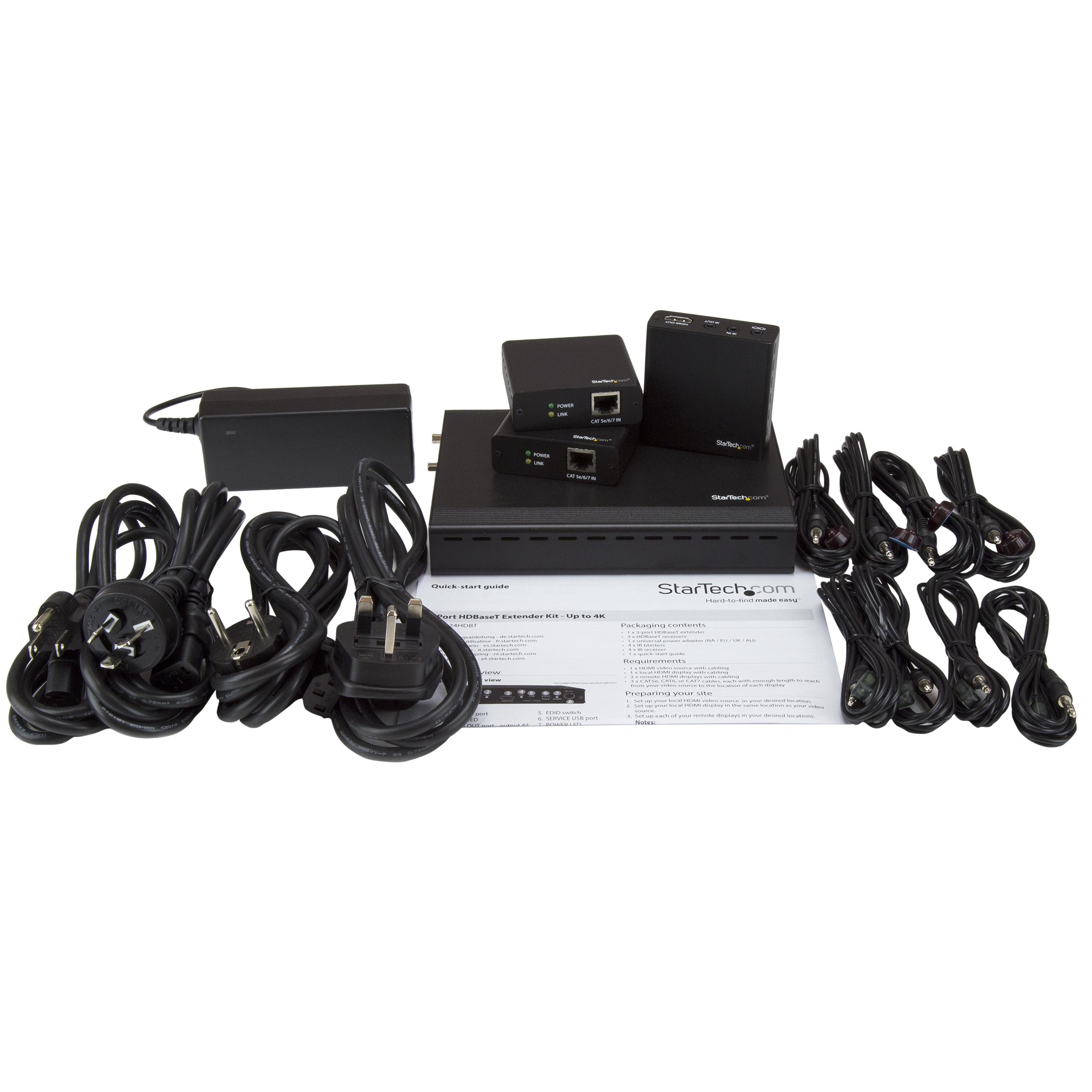

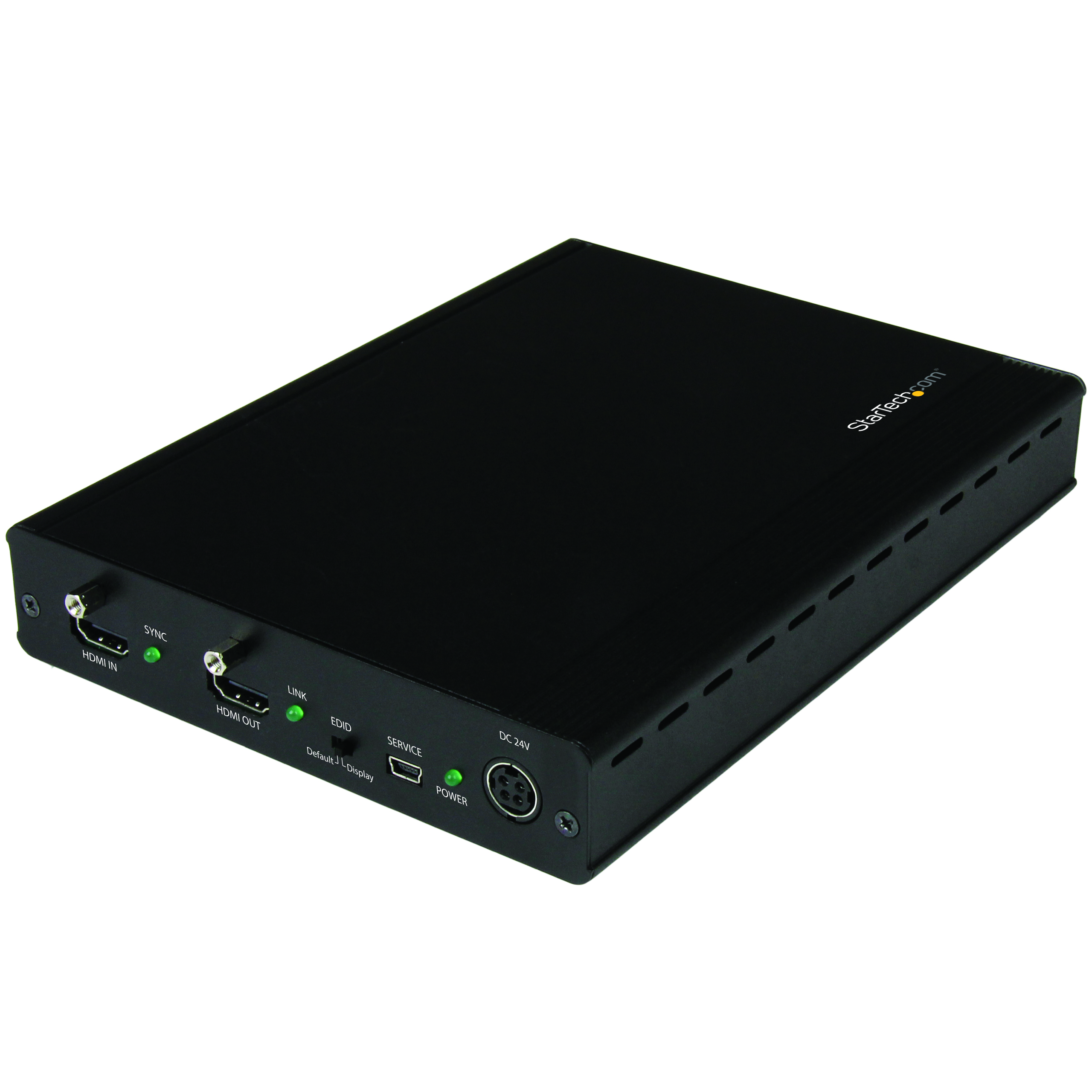

Max Distance 70m [230ft] Maximum Cable Length (mm) 70000 Maximum Digital Resolutions Supported Resolutions Audio Yes Cabling Cat 5e UTP or better Cascadable Yes Rack-Mountable Yes Carton Depth (mm) 370 Carton Height (mm) 514 Carton Quantity 5 Carton Weight Gross (g) 14100 Included in Package - 1 - 3-port HDBaseT extender
- 1 - universal power adapter (NA / EU / UK / AU)
- 1 - quick start guide
- 4 - IR blasters
- 4 - IR receivers

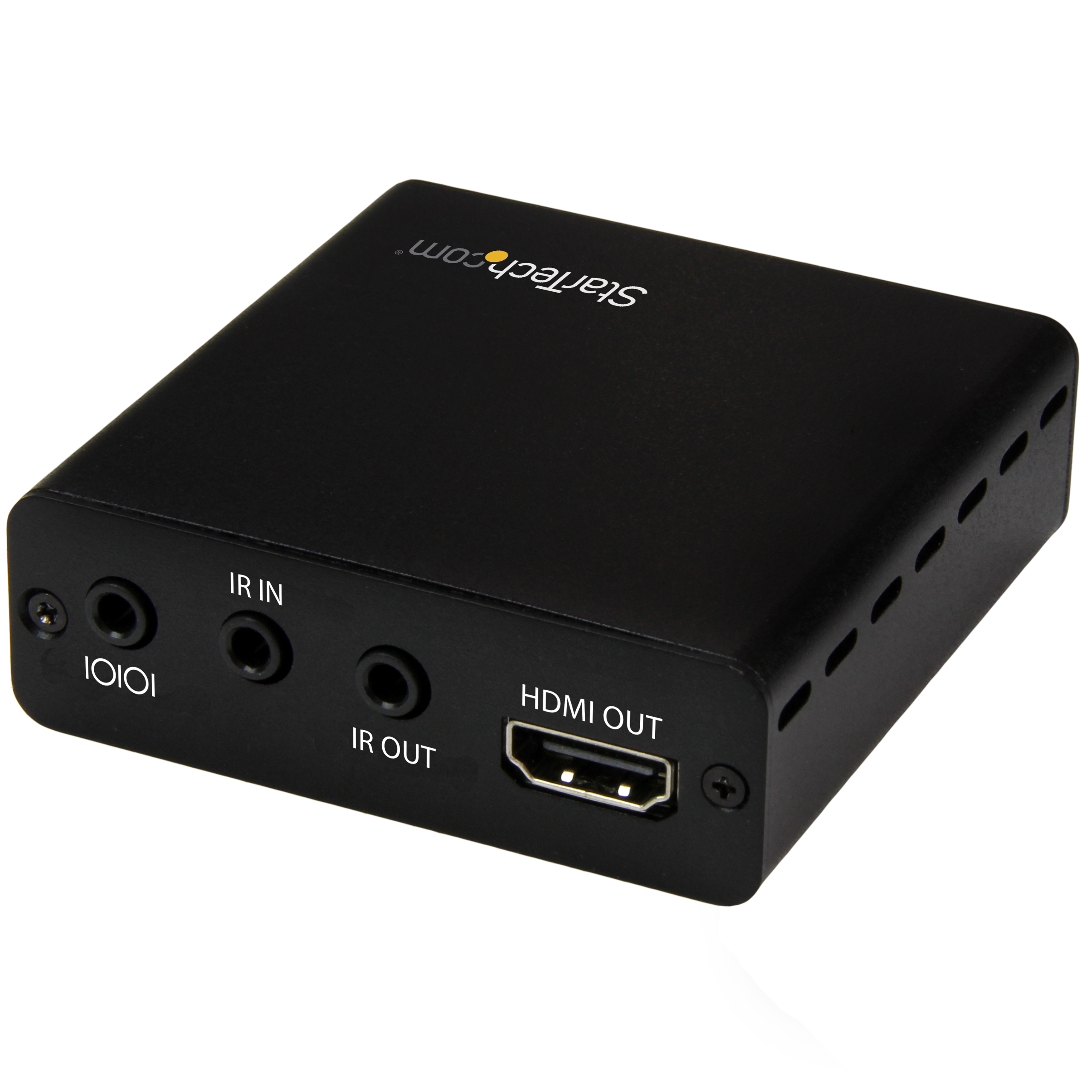

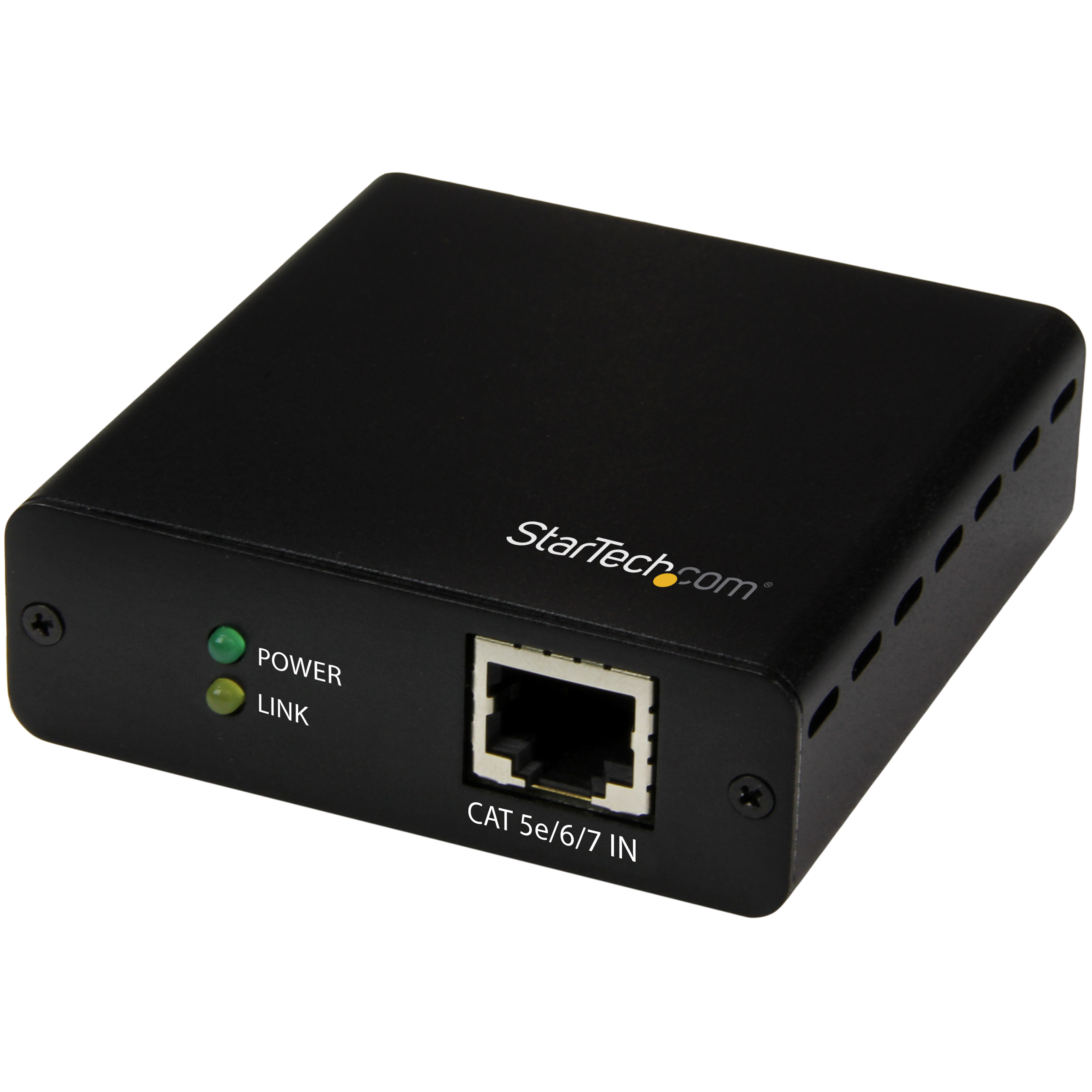

- 3 - HDBaseT receivers
Package Depth (mm) 239 Package Height (mm) 96 Package Width (mm) 470 Package Quantity 1 Package Weight (g) 2666 Packaging Description 3-Port HDBaseT Extender Kit - Up to 4K Packaging Description India 3-Port HDBaseT Extender Kit - Up to 4K Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-12-14 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2016-11-23 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2016-05-19 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
