Product Name 4 Port HDMI Distribution Amplifier with HDCP Product Number ST124HDMI UPC 065030822237 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Short) 4 Port HDMI Audio / Video Splitter Product Title (Standard) StarTech.com 4 Port HDMI Audio / Video Splitter - Rack Mountable - 4 Port HDMI Splitter - Video splitter - 4 ports Product Title (Long) 4 Port HDMI Audio / Video Splitter Title Ingram (Part 1) 4 Port HDMI Audio / Video Splitt Title Ingram (Part 2) er - Rack Mountable Bullet 1 Built-in EDID simulator and HDCP keyset allows each output to work independently when connecting to a HDMI display. Bullet 2 Splits a HDMI® source up to 4 outputs without signal loss. Bullet 3 Supports a wide range of PC and HDTV resolutions-from VGA to UXGA and 480p to 1080p. Bullet 4 Can be cascaded up to 3 layers Bullet 5 HDCP 1.1 Compliant Marketing Copy Applications - Connect HDMI® enabled projectors, monitors, plasma screens, commercial billboards, and wall display systems
- Ideal for classroom, corporate, healthcare, professional A/V, control centres, conference halls, and retail environments.
Website Search Keyword - 4 Port
- HDMI
- Distribution Amplifier
- HDCP
- ST124HDMI
Accessory Products - HDMIMM20
- HDMIMM25
- HDMIMM10
- ZENDVIHDMI1
Related Products - ST122HDMI
- ST128HDMI

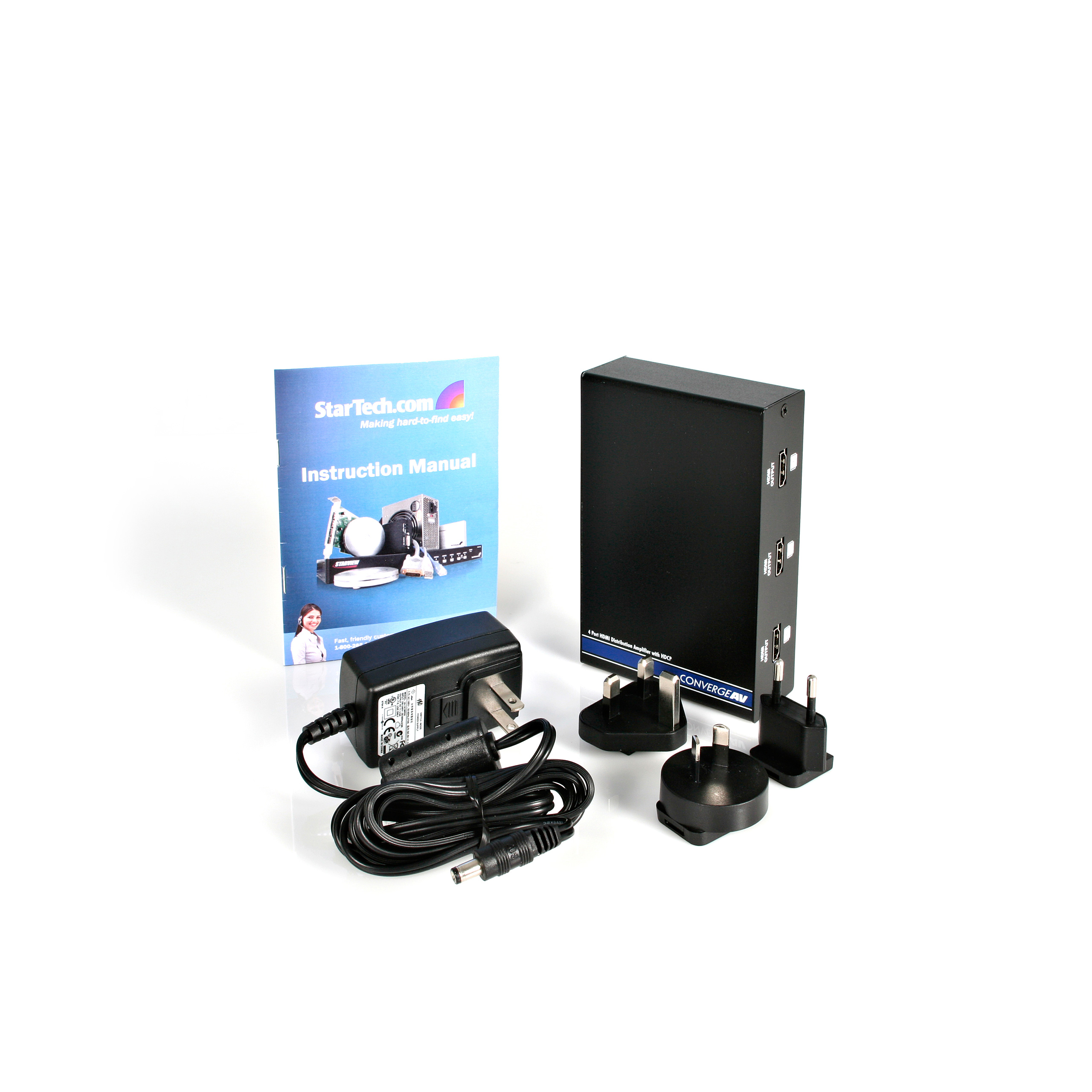

Replacement Product ST124HDMI2 Input Voltage Universal 115 ~ 230 AC Output Current 2.6A Output Voltage (V) 5 DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Humidity 30~80% RH Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant No Bandwidth 1.65Gbps (single link) Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Carton Depth (mm) 424 Carton Height (mm) 328 Carton Quantity 15 Carton Weight Gross (g) 12600 Included in Package - 1 - HDMI Distribution Amplifier
- 1 - Instruction Manual
- 1 - Power Adapter
Package Depth (mm) 60 Package Height (mm) 136 Package Width (mm) 252 Package Weight (g) 760 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager Eric Roth
