ST124HDMI2
4 Port HDMI 1 3 Video Splitter w Audio
Split an HDMI® audio and video signal to four displays simultaneously
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Port HDMI 1 3 Video Splitter w Audio Product Number ST124HDMI2 UPC 065030841696 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Video Switches & Splitters Category Level 1 Video Display Connectivity Category Level 2 Video Splitters Category Level 3 HDMI Splitters Family HDMI Splitter - Amplifier Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) . Product Title (Short) 4 Port High Speed HDMI Video Splitter Product Title (Medium) x Product Title (Standard) HDMI Splitter 1 In 4 Out – 1080p – 4 Port –Mounting Brackets – 1.3 Audio – HDMI Multi Port – HDMI Audio Splitter, TAA Product Title (Long) 4-port HDMI splitter and signal amplifier - TAA Product Title (AMZ) HDMI Splitter 1 In 4 Out - 1080p - 4 Port -Mounting Brackets - 1.3 Audio - HDMI Multi Port - HDMI Audio Splitter , TAA (ST124HDMI2) Title Ingram (Part 1) 4 Port HDMI 1.3 Video Splitter w Title Ingram (Part 2) / Audio Website Product Headline Split an HDMI® audio and video signal to four displays simultaneously Bullet 1 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Splitter with rugged steel enclosure is backed for two years, including free lifetime 24/5 multi-lingual technical assistance Bullet 2 4-PORT HDMI SPLITTER: Displays the same image with sound on 4 screens; HDMI splitter with signal amplifier splits an HDMI source into four Full HD 1080p video signals with no loss of quality Bullet 3 EDID EMULATION: 1x4 HDMI splitter automatically passes EDID between your video source and the display attached to port 1 ensuring native settings (such as resolution and refresh rate) are configured Bullet 4 EASY SETUP: Reach up to 49ft (15m) with this HDMI splitter with signal amplifier; Simply connect the cables and power to start using; Wide screen monitor formats supported; TAA Compliant Bullet 5 AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Supports HDMI audio or 3.5mm stereo audio connection, allowing you to send your accompanying audio signal through the HDMI cable, or through a separate channel Bullets (Consolidated) - Displays the same image with sound on 4 screens; Splits an HDMI video signal up to Full HD 1080p; Splitter and signal amplifier - 1x4 HDMI splitter automatically passes EDID between your video source and displays native settings - Supports HDMI audio or 3.5mm stereo audio connection, allowing audio signal through the HDMI cable, or through a separate channel - Up to 49ft (15m) HDMI cable; Simply connect the cables and power to start using - Wide screen monitor formats supported; TAA Compliant Marketing Copy Applications - Connect HDMI® enabled projectors, monitors, plasma screens, commercial billboards, and wall display systems
- Perfect for classrooms and business multimedia presentations
- Ideal for business conference rooms and trade show displays
- Great for digital signage applications displaying video advertisements with audio in retail environments
- Display information in waiting rooms or to patients in healthcare facilities
- Financial applications include stock tickers or promotion of new products/services
Website Search Keyword - 4 Port
- Distribution Amplifier
- HDCP
- HDMI
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - HDMM6
- HDMM10
- HDMIDVIMM610PK
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- MU6MMS
- HDMM610PK
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- IM12D1500P
- SV431RACK
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST122HDMILE
- ST122HDMI2
- ST124HD4K
- ST122HD4K
- ST122HD4KU
- ST128HD20
- ST124HD202
- ST122HD202
- ST122HD20S
- ST124HDVW
Input Current 0.8A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0%~80% Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 220 Product Width (mm) 135 Product Height (mm) 44 Product Weight (g) 966 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Maximum Cable Length (mm) 15240 Maximum Digital Resolutions HDTV 1080p / PC 1920x1200 Supported Resolutions 1080p (1920 x 1080) / VGA (640 x 480) / SXGA (1280 x 1024) / UXGA (1600 x 1200) / WUXGA (1920 x 1200) Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Cabling HDMI Cascadable Yes Industry Standards High Speed HDMI®, HDCP, EDID LED Indicators - 1 - Power (Green) / Input Signal (Blue)
- 4 - Green Port signal indicator

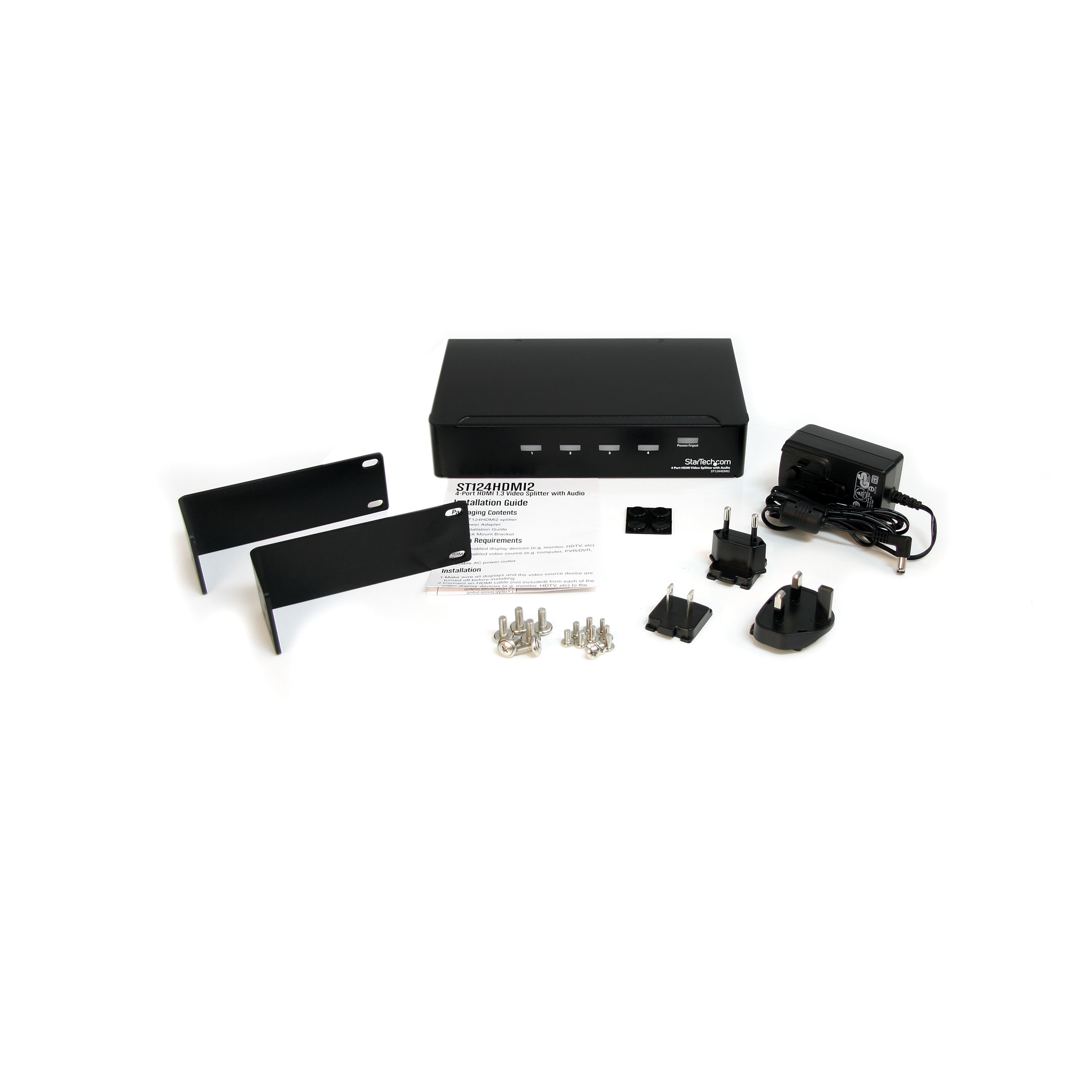

Carton Depth (mm) 550 Carton Height (mm) 257 Carton Quantity 6 Carton Weight Gross (g) 12880 Included in Package - 1 - HDMI splitter
- 1 - instruction manual
- 1 - universal power adapter (NA / EU / UK / AU)
- 1 - mounting hardware and screw kit
Package Depth (mm) 217 Package Height (mm) 85 Package Width (mm) 417 Package Quantity 1 Package Weight (g) 1940 Packaging Description 4 Port HDMI® Video Splitter with Audio Packaging Description India 4 Port HDMI® Video Splitter with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 4 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
