Main Image
ST124PROA
Main Image

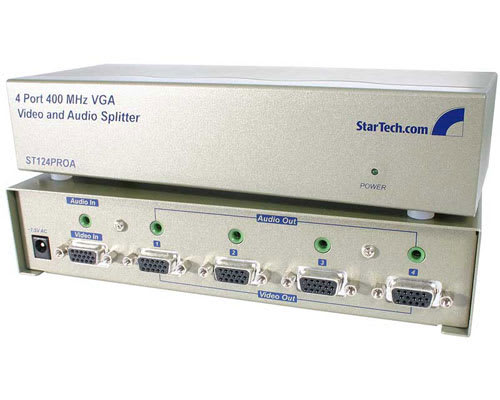

Product Name 4 Port VGA Video Splitter with Audio Product Number ST124PROA UPC 065030805216 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) 4 Port VGA Video Splitter with Audio Product Title (Standard) StarTech.com 4 Port High-Resolution 400 MHz VGA Video and Audio Splitter - Video/audio splitter - 4 ports Product Title (Long) 4 Port High Resolution VGA Video Splitter with Audio - 400 MHz Title Ingram (Part 1) 4 Port High Resolution VGA Video Title Ingram (Part 2) Splitter with Audio 400 MHz Bullet 1 Compatible with VGA, SVGA and Multisync monitors Bullet 2 400 MHz bandwidth provides brilliant 2048 x 1536 resolution Bullet 3 DDC,DDC2 & DDC2B compatible (on Video Out port 1) Bullet 4 Includes DC 7.5V power adapter Bullet 5 Daisy chainable for almost unlimited expansion Marketing Copy Applications - In-store product merchandising
- Information booths/kiosks
- Trade-shows
- Lecture halls and classrooms
- Airports, bus terminals and train stations
Website Search Keyword DA Accessory Products - MXT101HQ
- MXT105HQ
- MXT101HQ_25
- MXT101HQ_50
- MXT101HQ_100
- ST121UTP
- MU1MFRCA
- MU6MM
- MU6MMRCA
Related Products - ST122PROA
- ST128PROA
- ST124PRO
- ST124W
- ST124SW
Input Current 0.8 Input Voltage 7.5 Color Gray Product Length (mm) 130 Product Width (mm) 75 Product Height (mm) 72 Product Weight (g) 658 TAA Compliant No General Specifications - Cable Length: 210 feet (65 meters)
- Dimensions: 5.1 x 2.9 x 1.6 Inches (130 x 75 x 72 mm)
- Input Connectors: Video: 1 x High Density DB15 (Female), Audio: 1 x 3.5mm Audio Jack (Female)
- Output Connectors: Video: 4 x High Density DB15 (Female), Audio: 4 x 3.5mm Audio Jack (Female)
- Power: AC 7.5V 800mA (max)
- Signal Type: XGA, VGA, SVGA, QXGA, UXGA & Multisync displays
- VGA Bandwidth: 400 MHz
- VGA Resolution: 2046 x 1536 @ 60 Hz
Maximum Analog Resolutions 2048x1536 Carton Depth (mm) 400 Carton Height (mm) 328 Carton Quantity 12 Carton Weight Gross (g) 9390 Package Depth (mm) 58 Package Height (mm) 195 Package Width (mm) 257 Package Weight (g) 1170 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 5 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 5 en-US Content Approved Yes Product Manager Eric Roth
