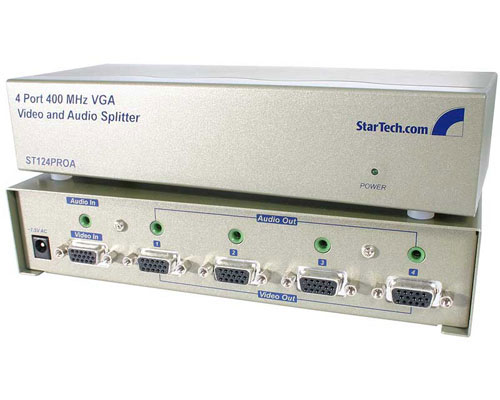

4 Port High Resolution 400 MHz VGA Video and Audio Splitter

Main Image

Product Name	4 Port High Resolution 400 MHz VGA Video and Audio Splitter
Product Number	ST124PROAGB
UPC	065030806053
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	China
Country of Origin Revision (1)	1

Manual https://images.salsify.com/image/upload/s--JLuDL2TX--/cf818b50cfe216d63f5fa27805e926fecc2a9fe0.pdf

Product Title (Long)	4 Port High Resolution 400 MHz VGA Video and Audio Splitter
Bullet 1	Compatible with VGA, SVGA and Multisync monitors
Bullet 2	400 MHz bandwidth provides brilliant 2048 x 1536 resolution
Bullet 3	DDC,DDC2 & DDC2B compatible (on Video Out port 1)
Bullet 4	Includes DC 7.5V power adapter
Bullet 5	Daisy chainable for almost unlimited expansion
Marketing Copy
Applications	In-store product merchandising Information booths/kiosks Trade-shows Lecture halls and classrooms Airports, bus terminals and train stations

General Specifications

Cable Length: 210 feet (65 meters)
Dimensions: 5.1 x 2.9 x 1.6 Inches (130 x 75 x 72 mm)
Input Connectors: Video: 1 x High Density DB15 (Female), Audio: 1 x 3.5mm Audio Jack (Female)
Output Connectors: Video: 4 x High Density DB15 (Female), Audio: 4 x 3.5mm Audio Jack (Female)
Power: AC 7.5V 800mA (max)
Signal Type: XGA, VGA, SVGA, QXGA, UXGA & Multisync displays
VGA Bandwidth: 400 MHz
VGA Resolution: 2046 x 1536 @ 60 Hz

Maximum Analog Resolutions

2048x1536

Connector 1 VGA
Connector 1 (Quantity) 5
Connector 2 3.5mm (3 Conductors, TRS)
Connector 2 (Quantity) 5
en-US Content Approved Yes

Accessory Products	MXT101HQ MXT101HQ_100 MXT101HQ_150 MXT101HQ_200 MXT101HQ_25 MXT101HQ_50 MXT101MMHQ MXT101MMHQ25 MXT101MMHQ50 MXT105HQ MXT105MMHQ
Related Products	ST122PROAGB ST128PROAGB

Input Current	0.8
Input Voltage	7.5
