ST124SWEU
Main Image

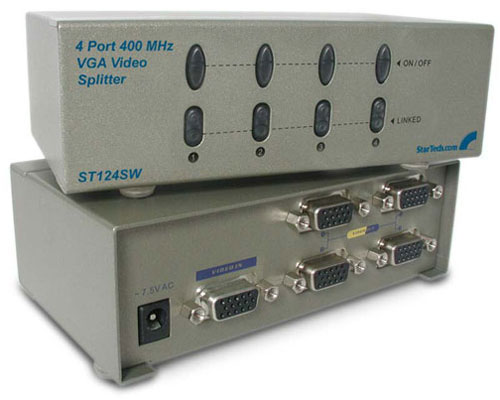

Product Name 4 Port Selectable Output High Resolution 400 MHz VGA Video Splitter Product Number ST124SWEU UPC 065030811712 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) 1 Product Title (Long) 4 Port Selectable Output High Resolution 400 MHz VGA Video Splitter Bullet 1 Allows one computer to provide simultaneous display on four different monitors Bullet 2 Built-in video amplifier boosts the signal to allow a cable length of up to 246 ft. or 75 meters Bullet 3 Daisy chainable for almost unlimited expansion Bullet 4 Easy Plug & Play installation Bullet 5 Port selection switch lets you switch from one monitor to four monitors Marketing Copy Applications - Demos and presentations
- In-store product merchandising
- Information kiosks
- Public broadcast systems
Accessory Products - MXT101HQ
- MXT101HQ_100
- MXT101HQ_150
- MXT101HQ_200
- MXT101HQ_25
- MXT101HQ_50
- MXT101MMHQ
- MXT105HQ
- MXT105MMHQ
Input Current 0.3 Input Voltage 9 Color Gray Product Length (mm) 145 Product Width (mm) 100 Product Height (mm) 45 Product Weight (g) 476.2 TAA Compliant No General Specifications - Cable distance:
- Compatibility: VGA, SVGA, XGA & Multisync displays
- Computer to Switch: 25 Feet (7.5 meters)
- Connectors:
- Dimensions: 5.7 x 3.9 x 1.6 inches (145 x 100 x 40 mm)
- Enclosure: Metal case
- Frequency:
- Horizontal: 30 - 100 KHz
- Input Connectors: 1 x High Density DB15 Male
- LED Indicators: 1 x Power
- Max Resolution: 2048 x 1536 pixels
- Output Connectors: 4 x High Density DB15 Female
- Port Selection: Local Monitor & Local/Remote Monitor
- Power: 9V DC (300Ma)
- Switch to display: 246 Feet (75 meters)
- Vertical: 43 - 120 MHz
- Video Bandwidth: 400 MHz
Maximum Analog Resolutions 2048x1536 Connector 1 VGA Connector 1 (Quantity) 4 Connector 2 VGA Connector 2 (Quantity) 1 en-US Content Approved Yes
