Main Image
ST128
Main Image
Product Images
Product Images
Product Images
Product Images

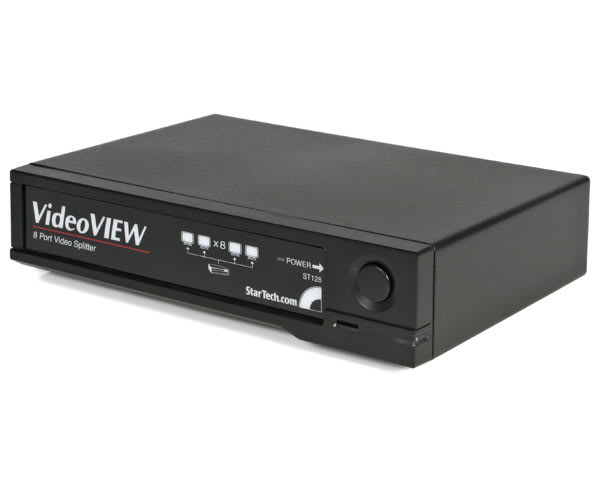

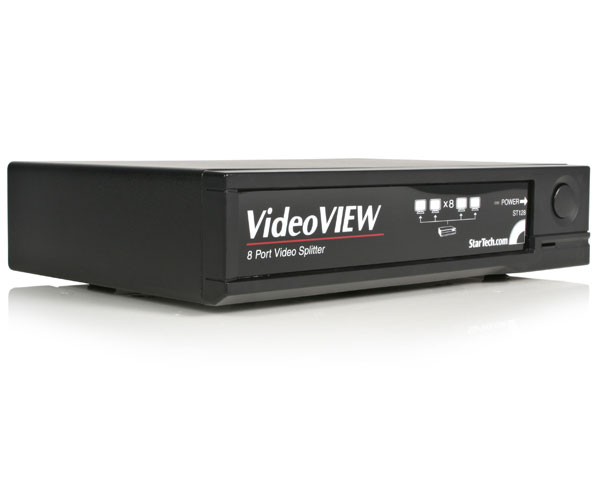

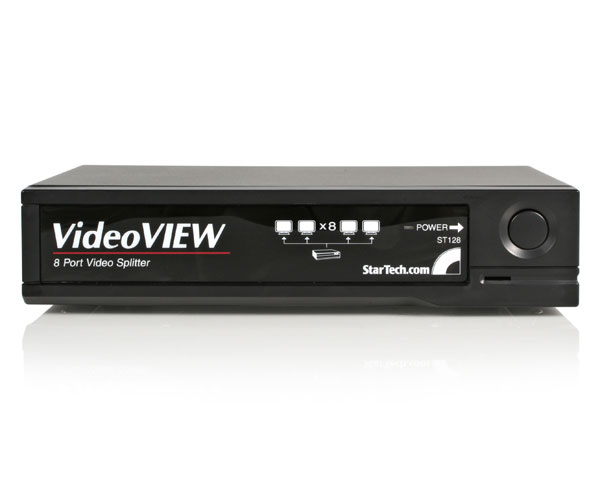

Product Name 8 Port VGA Video Splitter Product Number ST128 UPC 065030772822 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX006X Product Title (Long) 8 Port VGA Video Splitter & Distribution Amplifier - 250 MHz Bullet 1 Allows one computer to provide simultaneous displays on several different monitors Bullet 2 Works with VGA, SVGA and Multisync monitors Bullet 3 Daisy chainable for almost unlimited expansion Bullet 4 Built-in video amplifier boosts the signal to allow a cable legnth of up to 210 ft or 65m Bullet 5 Uses standard monitor extansion cables Marketing Copy The StarTech.com VideoView is a 8 port VGA Video Splitter that allows a PC to display to as many as 8 monitors simultaneously. It is perfect for classrooms, tradeshows, or in-store displays where high quality video on several monitors is needed. The VideoView supports monitors with up to 200MHz of bandwidth allowing it to display images of up to 1600 x 1200 pixels. A built-in booster circuit allows the video signal to be extended up to 200 ft. Applications - Public information display services
- Public broadcast systems
- Demos and presentations
- In-store product merchandising
- Information kiosks
Website Search Keyword DA Accessory Products - MXT101HQ
- MXT105HQ
- MXT101HQ_25
- MXT101HQ_50
- MXT101HQ_100
- MXT101HQ_150
- MXT101HQ_200
- ST121UTP
- STPOWER
Related Products - ST122
- ST124
Replacement Product ST128PRO Input Voltage 9 Power Source AC Adapter Included Color Black Product Length (mm) 224 Product Width (mm) 152 Product Height (mm) 52 Product Weight (g) 1200 TAA Compliant No General Specifications - Signal Type: XGA, VGA, SVGA, Multisync Monitor
- Cable Length: 65m (210 ft.) maximum

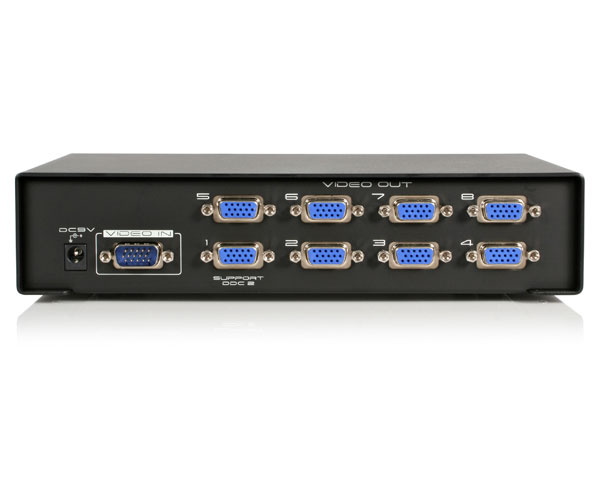

- Input Connector: High Density DB15 Male
- Output Connectors: (8) High Density DB15 Female
- VGA Bandwidth (-3db): 200 MHz
- VGA Resolution: 1600x1200 @ 60Hz
- Operating Environment: 5~40 deg C, 0~80% RH non-condensing
- Dimensions (LxWxH): 224x152x52 mm
- Weight: 1200g
- Certifications: FCC Part 15 Class A, CE Mark

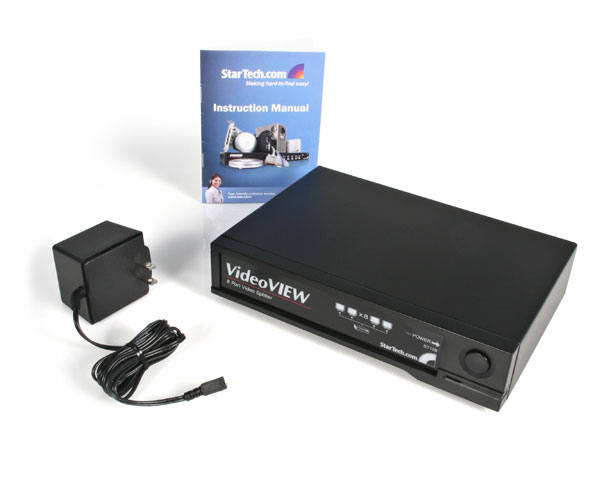

Maximum Analog Resolutions 1600x1200 Carton Depth (mm) 350 Carton Height (mm) 245 Carton Quantity 5 Carton Weight Gross (g) 10400 Included in Package - 1 - SWITCH
- 1 - INSTRUCTION MANUAL
- 1 - POWER ADAPTOR
Package Depth (mm) 98 Package Height (mm) 212 Package Width (mm) 327 Package Weight (g) 1840 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 8 Connector 2 VGA Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
