Main Image
ST128CPNTA
Main Image
Product Images
Product Images
Product Images
Product Images

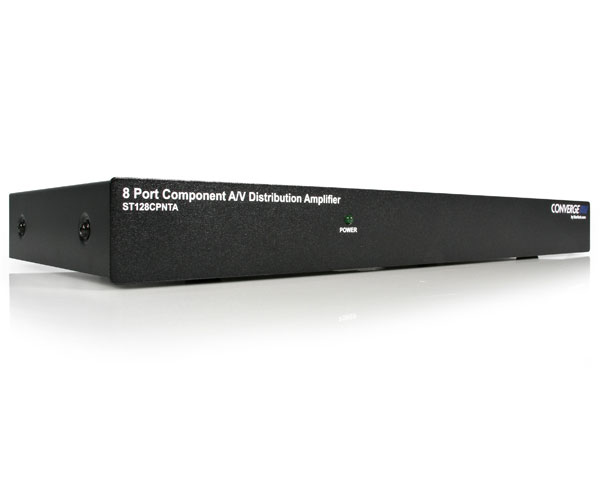

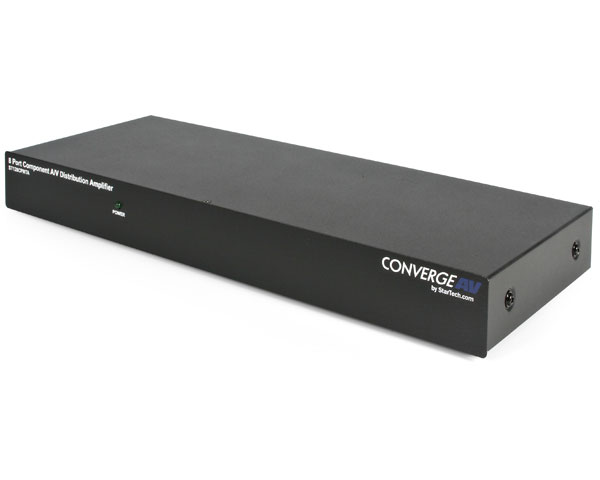

Product Name 8 Port Component A/V Distribution Amplifer Product Number ST128CPNTA UPC 065030823876 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Short) 8 Port Component Video Splitter w/ Audio Product Title (Standard) StarTech.com 8 Port Component Video Splitter with Digital Audio and Rack Mountable - Video splitter - 8 ports Product Title (Long) 8 Port Component Video Splitter with Digital Audio and Rack Mountable Title Ingram (Part 1) 8 Port Component Video Splitter Title Ingram (Part 2) w/ Digital Audio Bullet 1 Distribute an component video signal to 8 displays without any signal degradation Bullet 2 Supports 480i to 1080p HDTV resolutions. Bullet 3 Supports both Standard Definition (composite, YCbCr) and HDTV (YPbPr) video signals Bullet 4 Supports analog stereo audio and digital coaxial audio Bullet 5 HDMI 1.1 and HDCP 1.1 compliant Marketing Copy Applications - Distribute a component video and digital audio to standard and high definition displays.
- Great for use in digital signage, presentations, tradeshows, conferences, retail, and entertainment applications
Website Search Keyword - Component
- A/V Distribution Amplifier
- 8 Port
- Distribution Amplifier
- Component A/V
Accessory Products - ZENCPNT1
- ZENCPNT2
- ZENCPNT3
- ZENCPNT4
- ZENDIGCOAX1
- ZENDIGCOAX2
- ZENDIGCOAX3
- ZENDIGCOAX4
Related Products - ST128HDMI
- CPNT410IR
Color Black Material Steel TAA Compliant No General Specifications - Power Adapter: 5V DC 2.6A
- Maximum Bandwidth: 650 MHz (-3dB)
- Differential gain: 0.05%
- Differential phase: .005 degree

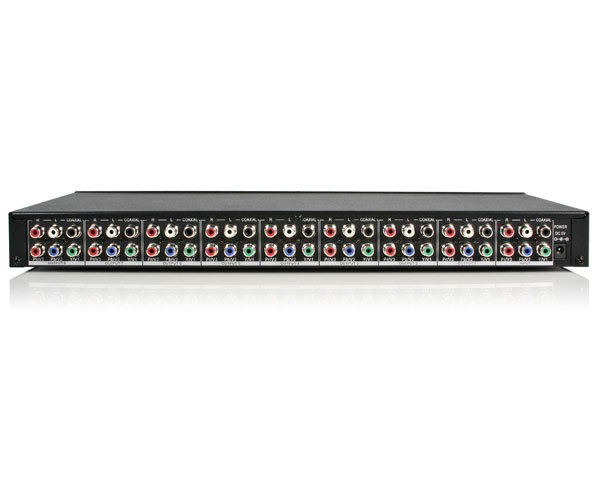

- Input Connectors: 1 x Analog Audio RCA (2 channel)
- : 1 x Component Video (YUV) @ 75 ohm
- Output Connectors: 8 x Analog Audio RCA (2 channel)
- : 8 x S/PDIF (digital coaxial) @ 75 ohm
- : 8 x Component Video (YUV) @ 75 ohm
- : 1 x S/PDIF (digital coaxial) @ 75 ohm
Maximum Digital Resolutions 1080p Carton Depth (mm) 546 Carton Height (mm) 508 Carton Quantity 5 Carton Weight Gross (g) 16750 Included in Package - 1 - HDMI Distribution Amplifier
- 1 - Instruction Manual
- 1 - Power Adapter
Package Depth (mm) 100 Package Height (mm) 299 Package Width (mm) 528 Package Weight (g) 3110 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Eric Roth
