ST128HD20
8 port HDMI 2 0 Splitter
Easily distribute an HDMI 4K60 signal to up to eight monitors with this HDMI 2.0 splitter
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 8 port HDMI 2 0 Splitter Product Number ST128HD20 UPC 065030876049 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Video Switches & Splitters Category Level 1 Video Display Connectivity Category Level 2 Video Splitters Category Level 3 HDMI Splitters - 4K HDR Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX190X Product Title (Ultra-Short) 1x8 HDMI 4K Splitter Product Title (Short) Splitter - HDMI 4K 60Hz 8-Port Product Title (Medium) 8-Port 4K 60Hz HDMI Splitter - HDR Support - 7.1 surround sound audio Product Title (Standard) 8-Port 4K 60Hz HDMI Splitter - HDR Support - HDMI 2.0 Splitter - 7.1 Surround Sound Audio Product Title (Long) 8-Port 4K 60Hz HDMI Splitter Product Title (AMZ) 4K 60hz HDMI Splitter - 8 Port - HDR Support - 7.1 Surround Sound Audio - HDMI Distribution Amplifier - HDMI 2.0 Splitter (ST128HD20) Title Ingram (Part 1) 8-Port HDMI Splitter - 4K Title Ingram (Part 2) HDMI Splitter Box - 4K 60Hz Website Product Headline Easily distribute an HDMI 4K60 signal to up to eight monitors with this HDMI 2.0 splitter Bullet 1 8-PORT HDMI SPLITTER: Displays the same image with sound on 8 screens; Splits an HDMI video signal up to Ultra HD 4K 60Hz & 7.1 CH audio; 4:4:4 chroma subsampling support w/ bandwidth up to 18Gbps (HDMI 2.0b); HDR; HDCP 2.2 to HDCP 1.4 conversion Bullet 2 EDID EMULATION: 1x8 HDMI splitter 4K automatically passes EDID between your video source and the display attached to port 1 ensuring native settings (such as resolution and refresh rate) are configured Bullet 3 EASY SETUP: No drivers required for this 1-input 8-output UHD HDMI 2.0 splitter box; Simply connect cables and power with the EDID switch set to Auto to get started; Wide screen monitor formats supported; HDMI/DVI compatible Bullet 4 AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Support for 7.1 surround sound audio including Dolby® True HD and DTS HD Master Audio Bullet 5 LONG REACH: Reach up to 16.4ft (5m) with a passive HDMI cable; For longer distances, active HDMI cables or HDMI extenders are available (sold separately) to use with this HDMI splitter for eight TVs/projectors/monitors/displays Bullets (Compact) Displays the same image with sound on 8 screens - Splits an HDMI video signal up 4K 60Hz - 4:4:4 chroma; up to 18Gbps (HDMI 2.0b) - HDR; HDCP 2.2 to HDCP 1.4 conversion; 7.1 surround sound audio - Passes EDID between video source and display (port 1) Bullets (Consolidated) - Displays the same image with sound on 8 screens; Splits an HDMI video signal up 4K 60Hz - 4:4:4 chroma subsampling support bandwidth up to 18Gbps (HDMI 2.0b); HDR; HDCP 2.2 to HDCP 1.4 conversion - 1x8 HDMI splitter 4K passes EDID between video source and the display attached to port 1 ensuring native settings - Support for 7.1 surround sound audio including Dolby True HD and DTS HD Master Audio - Up to 16.4ft (5m) w/ a passive HDMI cable; Active HDMI cables are available for longer distances Marketing Copy Applications - Output and split your 4K 60Hz HDMI signal to eight different HDMI displays
- Distribute 4K 60Hz video to computer monitors that require the highest quality of image detail, such as in control centers or video production studios
- Share corporate information or advertising on multiple displays with digital signage
- Display the same information on multiple displays in the waiting rooms of healthcare or educational institutions
Website Search Keyword - 18 Gbps
- 1x8 hdmi splitter
- 4K
- 4K 60Hz
- 4k 60hz hdmi splitter
- 4K Distribution Amplifier
- 4K HDMI splitter
- 4K splitter
- 60Hz
- 7.1 surround sound
- 8 Port HDMI Splitter
- 8 Way HDMI Splitter
- Active HDMI splitter
- Best HDMI splitter
- Cmple 199-N
- Digital Signage
- digital signs
- Education
- Finance
- HDCP HDMI splitter
- HDMI 2.0
- HDMI 2.0 splitter
- HDMI amplifier splitter
- HDMI booster
- HDMI cable splitter
- HDMI distribution
- HDMI Distribution Amplifier
- hdmi hub
- HDMI Hub splitter
- HDMI laptop
- HDMI monitor
- hdmi multi display
- HDMI out splitter
- HDMI output splitter
- HDMI pc
- hdmi port extension
- HDMI repeater splitter
- HDMI signal splitter
- HDMI Splitter
- HDMI splitter 1 in 8 out
- HDMI splitter 8 port
- HDMI splitter amazon
- HDMI splitter amplifier
- HDMI Splitter Box
- HDMI splitter switch
- Healthcare
- Hospitals
- Mountable
- Office Space
- Orei HDMI splitter
- Portta N3SPL18
- Professional
- Retail
- Sewell Direct SW-29446
- Splitter
- UHD Distribution Amplifier
- UHD splitter
- ultra hd
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - This video splitter is not compatible with the AMD Radeon RX460 graphics card
- Connect the HDMI display with the lowest resolution and refresh rate capability to output #1</br> If HDCP 1.4 display is connected to port #1 the whole system defaults to HDCP 1.4.
Accessory Products - CTK55PCEDRIVE
- HDMM610PK
- HDMIDVIMM610PK
Related Products - ST124HDMI2
- ST122HDMILE
- ST122HDMI2
- ST124HD4K
- ST122HD4K
- ST122HD4KU
- ST124HD202
- ST122HD202
- ST122HD20S
- ST124HDVW
Input Current 0.6A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 5 DC Power Consumption (In Watts) 15 W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10% to 85 % RH (no condensation) Material Steel Operating Temperature 0 ℃ to +45℃ Primary Material Steel Product Length (mm) 258.000 Product Width (mm) 110.000 Product Height (mm) 35.000 Product Weight (g) 762.000 Storage Temperature -10℃ to 70℃ TAA Compliant No Maximum Digital Resolutions 3840x2160 (4K) @ 60Hz Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Cabling HDMI Industry Standards - HDMI 2.0
- HDCP 2.2

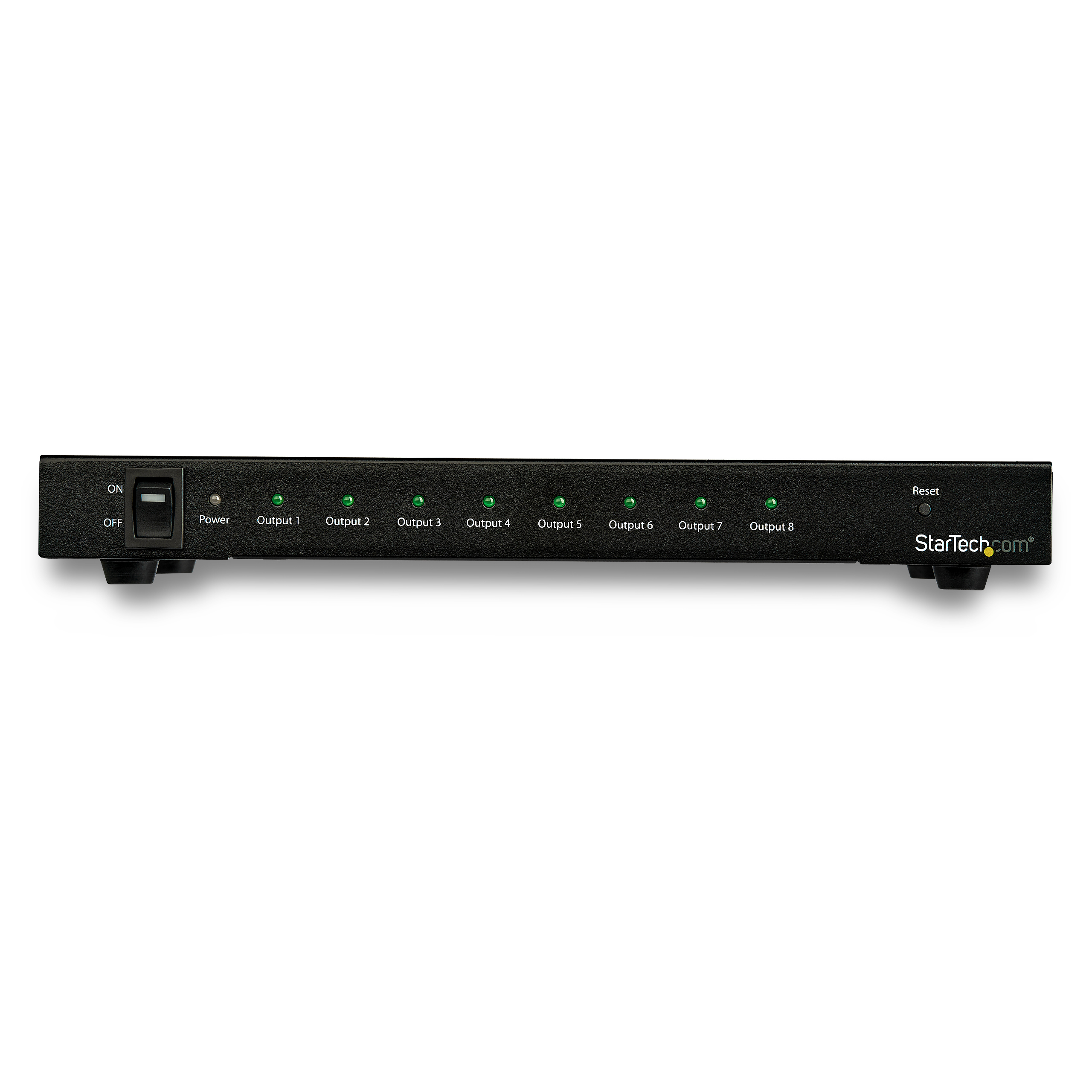

LED Indicators - 1 - power LED
- 1 - input LED
- 8 - output LEDs

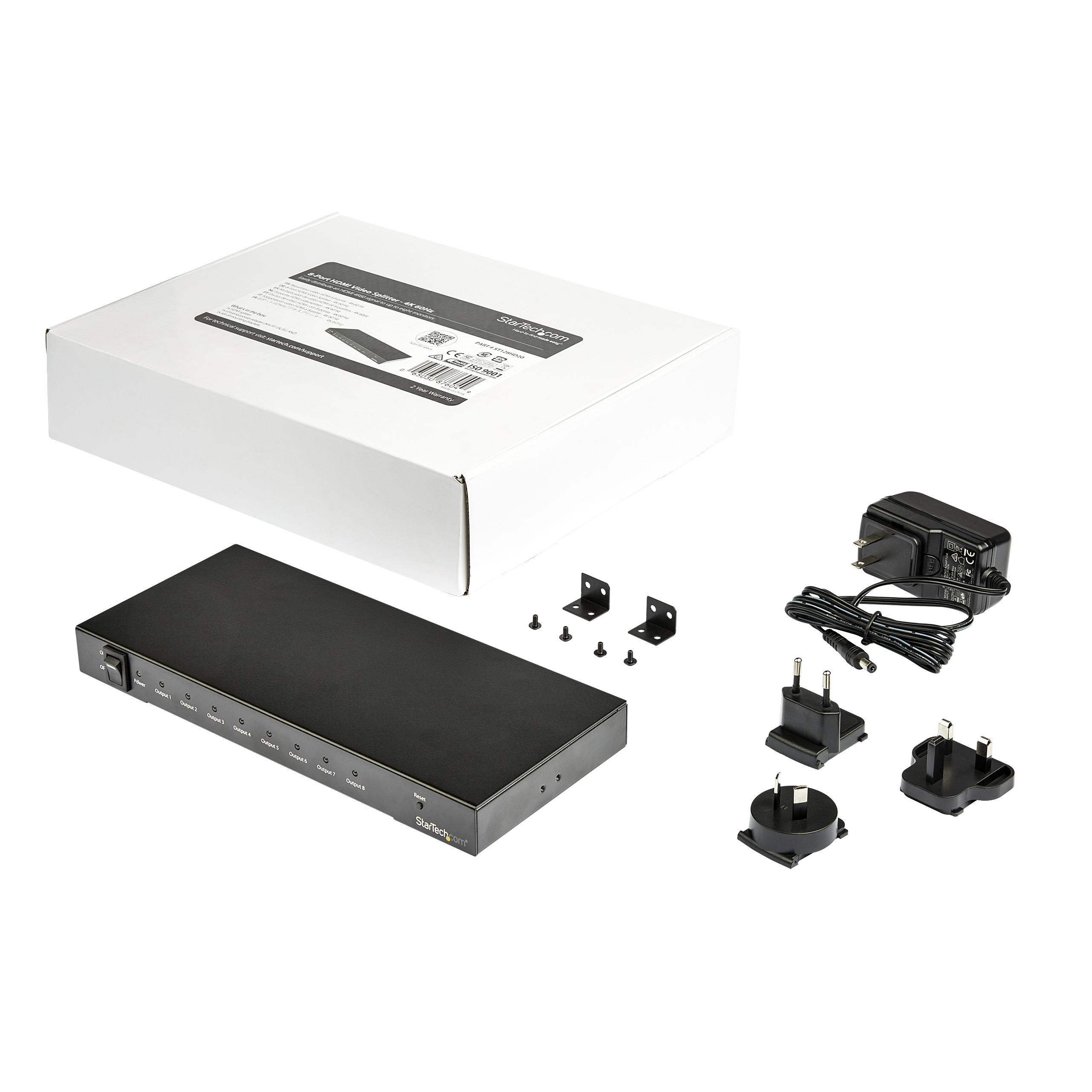

Matrix Video Switch (Filter) No Carton Depth (mm) 445 Carton Height (mm) 297 Carton Quantity 6 Carton Weight Gross (g) 8076 Included in Package - 1 - HDMI splitter
- 1 - universal power adapter (NA/JP, UK, EU, ANZ)
- 1 - set of mounting brackets
Package Depth (mm) 330 Package Height (mm) 71 Package Width (mm) 267 Package Quantity 1 Package Weight (g) 1222 Packaging Description 8-Port HDMI Video Splitter - 4K 60Hz Packaging Description India 8-Port HDMI Video Splitter - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2018-01-05 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2018-03-02 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-12-15 Target Production Release 2018-01-05 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
