Main Image
ST128HDMI
Main Image
Product Images
Product Images
Product Images
Product Name 8 Port Rack Mountable HDMI Video Splitter w/ Audio Product Number ST128HDMI UPC 065030822893 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Short) 8 Port HDMI Audio / Video Splitter Product Title (Standard) StarTech.com 8 Port HDMI Audio / Video Splitter - Rack Mountable -8 Port HDMI Splitter - Video splitter - 8 ports Product Title (Long) 8 Port HDMI Audio / Video Splitter - Rack Mountable Title Ingram (Part 1) 8 Port HDMI Audio / Video Splitt Title Ingram (Part 2) er - Rack Mountable Bullet 1 Built-in EDID simulator and HDCP keyset allows each output to work independently when connecting to a HDMI display. Bullet 2 Can be cascaded up to 3 layers Bullet 3 HDCP 1.1 Compliant Bullet 4 Splits a HDMI® source up to 8 outputs without signal loss. Bullet 5 Supports a wide range of PC and HDTV resolutions-from VGA to UXGA and 480p to 1080p. Marketing Copy Applications - Connect HDMI® enabled projectors, monitors, plasma screens, commercial billboards, and wall display systems
- Ideal for classroom, corporate, healthcare, professional A/V, control centres, conference halls, and retail environments.
Website Search Keyword - 8 Port
- Distribution Amplifier
- Converge A/V
- HDMI
- ST128HDMI
Accessory Products - HDMIMM10
- HDMIMM20
- HDMIMM25
- ZENDVIHDMI1
Related Products - ST122HDMI
- RK4320AV
Color Black Operating Temperature 0 - 70 C Storage Temperature 30 to 80% RH TAA Compliant No General Specifications - : HDTV Resolution 480i to 1080p
- : PC Resolution VGA to UXGA
- Frequency bandwidth: 1.65Gbps(single link)
- Input Ports: 1 x HDMI Female
- Output Ports: 8 x HDMI Female
- Power Adapter: 5V DC 2.6Amp
- Resolutions Supported:

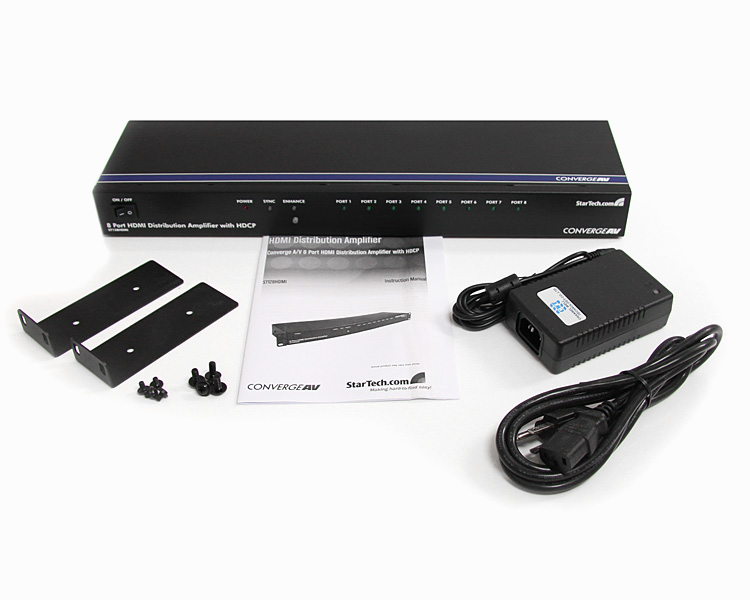

AV Input HDMI AV Output HDMI Carton Depth (mm) 177 Carton Height (mm) 326 Carton Quantity 3 Carton Weight Gross (g) 8220 Included in Package - 1 - HDMI Distribution Amplifier
- 1 - Instruction Manual
- 1 - Power Adapter
- 1 - Set of Ear Mounts
Package Depth (mm) 177 Package Height (mm) 101 Package Width (mm) 500 Package Weight (g) 2340 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Eric Roth
