ST128HDMI2
8 Port HDMI 1 3 Audio Video Splitter
Split an HDMI® audio and video signal to eight displays simultaneously
Main Image
Product Images
Product Images
BOM Image
Product Name 8 Port HDMI 1 3 Audio Video Splitter Product Number ST128HDMI2 UPC 065030843423 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Splitters Category Level 3 HDMI Splitters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) Divisor HDMI 8 Puert Product Title (Short) 8 Port High Speed HDMI Splitter w/ Audio Product Title (Medium) x Product Title (Standard) 8 Port HDMI Splitter – Mounting Brackets – HDMI Multi Port – HDMI Hub – HDMI Audio Splitter – HDMI Splitter Box Product Title (Long) 8-port HDMI splitter and signal amplifier - TAA Product Title (AMZ) 8 Port HDMI Splitter - Mounting Brackets - HDMI Multi Port - HDMI Hub - HDMI Audio Splitter - HDMI Splitter Box (ST128HDMI2) Title Ingram (Part 1) 8 Port High Speed HDMI Video Spl Title Ingram (Part 2) itter Audio & Rack Mountable Website Product Headline Split an HDMI® audio and video signal to eight displays simultaneously Bullet 1 AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Supports HDMI audio or 3.5mm stereo audio connection, allowing you to send your accompanying audio signal through the HDMI cable, or through a separate channel Bullet 2 8-PORT HDMI SPLITTER: Displays the same image with sound on 8 screens; HDMI splitter with signal amplifier splits an HDMI source into eight Full HD 1080p video signals with no loss of quality Bullet 3 EDID EMULATION: 1x8 HDMI splitter automatically passes EDID between your video source and the display attached to port 1 ensuring native settings (such as resolution and refresh rate) are configured Bullet 4 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Splitter with rugged steel enclosure is backed for two years, including free lifetime 24/5 multi-lingual technical assistance Bullet 5 EASY SETUP: Reach up to 49ft (15m) with this HDMI splitter with signal amplifier; Simply connect the cables and power to start using; Wide screen monitor formats supported; TAA Compliant Bullets (Compact) Displays the same image with sound on 8 screens; Splitter / signal amplifier - EDID between your video source and displays native settings - Supports HDMI audio or 3.5mm stereo audio connection - Up to 49ft (15m) HDMI Cable - Full HD 1080p; TAA Bullets (Consolidated) - Displays the same image with sound on 8 screens; Splits an HDMI video signal up to Full HD 1080p; Splitter and signal amplifier - 1x8 HDMI splitter automatically passes EDID between your video source and displays native settings - Supports HDMI audio or 3.5mm stereo audio connection, allowing audio signal through the HDMI cable, or through a separate channel - Up to 49ft (15m) HDMI cable; Simply connect the cables and power to start using - Wide screen monitor formats supported; TAA Compliant Marketing Copy Applications - Connect HDMI® enabled projectors, monitors, plasma screens, commercial billboards, and wall display systems
- Display information in waiting rooms or to patients in healthcare facilities
- Financial applications include stock tickers or promotion of new products/services
- Great for digital signage applications displaying video advertisements with audio in retail environments
- Ideal for business conference rooms and trade show displays
- Perfect for classrooms and business multimedia presentations
Website Search Keyword - Eight Port
- Distribution Amplifier
- HDCP
- HDMI
- Rackmount HDMI Splitter
- Rack-Mountable HDMI Splitter
- Rackmount Splitter
- Rack-Mountable Splitter
Required Regulatory Compliance Marks - REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- IM12D1500P
- ST121SHD50
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST124HDMI2
- ST124HDMI
- ST128HDMI
- ST122HDMI
Input Current 800mA Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 10.2 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0%~80% Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 480.000 Product Width (mm) 180.000 Product Height (mm) 42.000 Product Weight (g) 2216.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Maximum Cable Length (mm) 5000 Maximum Digital Resolutions HDTV 1080p / PC 1920x1200 Supported Resolutions 1080p (1920 x 1080) / VGA (640 x 480) / SXGA (1280 x 1024) / UXGA (1600 x 1200) / WUXGA (1920 x 1200) Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Cabling HDMI Cascadable Yes Industry Standards High Speed HDMI, HDCP, EDID LED Indicators - 4 - Green Port signal indicator
- 1 - Power (Green) / Input Signal (Blue)

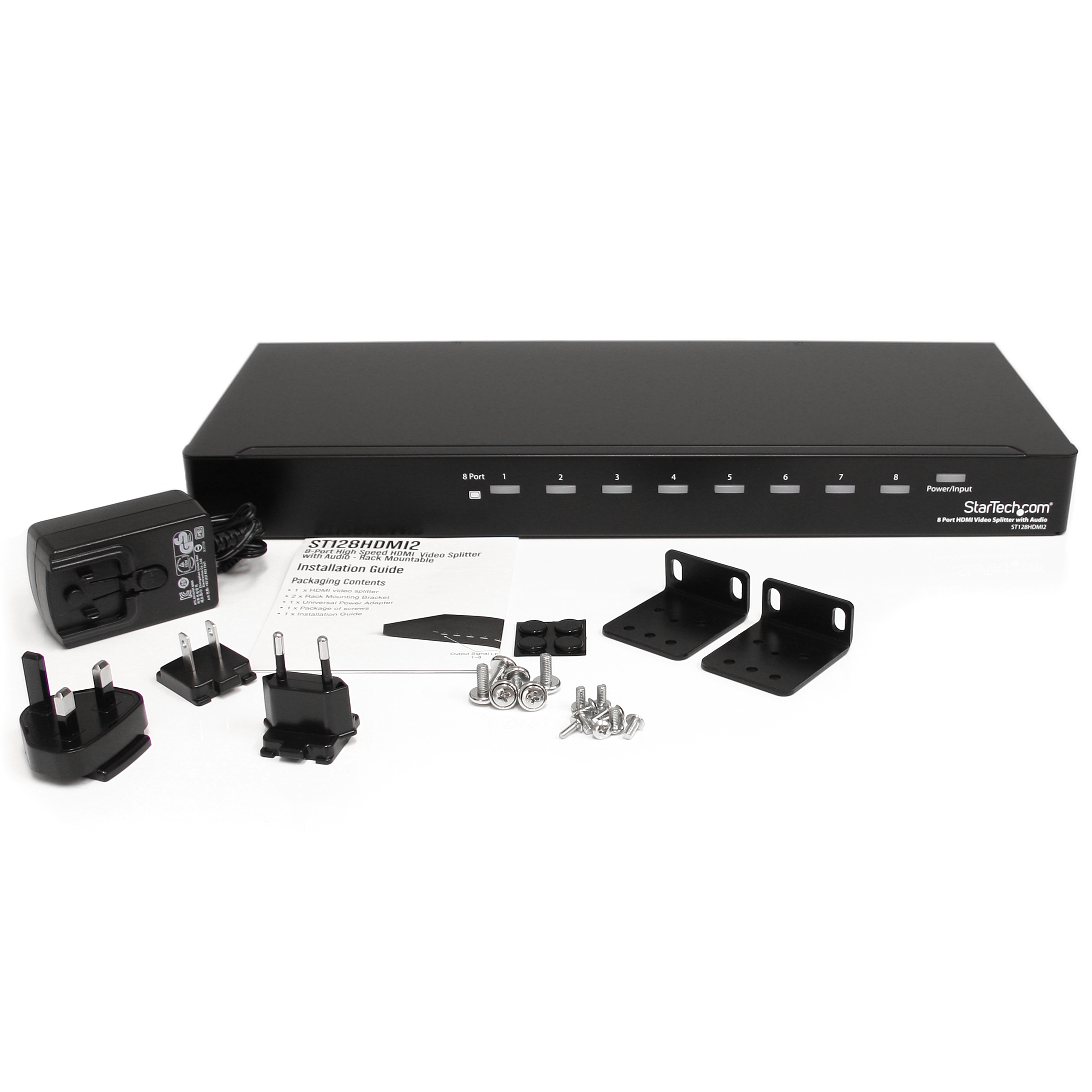

Rack-Mountable Yes Carton Depth (mm) 286 Carton Height (mm) 405 Carton Quantity 4 Carton Weight Gross (g) 14452 Included in Package - 1 - HDMI distribution amplifier
- 1 - instruction manual
- 1 - universal power adapter (NA / EU / UK / AU)
- 1 - mounting hardware and screw kit
Package Depth (mm) 271 Package Height (mm) 89 Package Width (mm) 595 Package Quantity 1 Package Weight (g) 3308 Packaging Description 8 Port High Speed HDMI® Splitter with Audio Packaging Description India 8 Port High Speed HDMI® Splitter with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 3.5mm (3 Conductors, TRS) Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 8 Connector 4 HDMI Connector 4 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,EU,JP,NZ,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
