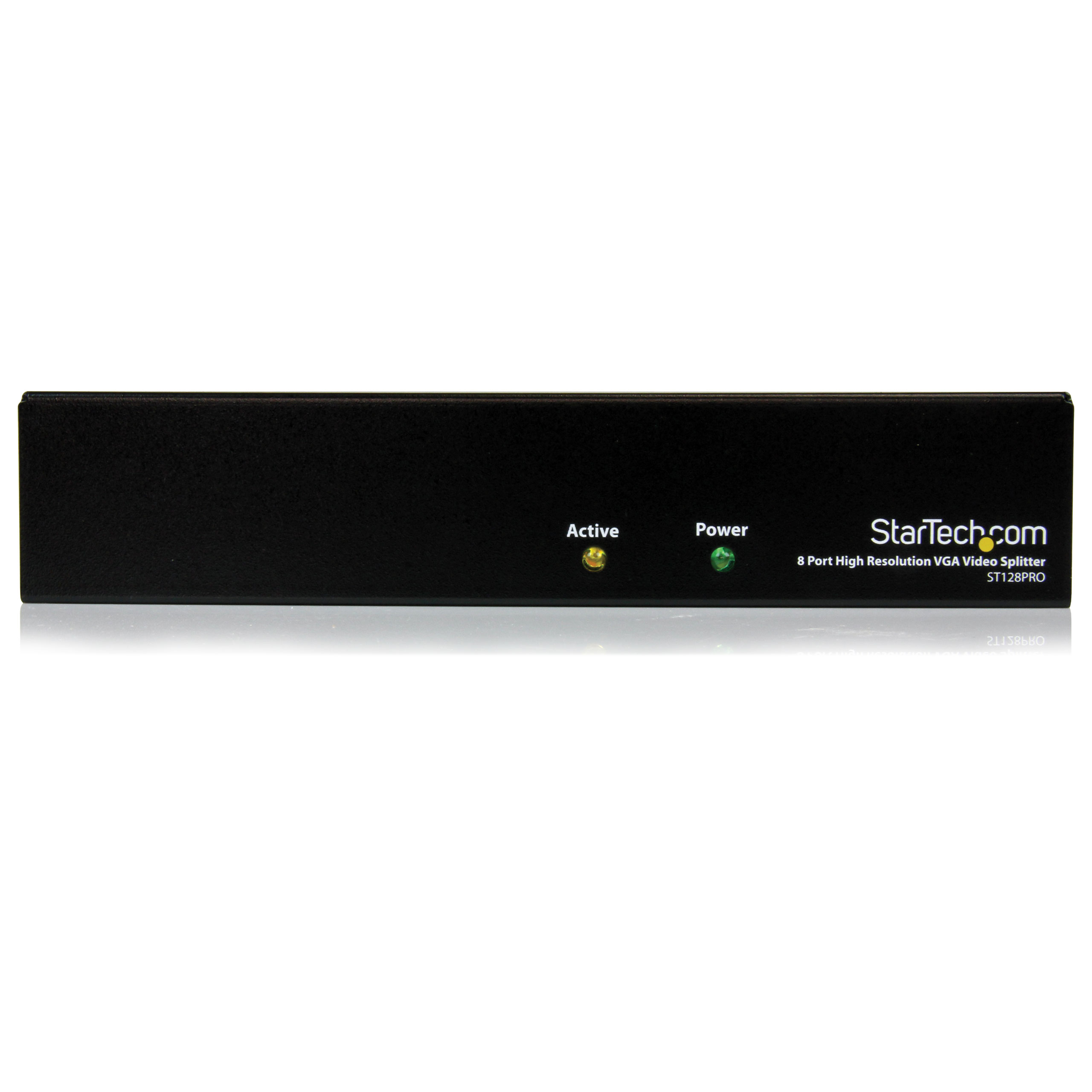

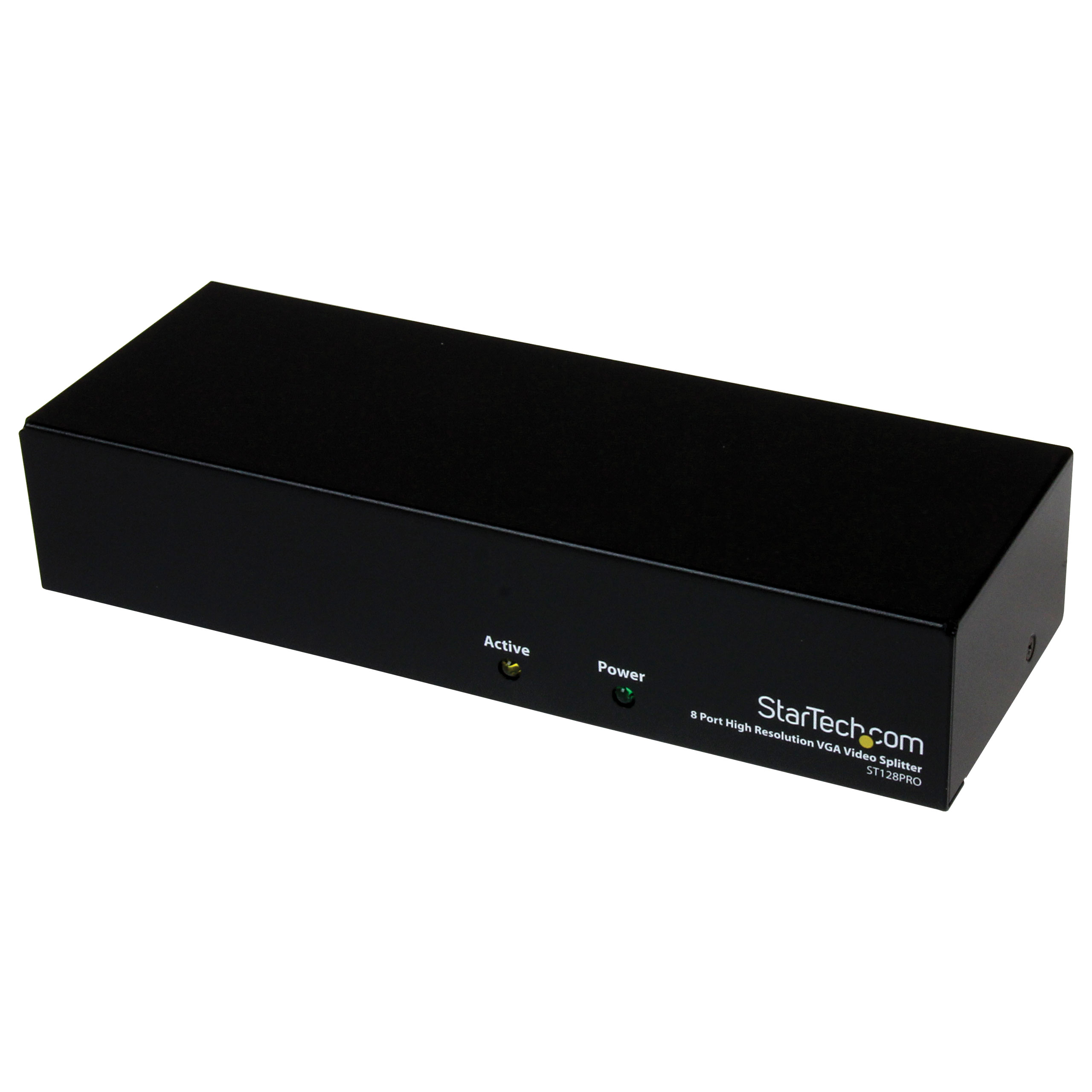

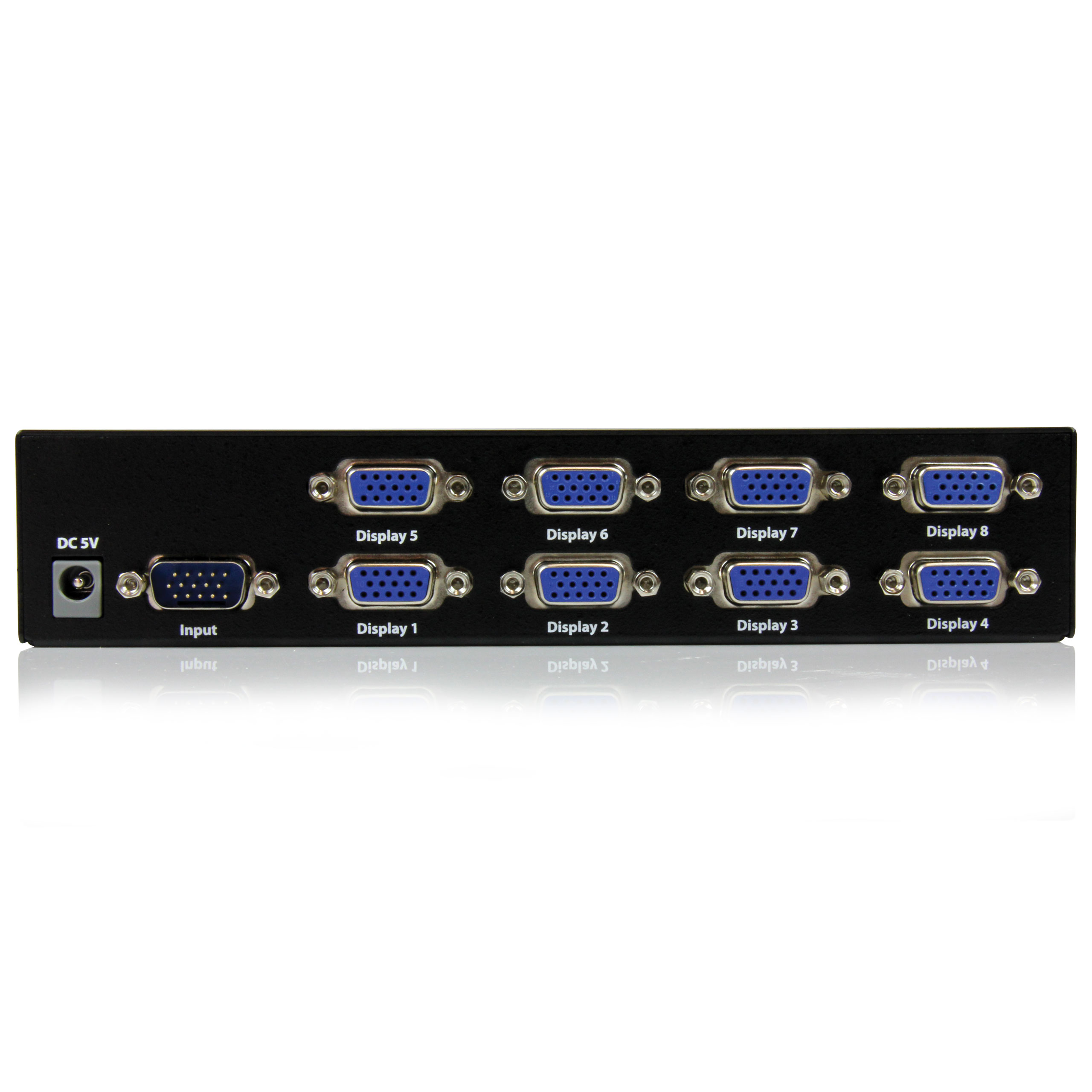

ST128PROGB
8 Port High Res. 350 MHz Video Splitter
Split a single high resolution VGA video signal to 8 monitors or projectors
Main Image
Product Images
Product Images
Product Name 8 Port High Res. 350 MHz Video Splitter Product Number ST128PROGB UPC 065030800341 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) 8 Port High Res. 350 MHz Video Splitter Website Product Headline Split a single high resolution VGA video signal to 8 monitors or projectors Bullet 1 Allows 1 VGA video source to simultaneously display on 8 different monitors Bullet 2 Supports resolutions up to 2048x1536 @ 80Hz Bullet 3 High video bandwidth (350 MHz) Bullet 4 Daisy chainable for almost unlimited expansion Bullet 5 Maximum VGA cable length of 210ft (65m) Marketing Copy Applications - Create engaging multimedia presentations for demonstration in lecture halls and classrooms
- Display travel schedules and alerts in airports, bus terminals and train stations etc.
- Create eye-catching displays in trade-shows and auditoriums
- Use for in-store product merchandising in retail environments to give your advertisements greater visibility
- Get your message across multiple displays for trade-shows or information booths/kiosks
- Quick and easy solution to split a video signal in an auditorium or house of worship
Accessory Products - MXT101HQ
- MXT101HQ_100
- MXT101HQ_150
- MXT101HQ_200
- MXT101HQ_25
- MXT101HQ_50
- MXT105HQ
Related Products ST128GB Input Current 0.4A Input Voltage 110V-240V AC Output Current 2A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 0~80% RH Operating Temperature 5°C to 40°C (41°F to 104°F) Product Length (mm) 196 Product Width (mm) 70 Product Height (mm) 40 Product Weight (g) 1225 TAA Compliant No Bandwidth (-3dB) 350MHz General Specifications Male to Female VGA extension cable required (MXT101HQ) Maximum Analog Resolutions 1920x1440 @ 80Hz Maximum Cable Length (mm) 65000 Carton Depth (mm) 405 Carton Height (mm) 315 Carton Quantity 80 Carton Weight Gross (g) 18000 Included in Package - 1 - 8 Port High Res. Video Splitter
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 184 Package Height (mm) 89 Package Width (mm) 238 Package Weight (g) 1375 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 8 Connector 2 VGA Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
