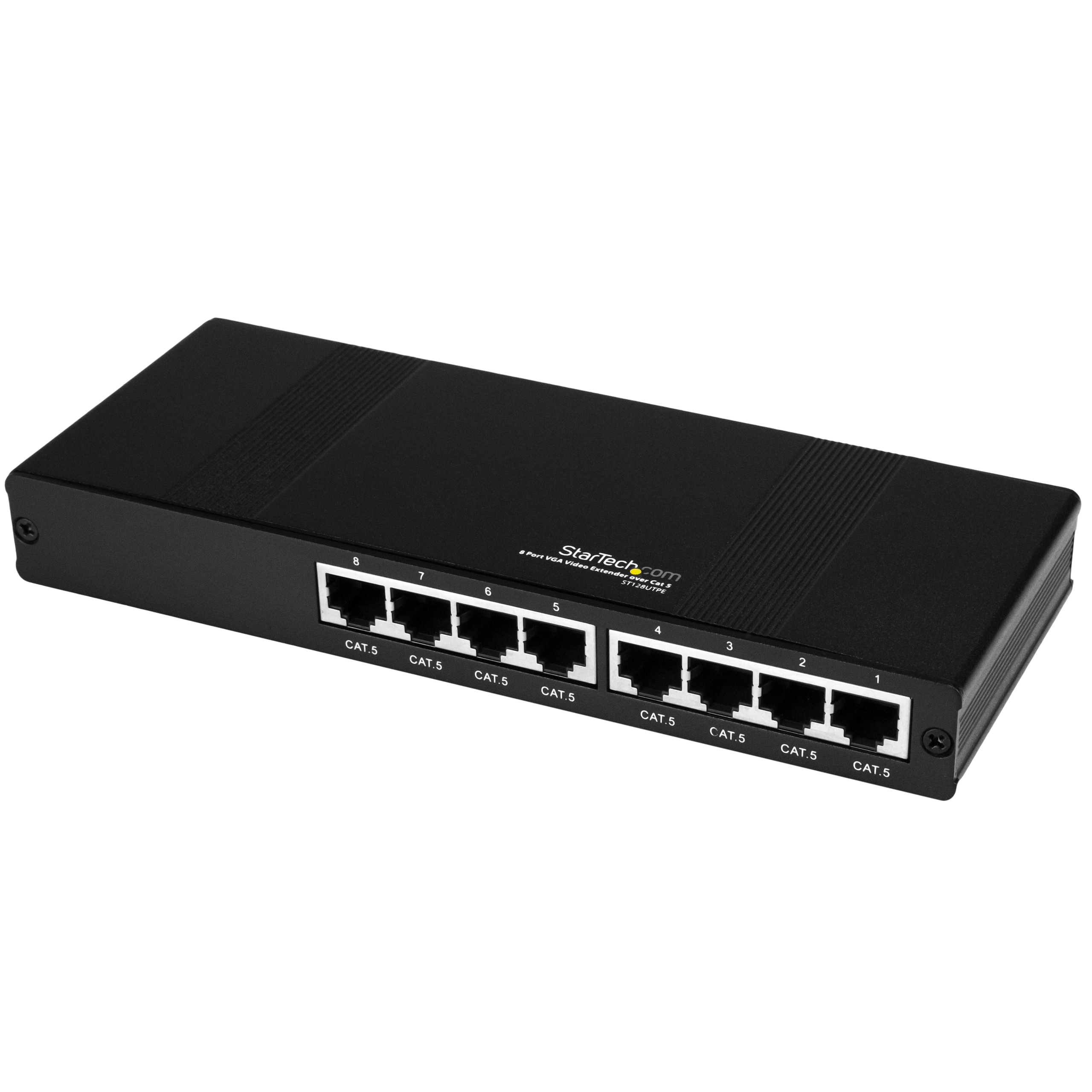

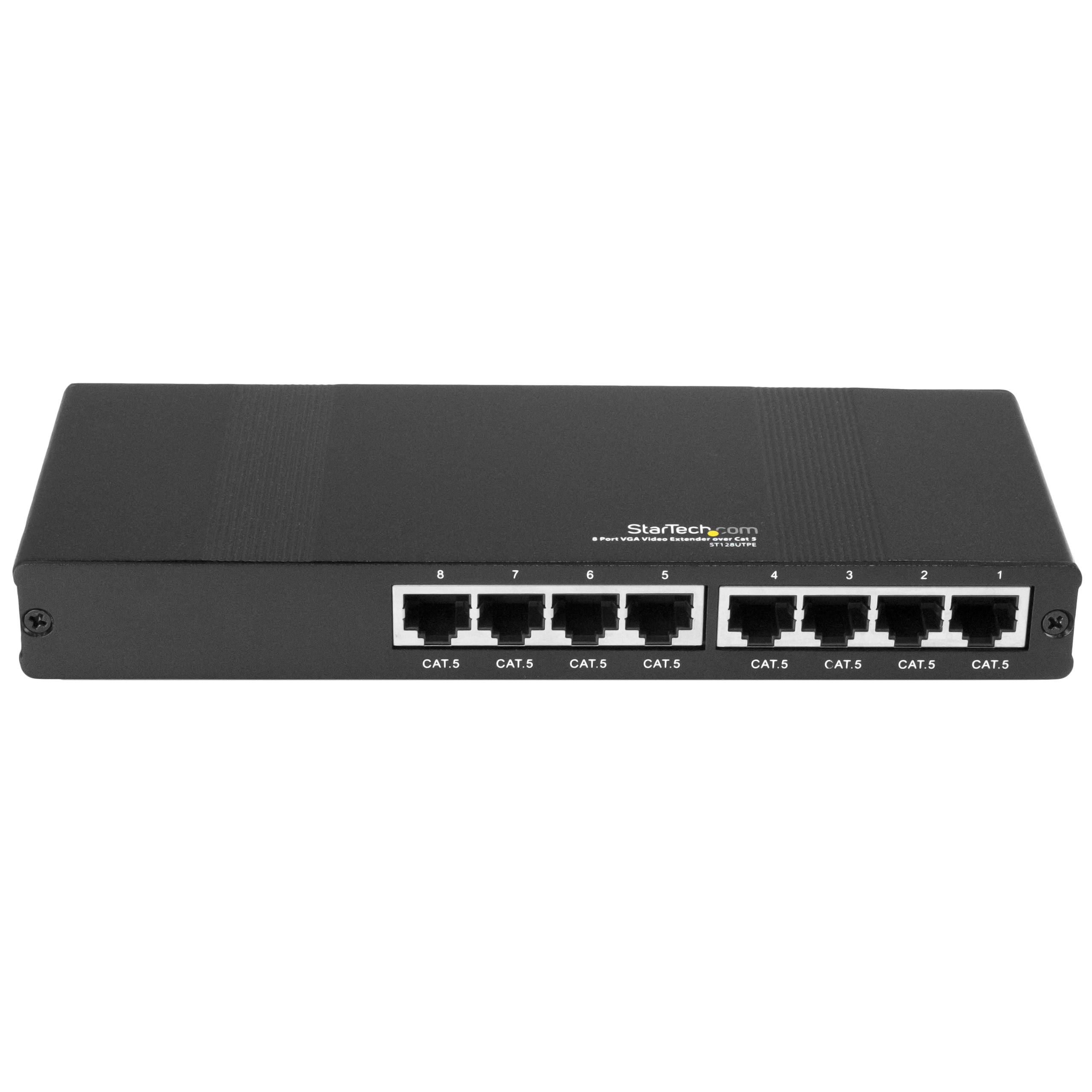

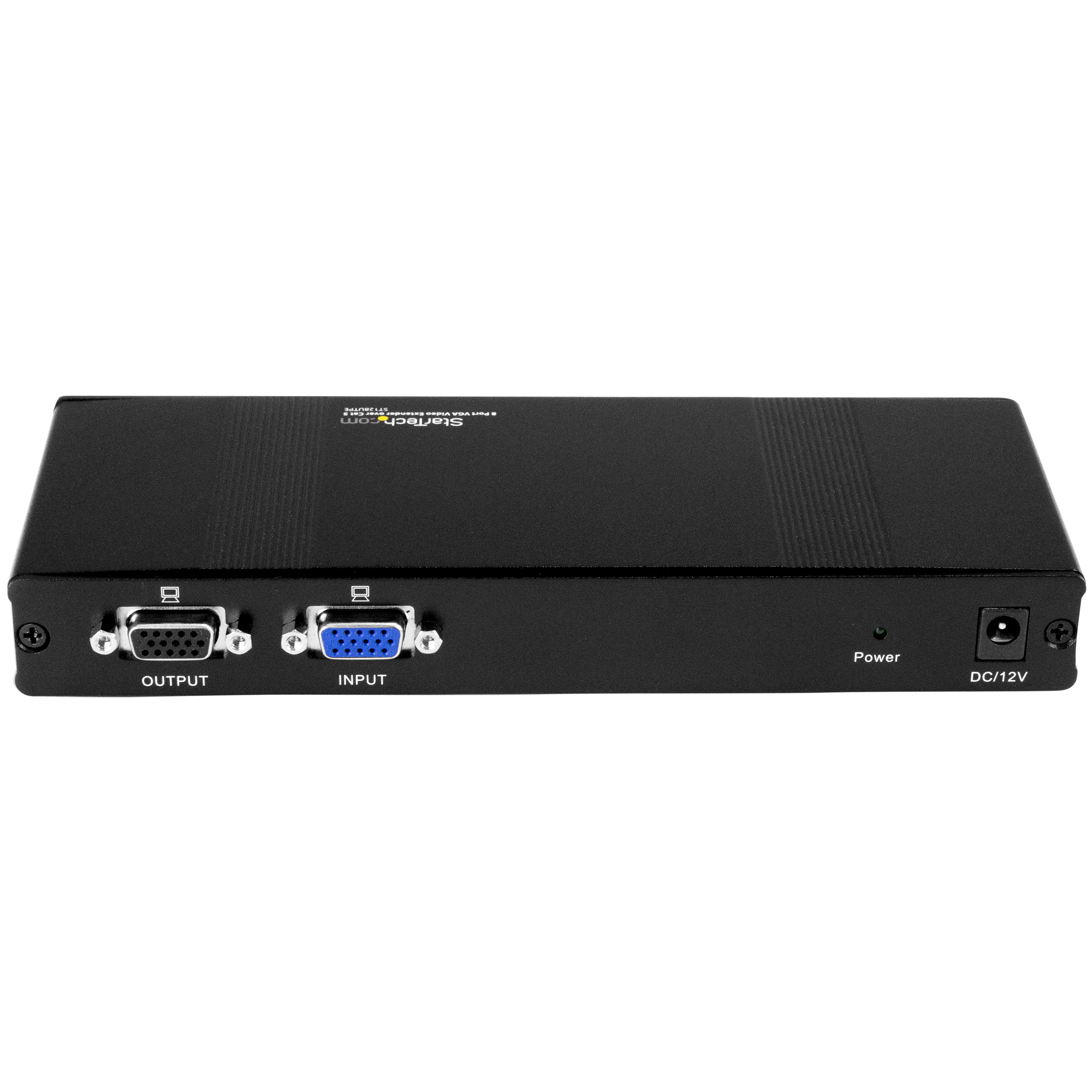

ST128UTPE
8 port UTP VGA Video Splitter Base
Extend and distribute your VGA video signal to up to eight remote displays using Cat 5 cabling
Main Image
Product Images
Product Images
BOM Image
Product Name 8 port UTP VGA Video Splitter Base Product Number ST128UTPE UPC 065030817578 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA Extenders Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Ultra-Short) 8 VGA CAT5 Extender Product Title (Short) 8 Port VGA Video Extender over Cat 5 Product Title (Standard) StarTech.com 8 Port VGA Video Extender over Cat 5 (UTPE Series) Product Title (Long) 8 Port VGA Video Extender over Cat 5 (UTPE Series) Product Title (AMZ) 8 Port VGA Video Extender over Cat 5 (UTPE Series) - Video splitter - 8 ports (ST128UTPE) Title Ingram (Part 1) 8 Port VGA Video Extender over C Title Ingram (Part 2) at 5 (UTPE Series) Website Product Headline Extend and distribute your VGA video signal to up to eight remote displays using Cat 5 cabling Bullet 1 Monitor receivers are sold separately (See STUTPRXL) Bullet 2 Monitors can be up to 300m / 950ft away Bullet 3 Simultaneously displays the same image on 8 monitors Bullet 4 Supports a maximum resolution of 1280 x 1024 @ 60 Hz refresh rate Bullet 5 Cascadable up to three levels Bullets (Compact) Extend and distribute your VGA video signal to up to eight remote displays using Cat 5 cabling - Works with the STUTPRXL receiver, or the STUTPRXWAL wall-plate receiver for flexibility in your VGA over CAT5 extender - Use existing Cat5 or CAT6 wiring Bullets (Consolidated) 8 Port Cat 5 VGA Video Splitter - Distribution Amplifier - Extender Marketing Copy Applications - Ideal for digital signage applications in financial, educational, and business sectors
- Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Use digital signage to catch the attention of your audience and deliver up to date content the way you want it to be seen and heard
Website Search Keyword - Cat5 VGA extender
- eight port Cat5 VGA extender
- UTP VGA extender
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
System and Cable Requirements Accessory Products - STUTPRXL
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- IM12D1500P
- SVA12M2NEUA
- SVA12M5NA

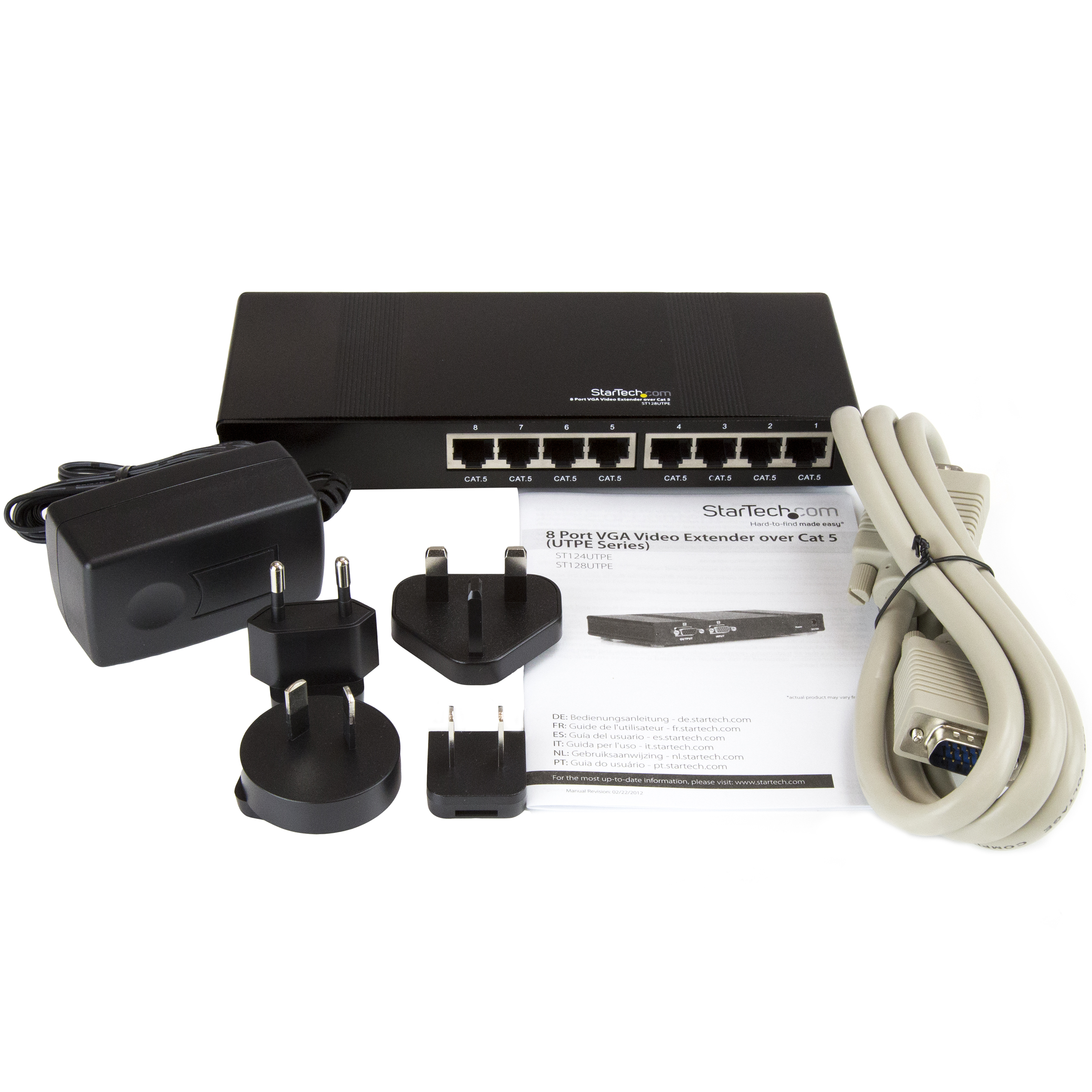

Related Products ST124UTPE Input Voltage 100 - 240 AC Output Current 0.6A Output Voltage (V) 12V DC Power Consumption (In Watts) 7.2 Power Source AC Adapter Included Color Black Material Aluminum Product Length (mm) 83.5 Product Width (mm) 200 Product Height (mm) 29.5 Product Weight (g) 247 TAA Compliant Yes Max Distance 300m [984ft] Maximum Analog Resolutions 1280 x 1024 Audio No Cabling Cat 5 UTP or better Cascadable Yes Carton Depth (mm) 500 Carton Height (mm) 324 Carton Quantity 10 Carton Weight Gross (g) 11700 Included in Package - 1 - Instruction Manual
- 1 - Universal Power Adapter (NA/UK/EU/AUS)
- 1 - UTP Video Splitter Base Unit
- 1 - 6ft (1.8m) VGA Cable
Package Depth (mm) 65 Package Height (mm) 190 Package Width (mm) 298 Package Quantity 1 Package Weight (g) 1050 Packaging Description 8 Port VGA Extender over Cat 5 - 300m Packaging Description India 8 Port VGA Extender over Cat 5 - 300m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 VGA Host Connector 1 (Quantity) 2 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
