Main Image
ST128WGB

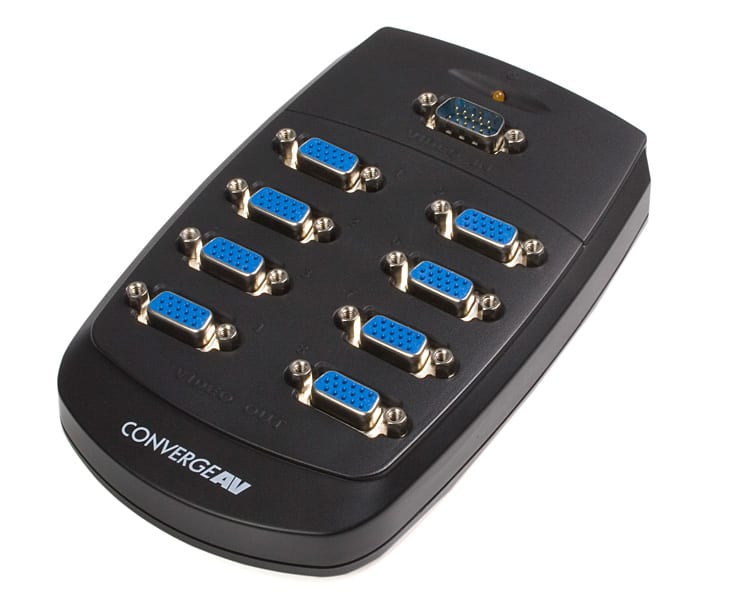

8 Port Wall-Mount VGA Video Splitter
Split a single VGA signal to 8 VGA monitors or projectors
Main Image
Product Images
Product Images
Product Images
Product Name 8 Port Wall-Mount VGA Video Splitter Product Number ST128WGB UPC 065030833028 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 8 Port Wall Mount VGA Video Splitter Product Title (Standard) StarTech.com 8 Port Wall Mount VGA Video Splitter Product Title (Long) 8 Port Wall Mount VGA Video Splitter Title Ingram (Part 1) 8 Port Wall Mount VGA Video Spli Title Ingram (Part 2) tter Website Product Headline Split a single VGA signal to 8 VGA monitors or projectors Bullet 1 Cascadable up to 3 levels and provides up to 512 video signals Bullet 2 Compact design with convenient topside connection, lays flat or mounts on the wall Bullet 3 Max resolutions up to 1600 x 1200 Bullet 4 Supports distances up to 65m / 200ft Marketing Copy Applications - Airports, bus terminals and train stations
- In-store product merchandising
- Information booths/kiosks
- Lecture halls and classrooms
- Trade-shows
Website Search Keyword - VGA Splitter
- VGA Video Splitter
- Video
- Wall-mount
Accessory Products - MXT101HQ
- MXT101HQ_100
- MXT101HQ_25
- MXT101HQ_50
- MXT105HQ
- ST121UTP
Related Products - ST122L
- ST124L
- ST124W
- ST128L
- ST128W
- ST128LGB
Input Current 0.2 A Input Voltage 100 - 240 AC Output Current 0.6 A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Silver Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Bandwidth 200MHz Maximum Analog Resolutions 1600x1200 Maximum Cable Length (mm) 65000 Cascadable Yes Carton Depth (mm) 490 Carton Height (mm) 343 Carton Quantity 1 Carton Weight Gross (g) 12800 Included in Package - 1 - 8 Port Video Splitter
- 1 - Instruction Manual
- 1 - Power Adapter
Package Depth (mm) 59 Package Height (mm) 162 Package Width (mm) 240 Package Weight (g) 580 Packaging Description 8 Port Wall Mountable VGA Video Splitter Packaging Description India 8 Port Wall Mountable VGA Video Splitter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 8 Connector 2 VGA Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
