ST12MHDDC
HDMI Extender over CAT5 W/ Optional Repeater

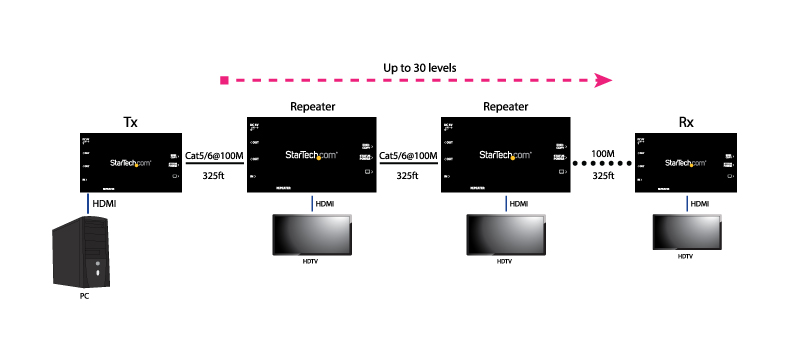

Extend HDMI over CAT5/6 cabling; Daisy Chain to over 100 displays using additional Repeater units
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name HDMI Extender over CAT5 W/ Optional Repeater Product Number ST12MHDDC UPC 065030849470 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI Extenders Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) HDMI® to CAT5 Extender Optional Repeater Product Title (Standard) HDMI® to CAT5 Extender W/ Optional Repeater Functionality and Audio – 1080p / 1920x1080 Product Title (Long) HDMI to CAT5 Extender W/ Optional Repeater Functionality and Audio – 1080p / 1920x1080 Product Title (AMZ) HDMI to CAT5 Extender w/ Optional Repeater Functionality and Audio - HDMI Extender Over Single Cat5 - HDMI Extender Kit 1080p (ST12MHDDC) Title Ingram (Part 1) HDMI Extender over CAT5 Optional Title Ingram (Part 2) Repeater –HDMI Over Single CAT5 Website Product Headline Extend HDMI over CAT5/6 cabling; Daisy Chain to over 100 displays using additional Repeater units Bullet 1 High Definition support for resolutions up to 1080p (1920x1080) Bullet 2 7.1 Surround Sound Audio Support Bullet 3 Daisy-chain support, using optional ST12MHDDCRP repeaters Bullet 4 Local transmitter and remote receiver units included Bullet 5 Supports a maximum HDMI extension of 330ft (100m) Bullets (Consolidated) Extend HDMI over Cat5/6 cabling; Daisy Chain to over 100 displays using additional Repeater units - HDMI to Cat5 extender - HDMI extender over ethernet - HDMI extender kit - HDMI extender over Cat5 - HDMI over single Cat5 Marketing Copy Applications - Place the display in a convenient viewing area, while the HDMI source equipment is placed elsewhere in a separate, secured environment
- Optimize placement of your demo stations at tradeshows and in auditoriums
- Perfect for video conferencing solutions in boardrooms and office settings
- Display the same HDMI audio / video signal on up to 100 displays, for large scale digital signage applications
Website Search Keyword - HDMI ethernet extender
- daisy chain cat5 extender
- cat 5 HDMI extender
- hdmi extender
- HDMI over eithernet extender
- HDMI over cat5 extender
- HDMI to Cat 5
- HDMI over CAt 5 extender kit
- HDMI over single cat5
- HDMI to Cat 5 with daisy chain
- HDMI to Cat5 with daisy chain
- HDMI over cat 6
- HDMI over cat6 with daisy chain
Accessory Products - ST12MHDDCRP
- WIRC6PATBKRL
- HDMIDVIMM20
- HDMIDVIMM10
- HDMIMM3
- HDMIMM10
- HDMIMM6
- WIRC6CMRBL
- SVA5M3NEUA
Related Products - ST121UTPHDMI
- ST121HD25
- ST121UTPDVI
- ST121DVI25
- ST122UTPAL
- ST121UTPMINI
- ST1214T
- ST121UTPEP

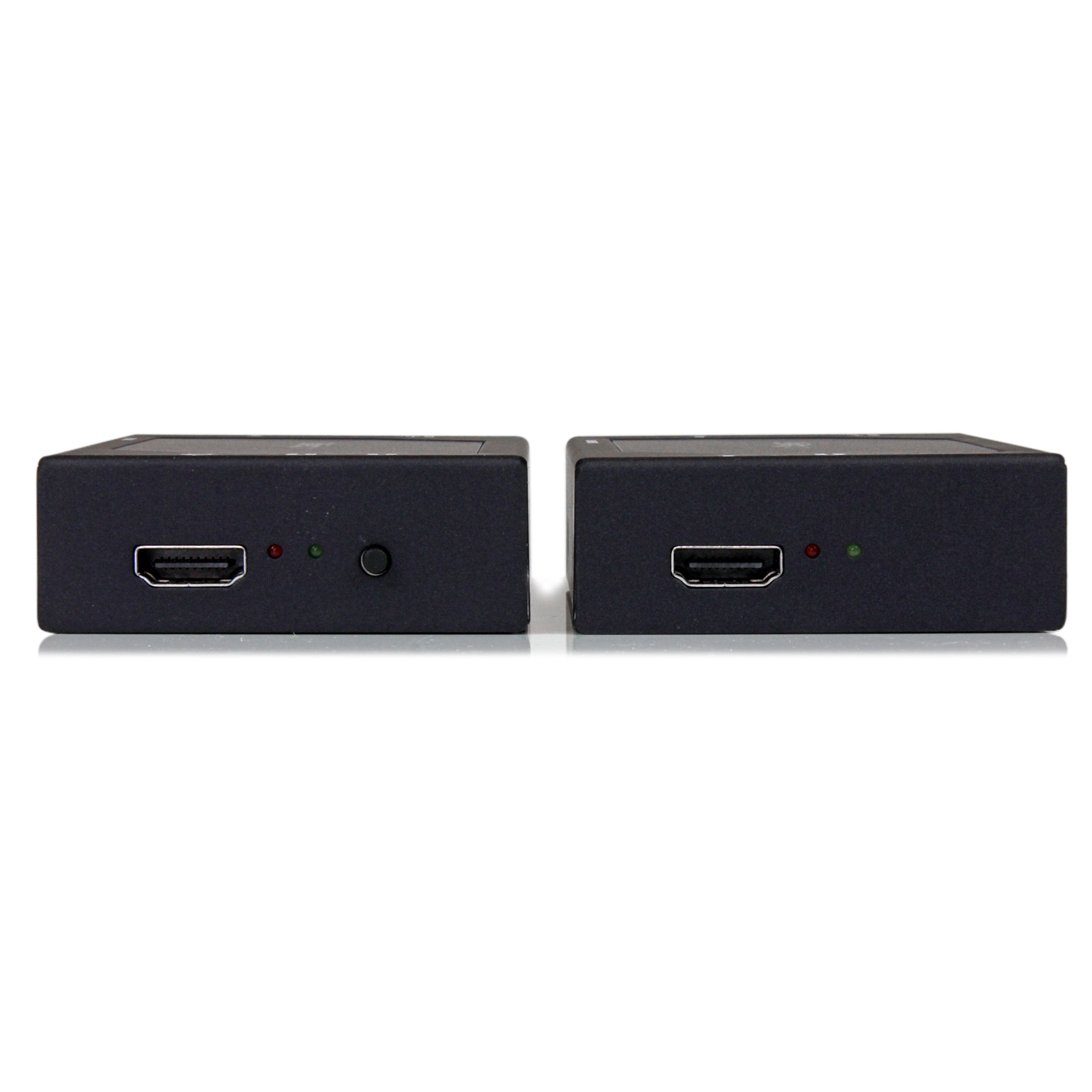

Input Current 0.4 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 0% - 80 % Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 113 Product Width (mm) 65 Product Height (mm) 24 Product Weight (g) 254 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant No Max Distance 100m [328ft] Maximum Digital Resolutions 1920x1200 @60Hz Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Cat 5 UTP or better Cascadable Yes LED Indicators - 1 - Link (Green) - Transmitter
- 1 - Power (Red) - Transmitter
- 1 - Power (Red) - Receiver
- 1 - Link (Green) - Receiver

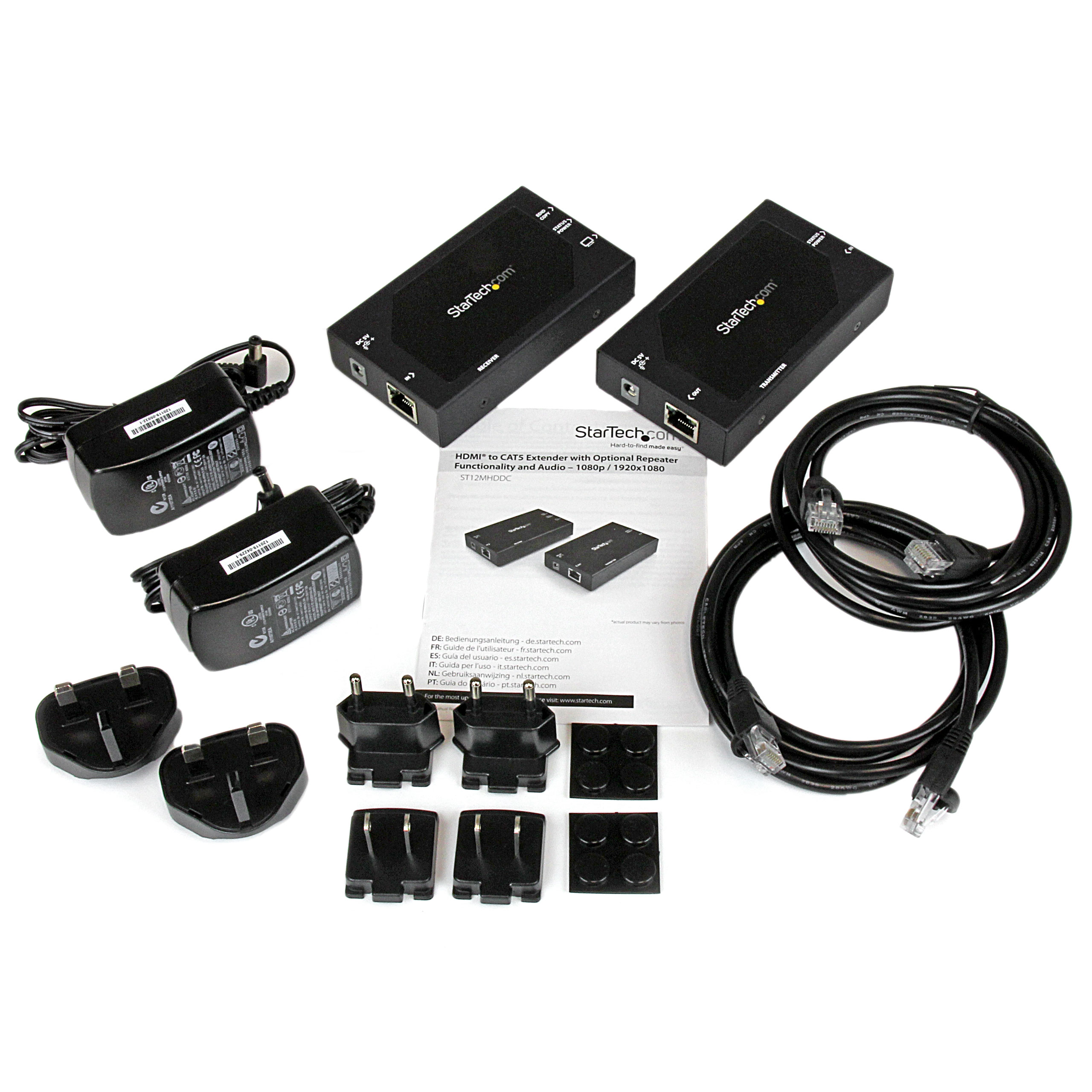

Carton Depth (mm) 310 Carton Height (mm) 207 Carton Quantity 12 Carton Weight Gross (g) 7192 Included in Package - 1 - HDMI® Over CAT5 Receiver
- 1 - HDMI® Over CAT5 Transmitter
- 2 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 2 - Foot Pad Set
- 1 - Manual

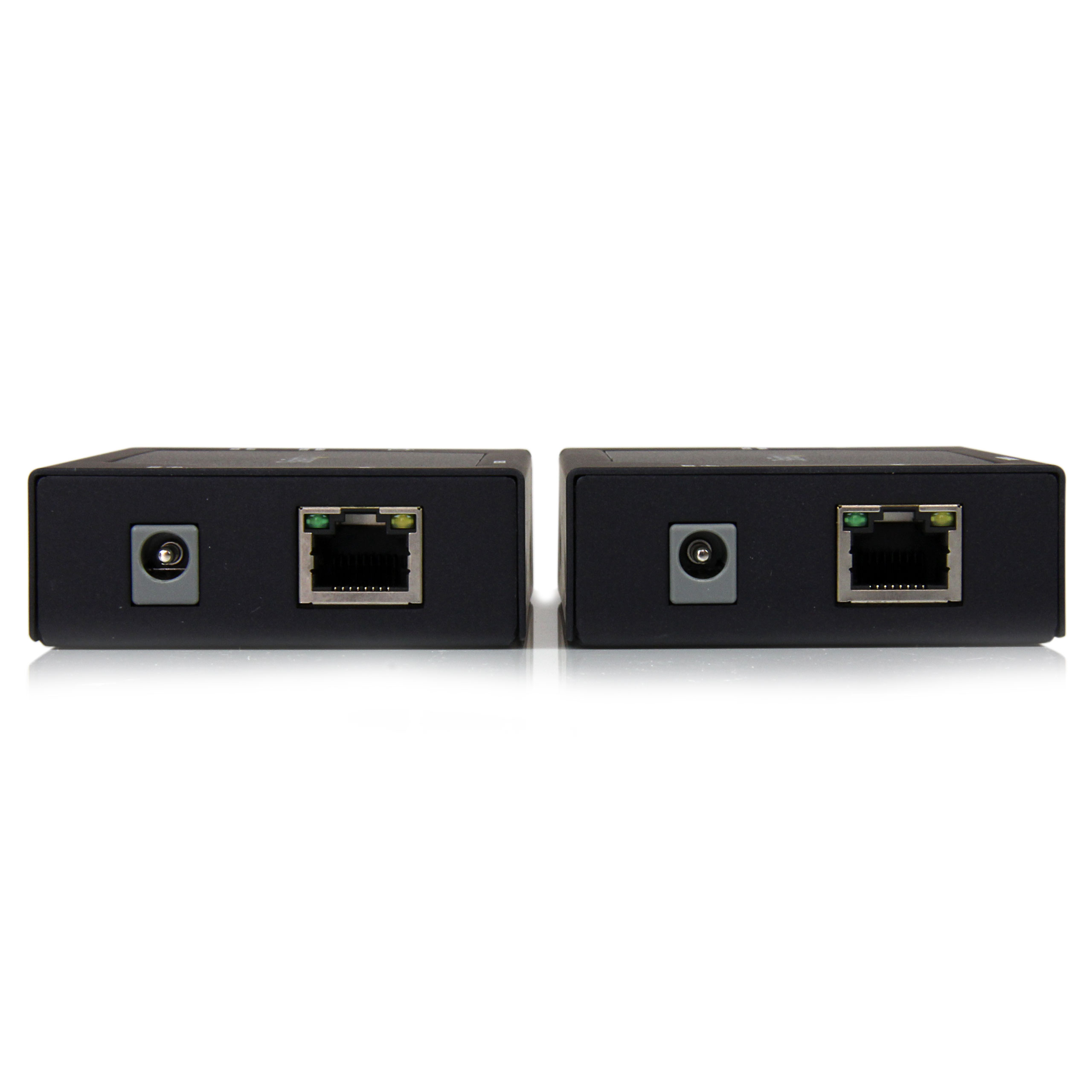

Package Depth (mm) 310 Package Height (mm) 207 Package Width (mm) 168 Package Quantity 1 Package Weight (g) 516 Packaging Description HDMI® Over CAT5/6 Extender w/ Daisy Chain Packaging Description India HDMI® Over CAT5/6 Extender w/ Daisy Chain Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 HDMI Connector 4 (Quantity) 1 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-04-03 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Greg Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
