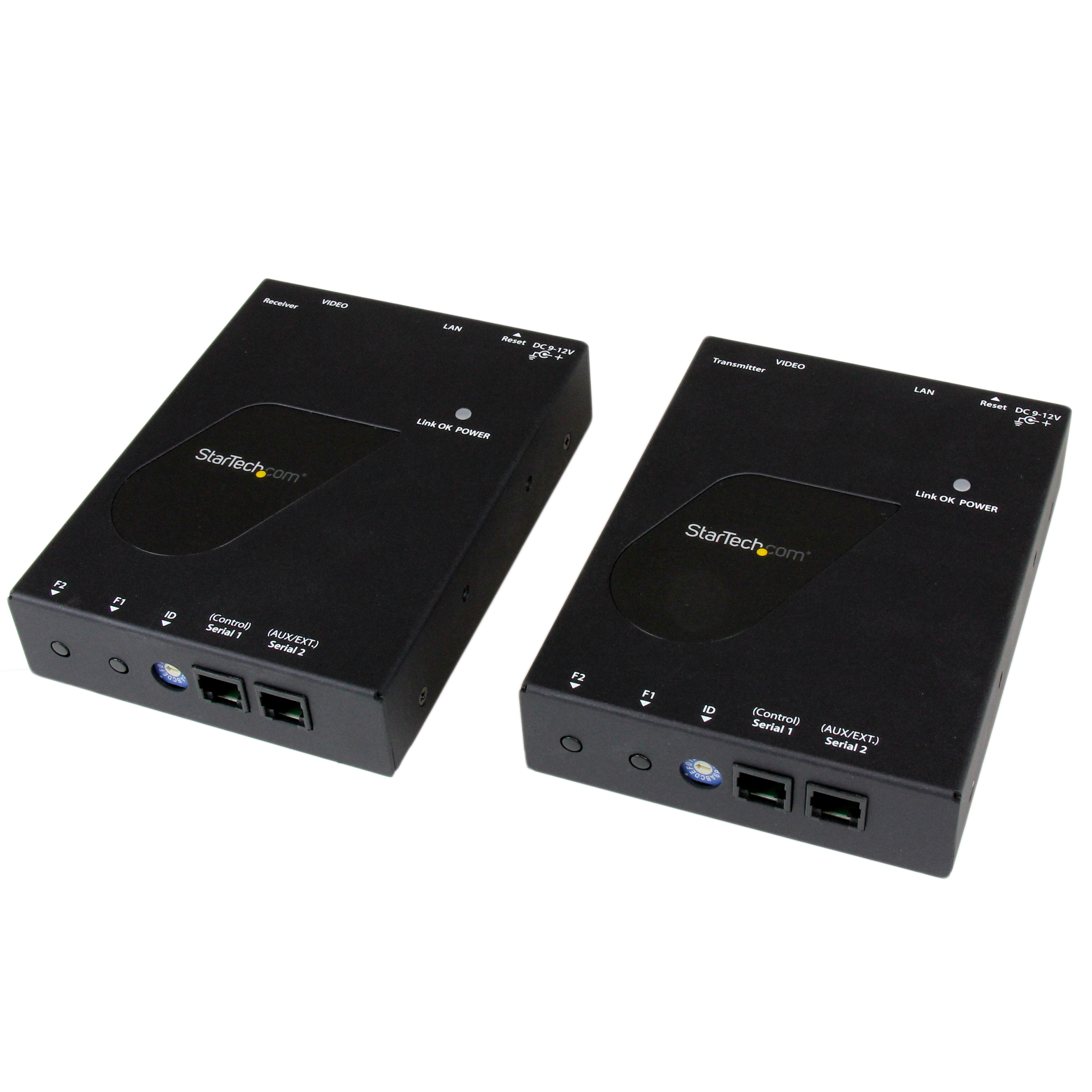

ST12MHDLAN
HDMI Extender over Cat6 IP LAN Ethernet Extender
Deploy content for digital signage through a scalable distribution system with intuitive control that’s ideal for point-to-point or video wall applications
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name HDMI Extender over Cat6 IP LAN Ethernet Extender Product Number ST12MHDLAN UPC 065030850759 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI over IP Family HDMI Over IP Extender -1 Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI Over IP Ext Product Title (Short) HDMI Over IP Ethernet Extender Kit Product Title (Medium) HDMI over IP Distribution Kit with Video Wall Support – 1080p Product Title (Standard) HDMI over IP Distribution Kit with Video Wall Support, 1080p - REPLACED BY ST12MHDLNHK Product Title (Long) HDMI over IP distribution kit - 1080p - REPLACED BY ST12MHDLNHK - TAA Product Title (AMZ) HDMI Video Over IP Gigabit Ethernet Extender Kit - 1080p HDMI Extender over Cat6 LAN Ethernet - up to 330 feet (100 meters) - Replaced by ST12MHDLNHK (ST12MHDLAN) Title Ingram (Part 1) HDMI Extender over Cat6 - HDMI Title Ingram (Part 2) Over IP LAN Ethernet Extender Website Product Headline Deploy content for digital signage through a scalable distribution system with intuitive control that’s ideal for point-to-point or video wall applications Bullet 1 Versatile video distribution with support for large multi-display presentations, video walls, video switching and point-to-point extension Bullet 2 Free mobile app makes it easy to manage switching video wall control (iOS / Android) Bullet 3 Tidy, professional installation using the included mounting hardware Bullet 4 Connect using a Gigabit LAN network Bullet 5 Easy point-to-point or point-to-multipoint setup Bullets (Compact) Extend HDMI over IP using standard UTP/STP networking equipment - Extend to multiple displays using additional Receiver Units - HDMI Extender - HDMI over LAN - HDMI over Cat 6 Extender - up to 330 ft (100m) - Replaced by ST12MHDLNHK Bullets (Consolidated) Deploy content for digital signage through a scalable distribution system with intuitive control; Ideal for point-to-point or video wall applications - Compatible with HDMI video source devices such as computers and set top boxes and HDMI displays monitors and projectors - Supports resolutions up to 1920x1200; Mobile app to manage switching video wall control (iOS/Android) - New Version Available - ST12MHDLNHK Marketing Copy Marketing Copy (No HTML) Applications - Place the display in a convenient viewing area, while the HDMI source equipment is placed elsewhere in a separate, secured environment

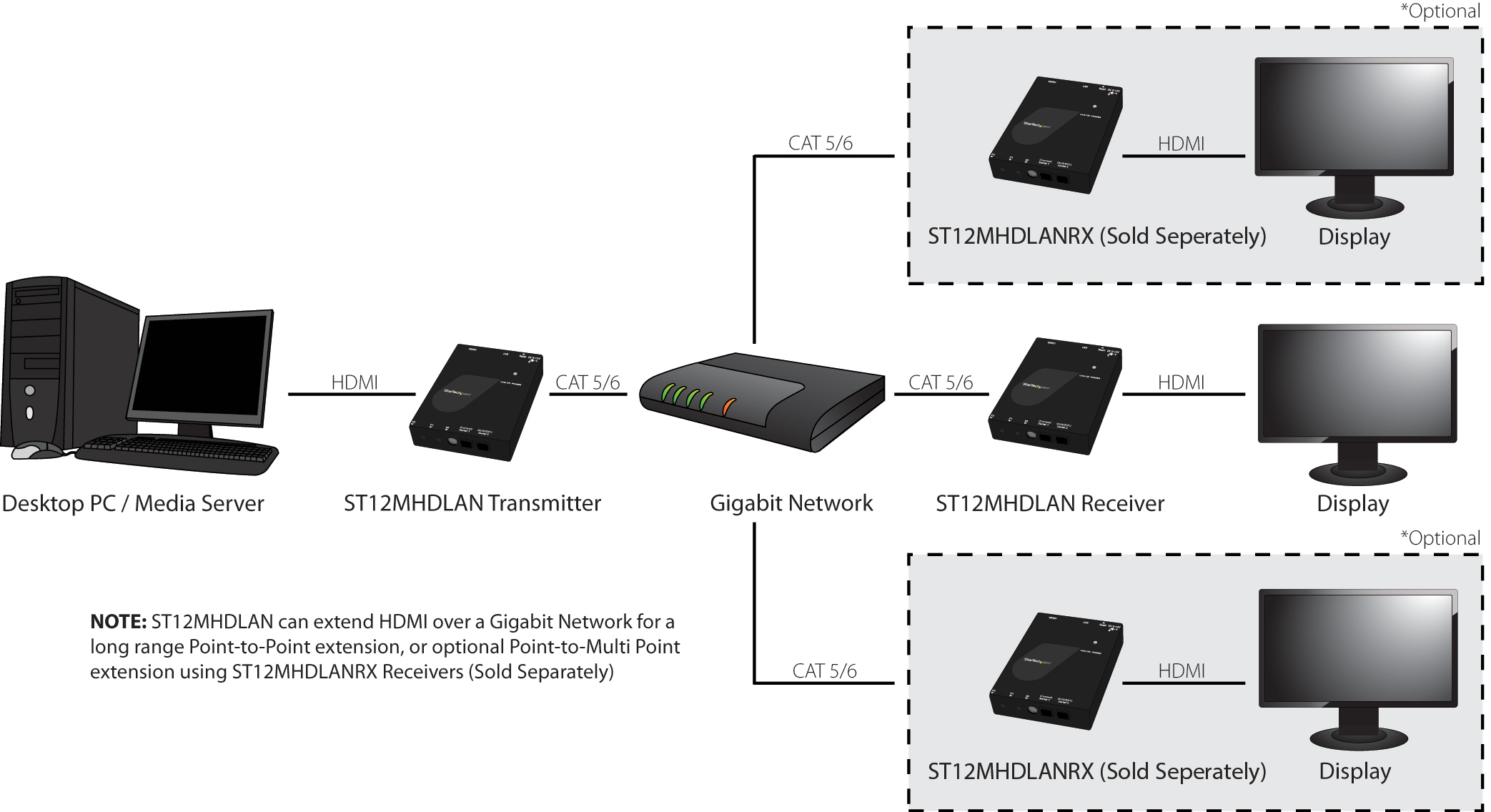

- Display the same HDMI audio / video signal on multiple displays, for large scale digital signage applications
- Extend HDMI using existing infrastructure
- Run multiple transmitters and receivers over the same network using a managed switch
- Display multiple communication boards showing dynamic data such as times and dates on digital charts in airports, train stations, bus stations or hospitals, that can be updated at any time

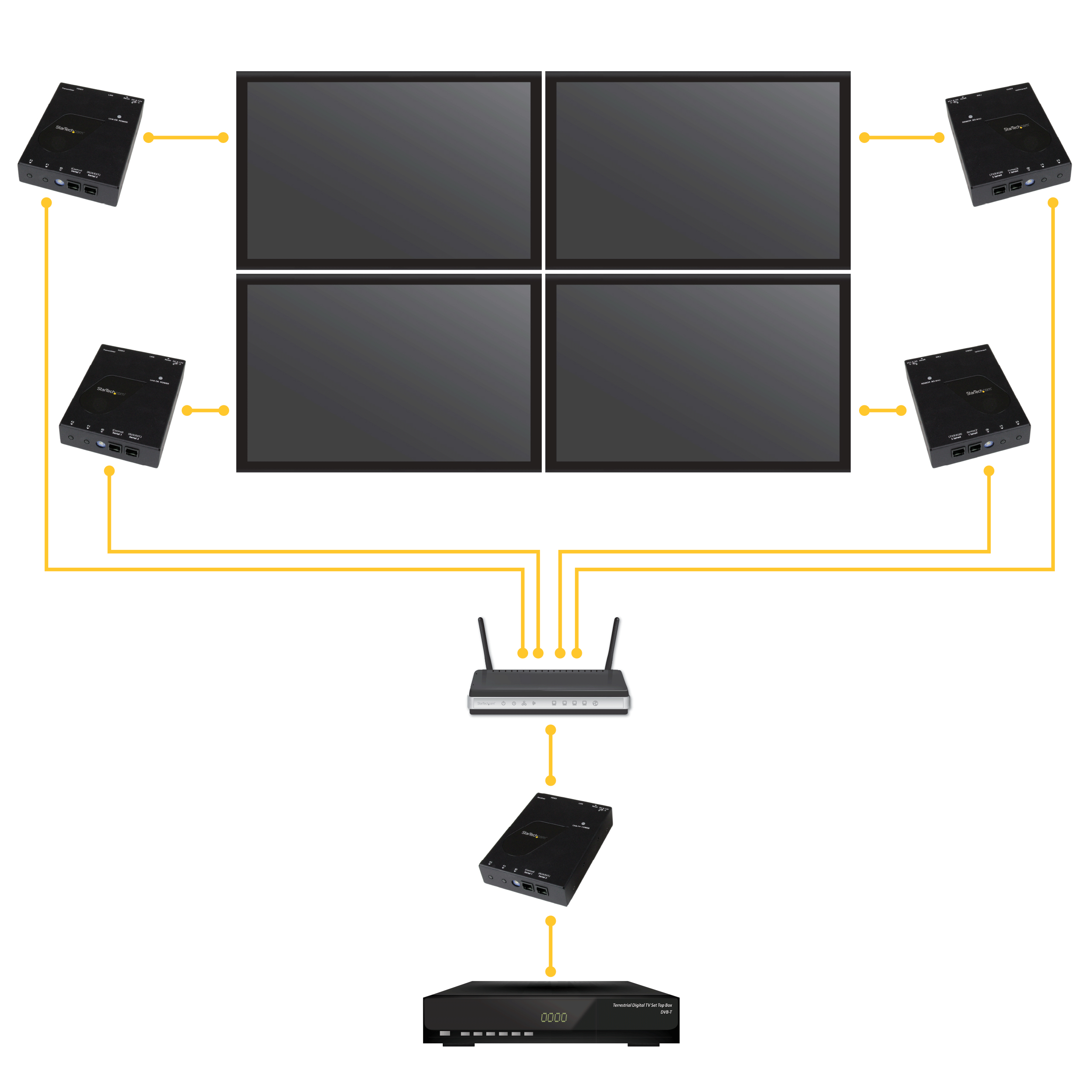

- Build a multi-display video wall to present entertainment to your patrons, with an impressive display at a restaurant or shopping center
- Present your social media feeds on multiple screens in a large viewing area
Website Search Keyword B160-101-HDSI Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - ST12MHDLANRX
- HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- IES101002SFP
- SVA12M2NEUA
- SVA12M5NA
- VIDWALLMNT
Related Products - ST12MHDLAN2K
- ST12MHDLAN2R
- ST12MHDLNHK
- ST12MHDLNHR
- ST12MHDLANRX
- ST12MHDLANU
- ST12MHDLANUR
- ST12MHDLAN4K
- ST12MHDLAN4R
- ST12MHDLNV

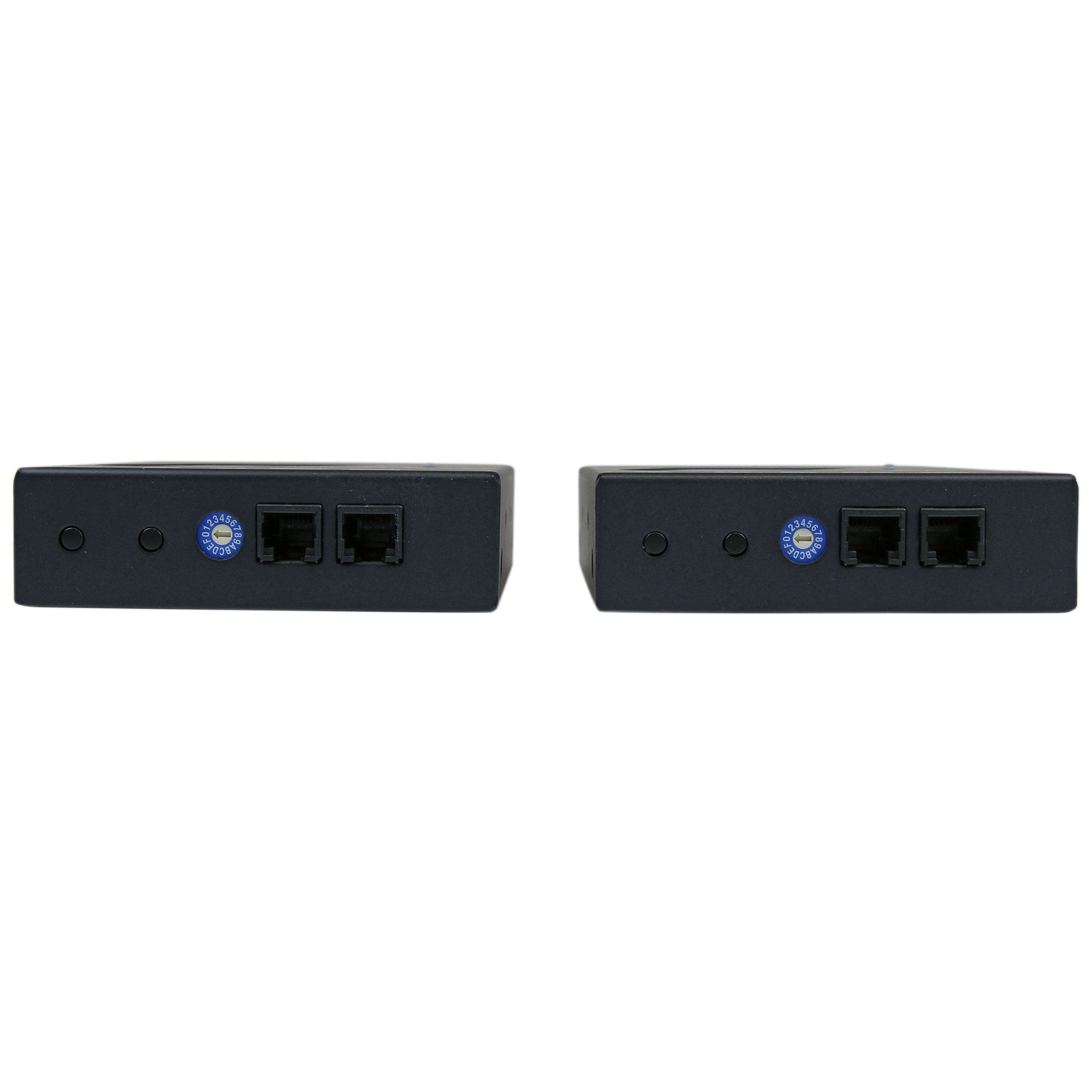

Constrained SKU Alternatives (Limited Stock) ST12MHDLAN2K Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% - 80 % Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 130.000 Product Width (mm) 97.000 Product Height (mm) 28.000 Product Weight (g) 939.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Max Distance 100m [328ft] Maximum Digital Resolutions 1920x1200 @60Hz Supported Resolutions 1920 x 1200 (1080p) Wide Screen Supported Yes Audio Yes Cabling Cat 5e UTP or better Cascadable Yes LED Indicators - 1 - Reset - Transmitter
- 1 - Link OK / POWER - Transmitter
- 1 - Link OK / POWER - Receiver
- 1 - Reset - Receiver

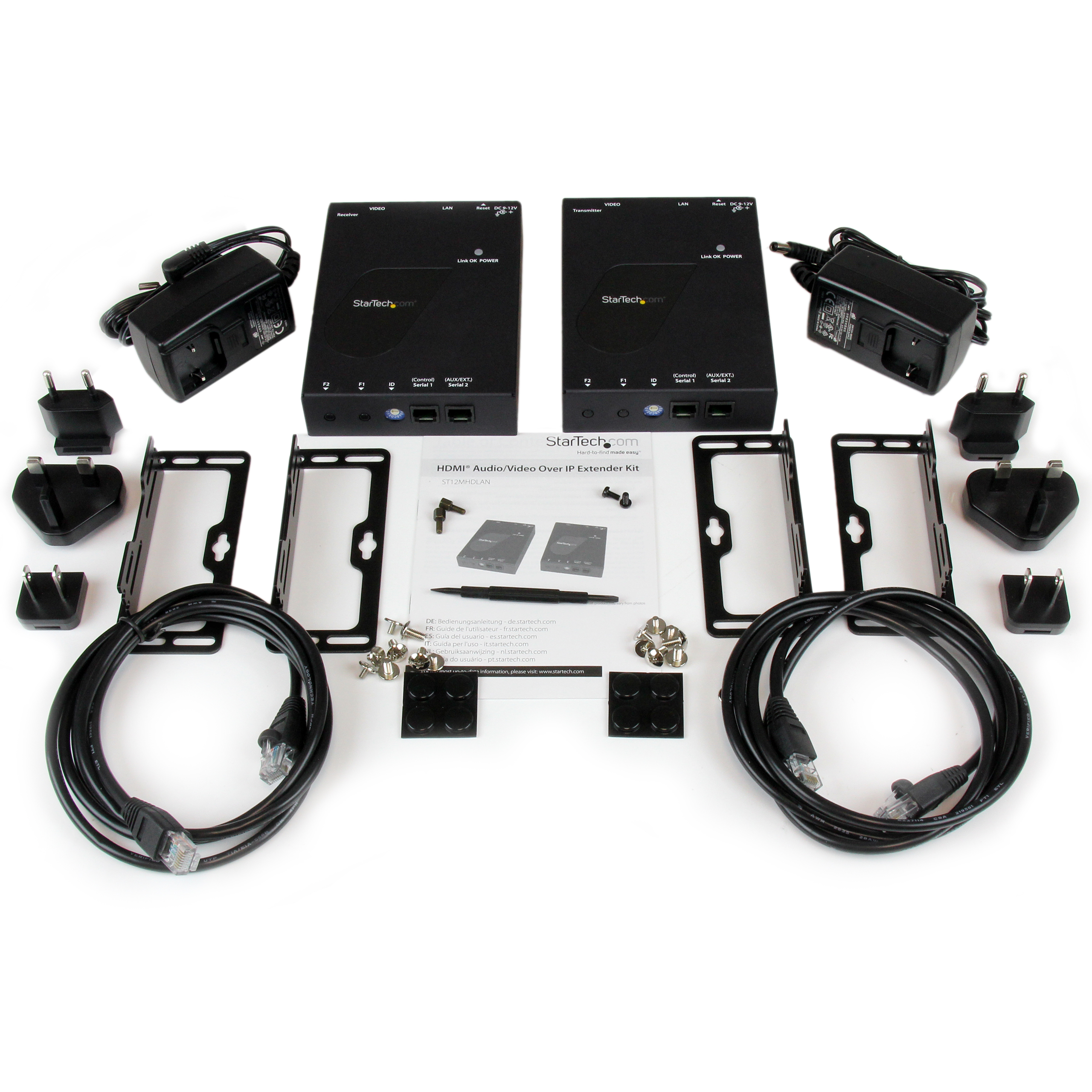

Rack-Mountable No Carton Depth (mm) 321 Carton Height (mm) 300 Carton Quantity 6 Carton Weight Gross (g) 13027 Included in Package - 1 - HDMI over IP receiver
- 1 - HDMI over IP transmitter
- 2 - universal power adapter (NA / EU / UK / AU)
- 2 - foot pad set
- 1 - instruction manual
- 2 - mounting brackets

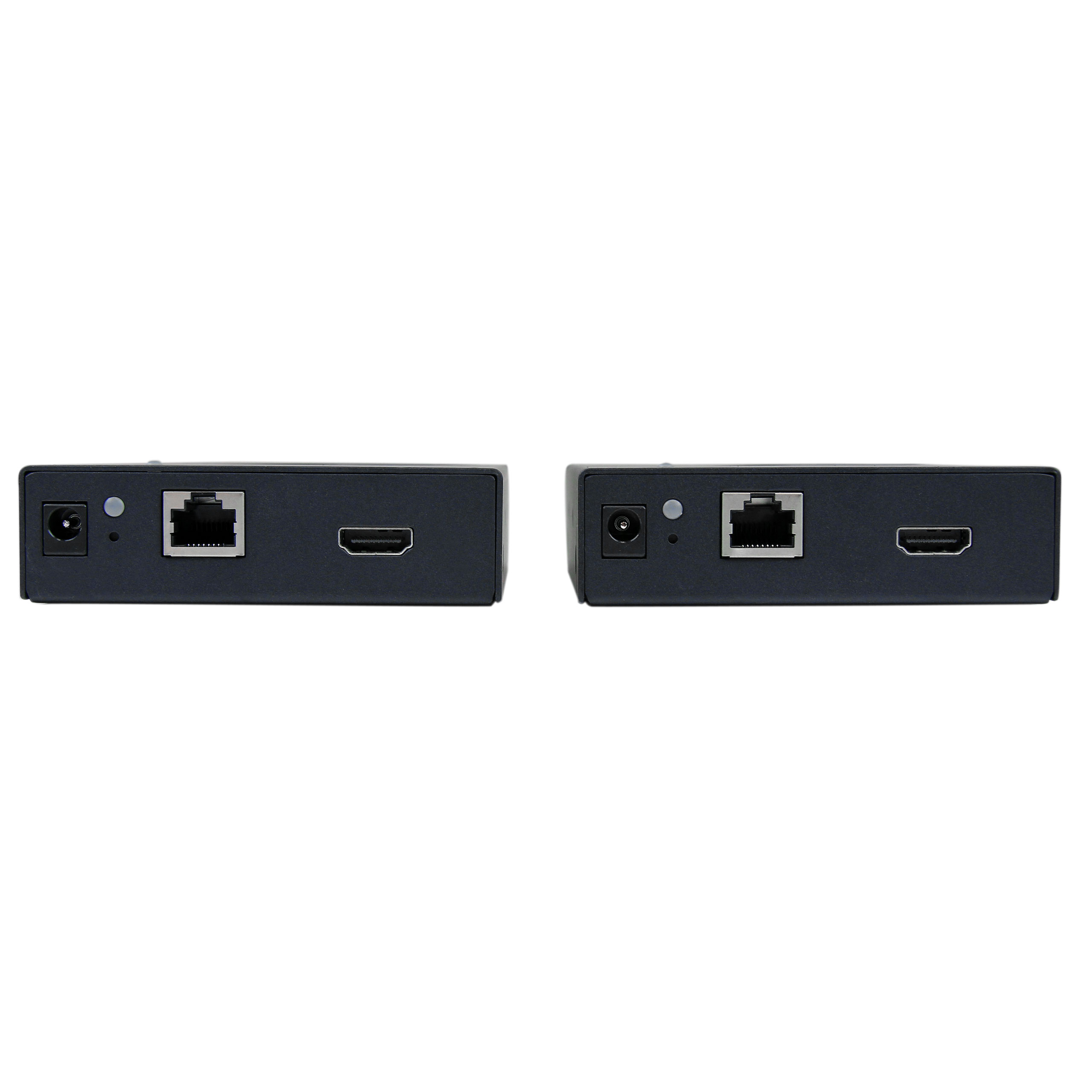

Package Depth (mm) 295 Package Height (mm) 86 Package Width (mm) 246 Package Weight (g) 2019 Packaging Description HDMI® Over IP Extender Kit Packaging Description India HDMI® Over IP Extender Kit Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 HDMI Connector 4 (Quantity) 1 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-02-19 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Greg Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
