ST12MHDLAN2K
HDMI Video 1080p over Gigabit LAN Transmitter Receiver
HDMI® Video over Cat5e or Cat6 |Multiple Sources to Multiple Displays | Mobile Control App
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
BOM Image
Product Name HDMI Video 1080p over Gigabit LAN Transmitter Receiver Product Number ST12MHDLAN2K UPC 065030878456 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI over IP Family HDMI Over IP Extender -3 Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI over IP Kit Product Title (Short) Extender Kit - HDMI over IP - 1080p Product Title (Medium) HDMI over IP Extender Kit with Video Wall Support - 1080p Product Title (Standard) HDMI over IP Extender Kit with Video Wall Support, 1080p, Mobile App, Mounting Hardware, 1080p Video Resolutions, TAA Product Title (Long) HDMI over IP Extender Kit with Video Wall Support - 1080p - TAA Product Title (AMZ) HDMI over IP Extender Kit with Video Wall Support - 1080p - HDMI over CAT5e / CAT6 Transmitter and Receiver Kit , TAA (ST12MHDLAN2K) Title Ingram (Part 1) HDMI over IP Extender Kit with Title Ingram (Part 2) Video Wall Support - 1080p Website Product Headline HDMI® Video over Cat5e or Cat6 |Multiple Sources to Multiple Displays | Mobile Control App Bullet 1 Scalable video distribution system extends your HDMI video signal and RS232 control to one or multiple displays Bullet 2 Create stunning video walls easily using a single or multiple video source with multiple receivers Bullet 3 Manage and control your digital signage with the intuitive mobile app Bullet 4 Crystal-clear picture quality, video resolutions up to 1080p Bullet 5 Tidy, professional installation with included mounting hardware Bullets (Compact) HDMI over IP Extender Kit - Video wall support - HDMI transmitter & receiver kit extends HDMI signal & RS232 control - HDMI over Ethernet extender for resolutions up to 1080p - HDMI over Cat5e Cat6 extender w/ mobile app to manage digital signage Bullets (Consolidated) HDMI over IP extender kit extends your HDMI signal and RS232 control to one or multiple displays - HDMI over Cat5e/Cat6 extender lets you design video walls using single or multiple video sources with multiple receivers - HDMI over Ethernet extender comes with a mobile app that lets you manage and control digital signage - HDMI transmitter and receiver kit includes shelf-mounting hardware - Supports video resolutions up to 1080p - Point-to-Point/Point-to-Multipoint/Multipoint-to - Multipoint Marketing Copy Marketing Copy (No HTML) This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this HDMI over Cat5e / Cat6 extender kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create a HDMI video wall system using several remote displays and receivers in the same location. You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. This HDMI extender kit has remote control of serial devices through an RS-232 extension. With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the HDMI transmitter and receiver kit also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter. The HDMI over ethernet extender kit includes an easy-to-use online app to manage your IP video distribution. The app is available on iOS for an iPhone or iPad, Android for a smartphone or tablet, and Google Chrome browser for a desktop. Download the StarTech.com Video Control software to manage your IP video distribution. Applications - Distribute digital signage or entertainment content in schools, hospitals, office buildings, shopping centers or stadiums

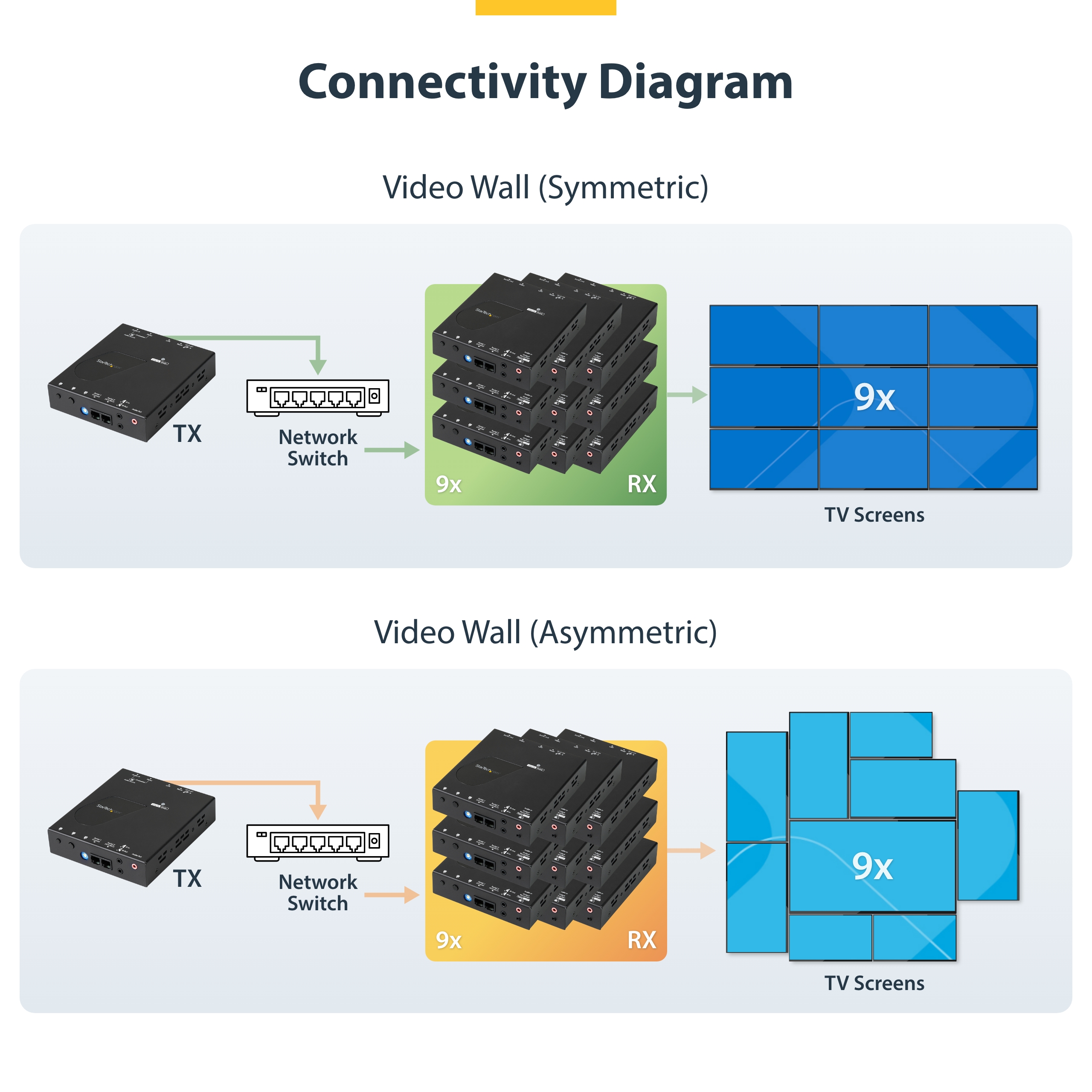

- Create a video wall by combining multiple displays
- Extend RS-232 serial control to create an interactive digital signage presentation

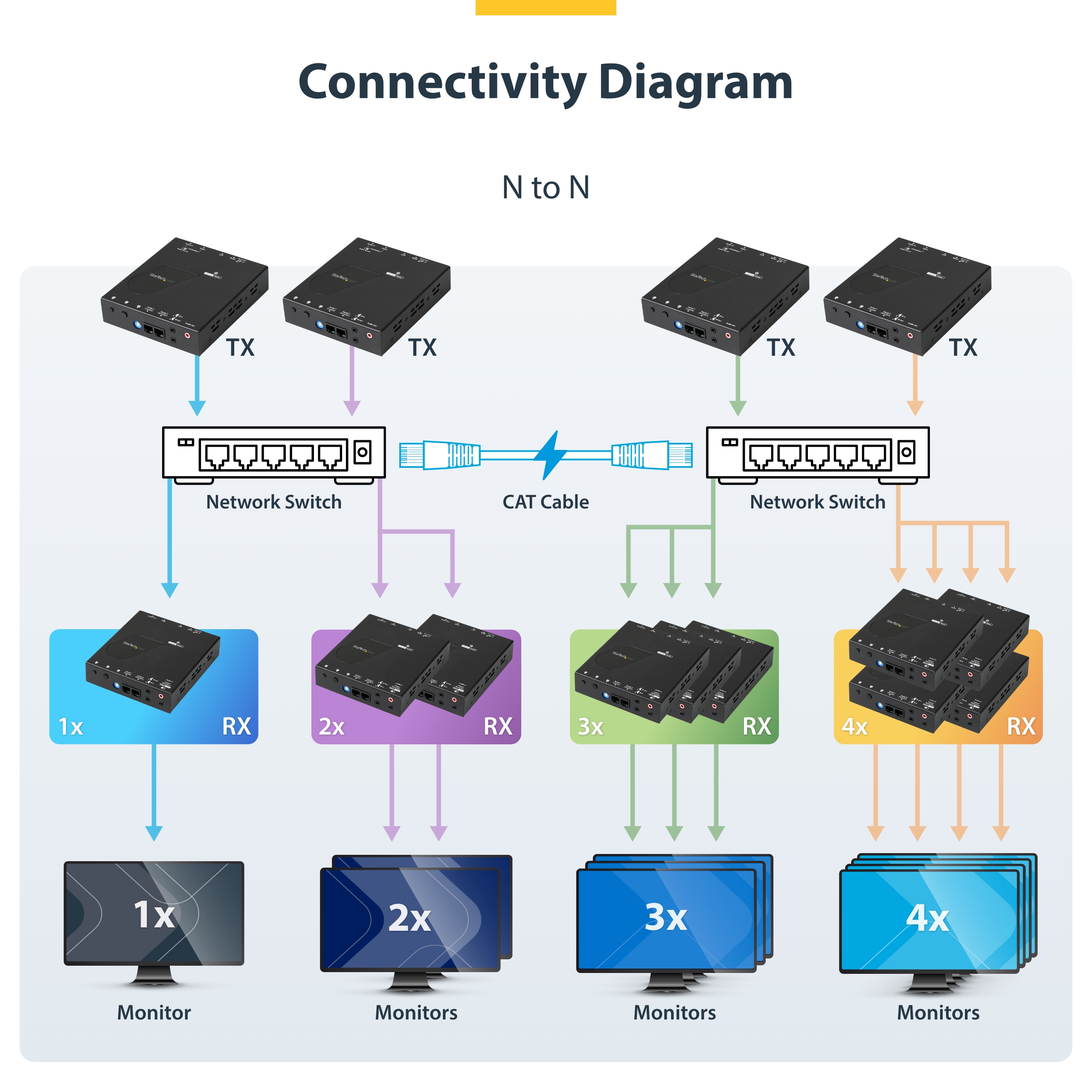

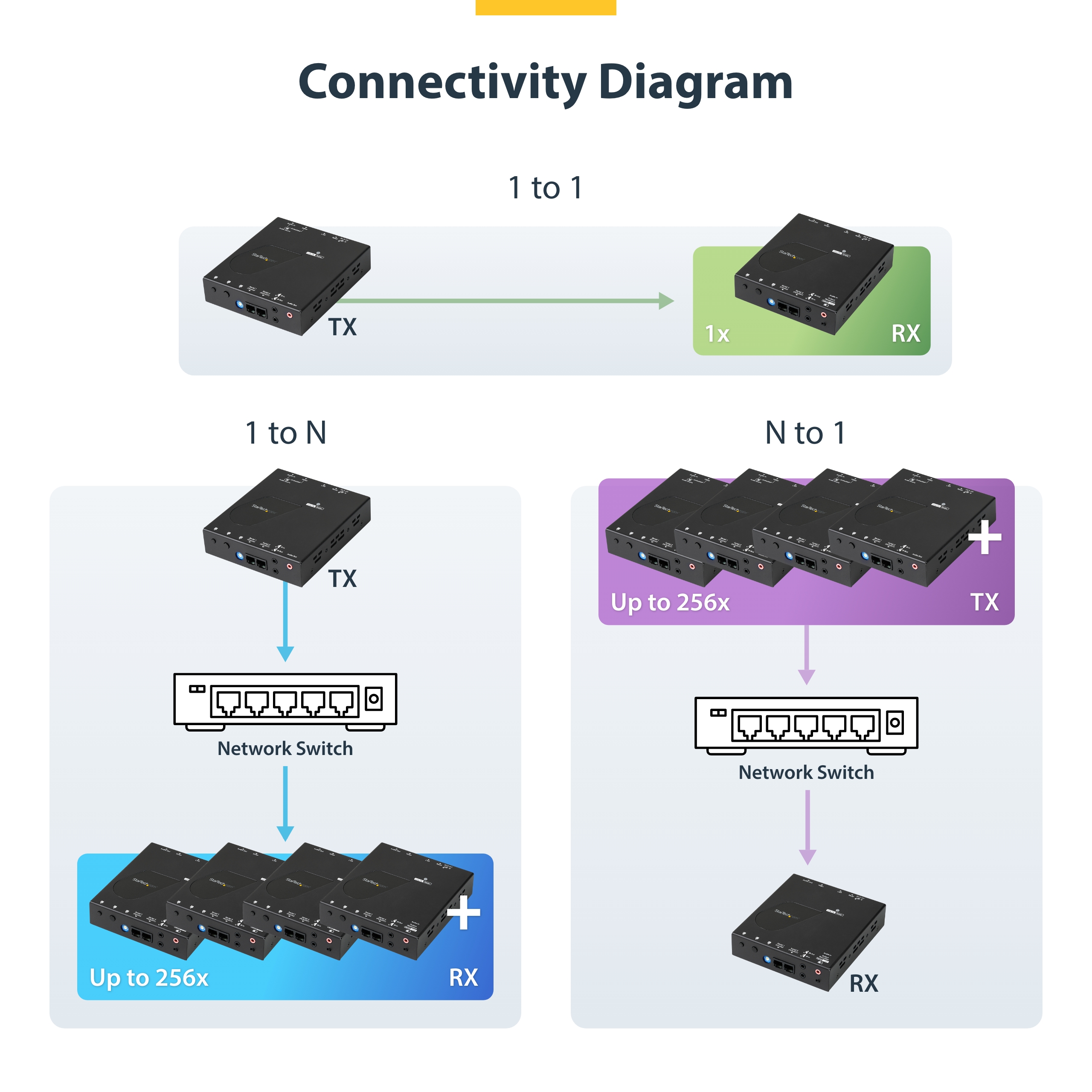

- Point-to-point, point-to-multipoint and multipoint-to-multipoint applications
Website Search Keyword - 1080p hdmi extender
- hdmi extender cat5
- hdmi extender cat6
- hdmi extender kit
- HDMI LAN Extender
- HDMI over cat 5
- HDMI over cat 6
- HDMI over cat5
- hdmi over cat5 extender
- hdmi over cat5e
- HDMI over cat6
- hdmi over cat6 extender
- hdmi over ethernet 1080p
- hdmi over ethernet extender
- hdmi over ethernet extender kit
- hdmi over gigabit ethernet
- HDMI over IP
- hdmi over ip extender
- HDMI over LAN
- hdmi over lan extender
- hdmi over network switch
- HDMI Repeater
- hdmi splitter extender
- hdmi transmitter and receiver
- hdmi transmitter and receiver kit
- hdmi via ethernet
- HDMI Video Extender
- HDMI Video over Ethernet
- HDMI Video Wall
- tripp lite hdmi extender
- tripp lite hdmi over cat5
- Video Wall
- video wall system
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled Accessory Products - ST12MHDLAN2R
- HDMM3
- HDMM6
- HDMM2MP
- HDMM3M
- VIDWALLMNT
Related Products - ST12MHDLAN2R
- ST12MHDLNHK
- ST12MHDLNHR
- ST12MHDLAN
- ST12MHDLANRX
- ST12MHDLANU
- ST12MHDLANUR
- ST12MHDLAN4K
- ST12MHDLAN4R
- ST12MHDLNV
Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% - 80 % Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 131.000 Product Width (mm) 118.000 Product Height (mm) 31.000 Product Weight (g) 1178.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Max Distance 100m [328ft] Maximum Digital Resolutions Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Cat 5e UTP or better Cascadable Yes LED Indicators - 1 - Power/Link - Transmitter
- 1 - Network Status - Transmitter
- 1 - Power/Link - Receiver
- 1 - Network Status - Receiver

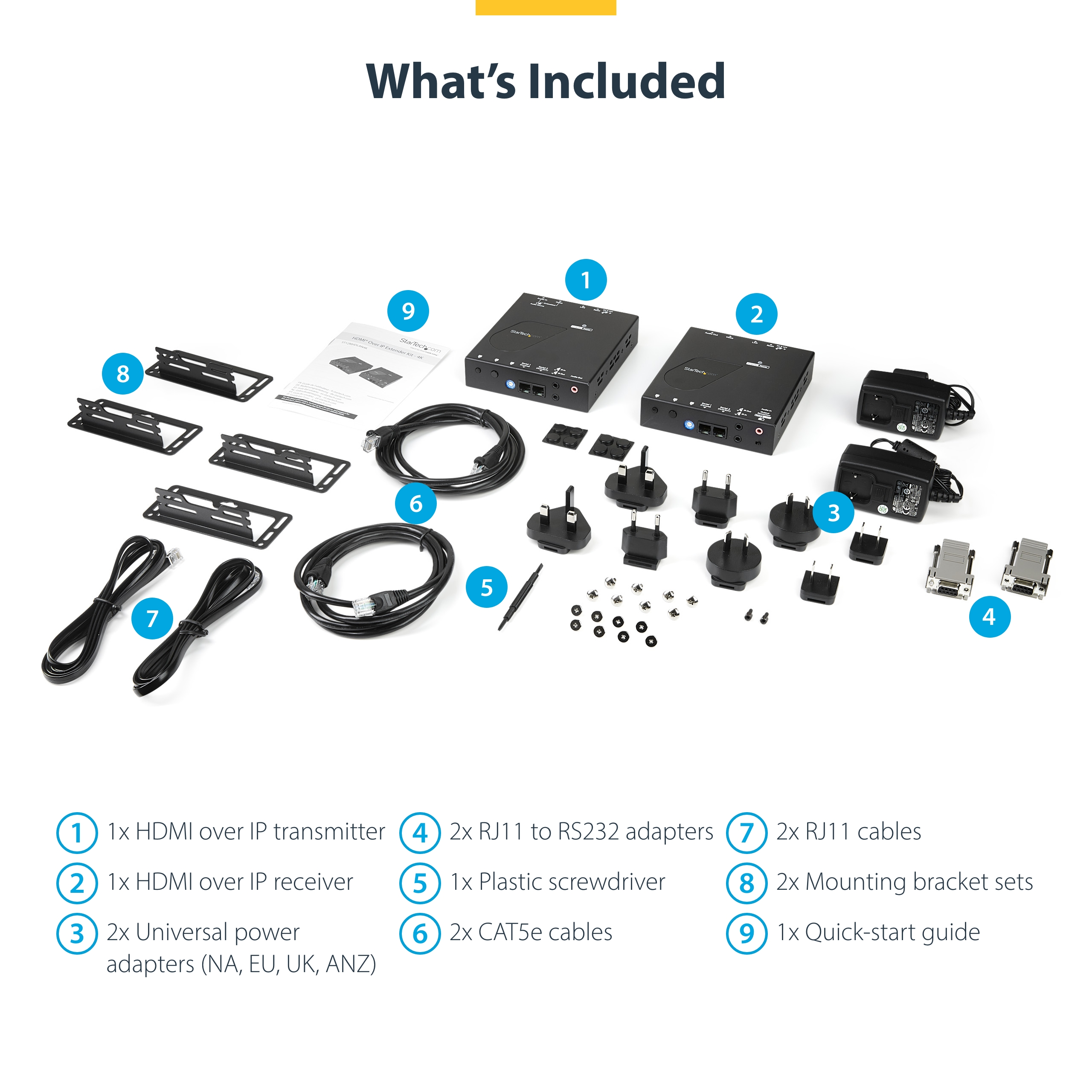

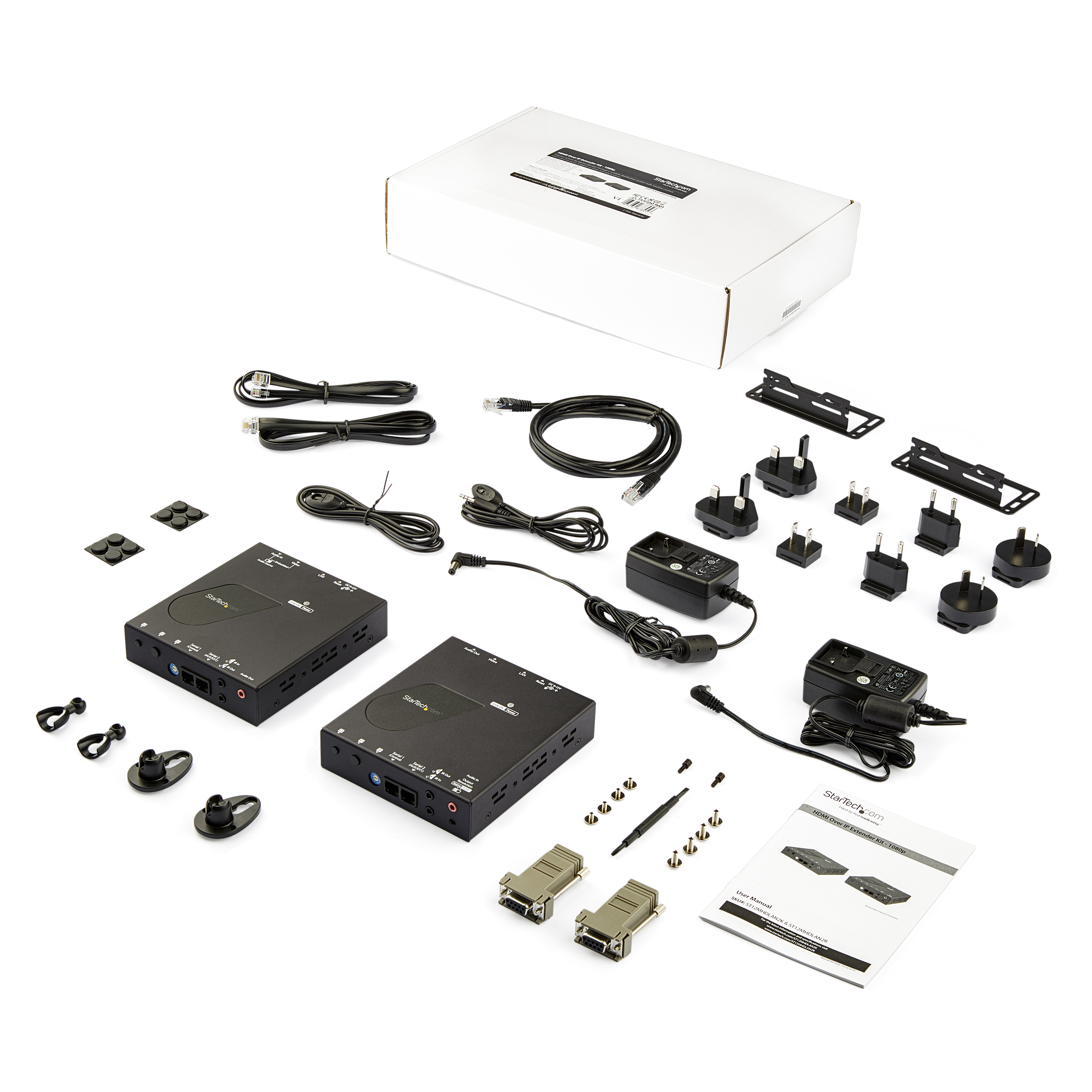

Rack-Mountable No Carton Depth (mm) 390 Carton Height (mm) 266 Carton Quantity 6 Carton Weight Gross (g) 14748 Included in Package - 1 - HDMI Transmitter
- 1 - HDMI Receiver
- 2 - Universal Power Adapters (NA/JP, EU, UK, ANZ)
- 1 - Hardware Kit
- 2 - RJ-11 to RS-232 Adapters
- 2 - RJ-11 Cables
- 8 - Foot Pads
- 1 - CAT5 Cable
- 1 - IR Blaster
- 1 - IR Receiver
- 1 - User Manual
Package Depth (mm) 236 Package Height (mm) 76 Package Width (mm) 366 Package Quantity 1 Package Weight (g) 2272 Packaging Description HDMI Over IP Extender Kit - 1080p Packaging Description India HDMI Over IP Extender Kit - 1080p Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 RJ-11 Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 2 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Host Connector 3 RJ-11 Host Connector 3 (Quantity) 2 Host Connector 4 3.5mm (3 Conductors, TRS) Host Connector 4 (Quantity) 2 Host Connector 5 3.5mm (3 Conductors, TRS) Host Connector 5 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2018-06-28 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2018-10-10 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-05-18 Target Production Release 2018-07-06 Tech Lead Justin Weaver Technical Writer Evan Hanbidge Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
