ST12MHDLAN2R
HDMI Video 1080p over Gigabit LAN - Receiver
HDMI® Video Over Cat5e or Cat6 |Scale to Multiple Displays |Mobile Control App
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name HDMI Video 1080p over Gigabit LAN - Receiver Product Number ST12MHDLAN2R UPC 065030878463 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI over IP Family HDMI Over IP Extender -3 Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI Over IP Product Title (Short) Receiver - HDMI Over Ethernet - 1080p Product Title (Medium) HDMI Over Ethernet Receiver for ST12MHDLAN2K - Video Wall Support - 1080p Product Title (Standard) HDMI Over Ethernet Receiver for ST12MHDLAN2K - Extends HDMI signal and RS232 control to one or multiple displays - Video resolutions up to 1080p - Mobile App - Shelf-mounting hardware included - Uses Cat5e or Cat6 cabling Product Title (Long) HDMI Over IP Receiver for ST12MHDLAN2K - Video Wall Support - 1080p Product Title (AMZ) HDMI over Ethernet Receiver for ST12MHDLAN2K with Video Wall Support - 1080p - HDMI over CAT5e or CAT6 Network Receiver (ST12MHDLAN2R) Title Ingram (Part 1) HDMI Over Ethernet Receiver for Title Ingram (Part 2) ST12MHDLAN2K - 1080p Website Product Headline HDMI® Video Over Cat5e or Cat6 |Scale to Multiple Displays |Mobile Control App Bullet 1 Scalable video distribution system extends your HDMI video signal and RS232 control to one or multiple displays Bullet 2 Create stunning video walls easily using a single video source with multiple receivers Bullet 3 Manage and control your digital signage with our intuitive mobile app Bullet 4 Crystal-clear picture quality, video resolutions up to 1080p Bullet 5 Tidy, professional installation with included mounting hardware Bullets (Compact) HDMI Over Ethernet Receiver for ST12MHDLAN2K - Video wall support - HDMI over network receiver HDMI signal & RS232 control - HDMI over IP receiver for resolutions up to 1080p - HDMI over Cat5e Cat6 receiver w/ mobile app to manage digital signage Bullets (Consolidated) HDMI over Ethernet receiver for ST12MHDLAN2K extends HDMI signal and RS232 control to one or multiple displays - HDMI over IP receiver lets you design video walls using single or multiple video sources w/ multiple receivers - HDMI over Cat5e or Cat6 receiver comes w/ a mobile app that lets you manage and control digital signage - HDMI over network receiver includes shelf-mounting hardware - Supports video resolutions up to 1080p - Point-to-Point/Point-to-Multipoint / Multipoint-to- Multipoint Marketing Copy Marketing Copy (No HTML) Applications - Add additional receivers and distribute video to multiple locations
- Distribute digital signage or entertainment content in schools, hospitals, shopping centers or stadiums
- Create a video wall by combining multiple displays
- Extend RS232 serial control to create an interactive digital signage presentation
- Point-to-point, point-to-multipoint and multipoint-to-multipoint applications
Website Search Keyword - extend hdmi over cat6
- hdmi ethernet extender
- hdmi ethernet receiver
- hdmi extender adapter
- hdmi extender cat5
- hdmi extender cat6
- HDMI over cat 5
- HDMI over cat 6
- HDMI over cat5
- hdmi over cat5 extender
- hdmi over cat5 receiver
- hdmi over cat5e
- HDMI over cat6
- hdmi over cat6 extender
- hdmi over cat6 receiver
- hdmi over distance
- hdmi over ethernet
- hdmi over ethernet 1080p
- hdmi over ethernet receiver
- hdmi over gigabit ethernet
- HDMI over IP
- hdmi over ip extender
- hdmi over ip receiver
- HDMI over LAN
- hdmi over network
- hdmi over network switch
- HDMI Repeater
- hdmi splitter extender
- hdmi to ethernet extender
- hdmi via ethernet
- HDMI Video over Ethernet
- HDMI Video Wall
- tripp lite hdmi over cat5
- video over ethernet
- Video Wall
- video wall system
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - ST12MHDLAN2K
- HDMM3
- HDMM2MP
- HDMM10
- HDMM3M
- MU6MMS
Related Products - ST12MHDLAN2K
- ST12MHDLNHK
- ST12MHDLNHR
- ST12MHDLAN
- ST12MHDLANRX
- ST12MHDLANU
- ST12MHDLANUR
- ST12MHDLAN4K
- ST12MHDLAN4R
- ST12MHDLNV
Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% - 80 % Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 131.000 Product Width (mm) 118.000 Product Height (mm) 31.000 Product Weight (g) 584.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Max Distance 100m [328ft] Maximum Digital Resolutions 1920x1080 @60Hz Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Cat 5e UTP or better Cascadable Yes LED Indicators - 1 - Power/Link
- 1 - Network Status

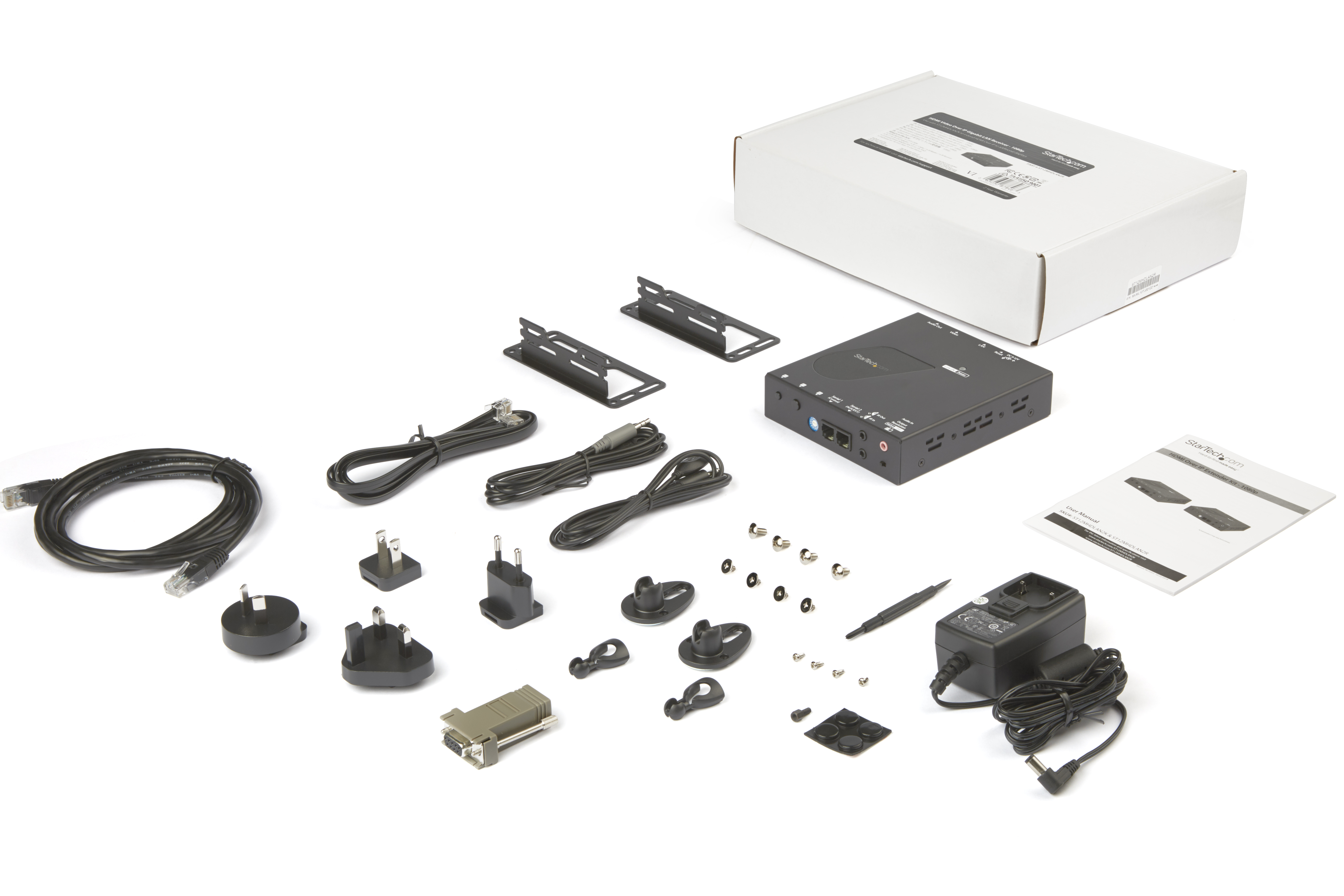

Rack-Mountable No Carton Depth (mm) 322 Carton Height (mm) 258 Carton Quantity 6 Carton Weight Gross (g) 8716 Included in Package - 1 - HDMI Receiver
- 1 - CAT5 Cable
- 1 - RJ-11 to RS-232 Adapter
- 1 - RJ-11 Cable
- 1 - IR Blaster
- 1 - IR Receiver
- 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
- 1 - Hardware Kit
- 4 - Foot Pads
- 1 - User Manual
Package Depth (mm) 212 Package Height (mm) 64 Package Width (mm) 298 Package Quantity 1 Package Weight (g) 1328 Packaging Description HDMI Video Over IP Gigabit LAN Receiver - 1080p Packaging Description India HDMI Video Over IP Gigabit LAN Receiver - 1080p Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 RJ-11 Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2018-06-28 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2018-10-11 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Natalie Goodale Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-05-18 Target Production Release 2018-07-06 Tech Lead Justin Weaver Technical Writer Evan Hanbidge Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
