ST12MHDLANRX
HDMI Extender over Cat6 for ST12MHDLAN
Use with ST12MHDLAN to extend HDMI Over IP to additional displays
Main Image
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name HDMI Extender over Cat6 for ST12MHDLAN Product Number ST12MHDLANRX UPC 065030850766 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI over IP Family HDMI Over IP Extender -1 Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI IP Receiver Product Title (Short) HDMI Over IP Receiver for ST12MHDLAN Product Title (Medium) x Product Title (Standard) HDMI® Video Over IP Gigabit LAN Ethernet Receiver for ST12MHDLAN - 1080p Product Title (Long) HDMI Video Over IP Gigabit LAN Ethernet Receiver for ST12MHDLAN - 1080p - TAA Product Title (AMZ) HDMI Video Over IP Gigabit LAN Ethernet Receiver for ST12MHDLAN - 1080p - HDMI Extender over Cat6 Extender Kit (ST12MHDLANRX) Title Ingram (Part 1) HDMI Extender over Cat6 for Title Ingram (Part 2) ST12MHDLAN - HDMI Over IP Website Product Headline Use with ST12MHDLAN to extend HDMI Over IP to additional displays Bullet 1 Highly scalable - output an HDMI signal to over 100 additional displays (requires additional ST12MHDLANRX Receiver units, sold separately) Bullet 2 Stereo Audio Bullet 3 EDID emulation ensures maximum resolution and compatibility with your display or projector Bullet 4 High Definition support for resolutions up to 1080p (1920x1080) Bullet 5 Includes optional mounting hardware Bullets (Consolidated) Extend HDMI Audio/Video over IP using standard UTP/STP networking equipment – Supports resolutions up to 1920 x 1200 - HDMI over Ethernet/HDMI over Cat6/HDMI over LAN/HDMI over IP/HDMI over GB LAN/HDMI Ethernet repeater/ST12MHDLAN repeater - HDMI over Cat 6 Extender for ST12MHDLAN - Display the same HDMI audio-video signal on over 100 displays for large scale digital signage applications - Extend to multiple displays using additional Receiver Units - HDMI Extender Marketing Copy Marketing Copy (No HTML) Versatile configuration options In a point-to-multipoint setup, the HDMI over IP kit can be connected through an unmanaged or managed Gigabit LAN portal. You can connect one or multiple sources (transmitters) to multiple displays (receivers) over IP, using a managed Gigabit Ethernet switch (with IGMP). For additional scalability, you can combine up to 16 different kits. For smaller-scale applications, the extender kit can be used as a point-to-point video extender. You can connect the transmitter and receiver units directly over Cat5 or Cat6 cabling for a small-scale, one-to-one HDMI extension up to 330 feet (100 meters). Manage your video distribution from your mobile device The HDMI distribution kit features easy-to-use video control software that helps you manage your IP video distribution. The app is simple to set up with automatic hardware detection, and lets you switch video sources for each remote display. You can also intuitively create and manage a video wall for an impressive digital signage presentation to catch the attention of your audience. The software is available on iOS for your iPhone or iPad, Android for your smartphone or tablet, and Google Chrome browser. Professional, cost-effective, simple installation The HDMI over IP extender kit includes optional mounting hardware for a tidy installation. Ideal for high-definition applications, the extender supports 1080p video resolutions and digital stereo audio. Plus, because the extender uses standard non-proprietary Cat5e or Cat6 Ethernet cable with RJ45 connectors, it eliminates both the expense and hassle of running specialized cables. The extender also features an EDID copy function, which ensures native resolution and maximum compatibility with your display or projector for a convenient plug-and-play installation. The ST12MHDLANRX is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Place the display in a convenient viewing area, while the HDMI source equipment is placed elsewhere in a separate, secured environment
- Extend HDMI using existing infrastructure
- Run multiple transmitters and receivers over the network using a managed switch
- Connect the HDMI source equipment to multiple displays in a point-to-multipoint configuration over a Gigabit Network using additional ST12MHDLANRX Receivers
- Display the same HDMI audio/video signal on multiple displays, for large scale digital signage applications
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
Accessory Products - ST12MHDLAN
- HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- IES101002SFP
- SVA12M2NEUA
- SVA12M5NA
- VIDWALLMNT
Related Products - ST12MHDLAN2K
- ST12MHDLAN2R
- ST12MHDLNHK
- ST12MHDLNHR
- ST12MHDLAN
- ST12MHDLANU
- ST12MHDLANUR
- ST12MHDLAN4K
- ST12MHDLAN4R
- ST12MHDLNV
Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% - 80 % Material Aluminum and Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 131.000 Product Width (mm) 97.000 Product Height (mm) 28.000 Product Weight (g) 465.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Max Distance 100m [328ft] Maximum Digital Resolutions 1920x1200 @60Hz Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Cat 5e UTP or better Cascadable Yes LED Indicators - 1 - Link OK / POWER
- 1 - Reset - Receiver

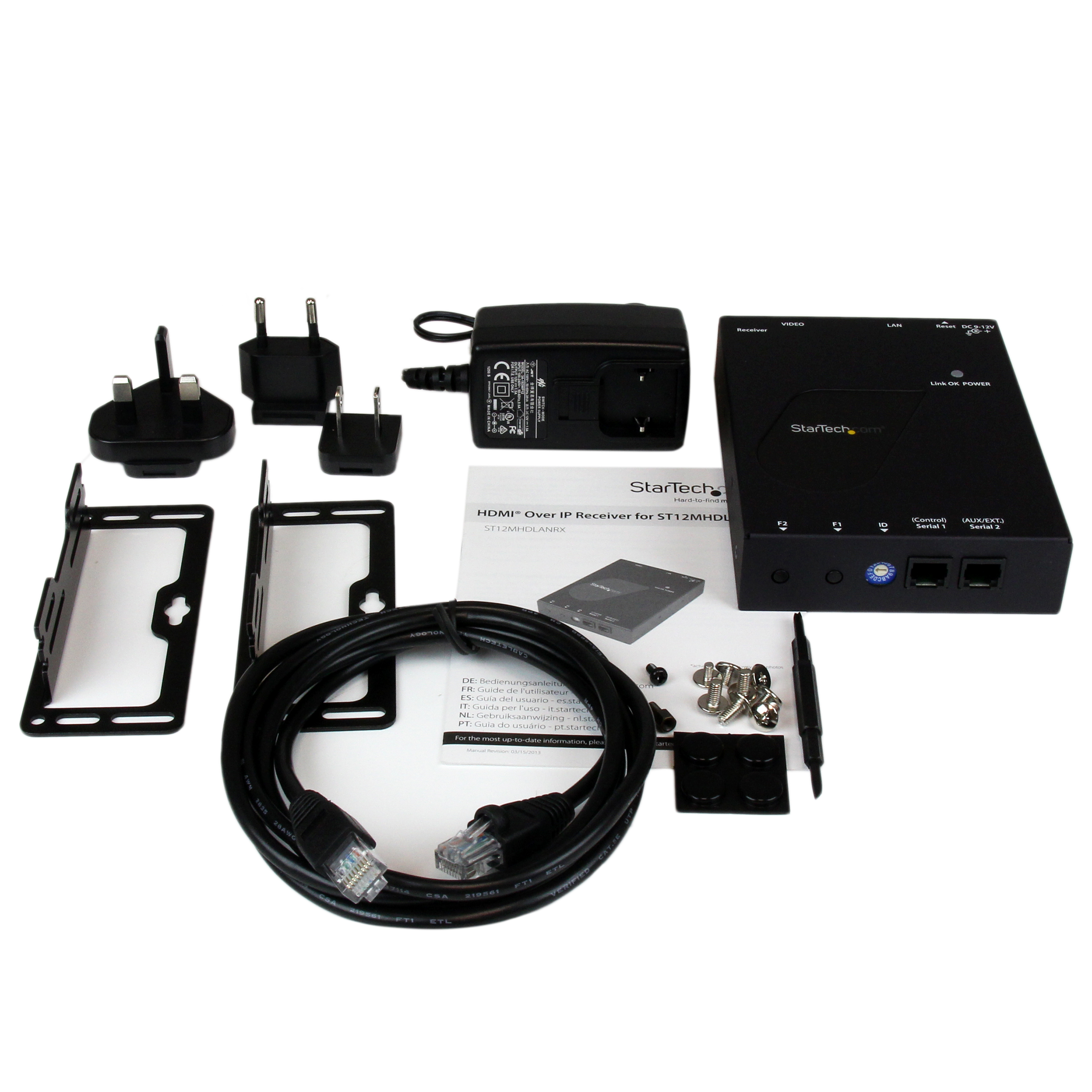

Rack-Mountable No Carton Depth (mm) 326 Carton Height (mm) 266 Carton Quantity 12 Carton Weight Gross (g) 12410 Included in Package - 1 - HDMI over IP receiver
- 1 - universal power adapter (NA / EU / UK / AU)
- 1 - instruction manual
- 1 - foot pad set
- 1 - mounting bracket
Package Depth (mm) 156 Package Height (mm) 66 Package Width (mm) 236 Package Quantity 1 Package Weight (g) 974 Packaging Description HDMI® Over IP Receiver for ST12MHDLAN Packaging Description India HDMI® Over IP Receiver for ST12MHDLAN Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-01-06 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2017-02-03 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Greg Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
