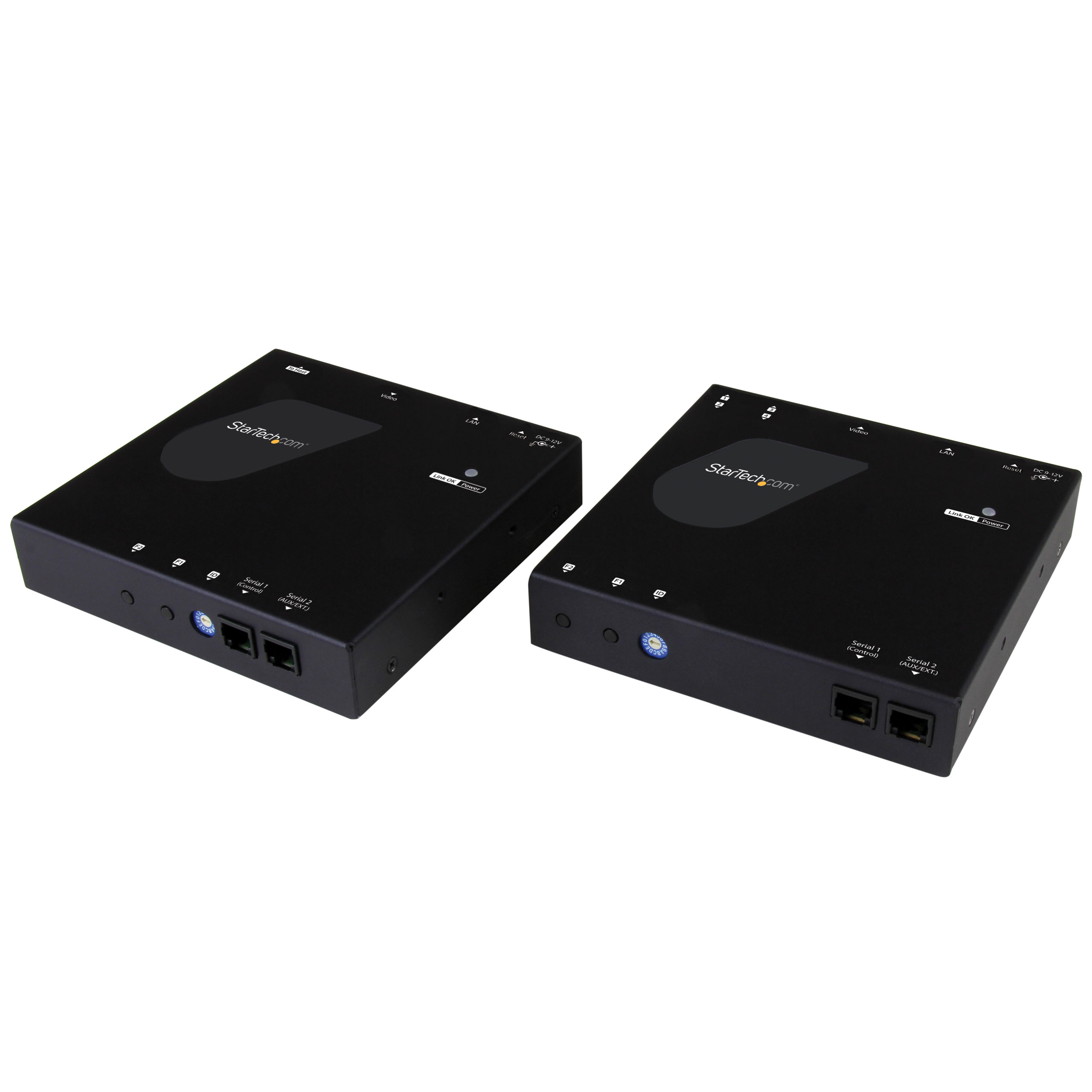

ST12MHDLANU
HDMI USB Serial Extender over GigaLAN with PoE
Deploy content for digital signage through a scalable distribution system with intuitive control and USB extention that’s ideal for point-to-point or video wall applications
Main Image

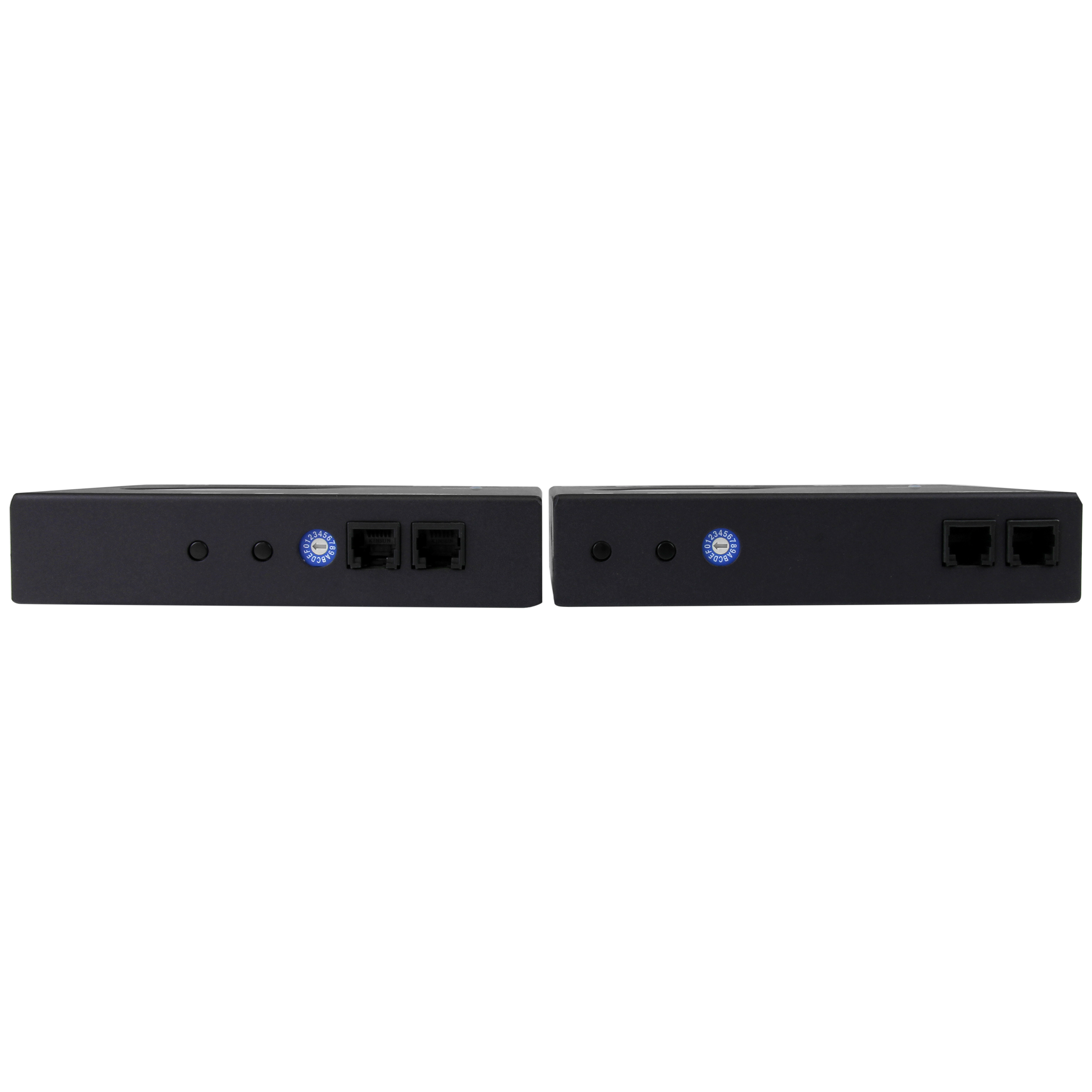

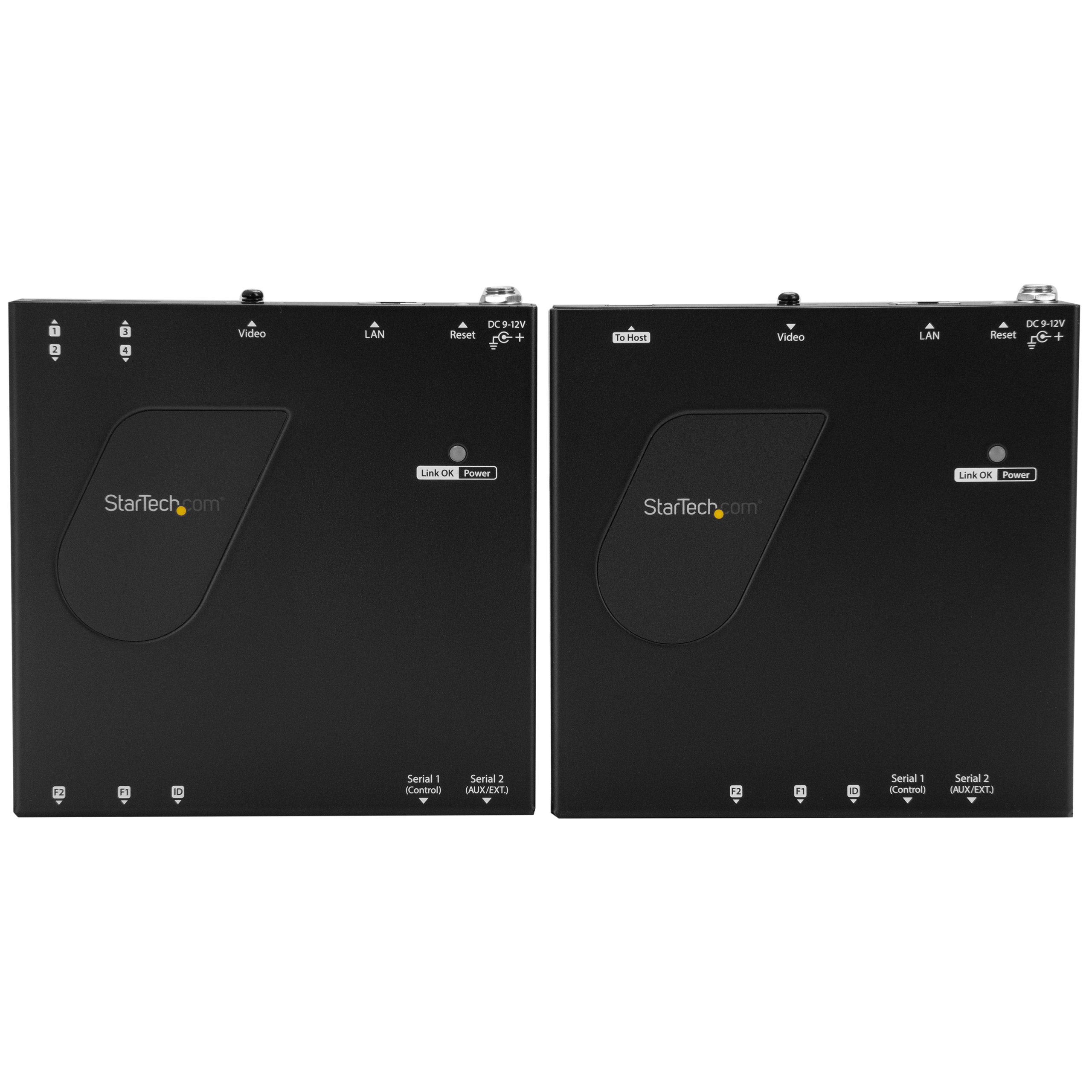

Product Images
Product Images
Product Images
BOM Image
Product Name HDMI USB Serial Extender over GigaLAN with PoE Product Number ST12MHDLANU UPC 065030862110 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI over IP Family HDMI Over IP Extender - 5 Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI Over IP Ext Product Title (Short) HDMI Over IP Ethernet Extender Kit Product Title (Medium) HDMI Video and USB over IP Distribution Kit with Video Wall Support - 1080p Product Title (Standard) HDMI Video and USB over IP Distribution Kit with Video Wall Support - 1080p Product Title (Long) HDMI and USB over IP Distribution Kit - 1080p - TAA Product Title (AMZ) HDMI Over IP Extender - 1080p - HDMI Video and USB Over IP Distribution Kit with Video Wall Support - HDMI and USB Over LAN (ST12MHDLANU) Title Ingram (Part 1) HDMI Extender over Cat6 - HDMI Title Ingram (Part 2) Over IP LAN Ethernet Extender Website Product Headline Deploy content for digital signage through a scalable distribution system with intuitive control and USB extention that’s ideal for point-to-point or video wall applications Bullet 1 Versatile video distribution with support for large multi-display presentations, video walls, video switching and point-to-point extension Bullet 2 Free mobile app makes it easy to manage switching video wall control (iOS / Android) Bullet 3 Tidy, professional installation using the included mounting hardware Bullet 4 Connect using a Gigabit LAN network Bullet 5 Easy point-to-point or point-to-multipoint setup Bullets (Compact) Deploy HDMI and USB content for digital signage through a scalable distribution system with intuitive control that’s ideal for point-to-point or video wall applications - Extends four USB 2.0 peripheral devices for remote console control - Mobile App Bullets (Consolidated) Deploy HDMI and USB content for digital signage through a scalable distribution system w/ intuitive control thatandapos;s ideal for point-to-point or video wall applications - Compatible w/ HDMI video source devices such as computers and set top boxes and HDMI displays monitors and projectors - Supports resolutions up to 1920x1200 - HDMI Extender/HDMI over Ethernet/HDMI over LAN/HDMI over CAT5 or CAT6 Extender - Mobile app to manage switching video wall control(iOS/Android) Marketing Copy Marketing Copy (No HTML) Applications - Build a multi-display video wall to present entertainment to your patrons with an impressive display at a restaurant or shopping center
- Display multiple communication boards showing dynamic data such as times and dates on digital charts in airports, train stations, bus stations or hospitals, that can be updated at any time
- Present your social media feeds on multiple screens in a large viewing area
- Place the display in a convenient viewing area, while the HDMI source equipment is placed elsewhere in a separate, secured environment
- Display the same HDMI audio / video signal on multiple displays, for large scale digital signage applications
- Extend HDMI using existing infrastructure
- Run multiple transmitters and receivers over the same network using a managed switch
- Extend HDMI and USB to create an interactive digital signage presentation
Website Search Keyword - HDMI extender
- HDMI over IP
- video wall kit
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - The ST12MHDLANU will only work with ST12MHDLANUR receivers
- Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled
System and Cable Requirements - 802.3af /at compatible PoE Switch or Injector
- Cat 5e (or better) Ethernet cabling from PoE switch to the Access Point
Accessory Products - HDMM6
- HDMM2MP
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- FPWMNB
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- USB2HAB6
- USB2HAB10
- USB2HAB15
- IES101002SFP
- ST12MHDLANUR
- POEEXT1GAT
- POEEXT2GAT
- POEINJ4G
- POEINJ1G
Related Products - ST12MHDLAN2K
- ST12MHDLAN2R
- ST12MHDLNHK
- ST12MHDLNHR
- ST12MHDLAN
- ST12MHDLANRX
- ST12MHDLANUR
- ST12MHDLAN4K
- ST12MHDLAN4R
- ST12MHDLNV
Constrained SKU Alternatives (Limited Stock) ST121USBHD Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% - 80 % Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 131.000 Product Width (mm) 131.000 Product Height (mm) 27.000 Product Weight (g) 1246.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Max Distance 100m [328ft] Maximum Digital Resolutions 1920x1200 @60Hz Supported Resolutions 1920 x 1200 (1080p) Wide Screen Supported Yes Audio Yes AV Input HDMI Cabling Cat 5e UTP or better Cascadable Yes LED Indicators - 1 - Link OK / POWER - Transmitter
- 1 - Reset - Transmitter
- 1 - Link OK / POWER - Receiver
- 1 - Reset - Receiver

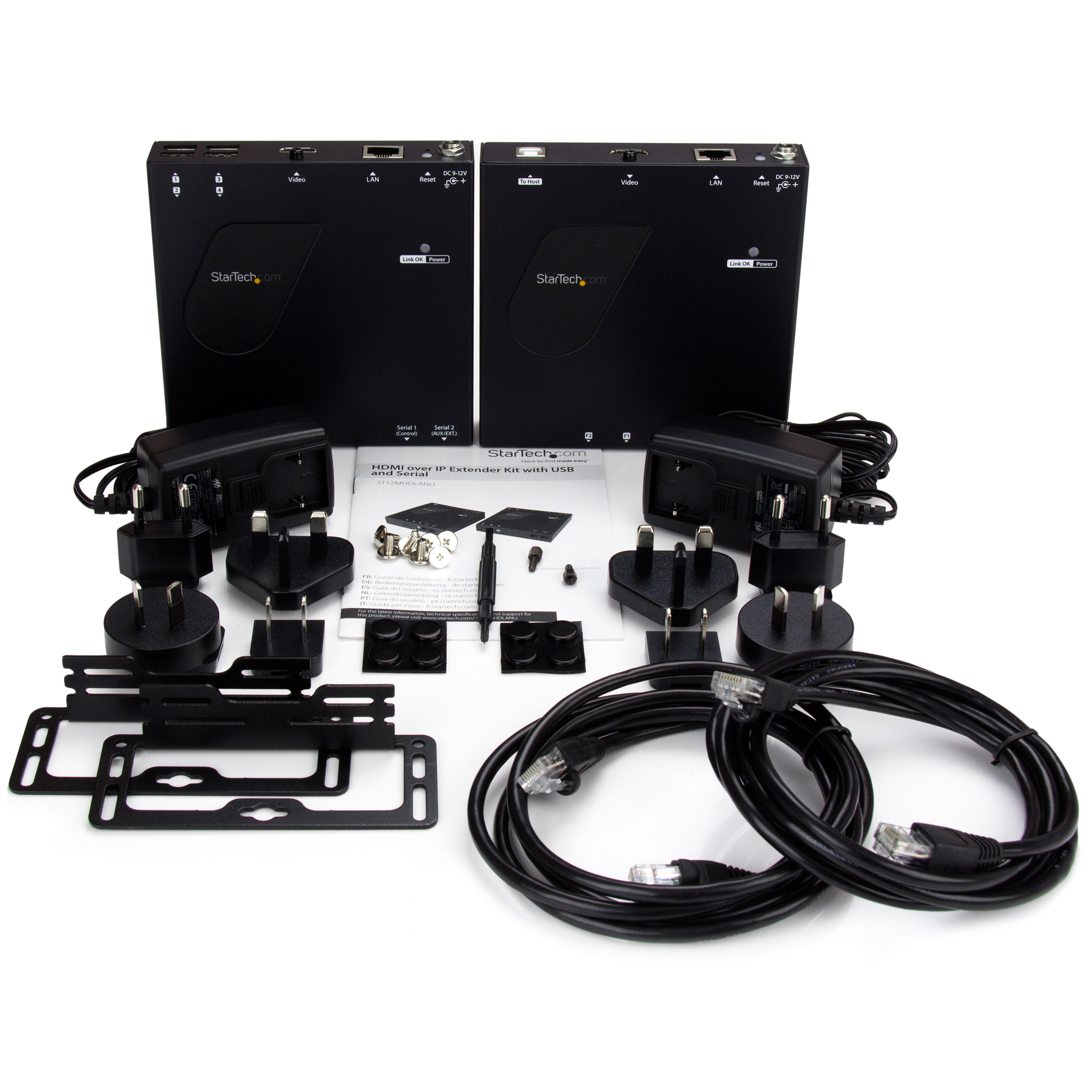

Rack-Mountable No Carton Depth (mm) 392 Carton Height (mm) 272 Carton Quantity 6 Carton Weight Gross (g) 14552 Included in Package - 1 - HDMI over IP transmitter
- 1 - HDMI over IP receiver
- 2 - power adapters
- 2 - screws
- 1 - screw driver
- 2 - CAT5 cables
- 1 - quick install guide
- 2 - mounting brackets

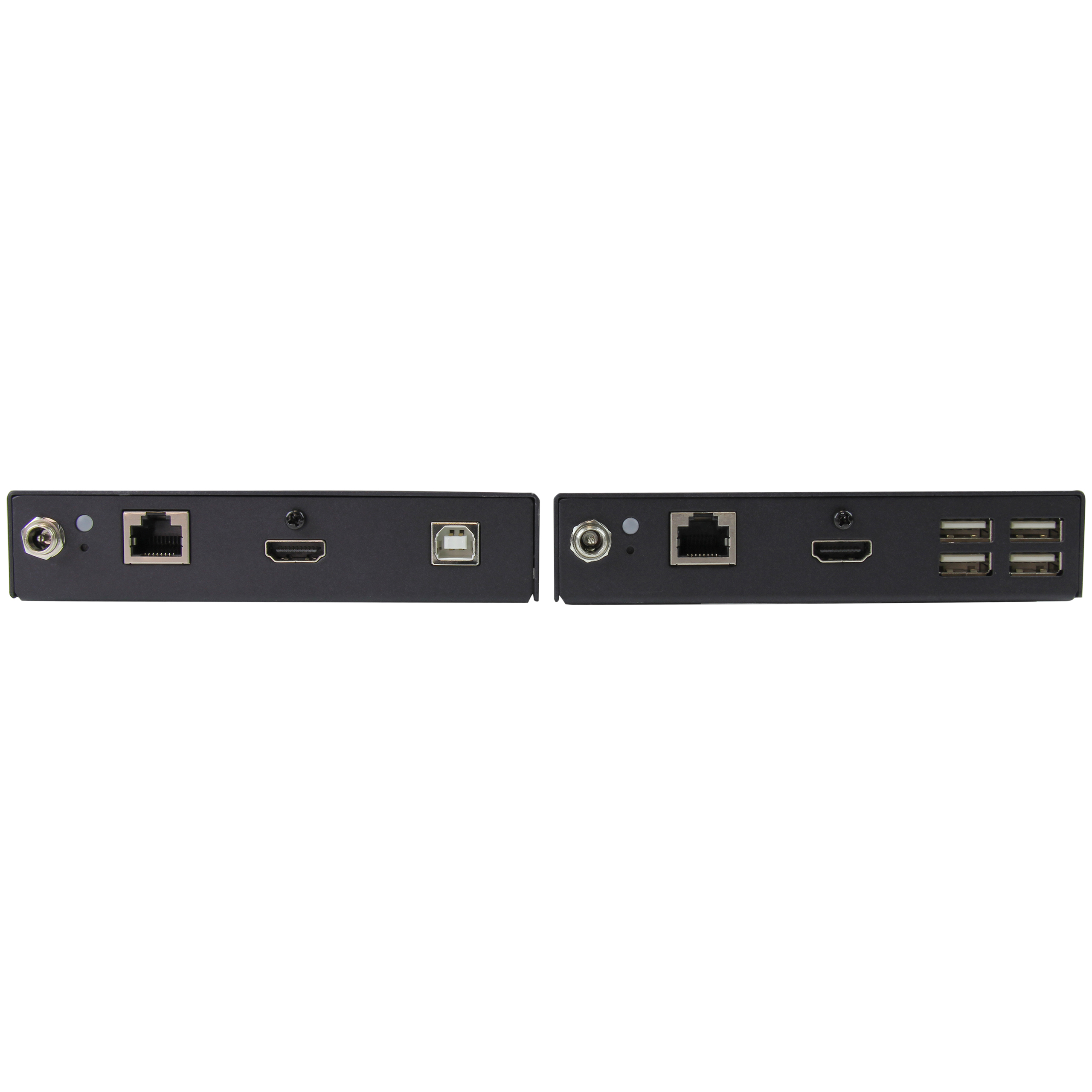

Package Depth (mm) 213 Package Height (mm) 88 Package Width (mm) 415 Package Quantity 1 Package Weight (g) 2292 Packaging Description HDMI over IP Extender Kit with USB & Serial Packaging Description India HDMI over IP Extender Kit with USB & Serial Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 USB-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 HDMI Connector 4 (Quantity) 1 Connector 5 USB-A (480Mbps, 2.5W) Connector 5 (Quantity) 4 Connector 6 RJ-45 Connector 6 (Quantity) 1 Connector 7 RJ-45 Connector 7 (Quantity) 1 Connector 8 HDMI Connector 8 (Quantity) 1 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-04-09 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Natalie Goodale Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-11-30 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
