Main Image
ST12MHDLNHR
HDMI over IP - 1080p - Receiver - H264
Broadcast your HDMI signal to multiple locations throughout your site, using your existing network infrastructure
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name HDMI over IP - 1080p - Receiver - H264 Product Number ST12MHDLNHR UPC 065030879040 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI over IP Family HDMI Over IP Extender -4 Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) ST12MHDLNHK Receiver Product Title (Short) HDMI over IP Receiver for ST12MHDLNHK Product Title (Medium) HDMI over IP Receiver for ST12MHDLNHK - Video over IP - 1080p Product Title (Standard) HDMI over IP Receiver for ST12MHDLNHK, Video over IP, 1080p, TAA Product Title (Long) HDMI over IP Receiver for ST12MHDLNHK - 1080p - TAA Product Title (AMZ) HDMI over IP Receiver for ST12MHDLNHK - Video over IP - HDMI over IP Extender - 1080p , TAA (ST12MHDLNHR) Title Ingram (Part 1) HDMI over CAT6 Receiver for Title Ingram (Part 2) ST12MHDLNHK -1080p HDMI Receiver Website Product Headline Broadcast your HDMI signal to multiple locations throughout your site, using your existing network infrastructure Bullet 1 Efficiently distribute video throughout your site using your local area network Bullet 2 Easily create your ideal digital signage solution with a versatile and scalable video distribution system Bullet 3 Brilliantly maintain the HD picture quality of your video source with 1080p support Bullets (Compact) Broadcast your HDMI signal to multiple locations throughout your site using your existing network infrastructure - HDMI over Ethernet receiver - HDMI over CAT6 receiver - 1080p HDMI receiver - Video over IP - HDMI over LAN - HDMI video over Ethernet Bullets (Consolidated) Broadcast your HDMI signal to multiple locations throughout your site using your existing network infrastructure - Use this HDMI over Ethernet Receiver to distribute video over your site using your network - Create a digital signage solution with a scalable HDMI over CAT6 receiver - Maintain the HD picture quality of your video source with a 1080p HDMI receiver - Video over IP/HDMI over LAN/HDMI over network/HDMI video over Ethernet/HDMI over Gigabit Ethernet/HDMI over CAT5 receiver Marketing Copy Applications - Display multiple communication boards showing easy to update dynamic data on digital charts in airports, train stations, bus stations or hospitals
- Present your social media feeds on multiple screens
- Create digital signage displays in settings such as hospitals, shopping centers or stadiums
Required Regulatory Compliance Marks - Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
Special Notes - Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled
- Each kit requires 6 to 12mbps of local area network bandwidth, when in operation
Accessory Products - ST12MHDLNHK
- HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
Related Products - ST12MHDLAN2K
- ST12MHDLAN2R
- ST12MHDLNHK
- ST12MHDLAN
- ST12MHDLANRX
- ST12MHDLANU
- ST12MHDLANUR
- ST12MHDLAN4K
- ST12MHDLAN4R
- ST12MHDLNV

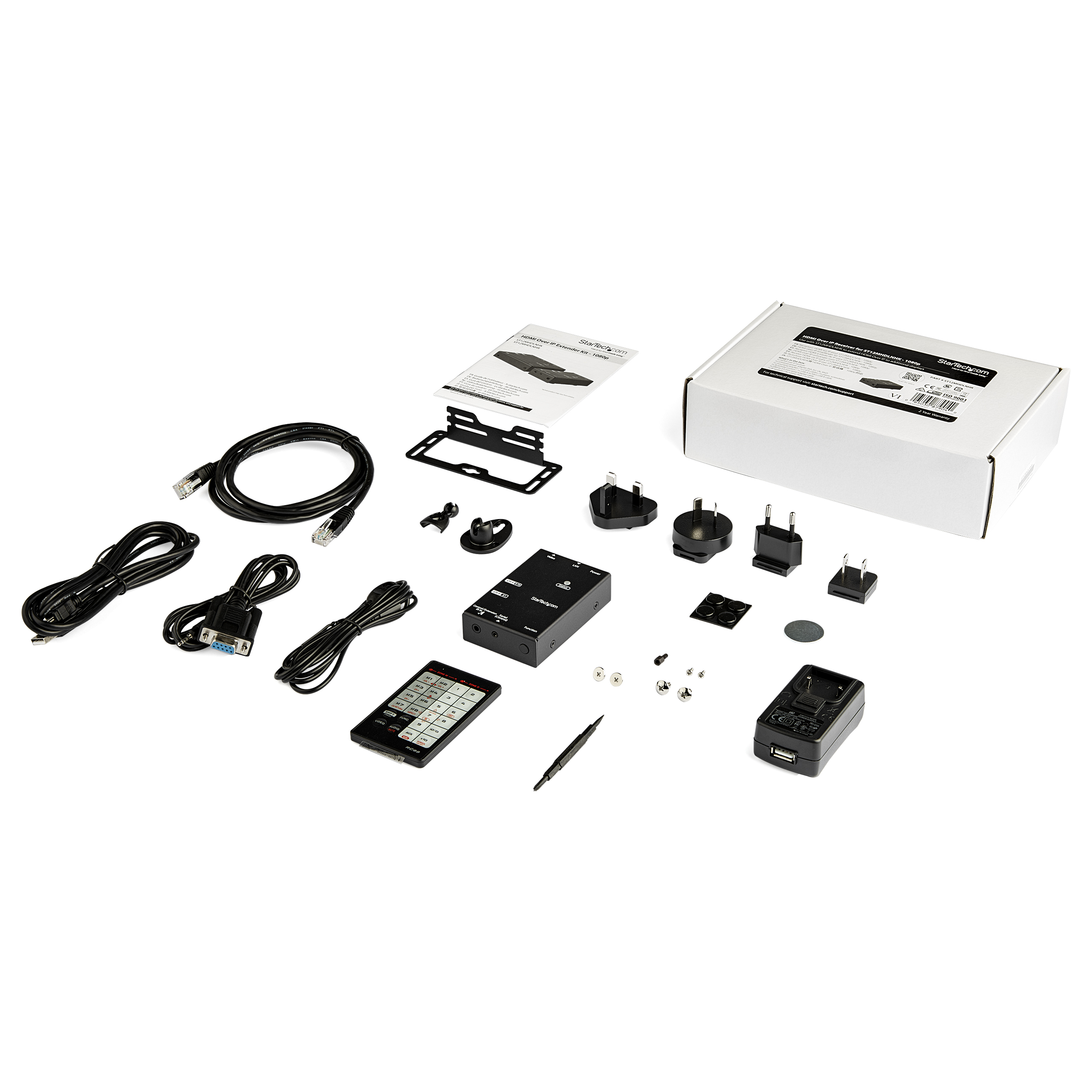

Input Current 0.3 A Input Voltage 100 - 240 AC Output Current 1 A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type USB Mini-B (5 pin) Color Black Humidity 0% - 80 % Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 130.000 Product Width (mm) 97.000 Product Height (mm) 24.000 Product Weight (g) 213.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Max Distance 15m [50ft] Maximum Cable Length (mm) 15240 Maximum Digital Resolutions 1920x1200 (1080p) 60Hz Supported Resolutions 1920x1200 60Hz Wide Screen Supported Yes Audio Yes Cabling Cat 5e UTP or better Cascadable Yes LED Indicators 1 - status LED Rack-Mountable Yes Carton Depth (mm) 326 Carton Height (mm) 262 Carton Quantity 12 Carton Weight Gross (g) 9802 Included in Package - 1 - HDMI over IP receiver
- 1 - universal power adapter (NA, EU, UK, ANZ)
- 1 - mounting bracket
- 1 - CAT5 cables
- 1 - plastic screwdriver
- 1 - IR remote control
- 1 - USB-A to Mini USB-B cable
- 1 - DB9 to 2.5 mm serial adapter cable
- 1 - IR receiver
- 4 - rubber feet
Package Depth (mm) 157 Package Height (mm) 66 Package Width (mm) 237 Package Quantity 1 Package Weight (g) 756 Packaging Description HDMI Over IP Receiver for ST12MHDLNHK - 1080p Packaging Description India HDMI Over IP Receiver for ST12MHDLNHK - 1080p Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 2.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Connector 4 Infrared (IrDA) Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2018-05-16 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2018-05-31 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-03-23 Target Production Release 2018-05-18 Tech Lead Justin Weaver Technical Writer Evan Hanbidge Technology Lifecycle None
