ST2000PEXPSE
2 Port PCIe PoE NIC Gigabit Server Network Adapter
Add two Power-over-Ethernet Gigabit Ports to a PCI Express-enabled Computer
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port PCIe PoE NIC Gigabit Server Network Adapter Product Number ST2000PEXPSE UPC 065030849128 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family PCIe NICs with PoE Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) 2Pt Gb Network Card Product Title (Short) Dual Port Gigabit Ethernet Network Card Product Title (Medium) x Product Title (Standard) Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter, PoE/PSE, TAA Product Title (Long) Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter - PoE/PSE - TAA Product Title (AMZ) Dual Port PCI Express Gigabit Ethernet Network Card Adapter - 2 Port PCIe NIC 10/100/100 Server Adapter with PoE PSE , TAA (ST2000PEXPSE) Title Ingram (Part 1) Two Port PCI Express Gb Server Title Ingram (Part 2) Network Adapter - PCIe PoE NIC Website Product Headline Add two Power-over-Ethernet Gigabit Ports to a PCI Express-enabled Computer Bullet 1 Dual 10/100/1000 Mbps PoE RJ45 ports Bullet 2 Built-in SATA and LP4 Molex power connector Bullet 3 Supports IEEE 802.3at (Type 1, 2) Power over Ethernet standard Bullet 4 Jumbo Frame support Bullet 5 On-chip 48 KB Big Transmit/Receive Buffer Support Bullets (Consolidated) Add two Power-over-Ethernet Gigabit Ports to a PCI Express-enabled Computer - Dual Port PCIe NIC - Dual Port Gigabit Server Adapter - 2 Port PCI Express Gigabit Network Card - PCIe poe - poe NIC - Gigabit Ethernet Card Adapter - Full and Low Profile Bracket Included Marketing Copy Applications - Add 2 Ethernet ports to a workstation or server computer from a single PCIe slot
- Connect to 2 separate networks simultaneously
- Install dual networking capabilities into a small form factor or other space-constrained computer system
- Provide power to PoE powered devices, where they have no access to a power source
- Connecting Power over Ethernet-enabled IP cameras, IP phones or Wireless Access Points
Patents and Licenses Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
System and Cable Requirements - Available full/low profile PCI Express expansion slot
- Available LP4 Molex or SATA power connector
Accessory Products - C6PATCH6BK
- C6PATCH10BL
- C6PATCH50YL
- C6PATCH100GN
- WIRC6PATBLRL
- WIRC6CMRBL
Related Products - ST1000SPEXD2
- EC1000S
- EC2000S
- ST1000SMPEX
- PEX1000MMSC
- PEX100S
- ST1000BT32
- ST1000SPEX
- ST1000SPEX4
- USB21000S2
Output Voltage (V) 48 DC Color Yellow Humidity 5% ~ 95% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 195.000 Product Width (mm) 19.000 Product Height (mm) 68.000 Product Weight (g) 104.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Auto MDIX Yes Buffer Size 48 KB Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate 1000 Mbps (uni-directional), 2000 Mbps (bi-directional) MTBF (hours) 140,981 hours OS Compatibility - Windows 7
- Windows 8
- Windows Server 2012
- Linux
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Realtek - RTL8111G Industry Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3at
- PCI Express Rev 2.0

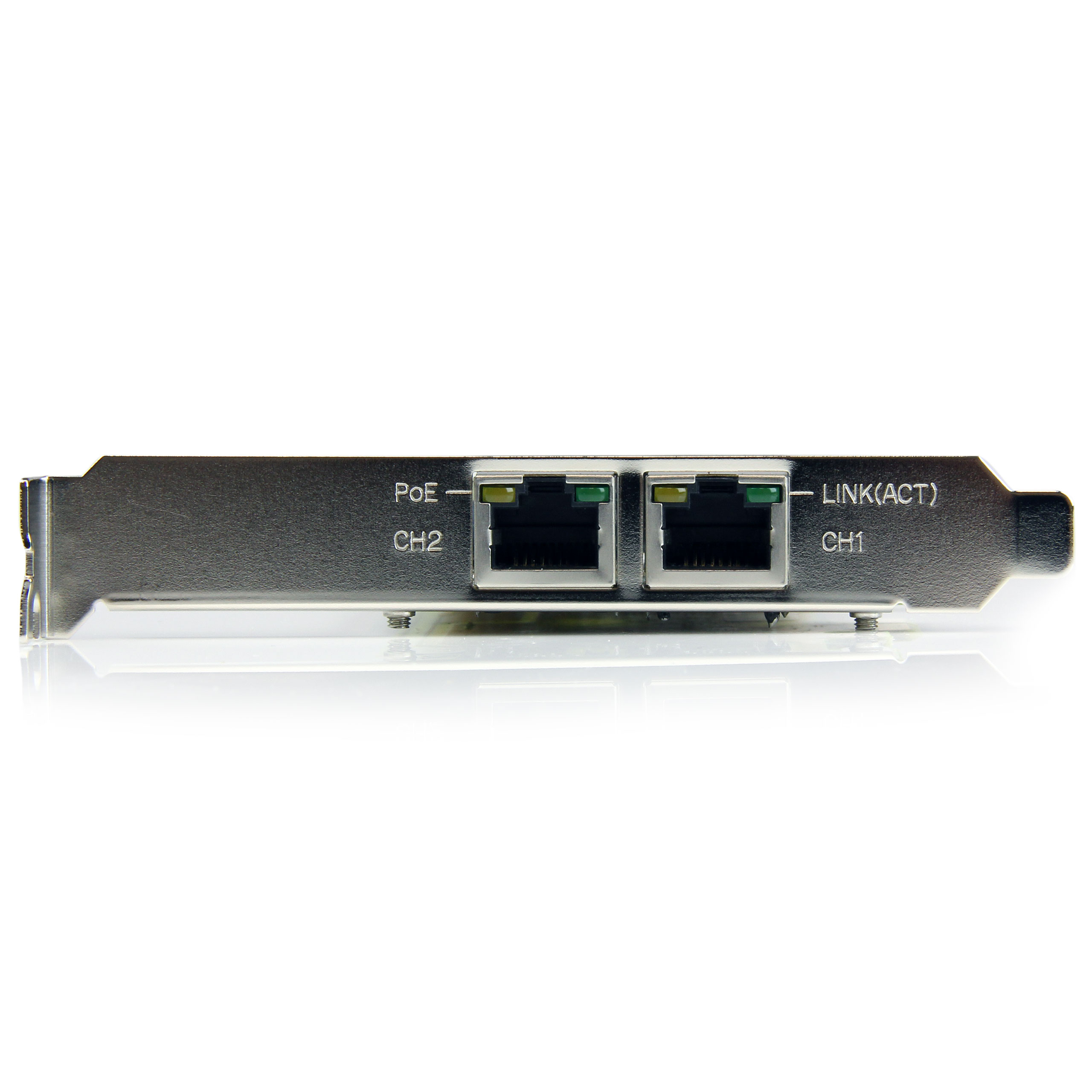

Interface/Bridge RJ45 (Gigabit Ethernet) IO Card Port Style Integrated on Card LED Indicators - 2 - Link/ Activity (green)
- 2 - PoE Active (yellow)
Carton Depth (mm) 444 Carton Height (mm) 344 Carton Quantity 40 Carton Weight Gross (g) 11524 Included in Package - 1 - Low Profile Bracket
- 1 - Instruction Manual
- 1 - PCI Express Network Card
Included In Package for Label - 1 - PCI Express Network Card
- 1 - Instruction Manual
- 1 - Low Profile Bracket
Package Depth (mm) 164 Package Height (mm) 44 Package Width (mm) 229 Package Quantity 1 Package Weight (g) 236 Packaging Description 2 Port PCI Express Gigabit POE NIC Packaging Description India 2 Port PCI Express Gigabit POE NIC Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 2 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
