ST2000SPEXI
2-Port PCIe Gigabit Network Card
Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2-Port PCIe Gigabit Network Card Product Number ST2000SPEXI UPC 065030852739 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family PCIe Gigabit NIC - Intel Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX163X Product Title (Ultra-Short) 2Pt PCIe Gigabit NIC Product Title (Short) Dual Port PCIe Gigabit Network Card Product Title (Medium) x Product Title (Standard) Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC Product Title (Long) Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC Product Title (AMZ) 2 Port PCIe Network Card - RJ45 Port - Intel i350 Chipset - Ethernet Server / Desktop Network Card - Dual Gigabit NIC Card (ST2000SPEXI) Title Ingram (Part 1) 2 Port PCIe (x4) GbE Network Title Ingram (Part 2) Card - Intel Chipset Website Product Headline Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot Bullet 1 Two 10/100/1000Mbps compatible RJ-45 Ethernet ports Bullet 2 Jumbo Frame support up to 9k bytes Bullet 3 Wake-on-LAN / Remote Wake-up support Bullet 4 Configured with standard profile bracket, low profile/half-height bracket included Bullet 5 Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3ad (link aggregation) and supports IEEE 802.1Q VLAN tagging Bullets (Compact) Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot - Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter - Intel i350 Chipset NIC - 2 Port GbE Network Card - Dual NIC Ethernet Card Bullets (Consolidated) Add dual Gigabit Ethernet ports to a client server or workstation through a PCI Express slot - Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter - Intel i350 Chipset NIC - 2 Port GbE Network Card - Dual NIC Ethernet Card - Standard Profile Bracket and Low-Profile/Half-Height Bracket Included Marketing Copy Marketing Copy (No HTML) The 2 port PCIe network card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher) PCI Express slot. Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation. This dual port Gigabit Ethernet network card is based on the high-performance Intel I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration. Also useful for virtualization applications (check your VM software for chipset compatibility) or setting up a dual homed host configuration, this dual port Gigabit NIC card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. This 2 port Ethernet NIC card is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Ideal for VM environments with multiple operating systems, requiring shared or dedicated NICs
- Provide redundant connectivity to ensure an uninterrupted network connection
- Configure a dual-homed proxy or gateway system for an added layer of security
- Specially designed for desktop PC clients, servers, and workstations with few PCI Express slots available
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
Special Notes - Intel NIC Teaming is supported only on Windows Server OS (e.g., Server 2012, 2016) and not on desktop versions like Windows 10 or 11. System and Cable Requirements Available PCI Express x4 or higher (x8, x16) slot Accessory Products - C6PATCH6BL
- N6PATCH10BK
- M45PATCH15YL
- M45PATCH7GN
- M45PATCH10PL
- C6PATCH6OR
Related Products - ST1000SPEXD3
- ST2000PEXPSE
- ST1000SPEX42
- ST1000SPEX4
- USB32000SPT
Constrained SKU Alternatives (Limited Stock) ST1000SPEXD4 Input Voltage 12V DC Output Voltage (V) 12V DC Color Black Humidity 5~85% RH Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 67.000 Product Width (mm) 19.000 Product Height (mm) 121.000 Product Weight (g) 80.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 2000 Mbps (full-duplex), 1000 Mbps (half-duplex) MTBF (hours) 432,400 hours OS Compatibility - Windows 8
- Windows Server 2012
- Linux
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
Promiscuous Mode Yes Supported Protocols IEEE 802.3ad (link aggregation), IEEE 1588 (time sync) / 802.1AS, IEEE 802.1q (VLAN tagging) Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Intel - I350-AM2 Industry Standards - PCI Express Base Specification 2.1
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Interface/Bridge RJ45 (Gigabit Ethernet) IO Card Port Style Integrated on Card LED Indicators - 2 - Link / Activity
- 2 - 10/100/1000 Mbps Indicator

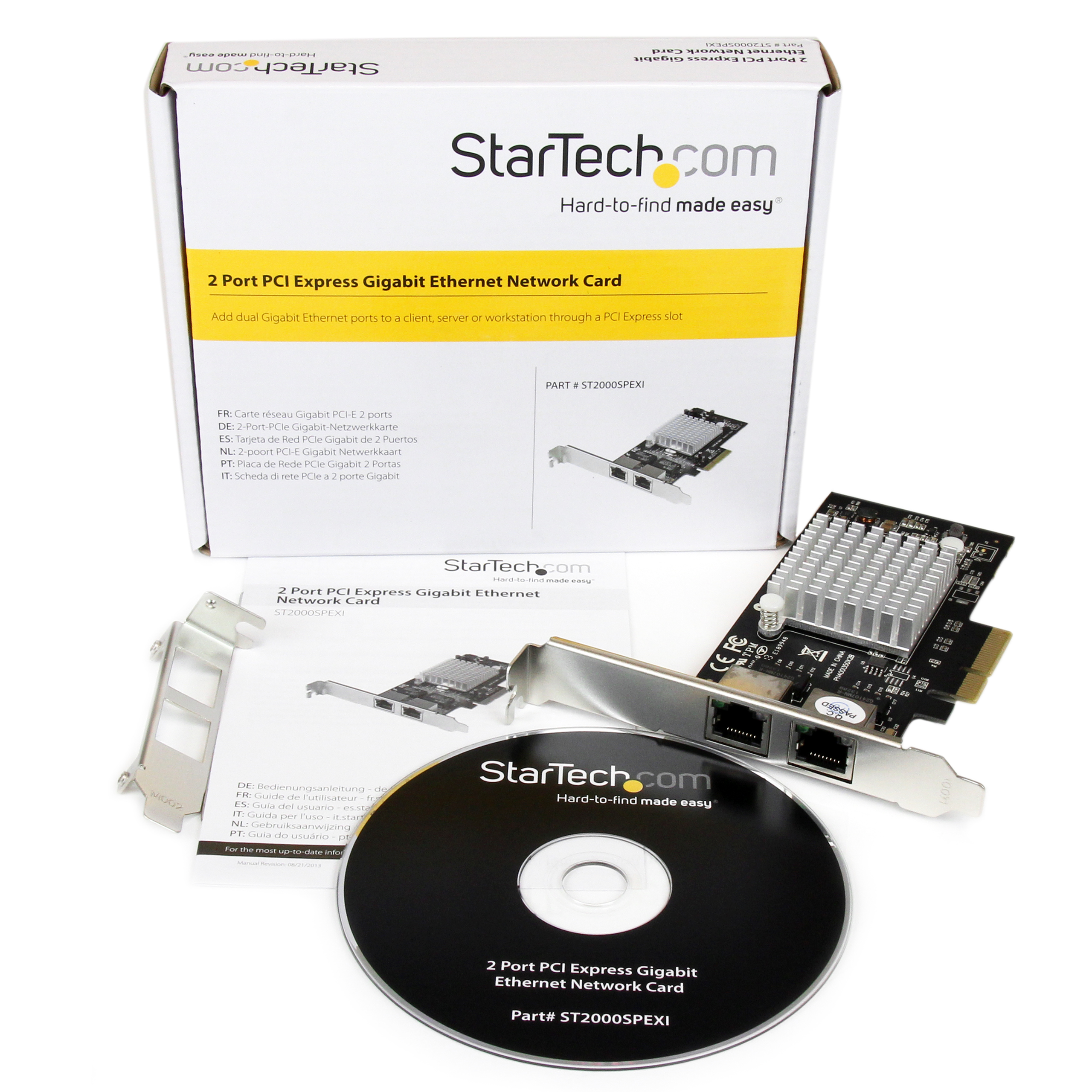

Carton Depth (mm) 318 Carton Height (mm) 364 Carton Quantity 80 Carton Weight Gross (g) 14390 Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - Low Profile Bracket
- 1 - 2 Port Network Card
Included In Package for Label - 1 - Driver CD
- 1 - Instruction Manual
- 1 - Low Profile Bracket
- 1 - 2 Port Network Card
Package Depth (mm) 142 Package Height (mm) 32 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 170 Packaging Description 2 Port PCIe Gigabit Network Card Packaging Description India 2-Port PCIe Gigabit Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-07-30 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
