ST201S
Main Image

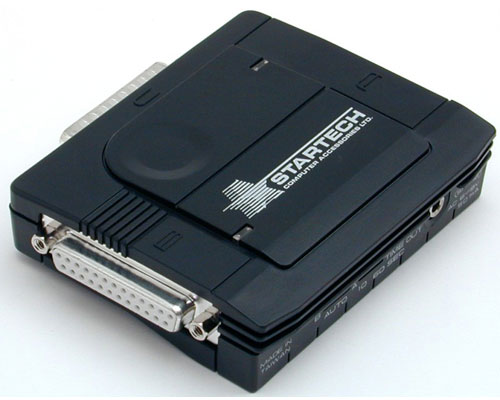

Product Name *D*Unidirectional 2-to-1 Serial Autoswitch Product Number ST201S UPC 065030201063 Warranty Lifetime Taxonomy Product > Legacy Discontinued Product Title (Long) *D*Unidirectional 2-to-1 Serial Autoswitch Bullet 1 Laser Printer Safe Bullet 2 Light and Compact Bullet 3 Adjustable "END OF FILE" time-out Bullet 4 LED "In-Service" indicator Bullet 5 Parallel switches are available in reversible models. Applications - Two (2) computers share one (1) modem or serial printer/plotter
- Requires two (2) straight through DB25 male-to-female cables (SCxxMF) and one (1) DB25 male-to-female null modem cable (SCNM10MF)
- AC power adapter (COMPACPOWER) is required only if the autoswitch cannot get enough power from devices or operates intermittently
TAA Compliant No General Specifications - Interface: Serial
- Configuration: 2-1
- Power: DC 9V max, 50mA min (optional)
- Timeout (seconds): 10-60
- Max. Length In: 50 ft., 15.2m
- Max. Length Out: 50 ft., 15.2m
- In connectors: DB25 Female
- Out connectors: DB25 (Male)
- Dimensions (mm): 103 x 81 x 25
Included in Package - 1 - AUTOSWITCH
- 1 - MANUAL
en-US Content Approved Yes
