ST222MX
2 Port Dual Input VGA-Matrix Splitter
Share two distinct VGA input source signals between two displays or projectors
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port Dual Input VGA-Matrix Splitter Product Number ST222MX UPC 065030805230 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA Matrix Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) 2x2 High Res Matrix VGA Video Switch Product Title (Standard) StarTech.com 2 Port Dual Input VGA Matrix Splitter - Video Switch - 2 ports Product Title (Long) 2x2 High Resolution Matrix VGA Video Switch Product Title (AMZ) 2 Port Matrix High Resolution VGA Video Splitter - Video splitter - 2 x VGA + 2 x VGA - ST222MX Title Ingram (Part 1) 2x2 High Resolution Matrix VGA V Title Ingram (Part 2) ideo Switch Website Product Headline Share two distinct VGA input source signals between two displays or projectors Bullet 1 Allows two computers to provide video input to display on 2 different monitors Bullet 2 Allows you to switch video input signals on both monitors Bullet 3 Works with VGA, SVGA, XGA and Multisync monitors Bullet 4 High video bandwidth (250 Mhz) provides resolution of up to 1920 x 1440 pixels Bullet 5 Daisy chainable for use with more than 8 monitor hookups Bullets (Consolidated) Share two distinct VGA input source signals between two displays or projectors - Video Matrix Switch - VGA Video Switch - VGA Vdeo Switcher - 2x2 VGA Matrix - Built-in video amplifier boosts the signal to allow a cable length of up to 210 ft or 65m Marketing Copy Marketing Copy (No HTML) Applications - Public broadcast systems
- Demos and presentations
- In-store product merchandising
- Information kiosks
Website Search Keyword DA Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- ST121UTP
Related Products - ST224MX
- ST228MX

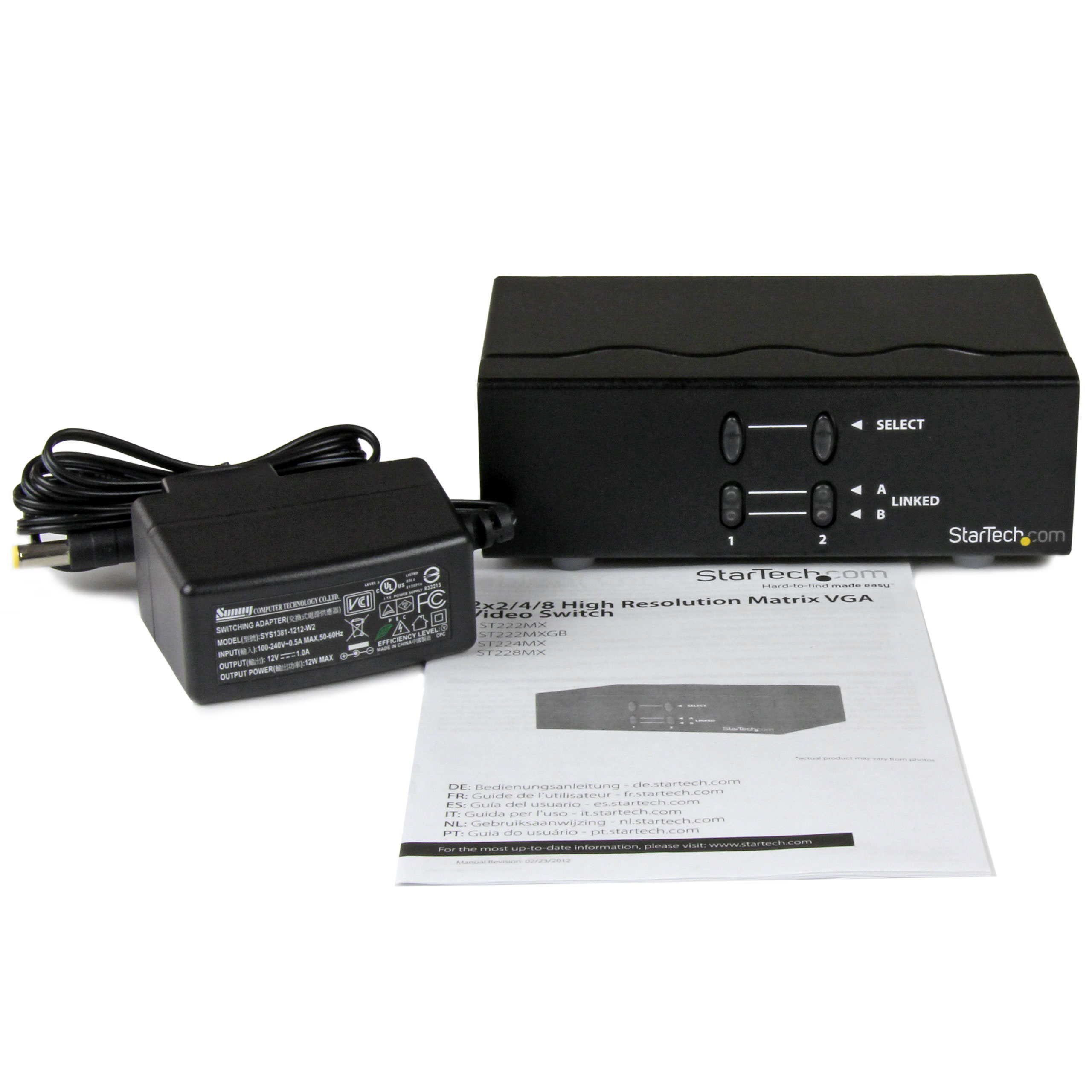

Equivalent Part Number in the UK ST222MXGB Output Current 0.8A Output Voltage (V) 7.5 AC Power Consumption (In Watts) 6 Power Source AC Adapter Included Color Gray Product Length (mm) 130.000 Product Width (mm) 75.000 Product Height (mm) 43.000 Product Weight (g) 439.000 TAA Compliant Yes Bandwidth 250MHz Maximum Analog Resolutions 1920x1440 Maximum Cable Length (mm) 65000 Audio No AV Input VGA AV Output VGA LED Indicators 4 - Port Selection indicators - 2 Red, 2 Green Matrix Video Switch (Filter) Yes Carton Depth (mm) 367 Carton Height (mm) 345 Carton Quantity 20 Carton Weight Gross (g) 15290 Included in Package - 1 - 2x2 VGA Matrix Switch
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 155 Package Height (mm) 67 Package Width (mm) 230 Package Quantity 1 Package Weight (g) 652 Packaging Description 2x2 Matrix VGA Video Switch - 1920x1440 Packaging Description India 2x2 Matrix VGA Video Switch - 1920x1440 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
