ST222MXA
2x2 Matrix VGA Video Switch
Share two distinct VGA inputs and audio source signals between two displays
Main Image
Product Images
Product Images
BOM Image
Product Name 2x2 Matrix VGA Video Switch Product Number ST222MXA UPC 065030841825 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA Matrix Family VGA Matrix with Audio Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) 2x2 VGA Matrix Video Switch Splitter Product Title (Standard) 2x2 VGA Matrix Video Switch Splitter with Audio Product Title (Long) 2x2 VGA Matrix Video Switch Splitter with Audio Product Title (AMZ) 2x2 VGA Matrix Video Switch Splitter with Audio - Video/audio switch - desktop (ST222MXA) Title Ingram (Part 1) 2x2 VGA Matrix Video Switch Spli Title Ingram (Part 2) tter with Audio Website Product Headline Share two distinct VGA inputs and audio source signals between two displays Bullet 1 Allows two VGA source devices to provide video and audio to two displays / projectors Bullet 2 Front panel selection buttons Bullet 3 Video bandwidth 250 MHz Bullet 4 Maximum Resolution of up to 1920 x 1440 @ 85Hz Bullet 5 Supports Multi-Sync video types including RGBHV, RGsB, RGBS Bullets (Consolidated) Share two distinct VGA inputs and audio source signals between two displays - Compatible with VGA computers and VGA monitors televisions and projectors - supports resolutions up to 1920x1200 - VGA video switch/2 port VGA switcher/2x2 matrix VGA switch/VGA selector switch/Matrix video switch - Matrix switching lets you use the device as a video splitter or switch with the ability to toggle on and off video signals, giving you full control of screen content Marketing Copy Applications - ideal for connecting/switching multiple sources in Test Bench Facilities, Data Centers, Help Desks and Video Broadcasting Facilities
- Take full control of your sources and displays/projectors - select any source on any display
- Perfect for digital signage applications in retail environments requiring more than one media player or PC to be connected
- Run multimedia presentations with supporting data showing on another display in business conference rooms or at trade-shows
- Allow trainees/students to see what is on your display and then switch them back to their own display after the demonstration completes
Website Search Keyword - 350 MHz
- 2x2
- A/V Switch
- Audio
- Distribution Switch
- Matrix Video Switch
- Rack Mountable
- Switch
- VGA
- Video Router
- Video Selector
- Video Switcher
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- ST121UTP
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST222MX
- ST228MX
- ST424MX

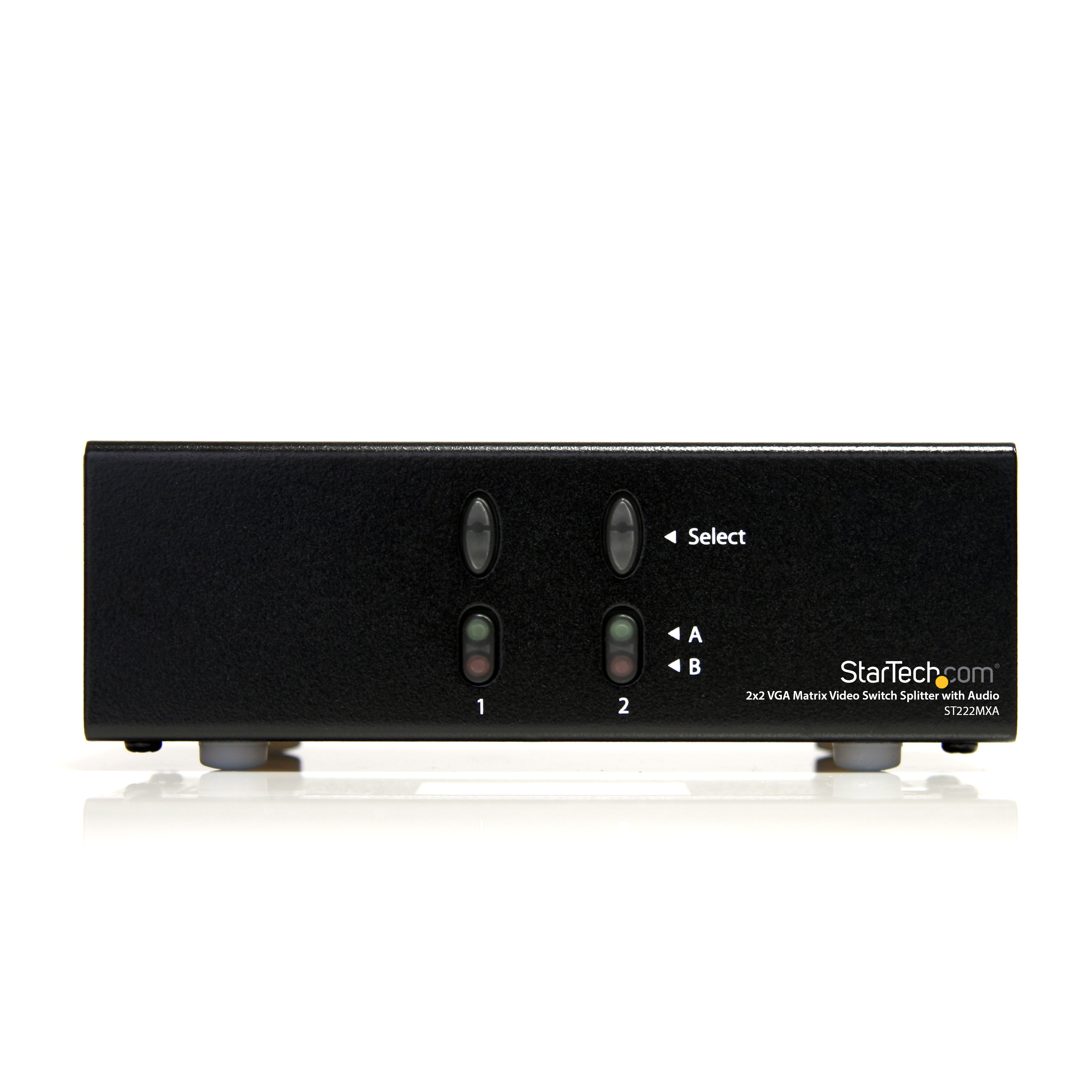

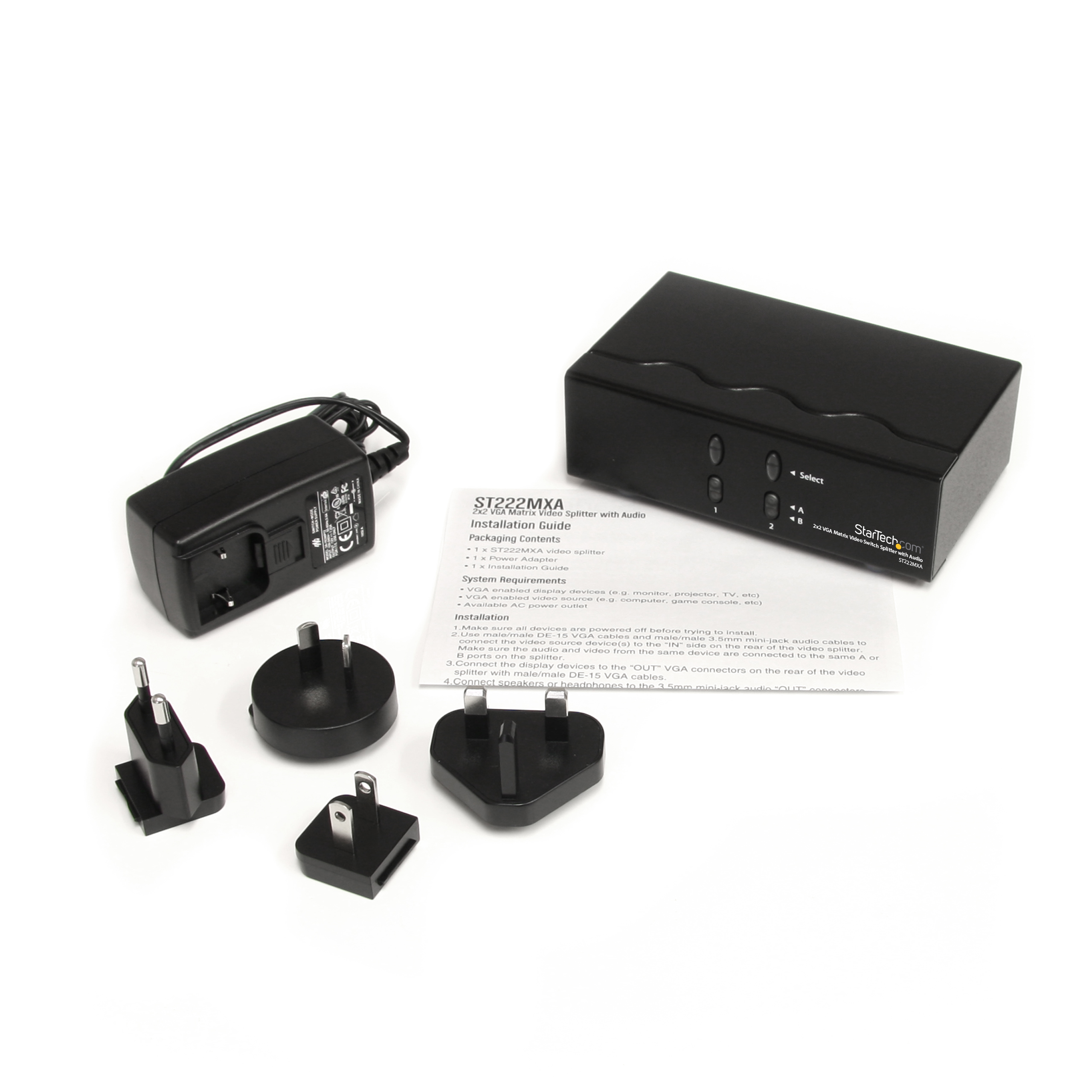

Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 1.25 A Output Voltage (V) 12V DC Power Consumption (In Watts) 15 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~95% Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 130.000 Product Width (mm) 80.000 Product Height (mm) 40.000 Product Weight (g) 462.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Bandwidth 250MHz Maximum Analog Resolutions 1920x1440 @ 85Hz Maximum Cable Length (mm) 65000 Audio Yes AV Input VGA AV Output VGA Industry Standards DDC, DDC2, DDC2B LED Indicators 4 - Port/Source selection indicators (2 sets of 2). Green = Source A, Red = Source B Matrix Video Switch (Filter) Yes Carton Depth (mm) 369 Carton Height (mm) 344 Carton Quantity 20 Carton Weight Gross (g) 17500 Included in Package - 1 - Instruction Manual
- 1 - Power Adapter
- 1 - VGA Matrix Video Switch

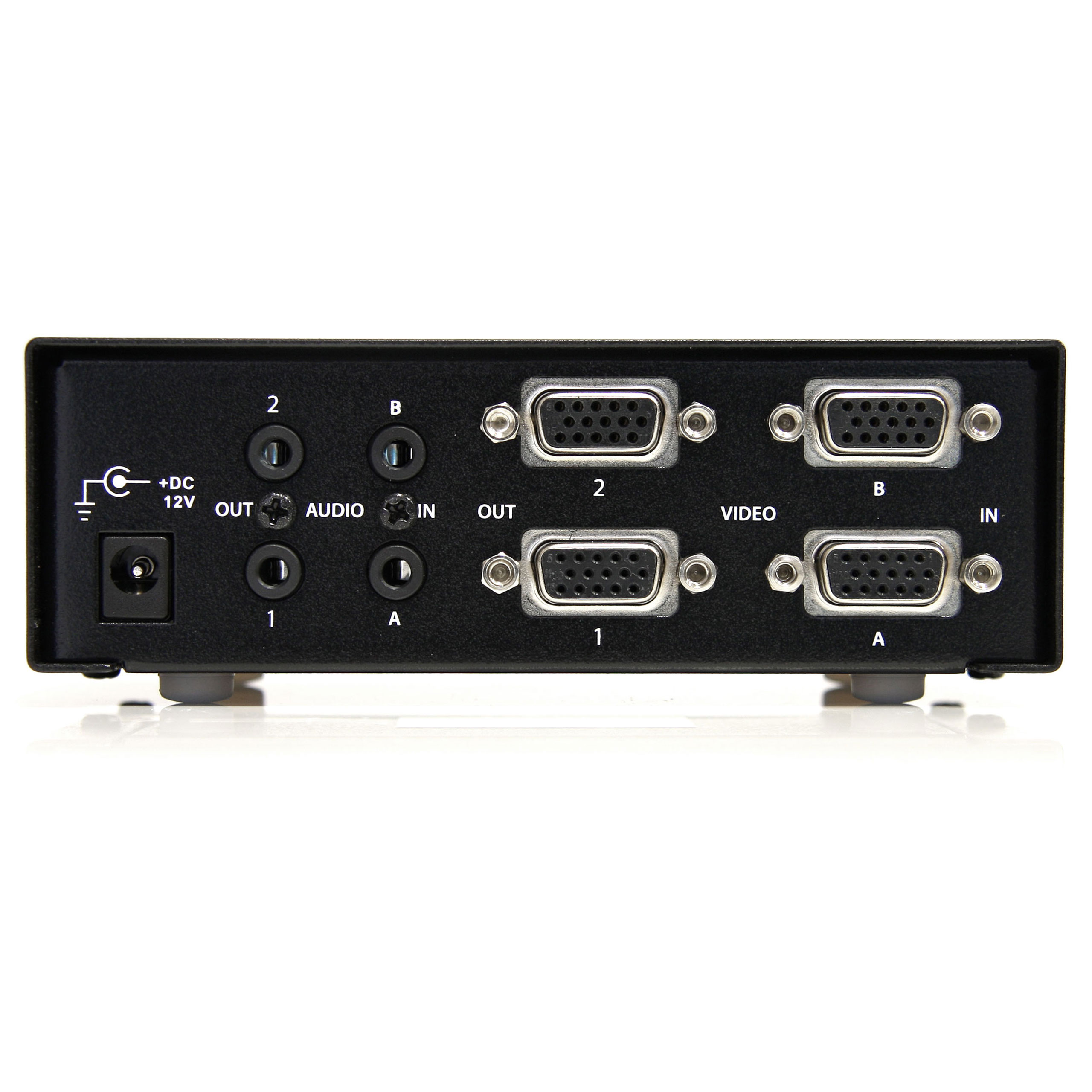

Package Depth (mm) 156 Package Height (mm) 68 Package Width (mm) 245 Package Quantity 1 Package Weight (g) 793 Packaging Description 2x2 VGA Matrix Video Switch with Audio Packaging Description India 2x2 VGA Matrix Video Switch with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 2 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 2 Connector 3 VGA Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
