Main Image

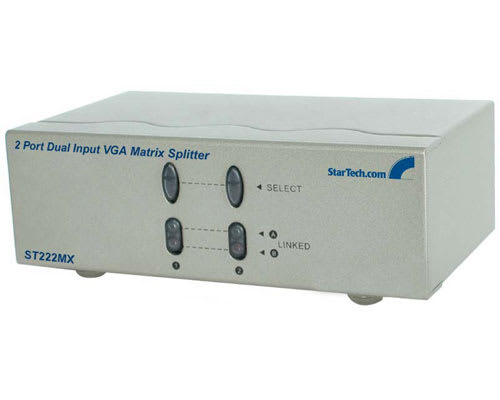

ST222MXEU
Main Image
Product Name 2 Port Dual Input VGA Matrix Splitter Product Number ST222MXEU UPC 065030811637 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) 1 Product Title (Long) 2 Port Dual Input VGA Matrix Splitter Bullet 1 Allows two computer to provide simultaneous displays on 4 different monitors Bullet 2 Allows you to switch video signals to any desired monitor Bullet 3 Daisy chainable for use with more than 8 monitor hookups Bullet 4 Equipped with easy to use front panel selection buttons Bullet 5 High video bandwidth (250 Mhz) provides resolution of up to 1920 x 1440 pixels Marketing Copy Applications - Demos and presentations
- In-store product merchandising
- Information kiosks
- Public broadcast systems
Accessory Products - MXT101HQ
- MXT101HQ_100
- MXT101HQ_150
- MXT101HQ_200
- MXT101HQ_25
- MXT101HQ_50
- MXT101MMHQ
- MXT105HQ
- MXT105MMHQ
Related Products - ST224MX
- ST228MX
Color Gray Product Length (mm) 130 Product Width (mm) 75 Product Height (mm) 43 Product Weight (g) 476.3 TAA Compliant No General Specifications - Cable Length: 65m (210 ft.) maximum
- Depth: 2.9 inches (75 mm)
- Dimensions:
- Height: 1.6 inches (42 mm)
- Input Connector (Computer): Video: 2 x High Density DB15 (Female)
- LED: Port status (2 x PC A – Green & 2 x PC B- Red)
- Output Connector (Monitor): Video: 2 x High Density DB15 (Female)
- Power Adapter Spec.: AC 7.5V 800mA (max)
- Signal Type: XGA, VGA, SVGA & Multisync Monitor
- VGA Bandwidth: 250 MHz
- VGA Resolution: VGA Resolution
- Weight: 0.92 Lbs (0.42 kg)
- Width: 5.1 inches (130 mm)
Maximum Analog Resolutions 1920x1440 AV Input VGA AV Output VGA Included in Package - 1 - 2x2 VGA Matrix Switch
- 1 - Power Adapter
- 1 - Instruction Manual
Connector 1 VGA Connector 1 (Quantity) 4 en-US Content Approved Yes
