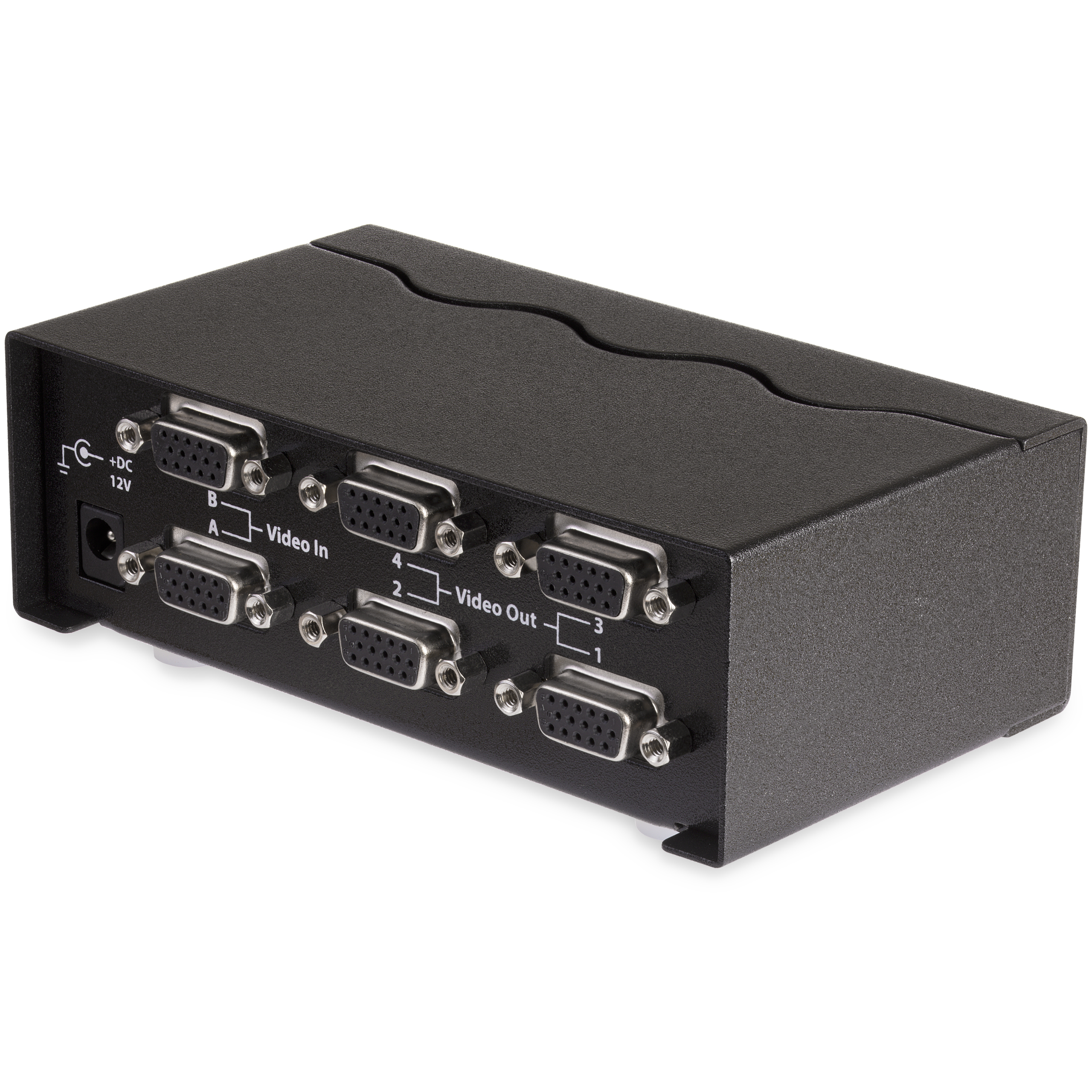

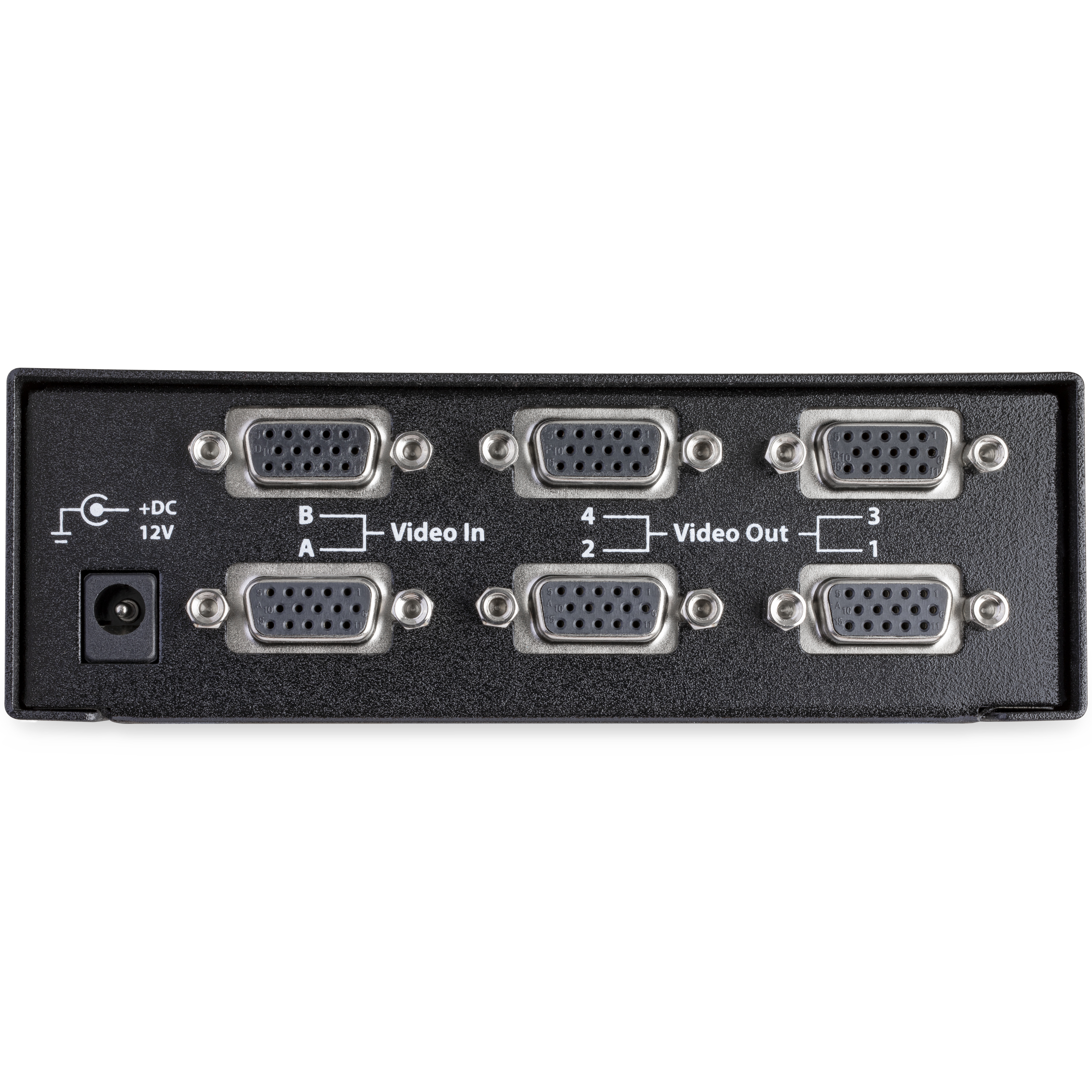

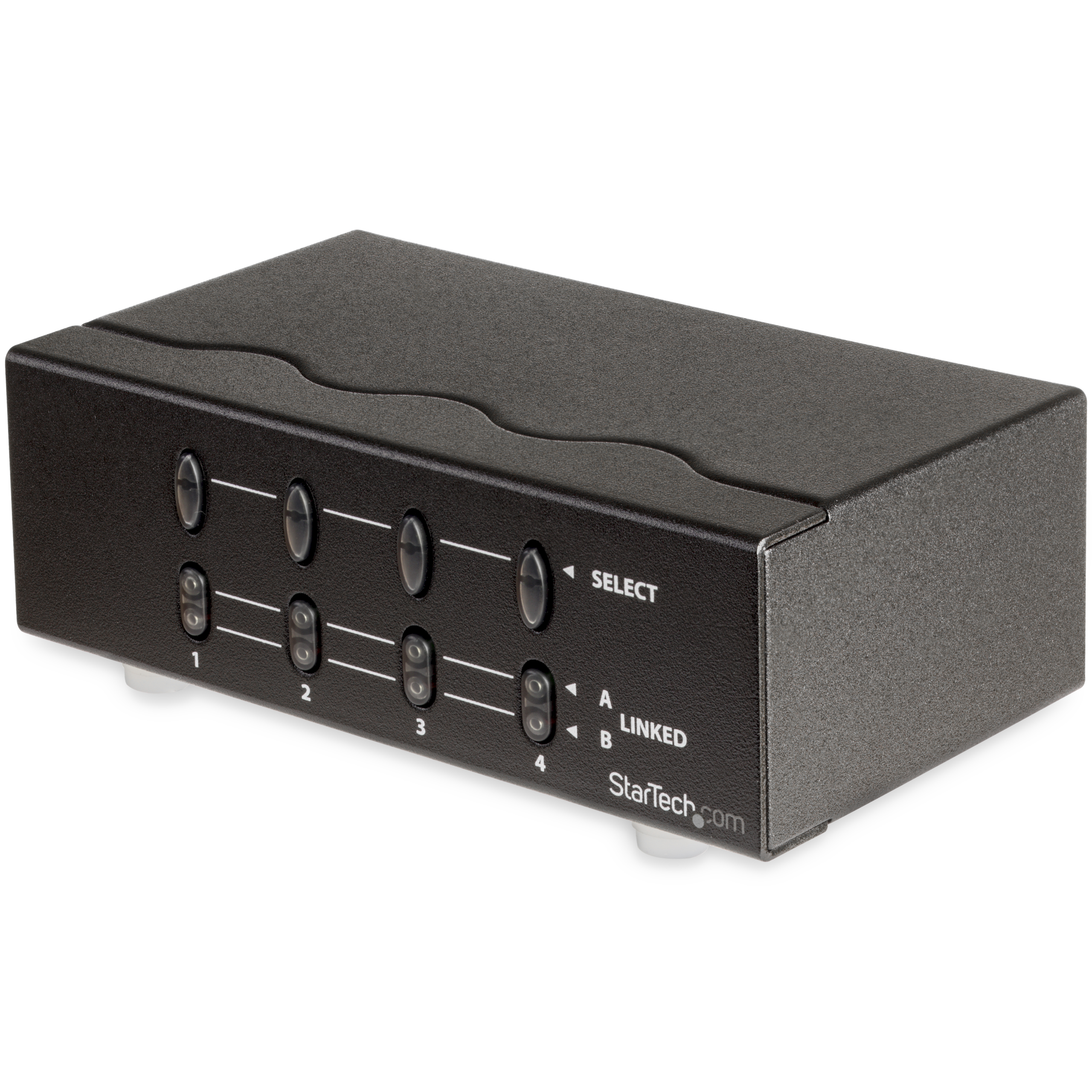

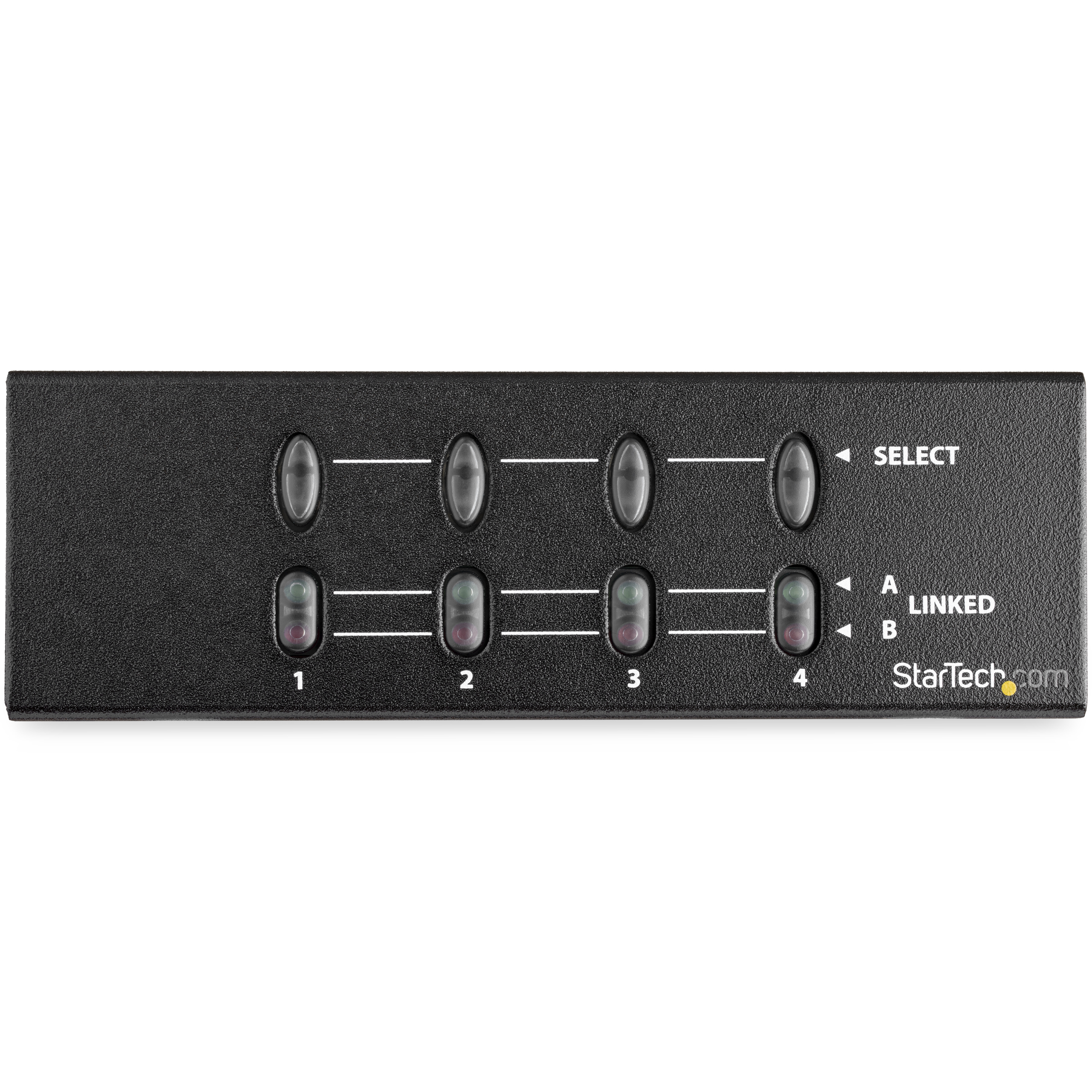

ST224MX
4 Port Dual inchput VGA Matrix Splitter
Share two distinct VGA input source signals between four displays or projectors
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port Dual inchput VGA Matrix Splitter Product Number ST224MX UPC 065030805247 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA Matrix Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) 2x4 High Res Matrix VGA Video Switch Product Title (Standard) 2x4 High Resolution Matrix VGA Video Switch Product Title (Long) 2x4 High Resolution Matrix VGA Video Switch Product Title (AMZ) 2x4 VGA Matrix Switch - High Resolution VGA Video Matrix Switch - 1920x1440 @ 60Hz (ST224MX) Title Ingram (Part 1) 2x4 High Resolution Matrix VGA V Title Ingram (Part 2) ideo Switch Website Product Headline Share two distinct VGA input source signals between four displays or projectors Bullet 1 Allows two computers to provide video input to display on 4 different monitors Bullet 2 Allows you to switch video input signals on all 4 displays Bullet 3 Works with VGA, SVGA, XGA and Multisync monitors Bullet 4 High video bandwidth (250 Mhz) provides resolution of up to 1920 x 1440 pixels Bullet 5 Daisy chainable for use with more than 8 monitor hookups Bullets (Consolidated) Allows two computers to provide video input to display on 4 different monitors - Allows you to switch video input signals on all 4 displays - Works with VGA, SVGA, XGA and Multisync monitors - High video bandwidth (250 Mhz) provides resolution of up to 1920 x 1440 pixels - Daisy chainable for use with more than 8 monitor hookups - Equipped with easy to use front panel selection buttons - Includes an AC 7.5V power adapter Marketing Copy Applications - Public broadcast systems
- Demos and presentations
- In-store product merchandising
- Information kiosks
Website Search Keyword DA Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- ST121UTP
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST222MX
- ST228MX

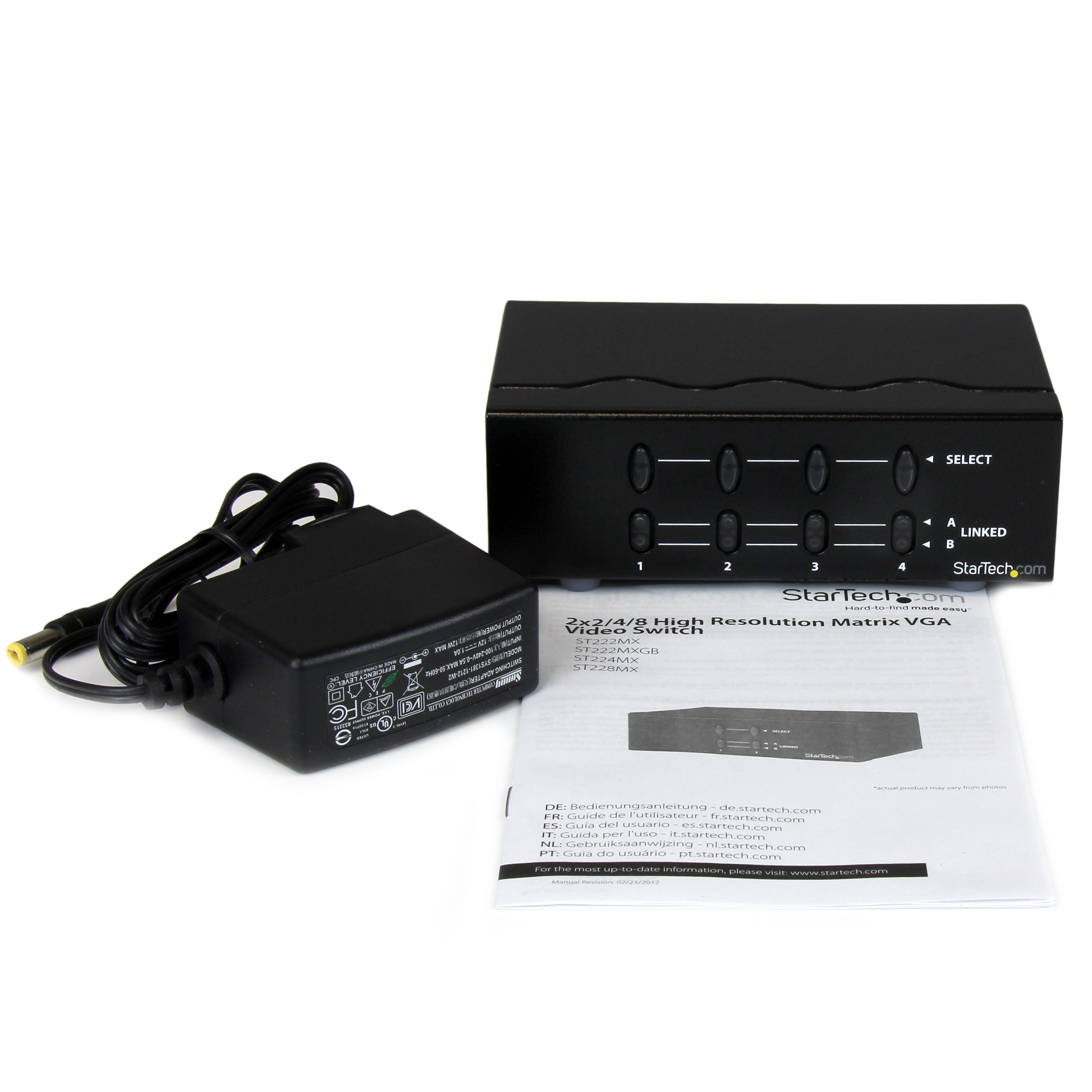

Equivalent Part Number in the UK ST224MXGB Output Current 1 A Output Voltage (V) 12V DC Power Consumption (In Watts) 12 Power Source AC Adapter Included Plug Type M Color Black Material Steel Primary Material Steel Product Length (mm) 200.000 Product Width (mm) 75.000 Product Height (mm) 42.000 Product Weight (g) 471.000 TAA Compliant Yes Bandwidth 250MHz Maximum Analog Resolutions 1920x1440 @ 60Hz Maximum Cable Length (mm) 65000 Audio No AV Input VGA AV Output VGA LED Indicators 8 - Port status (4 x PC A – Green & 4 x PC B- Red) Matrix Video Switch (Filter) Yes Carton Depth (mm) 350 Carton Height (mm) 424 Carton Quantity 20 Carton Weight Gross (g) 21000 Included in Package - 1 - 2x4 VGA Matrix Switch
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 58 Package Height (mm) 196 Package Width (mm) 258 Package Quantity 1 Package Weight (g) 749 Packaging Description 2x4 Matrix VGA Video Switch - 1920x1440 Packaging Description India 2x4 Matrix VGA Video Switch - 1920x1440 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
