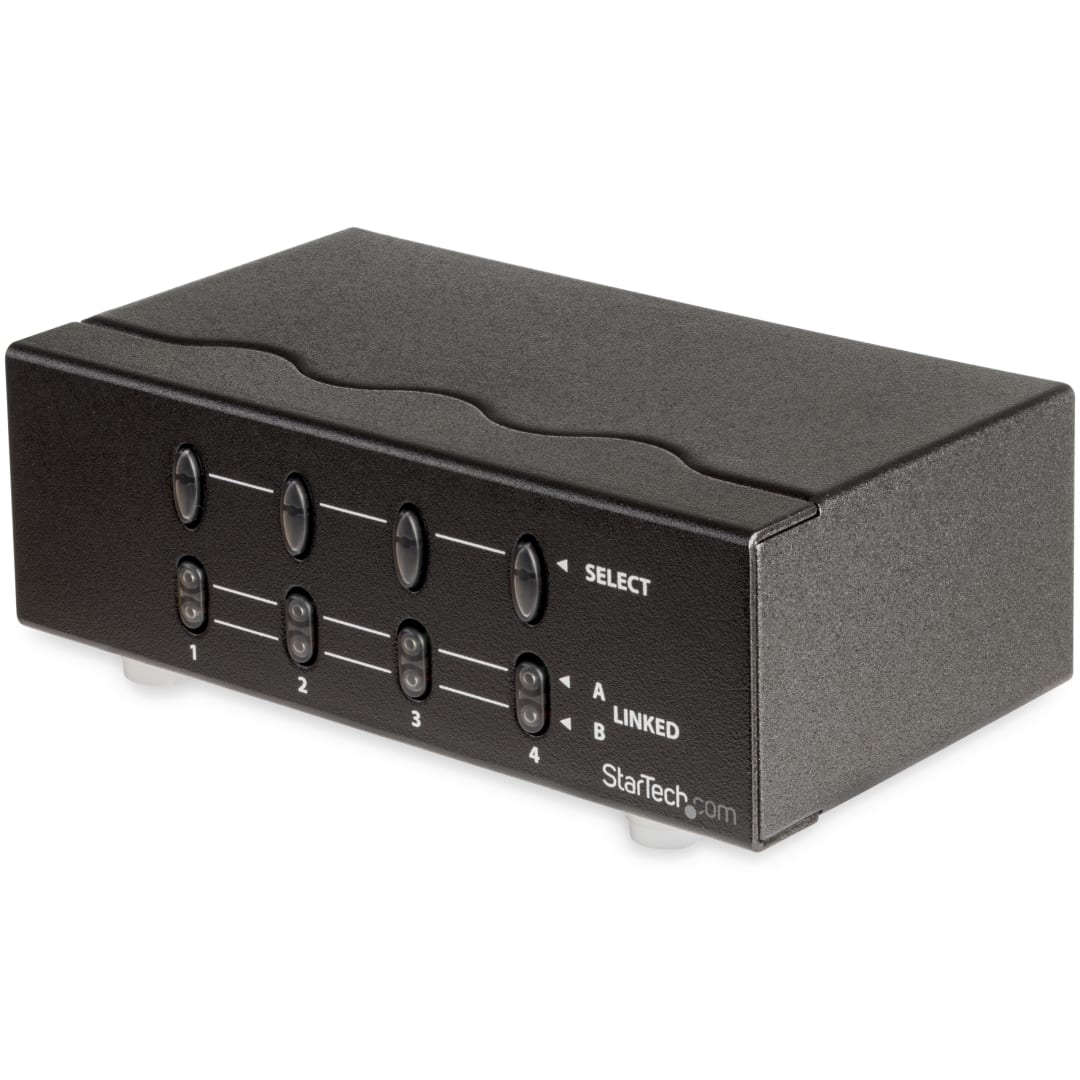

Product Name European 4 Port Dual Input VGA Splitter Product Number ST224MXEU UPC 065030811644 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) 4 Port Dual Input VGA Matrix Splitter Bullet 1 Allows two computer to provide simultaneous displays on 4 different monitors Bullet 2 Allows you to switch video signals to any desired monitor Bullet 3 Daisy chainable for use with more than 8 monitor hookups Bullet 4 Equipped with easy to use front panel selection buttons Bullet 5 High video bandwidth (250 Mhz) provides resolution of up to 1920 x 1440 pixels Marketing Copy Applications - Demos and presentations
- In-store product merchandising
- Information kiosks
- Public broadcast systems
Accessory Products - MXT101HQ
- MXT101HQ_100
- MXT101HQ_150
- MXT101HQ_200
- MXT101HQ_25
- MXT101HQ_50
- MXT101MMHQ
- MXT105HQ
- MXT105MMHQ
Related Products - ST222MX
- ST228MX
Input Current 0.8 Input Voltage 7.5 Color Gray Product Length (mm) 200 Product Width (mm) 75 Product Height (mm) 42 Product Weight (g) 450 TAA Compliant No General Specifications - Cable Length: 65m (210 ft.) maximum
- Certifications: FCC & CE
- Depth: 2.9 inches (75 mm)
- Dimensions:
- Height: 1.6 inches (42 mm)
- Input Connector (Computer): Video: 2 x High Density DB15 (Female)
- LED: Port status (4 x PC A – Green & 4 x PC B- Red)
- Output Connector (Monitor): Video: 4 x High Density DB15 (Female)
- Power: AC 7.5V 800mA (max)
- Signal Type: XGA, VGA, SVGA & Multisync Monitor
- VGA Bandwidth: 250 MHz
- VGA Resolution: 1920 x 1440 @ 60 Hz
- Weight: 1.0 lbs (0.45 kg)
- Width: 7.8 inches (200 mm)
Maximum Analog Resolutions 1920x1440 Carton Depth (mm) 350 Carton Height (mm) 424 Carton Quantity 20 Carton Weight Gross (g) 1224.6984 Package Depth (mm) 58 Package Height (mm) 196 Package Width (mm) 258 Package Weight (g) 990 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 6 en-US Content Approved Yes Product Manager Eric Roth
