ST228MX
8 Port Dual Input VGA Matrix Splitter
Share two distinct VGA input source signals between eight displays or projectors

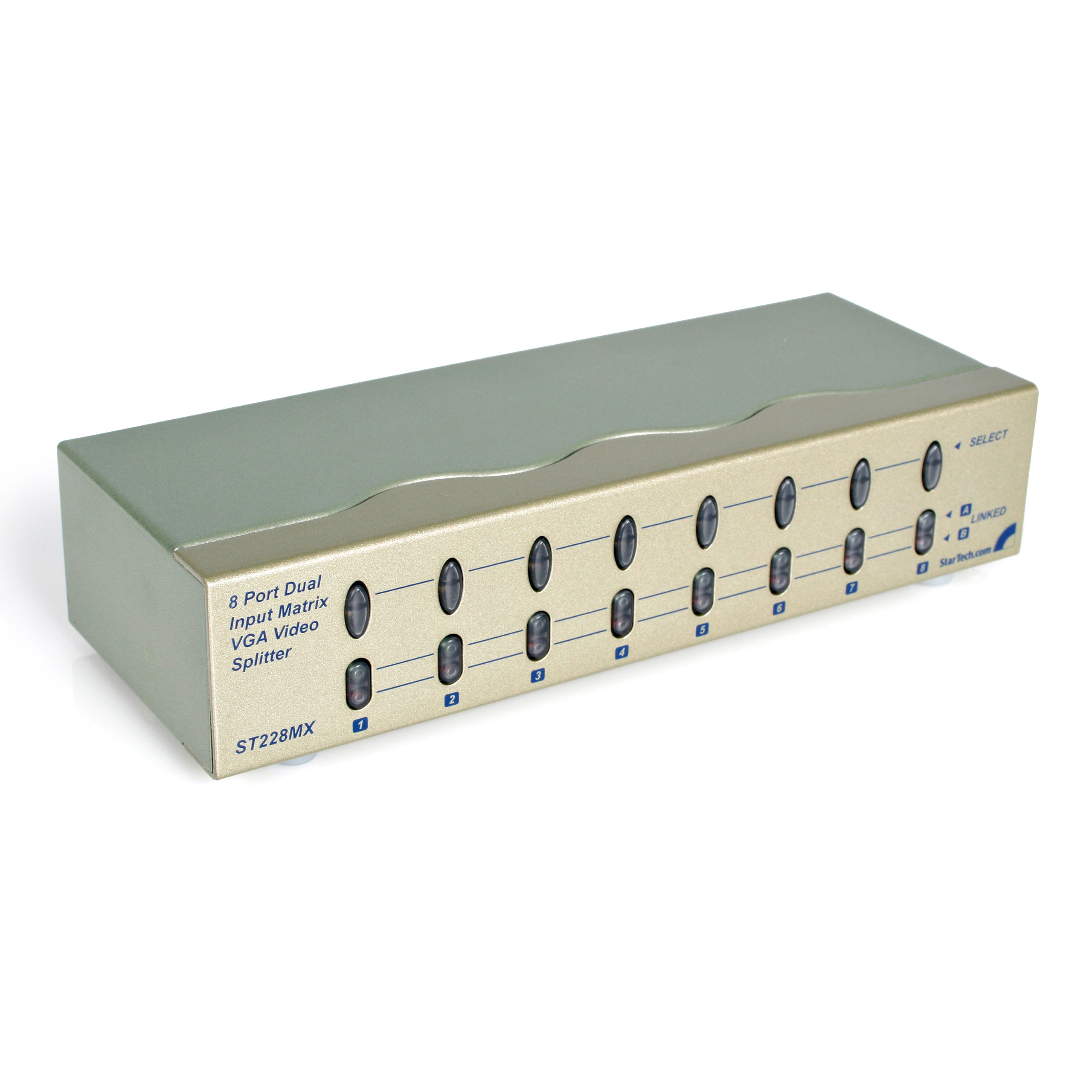

Main Image

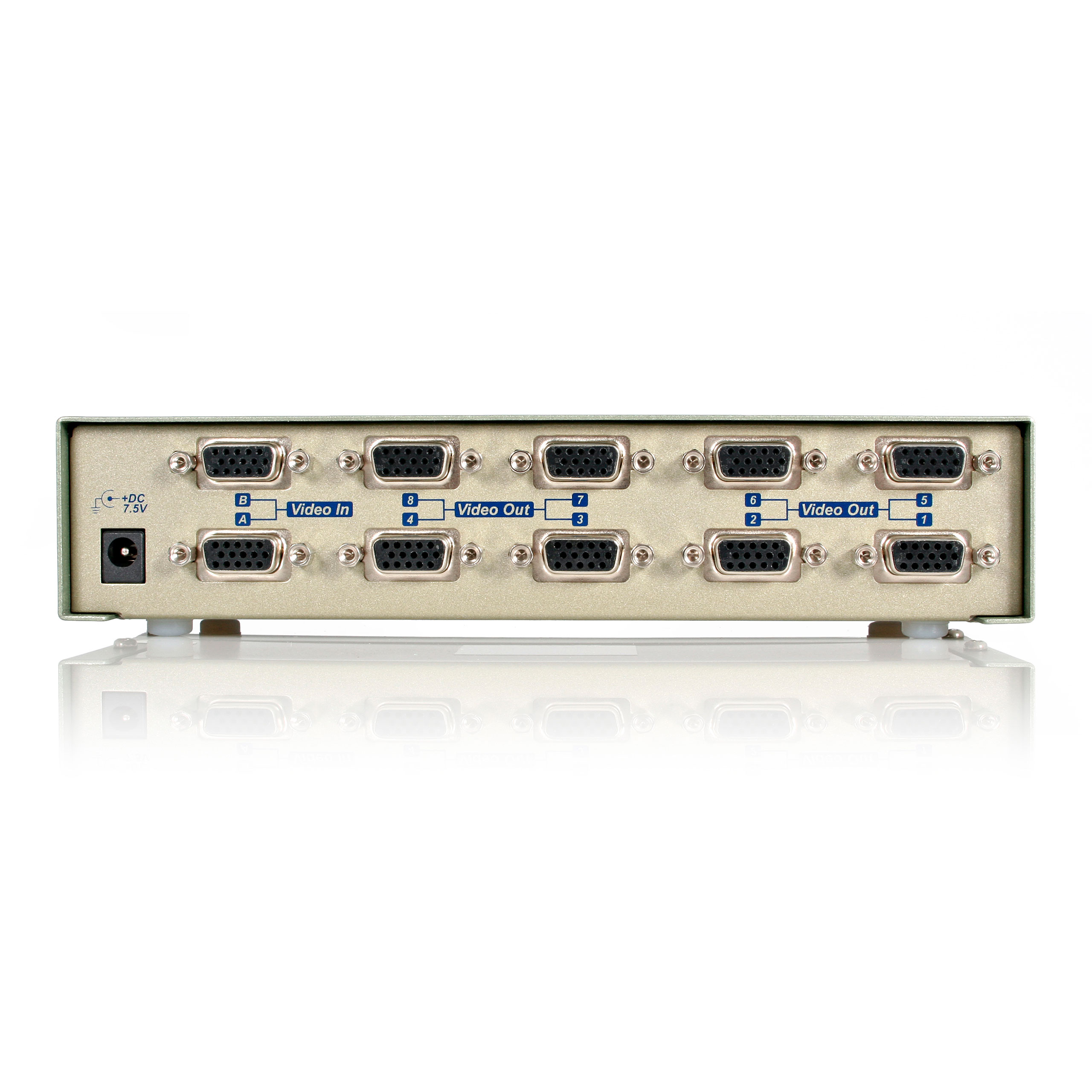

Product Images

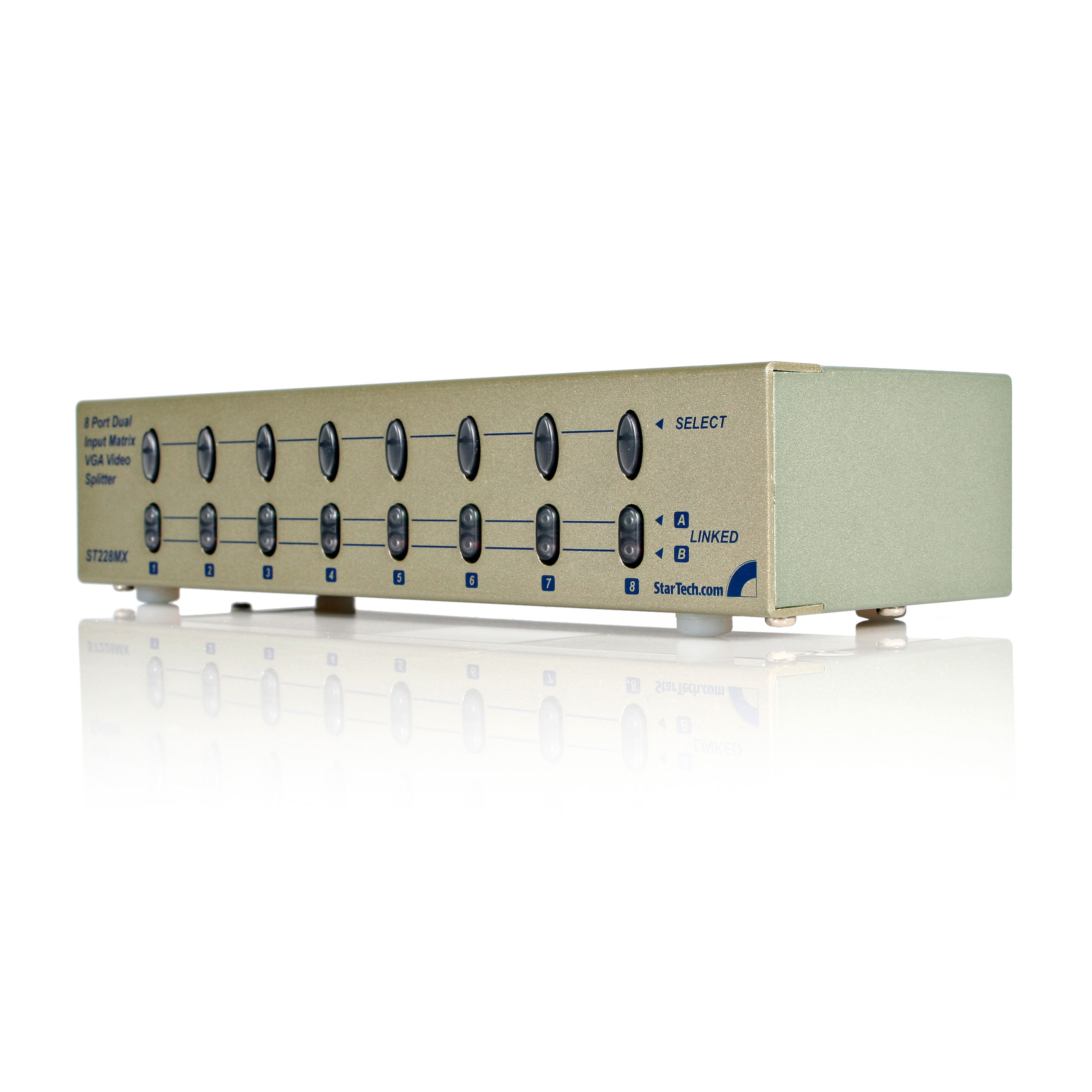

Product Images

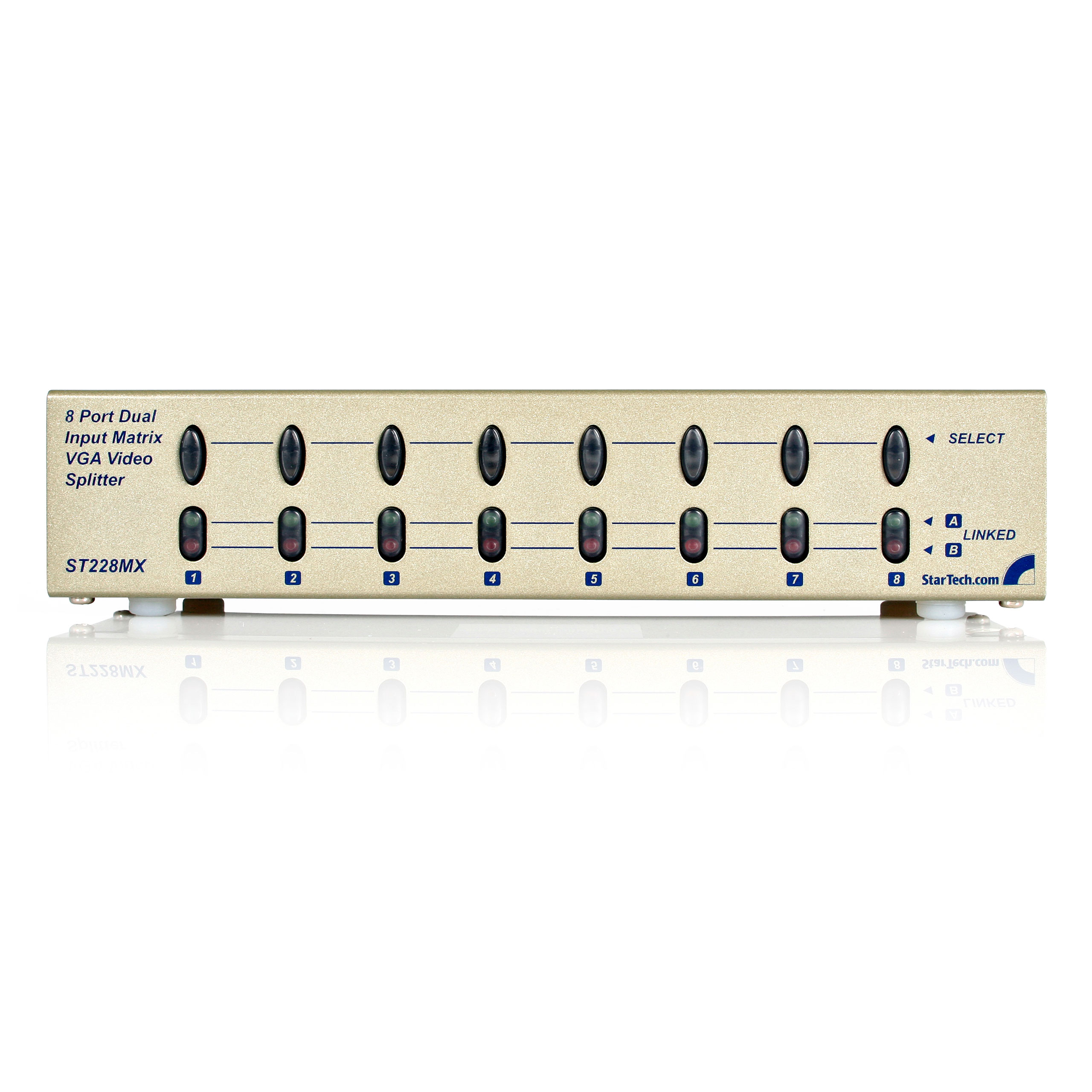

Product Images
BOM Image
Product Name 8 Port Dual Input VGA Matrix Splitter Product Number ST228MX UPC 065030805254 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) 2x8 High Res Matrix VGA Video Switch Product Title (Standard) 2x8 High Resolution Matrix VGA Video Switch Product Title (Long) 2x8 High Resolution Matrix VGA Video Switch Title Ingram (Part 1) 2x8 High Resolution Matrix VGA V Title Ingram (Part 2) ideo Switch Website Product Headline Share two distinct VGA input source signals between eight displays or projectors Bullet 1 Allows two computers to provide video input to display on 8 different monitors Bullet 2 Allows you to switch video to choose between two input signals for each display Bullet 3 Works with VGA, SVGA, XGA and Multisync monitors Bullet 4 High video bandwidth (250 Mhz) provides resolution of up to 1920 x 1440 pixels Bullet 5 Daisy chainable for use with more than 8 monitor hookups Marketing Copy Applications - Public broadcast systems
- Demos and presentations
- In-store product merchandising
- Information kiosks
Website Search Keyword DA Accessory Products - MXT101HQ
- MXT105HQ
- MXT101HQ_25
- MXT101HQ_50
- MXT101HQ_100
- ST121UTP
Related Products - ST222MX
- ST224MX

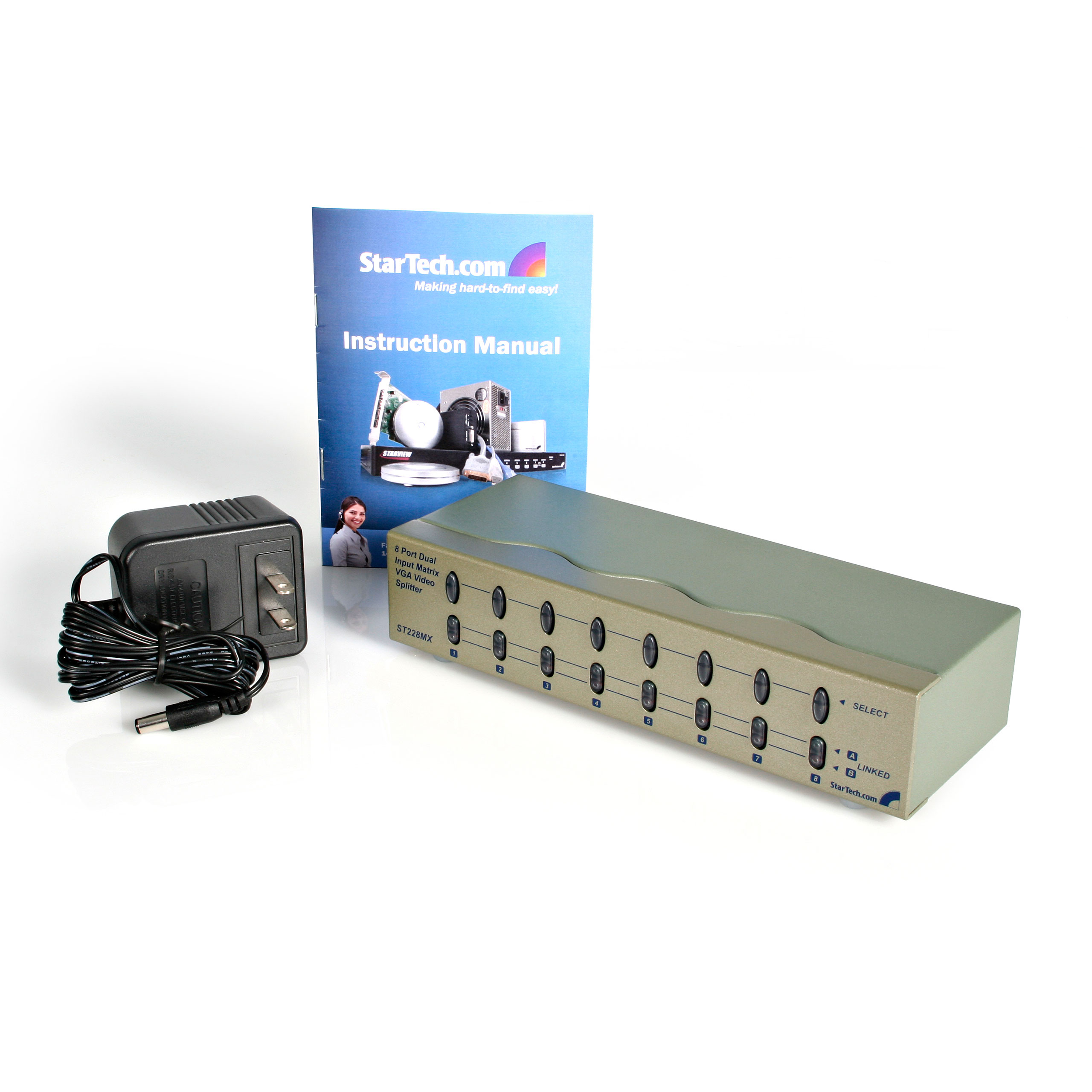

Output Current 0.8A Output Voltage (V) 7.5 AC Color Gray Product Length (mm) 343 Product Width (mm) 105 Product Height (mm) 42 Product Weight (g) 1500 TAA Compliant No Bandwidth 250MHz Maximum Analog Resolutions 1920x1440 @ 60 Hz Maximum Cable Length (mm) 65000 Audio No AV Input VGA AV Output VGA LED Indicators 16 - Port status (8 x PC A – Green & 8 x PC B- Red) Matrix Video Switch (Filter) Yes Carton Depth (mm) 350 Carton Height (mm) 424 Carton Quantity 20 Carton Weight Gross (g) 25800 Included in Package - 1 - 2x8 VGA Matrix Switch
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 60 Package Height (mm) 196 Package Width (mm) 258 Package Weight (g) 1230 Packaging Description 2x8 Matrix VGA Video Switch - 1920x1440 Packaging Description India 2x8 Matrix VGA Video Switch - 1920x1440 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 8 en-US Content Approved Yes Product Manager Eric Roth
