ST250P
Main Image

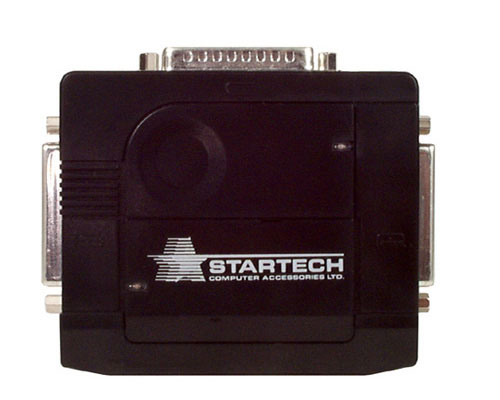

Product Name Reversible 2-to-1 Parallel Autoswitch Product Number ST250P UPC 065030201056 Warranty Lifetime Taxonomy Product > Legacy Discontinued Product Title (Long) Reversible 2-to-1 Parallel Autoswitch Bullet 1 Laser Printer Safe Bullet 2 Light and Compact Bullet 3 Adjustable "END OF FILE" time-out Bullet 4 LED "In-Service" indicator Bullet 5 Parallel switches are available in reversible models. Applications - Two (2) computers share one (1) printer ++
- One (1) computer to two (2) printers
- ++ Requires two (2) straight through DB25 male-to-male cables (SCxxMM) and one (1) parallel printer cable (PBxx, PCxx, PMCxx)
- AC power adapter (COMPACPOWER) is required only if the autoswitch cannot get enough power from devices or operates intermittently
TAA Compliant No General Specifications - Interface: Parallel
- Configuration: 2-1 or 1-2 reversible
- Power: DC 9V max, 50mA min (optional)
- Timeout (seconds): 10 sec.
- Max. Length In: 15 ft., 4.6m
- Max. Length Out: 25 ft., 7.6m
- In connectors: DB25 Female
- Out connectors: DB25 (Female)
- Dimensions (mm): 103 x 81 x 25
Included in Package - 1 - AUTO SWITCH
- 1 - DRIVER DISK
- 1 - MANUAL
