ST2PTREP
Main Image

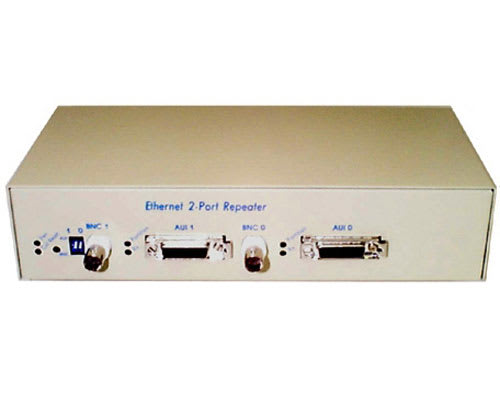

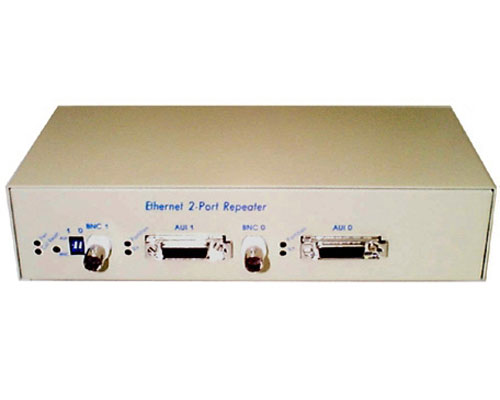

Product Name *D*2-port Coaxial Ethernet Repeater Product Number ST2PTREP UPC 065030775762 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*2-port Coaxial Ethernet Repeater Bullet 1 Complies fully to IEEE 802.3 CSMA/CD ethernet repeater specification Bullet 2 Provides automatic connect/disconnect functions Bullet 3 Input/Output BNC connectors and Input/Output AUI connector Bullet 4 Automatically isolates malfunctioning segments to protect the rest of the network Bullet 5 LED lights on front panel indicate power and port traffic Marketing Copy With the StarTech.com 2-port Coaxial Ethernet Repeater, connecting your Network has never been easier. This product complies fully to IEEE 802.3 CSMA/CD ethernet repeater specifications and provides automatic connect/disconnect functions. To protect your data, the repeater automatically isolates malfunctioning segments to protect the rest of the network. At-a-glance troubleshooting is made possible by the LED lights on front panel that indicate power and port traffic. Not only does this device extend your coaxial ethernet LAN by 185 meters per segment and allows another 30 nodes per segment. TAA Compliant No General Specifications - Standards: IEEE 802.3 10Base5/2
- Transfer Rate: 10Mbps
- BNC Ports: (2) BNC for Thin Ethernet
- Reset: Power On and Switch
- LEDs: Power, Rx, Tx
- Dimensions: 250x180x50mm (10x7x2.2 in.)
- Weight: 2000g (4.4 lb.) net
- Power Supply: AC 110/220V (50/60Hz) switchable
- Operating Environment: 0~70 deg C, 10~80% relative humidity
Included in Package - 1 - 2 Port Coaxial Ethernet Repeater
- 1 - power cord
- 4 - Connectors
en-US Content Approved Yes
