ST4000PEXPSE

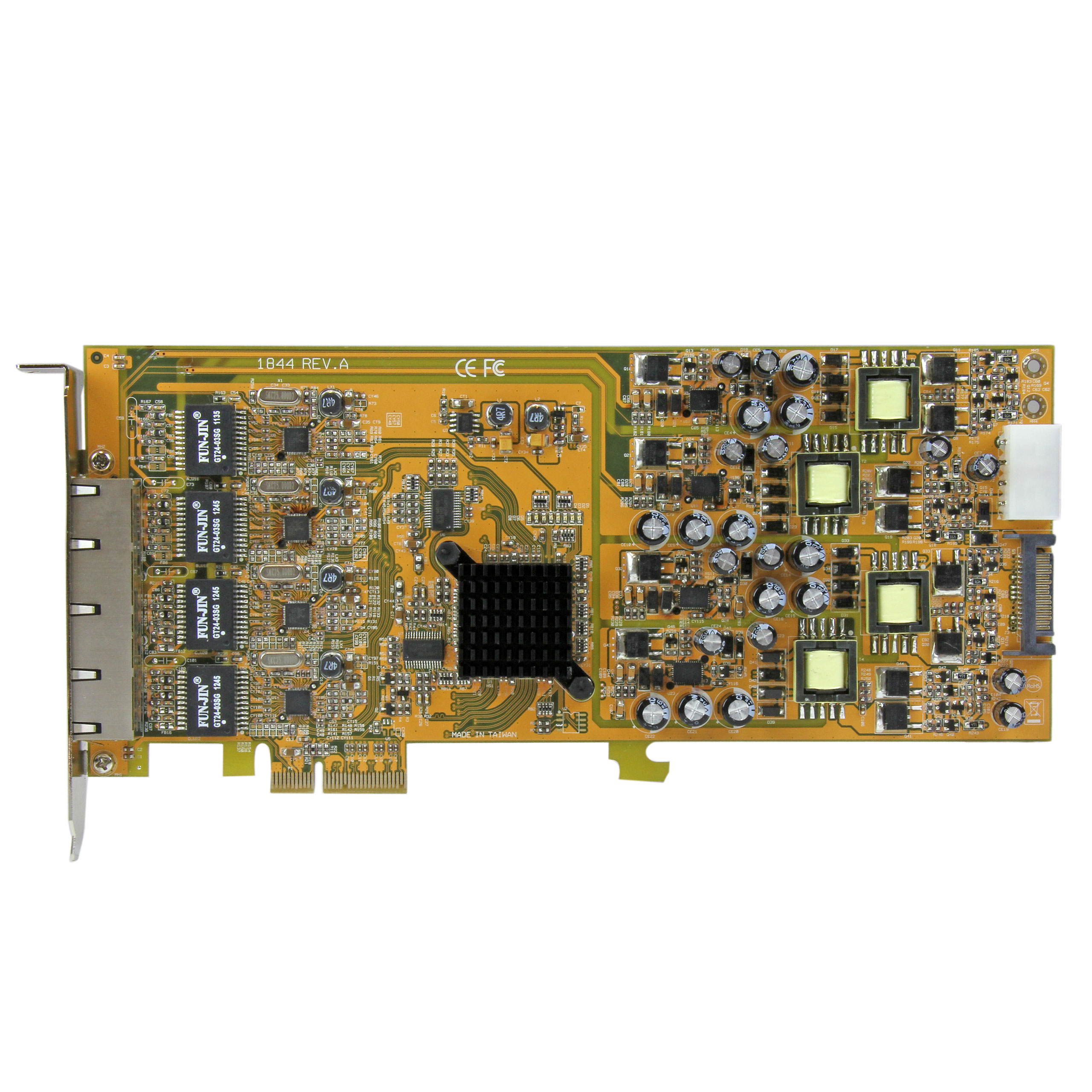

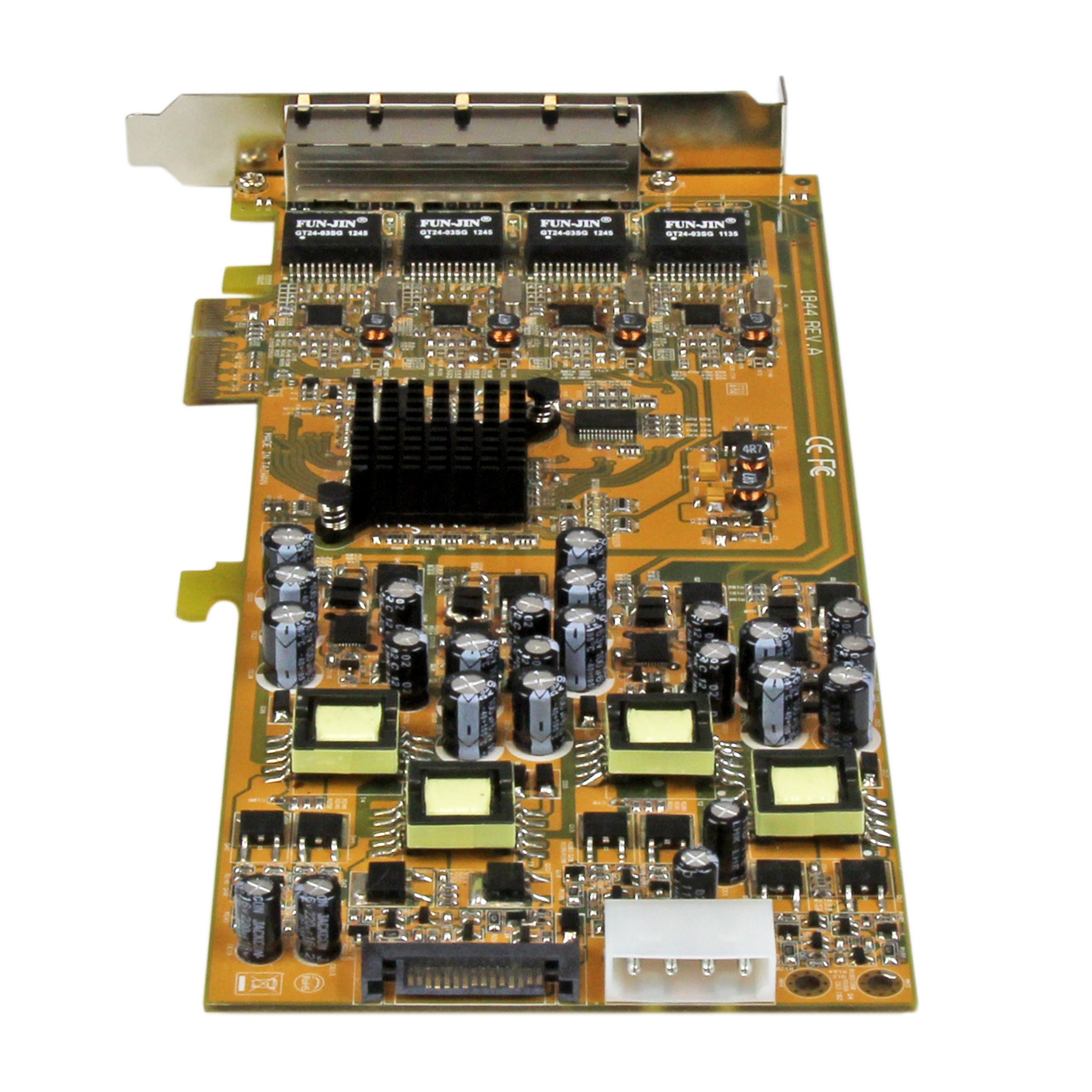

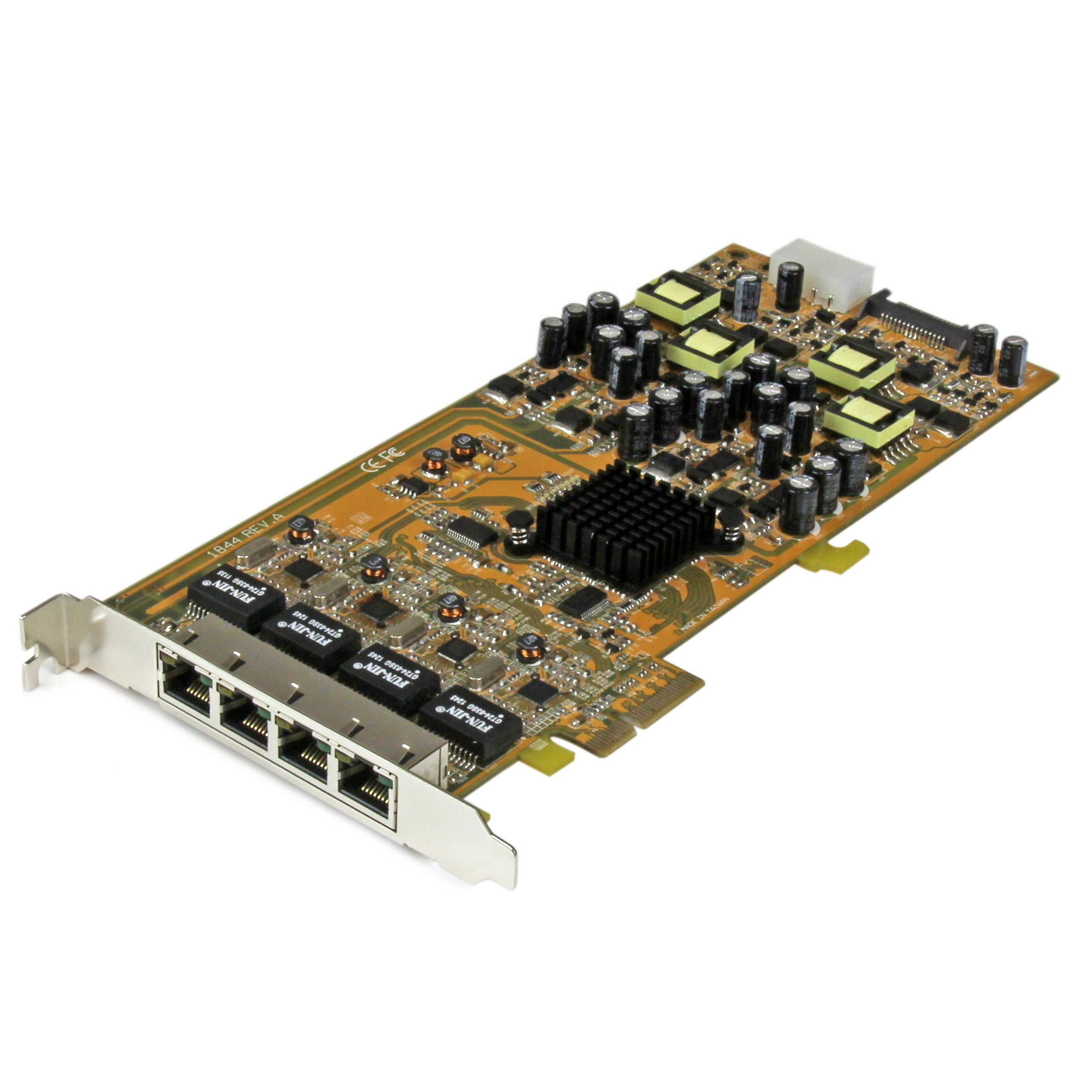

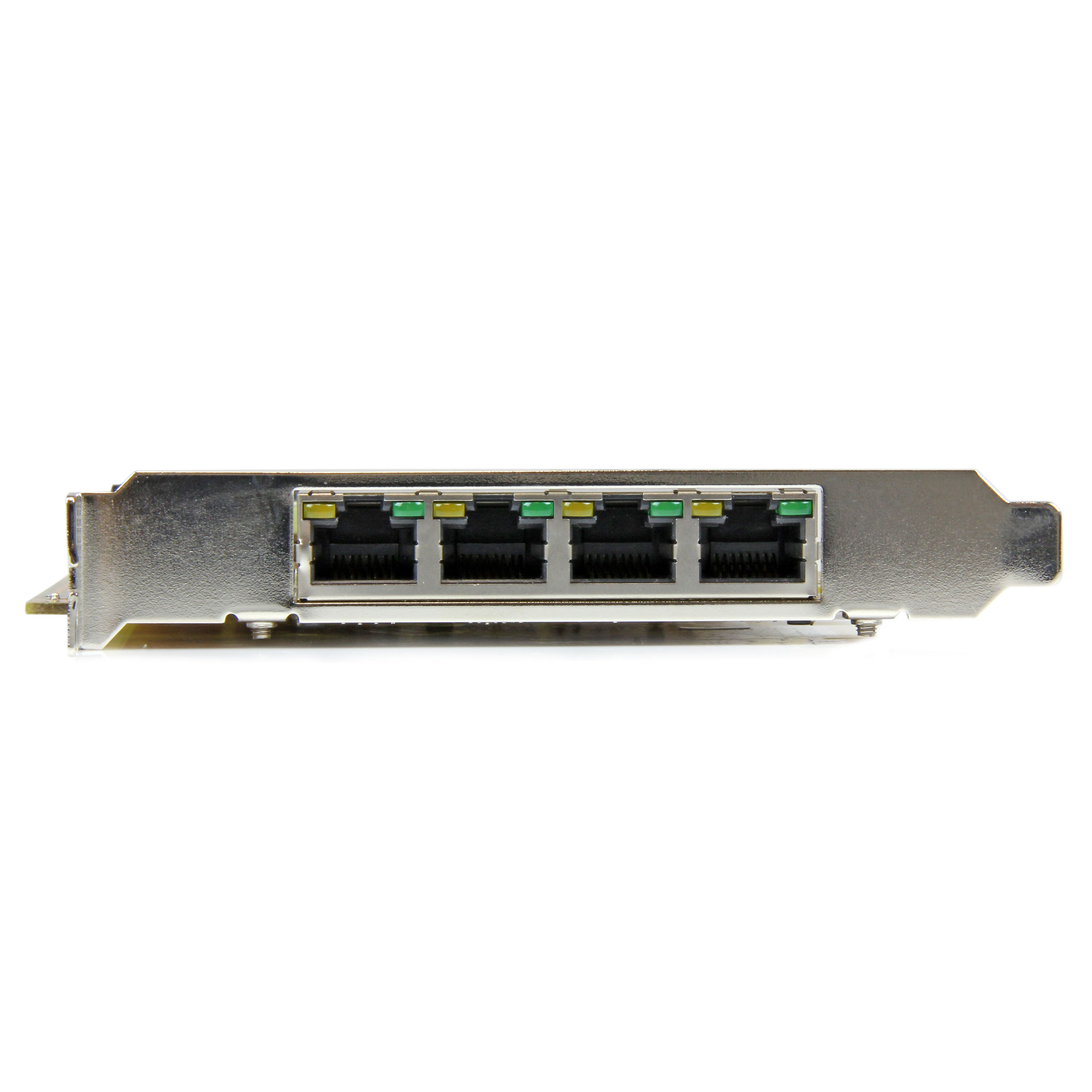

Quad Port GbE PCI Express Network Card w PoE
Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computer
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Quad Port GbE PCI Express Network Card w PoE Product Number ST4000PEXPSE UPC 065030855150 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family PCIe NICs with PoE Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) 4Pt Gigabit PoE NIC Product Title (Short) 4 Port Gigabit PoE PCIe Network Card Product Title (Medium) 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC Product Title (Standard) 4 Port Gigabit Power over Ethernet PCIe Network Card, PSE / PoE PCI Express NIC, TAA Product Title (Long) 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC - TAA Product Title (AMZ) 4 Port Gigabit PoE (Power over Ethernet) Card - PCIe Network Card - PoE / PoE+ Up to 25W Per Port - PCIe NIC - Gigabit Ethernet Card , TAA (ST4000PEXPSE) Title Ingram (Part 1) 4Port GbE PCI Express Network Title Ingram (Part 2) Card w/ PoE Website Product Headline Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computer Bullet 1 FULLY COMPLIANT: This 4 port Gigabit PoE card is fully compliant with IEEE 802.3at Class 1 & Class 2, Type 1, Power over Ethernet (PoE) standards Bullet 2 PSE SUPPORT: This PCIe network card features a Power Sourcing Equipment (PSE) endpoint that supports up to 50V, 25.5 watts max. output per port Bullet 3 POWER YOUR PoE DEVICES: Provide connectivity and power to compatible PoE devices, including cameras and wireless access points using this PCIe PoE Ethernet card Bullet 4 ULTIMATE SUPPORT: The Gigabit NIC supports IEEE 802.3 AT Class 1 and Class 2 (Type 1), 802.3az Draft 2.2 Energy-Efficient Ethernet (EEE), 802.1q VLAN tagging, 802.1p Layer 2 Priority Encoding and 802.3x Full Duplex Flow Control Bullet 5 THE IT PRO'S CHOICE: Designed for reliability in edge and on-prem deployments, our network cards are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computer - 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC - PCI Express GbE Quad Port NIC - PoE Card - 4 Port Network Card Bullets (Consolidated) Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computer - 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE/PoE PCI Express NIC - PCI Express GbE Quad Port NIC - PoE Card - 4 Port Network Card - IEEE 802.3at (Type 1) compliant Power over Ethernet supports up to 50V, 25.5 Watts max. output per port Marketing Copy Marketing Copy (No HTML) Applications - Create a host computer for networked security cameras situated in remote areas, where standard power connection is not possible
- Install PoE-powered Wireless Access Points (WAP) or repeaters in industrial, warehousing or business environments
- Enable remote installation of touchscreens or information kiosks
Patents and Licenses Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
System and Cable Requirements - Available full height (standard profile) PCI Express expansion slot
- Available LP4 or SATA power connector
Accessory Products - C6PATCH6BK
- C6PATCH10BL
- C6PATCH50YL
- C6PATCH100GN
- WIRC6PATBLRL
- WIRC6CMRBL
Related Products - ST2000PEXPSE
- ST1000SPEX42
- ST2000SPEXI
- ST1000SPEXD4
- IES61002POE
- IES81000POE
- POEINJ1GI
Output Voltage (V) 50V DC Color Yellow Humidity 10~90% RH (Non-condensing) Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Steel Product Length (mm) 243.000 Product Width (mm) 18.000 Product Height (mm) 120.000 Product Weight (g) 102.000 Storage Temperature -40°C to 75°C (-40°F to 158°F) TAA Compliant Yes Auto MDIX Yes Buffer Size 48 KB Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 2000 Mbps (Full-duplex) OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Linux
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
Promiscuous Mode Yes Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile Chipset ID Realtek - RTL8111H Industry Standards IEEE 802.3at, 802.3af, 802.3, 802.3u, 802.3ab, 802.3az Draft 2.2 Energy-Efficient Ethernet (EEE), 802.1q VLAN tagging, 802.1p Layer 2 Priority Encoding and 802.3x Full Duplex Flow Control Interface/Bridge RJ45 (Gigabit Ethernet) IO Card Port Style Integrated on Card LED Indicators - 4 - Link/ Activity (green)
- 4 - PoE Active (yellow)

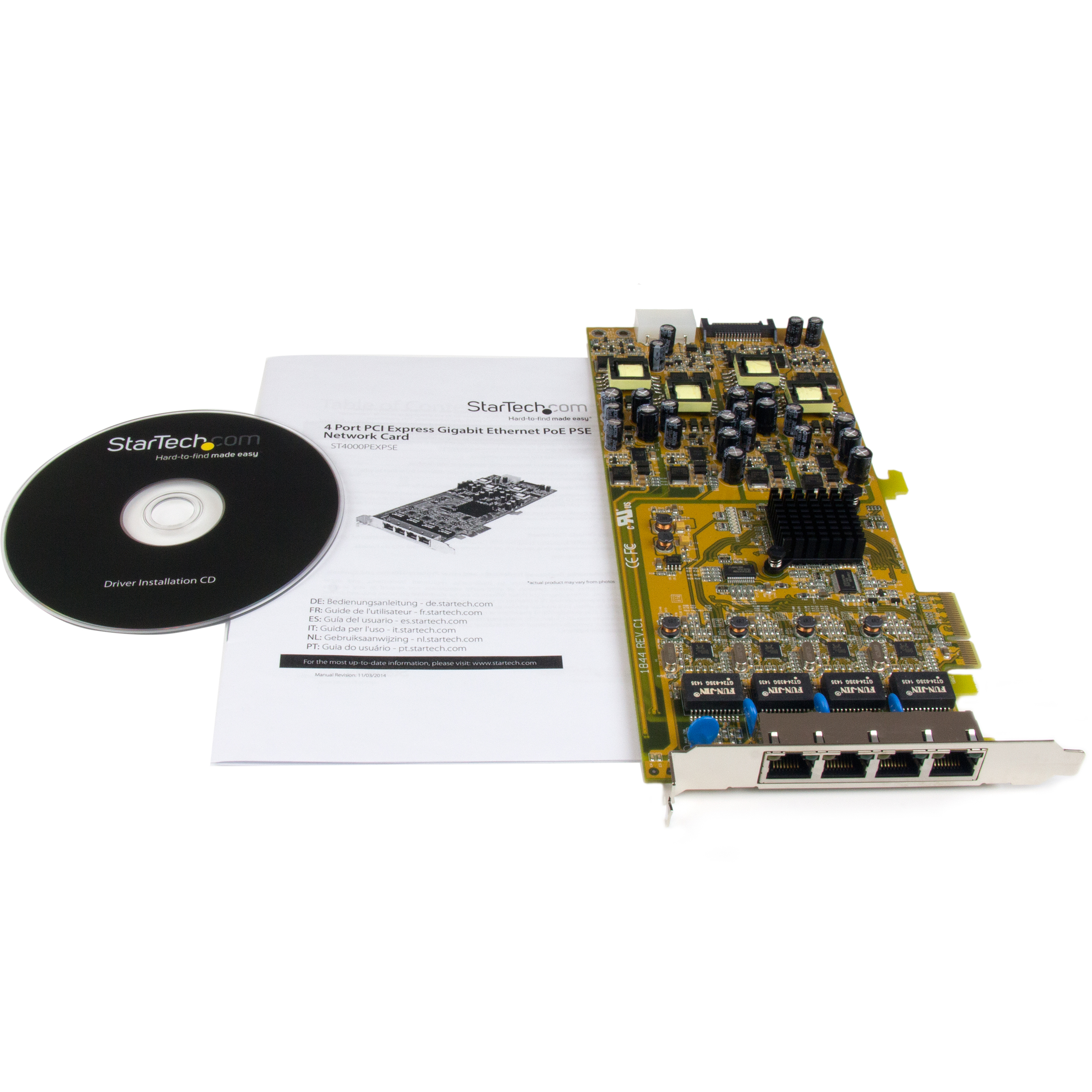

Carton Depth (mm) 402 Carton Height (mm) 324 Carton Quantity 14 Carton Weight Gross (g) 7230 Included in Package - 1 - PCI Express Network Card
- 1 - Instruction Manual
Included In Package for Label - 1 - PCI Express Network Card
- 1 - Instruction Manual
Package Depth (mm) 191 Package Height (mm) 71 Package Width (mm) 296 Package Quantity 1 Package Weight (g) 424 Packaging Description 4 Port PCIe Gigabit Ethernet PoE PSE Network Card Packaging Description India 4 Port PCIe Gigabit Ethernet PoE PSE Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 4 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-10-03 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
